Crestline Bikes RS 75/50 SRAM CX-Race
Crestline, a small brand founded by two gravity fiends, came about when they realized that there was a hole in the market for a bike that used all the benefits of a full-power e-bike; massive pedaling power, long battery life, and an unmatched feeling of stability on trail, while taking advantage of the fact that extra travel doesn’t detract from the ride.

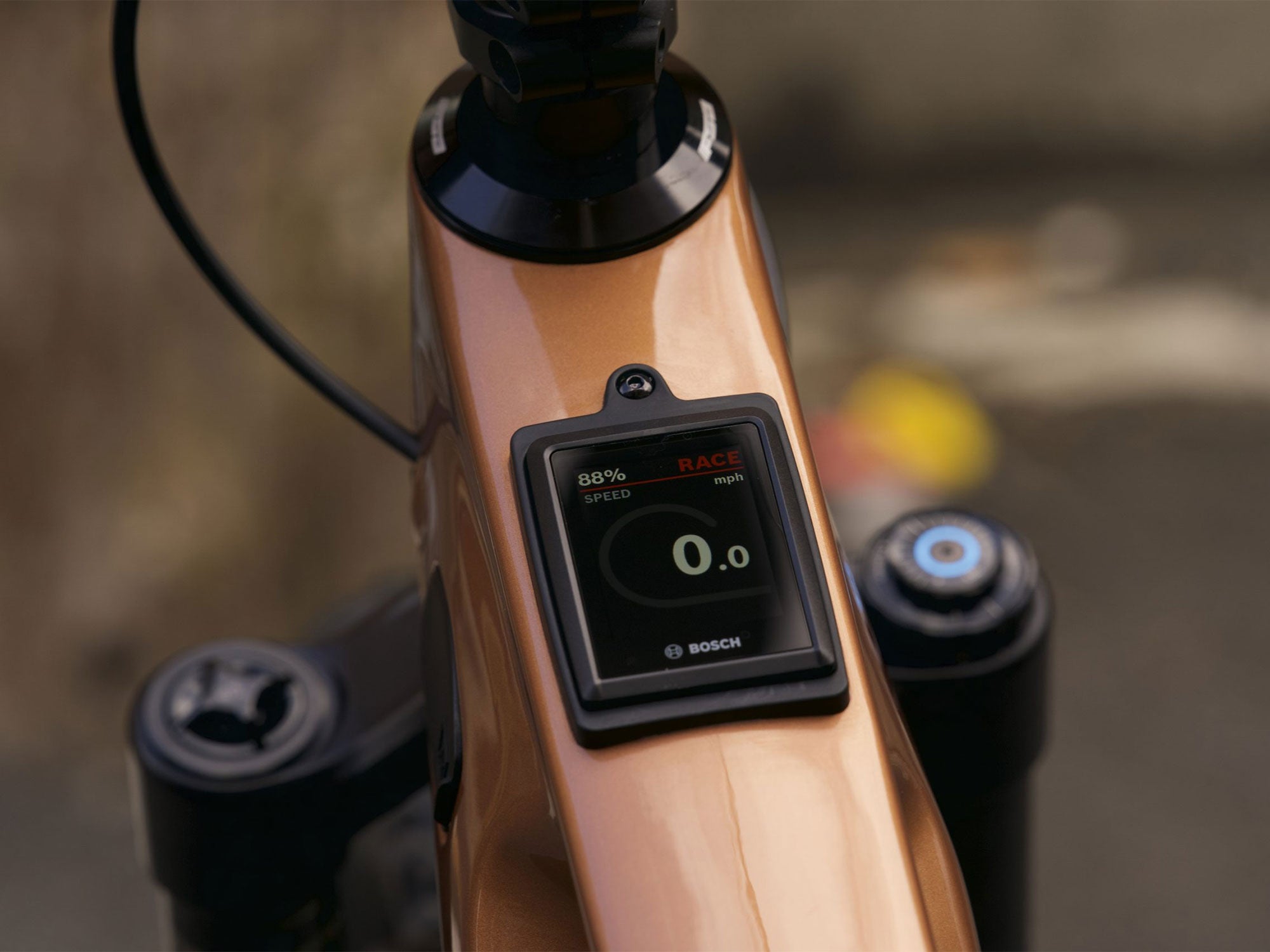

Enter the RS 75/50, a bike designed around 175mm of rear travel and a 180mm fork (swappable to 150mm rear/160mm front) that doesn’t compromise when you’re pointed down hill. Fitted with the latest Bosch CX-Race motor, bluetooth controller components, and a 750wh battery, it is the epitome of the self-shuttle bike; a ride that allows you to cram lap after lap into your afternoons while maintaining composure into your adrenaline-fueled descents.
Features

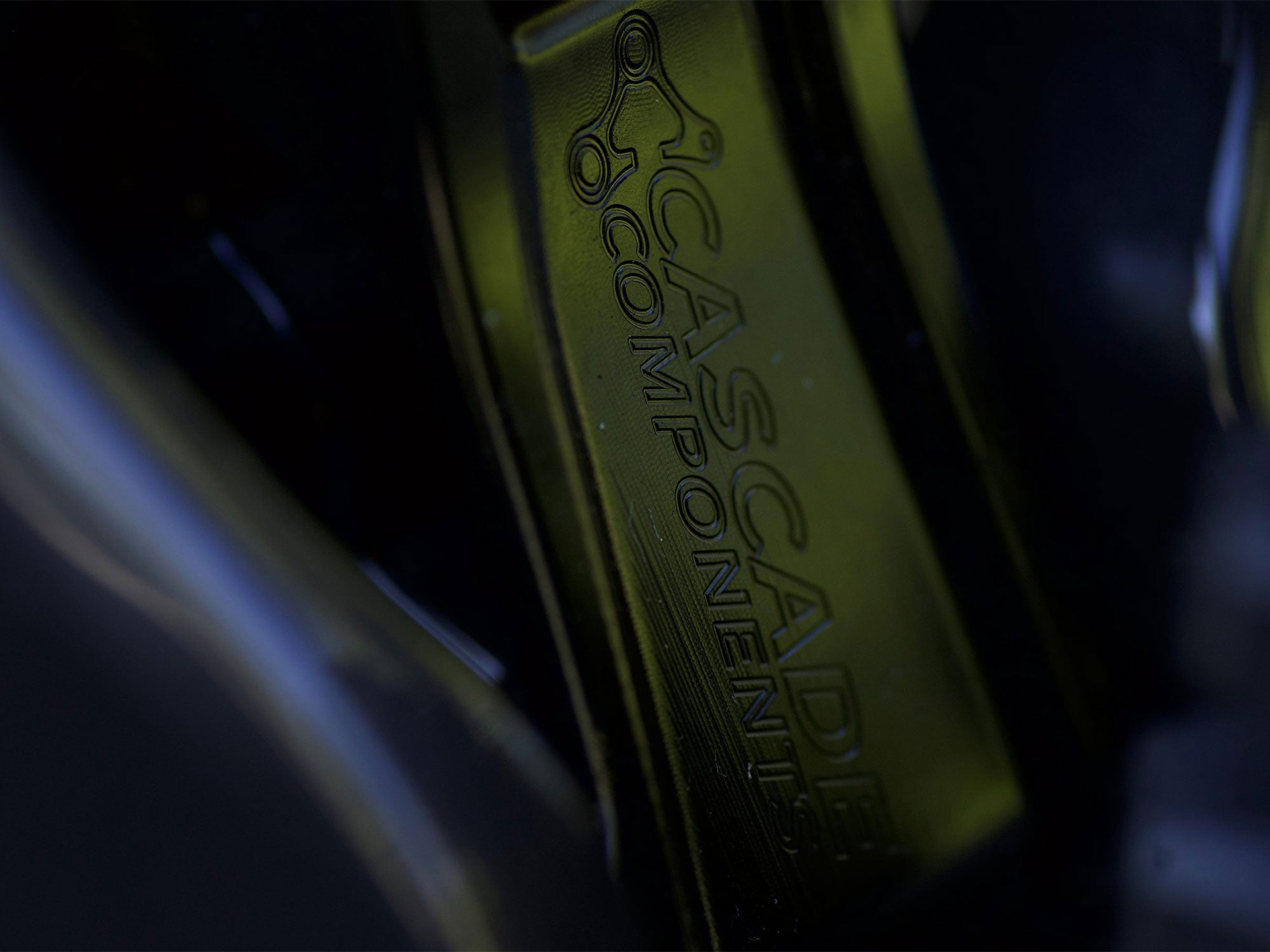

- Suspension kinematics designed by Cascade Components
- Limited Edition Bosch CX-R Motor
- Travel Adjust flip chip allows for three travel settings: 175mm (230x65 w/ Long Setting) | 162mm (230x65 w/ Short Setting) | 150mm (230x57.5 Short Setting)
- Straight head tube allows for angle and reach adjust headsets to dial in cockpit
- SRAM UDH (Universal Derailleur Hanger)
- Water bottle mount on down tube and accessory mount on bottom of top tube
Tech Specs
| Frame Material: | Carbon |
| Rear Axle Standard: | 12x148mm Boost |
| Rear Shock: | RockShox Super Deluxe Ultimate Air |
| Rear Shock Size: | 230mm x 65mm |
| Rear Shock Hardware: | 30mm x 8mm |
| Rear Suspension Travel: | 175mm |
| Headset: | Crestline ZS56-ZS56 Straight Head Tube |
| Fork: | RockShox ZEB Ultimate | 180mm | 44mm Offset |
| Fork Axle: | 15x110mm Boost |
| Wheelset: | Crankbrothers Synthesis eMTB Carbon |
| Front Tire: | WTB Vigilante 2.5 Tough High Grip |
| Rear Tire: | WTB Judge 2.4 Tough High Grip |
| Crankset: | SRAM X0 Transmission |
| Chainguide: | E13 Chain Guide |
| Chain: | SRAM X0 Transmission T-Type |
| Rear Derailleur: | SRAM X0 Transmission T-Type |
| Cassette: | SRAM X0 Transmission T-Type |
| Seatpost: | OneUp Components | RH-2: 150mm, RH-3: 180mm, RH-4: 210mm |
| Seat Post Diameter: | 31.6mm |
| Seat: | WTB Silverado |
| Shifters: | SRAM AXS Pod Ultimate |
| Handlebar: | OneUp Components Carbon |
| Stem: | OneUp Components |
| Brakes: | SRAM Code Ultimate Stealth |
| Water Bottle Cage Mounts: | One |
| Motor: | Bosch CX-R (Limited Race Edition) |
| Battery: | Bosch 750wh Powertube |
| Intended Use: | AM/Enduro |
Specs subject to change without notice. Please check with manufacturer for the most up-to-date information.
Geometry
mm / inches
175mm Rear Travel
Sizing
cm / ft
| Size | RH-2 | RH-3 | RH-4 |
|---|---|---|---|
| Rider Height (cm) | 165 - 180 | 175 - 191 | 185 - 200 |
