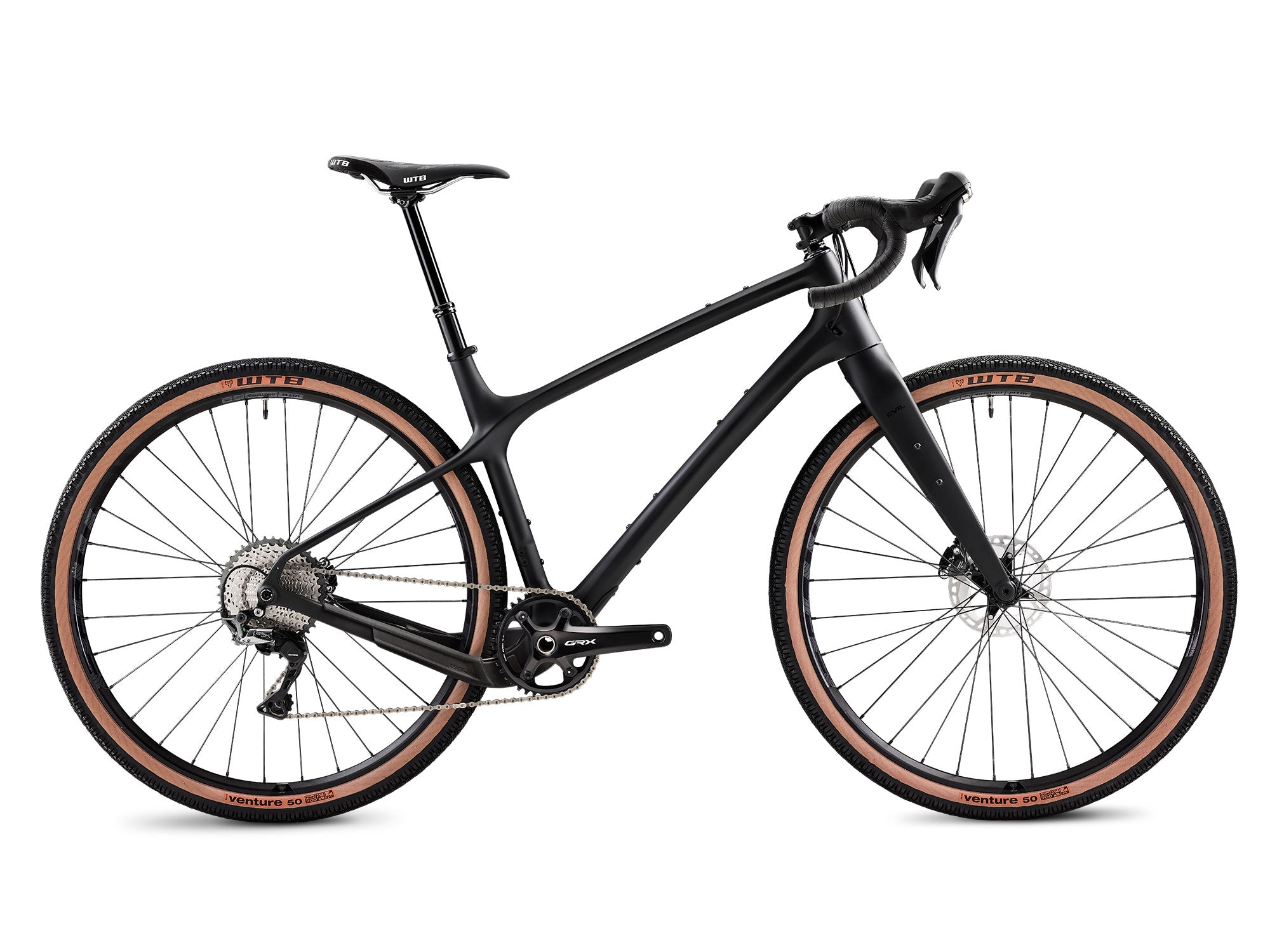

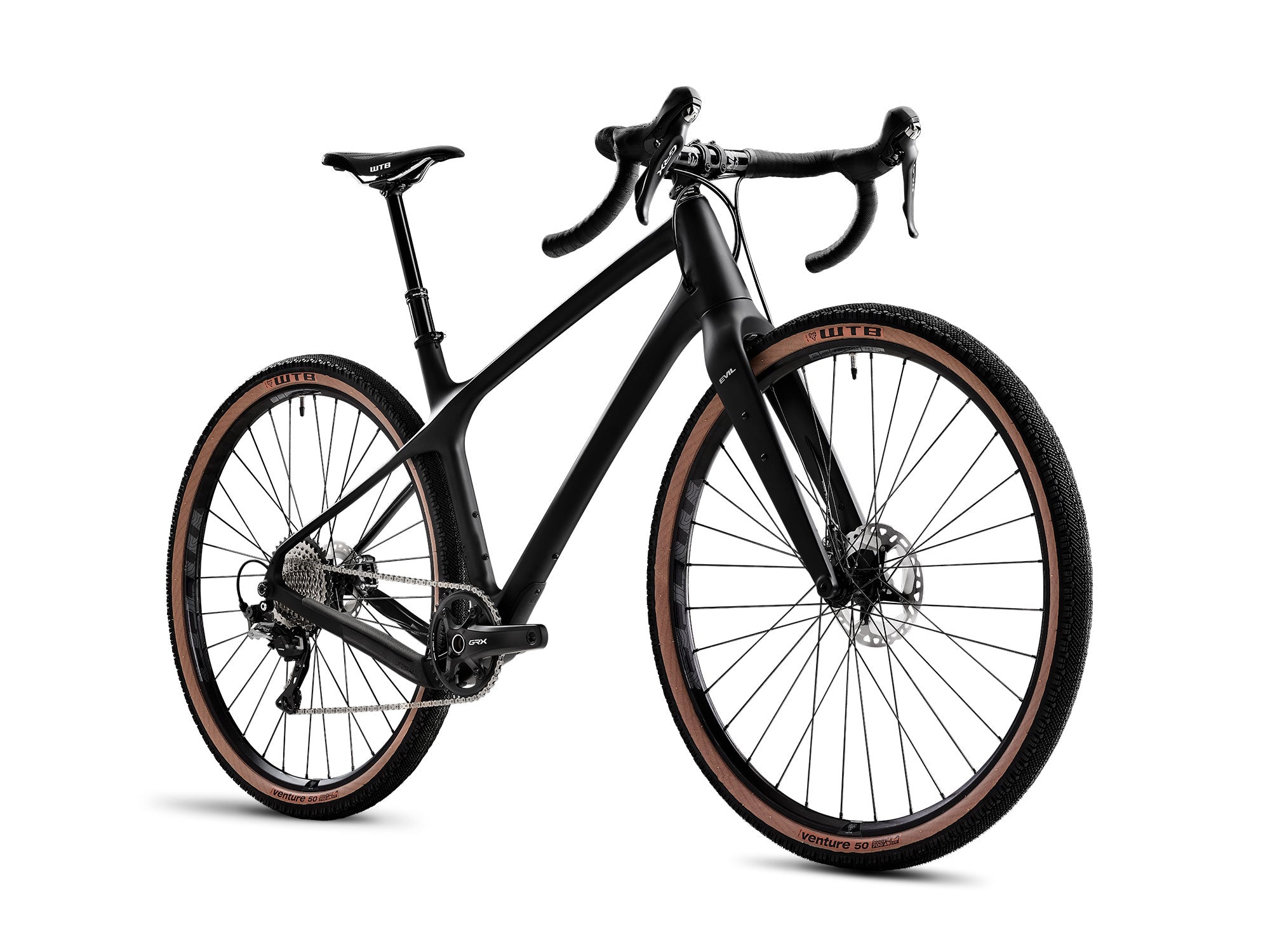

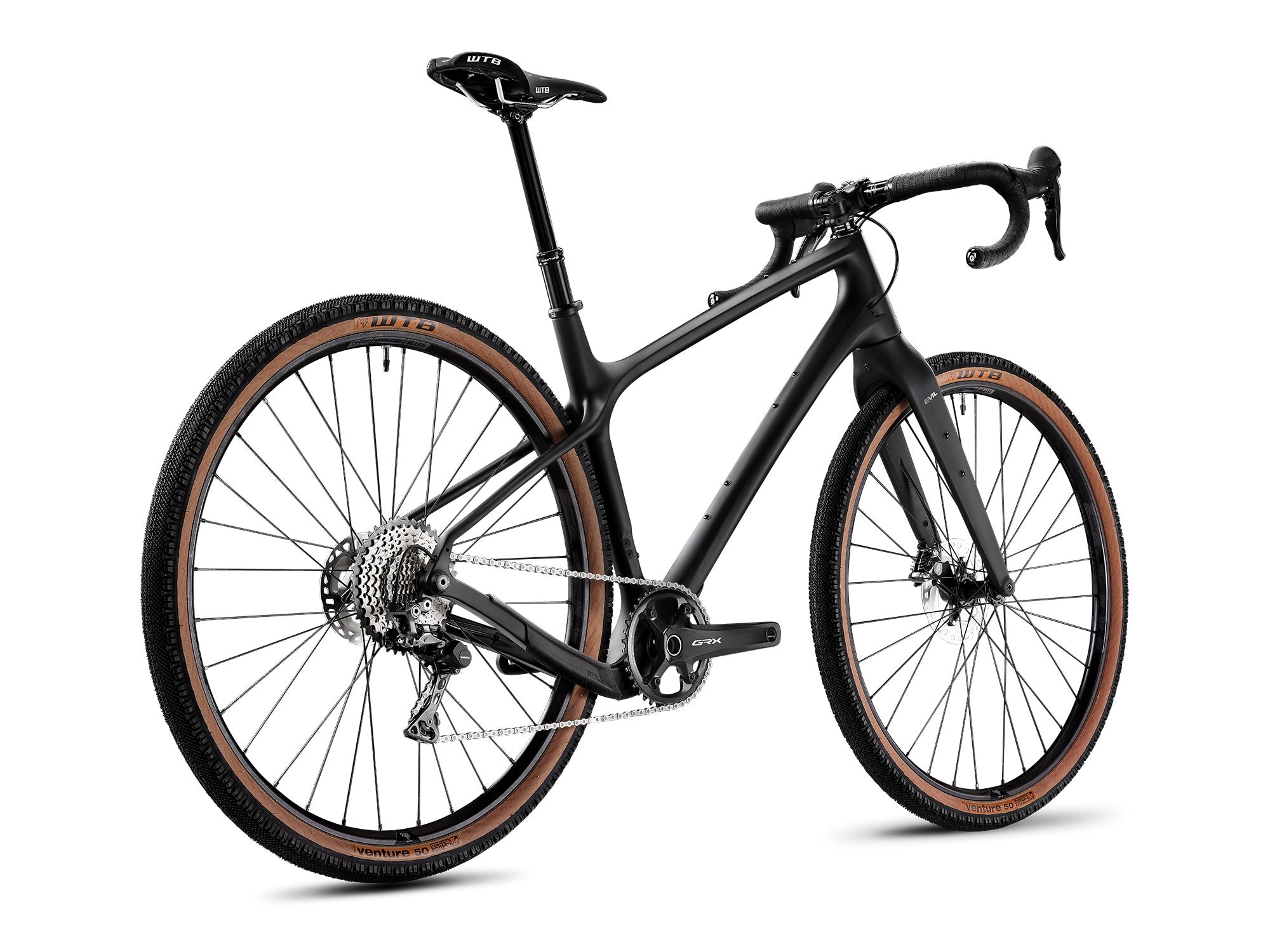

Evil Chamois Hagar GRX
The Chamois Hagar defies classification and exudes stoke, taking what Evil knew gravel to be, and redefining it. 700 x 50c tire clearance, 430mm chainstays, a 66.67-degree headtube angle, 80mm of BB drop, real reach and wheelbase measurements, and a mind-numbing array of customizable configurations.
Features
- Compatible with braze on front derailleurs. Includes custom braze on front derailleur hanger that comes with each Chamois frame.
- Tire Size: 700x50c max, 700x40c max with front derailleur or fenders installed, 700x34c ideal for road riding
- There is clearance and mounts to run Fenders
- Minimum chainring size is 36T
- All cables are internally routed
Tech Specs
| Frame Material: | Carbon |
| Wheel Size: | 700c |
| Rear Axle Standard: | 12x142mm |
| Headset: | CaneCreek 100-Series IS42/H8-IS52/40 (no race) w/compression preload |
| Fork: | Evil Carbon Chamois Hagar Fork, 12x100mm Thru-Axle, Flat Mount Brakes |
| Wheelset: | WTB Proterra Light i23, Tubeless |
| Tires: | WTB Riddler 700x45 TCS Light-Fast Tire Tanwall |
| Crankset: | Shimano FC-RX810-1, GRX, 172.5MM, 40T |
| Bottom Bracket: | Shimano |
| BB Standard: | 68mm BSA |
| Chain: | Shimano CN-HG701-11 |
| Rear Derailleur: | Shimano RD-RX812, GRX, 11sp, Shadow+ |
| Cassette: | Shimano CS-M8000,DEORE XT, 11-SPEED, 11-46T |
| Seatpost: | BikeYoke, 30.9, S: 125mm, M/L: 160mm, XL: 185mm |
| Seat Post Diameter: | 30.9mm |
| Seat: | WTB SL8 Pro 142 |
| Shifters: | Shimano GRX Left: ST-RX810-LA "dropper", Right: ST-RX810-R |
| Handlebar: | EASTON EA70 AX,Reach 80mm, Drop 120mm, Flare 16°, S 42cm / M 44cm / L &XL 46cm |
| Stem: | Evil Stem, Length:50mm, Clamp:31.8 |
| Grips: | Evil Gravel Tape w/Gel |
| Brakes: | Shimano GRX, Flat Mount, SM-RT800 Center Lock, 160mm Rotors |
| Water Bottle Cage Mounts: | Seven bottle mounts (six for size SM) with three inside the the front triangle |
| Intended Use: | Gravel |
| Warranty: | 3 year limited |
Specs subject to change without notice. Please check with manufacturer for the most up-to-date information.
Geometry
mm / inches
Size
Seat Tube
Top Tube
Reach
BB Height
Head Angle
Seat Angle
Standover
Chainstay
Head Tube
Wheelbase
Trail
Stack
SM
450
586
400
278
66.67
73
662
430
140
1098
93
575
MD
470
605
420
278
66.67
73.5
671
430
160
1126
93
594
LG
490
624
440
278
66.67
74
682
430
180
1154
93
612
XL
510
643
460
278
66.67
74.5
696
430
200
1182
93
631
Evil Chamois Hagar GRX:
Blackout Drunk / SM: CH-BO-S-GRX -
Blackout Drunk / MD: CH-BO-M-GRX -
Blackout Drunk / LG: CH-BO-L-GRX -
Blackout Drunk / XL: CH-BO-XL-GRX
