Fox Racing Shox

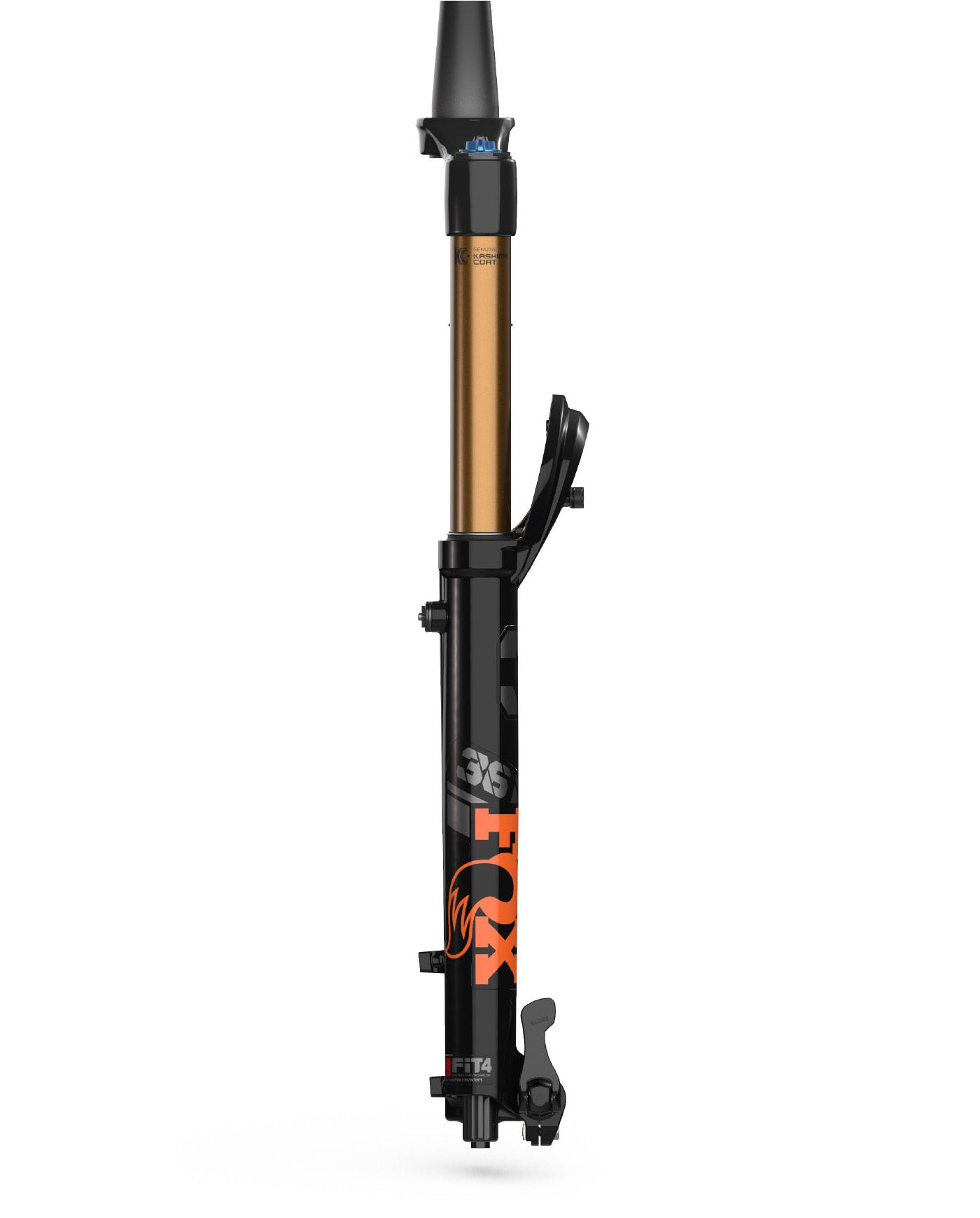

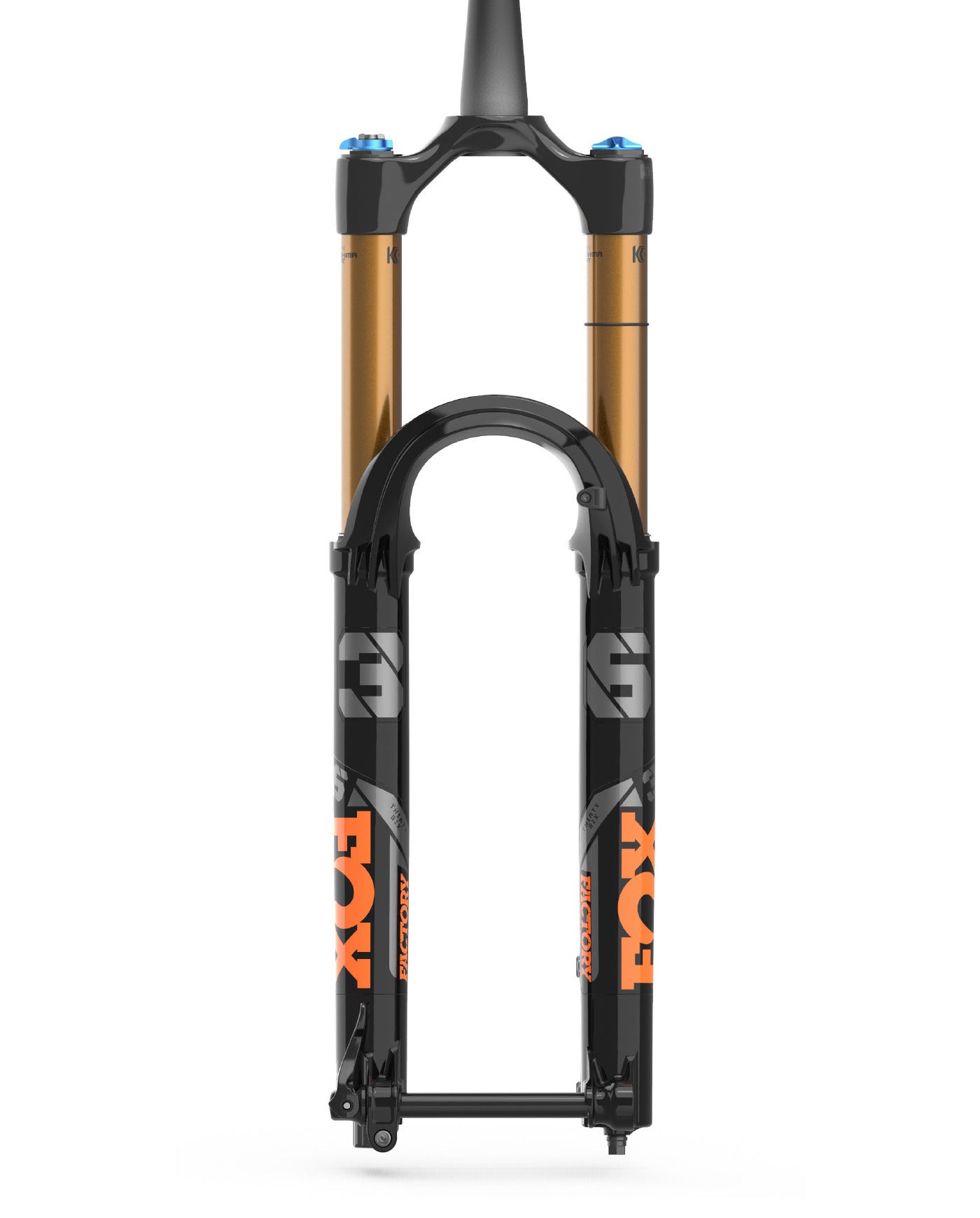

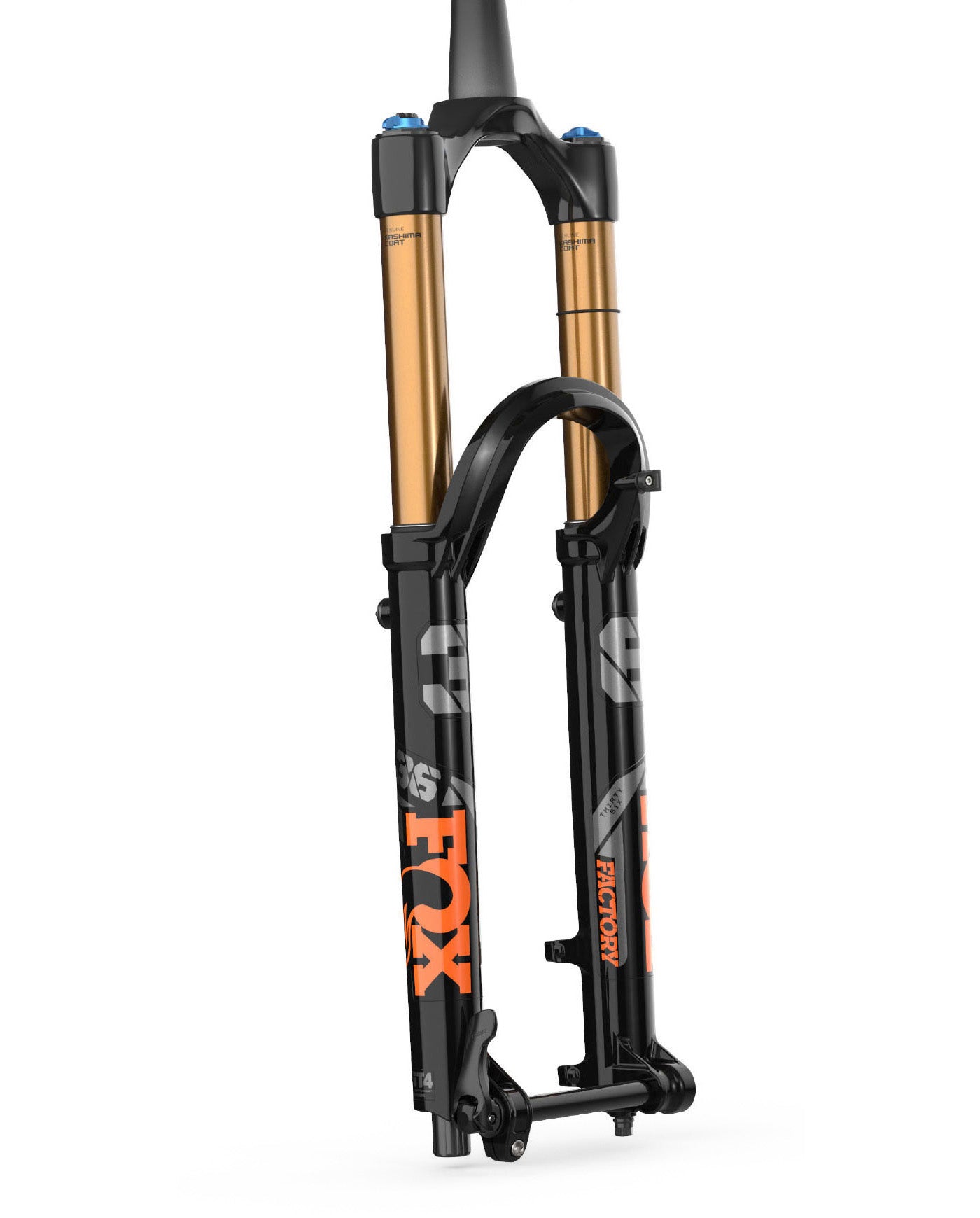

Fox Racing Shox 36 Factory 29" FIT4 15x110 - 44mm Offset - 2023
For 2023, the Fox 36 receives an update in the form of a new crown with updated design and engineering for more steer tube overlap improving durability and maintaining stiffness while dropping 20 grams.
Lighter by 20 grams, while increasing steerer-tube overlap at the CSU, the new crown design improves durability while the engineering maintains stiffness and drops weight.
Lower Leg Bypass Channels
Increasing air volume within the lower legs reduces the amount of additional unintended pressure ramping. Lower leg bath oil also circulates to the upper reaches of the legs, continuously lubricating the foam rings and bushings as the fork compresses and extends through its travel.
Lower Leg Bleeders
Allows for atmospheric pressure equalization for better fork performance, allowing full travel to be achieved and increasing small bump sensitivity and responsiveness.
Lower Leg Arch
The lower leg design pulls out all the stops, shaving every possible gram while making sure not to compromise stiffness or strength requirements of modern enduro and gravity-style riding.
In its fourth generation, Fox's patented FIT4 closed cartridge system provides three on-the-fly compression damping positions—Open, Medium, and Firm—to adapt to varying trail conditions. Factory Series forks feature an additional 22 clicks of low-speed compression adjust in the Open mode, allowing riders to fine-tune their exact damping preferences.
Optimizes small bump sensitivity by increasing negative air spring volume. Its linear spring curve delivers plushness off the top, extra mid-stroke support, and more tunable bottom-out progression.
Feature-packed and designed to exceed the demands of Fox's Factory-level riders. What Fox sells is what they race. Factory Series products feature slippery smooth, ultra-durable Genuine Kashima Coat.
|Max Tire Size:||2.6" (varies by manufacturer)|
|Travel Adjust:||Internally Adjustable (requires additional parts)|
|Axle Configuration:||15x110mm Boost - QR|
|Disc Mount:||Post Mount 180mm|
|Min. Rotor Size:||180mm|
|Max. Rotor Size:||230mm|
|Steertube Diameter:||1.125" - 1.5" Tapered|
Specs subject to change without notice. Please check with manufacturer for the most up-to-date information.
