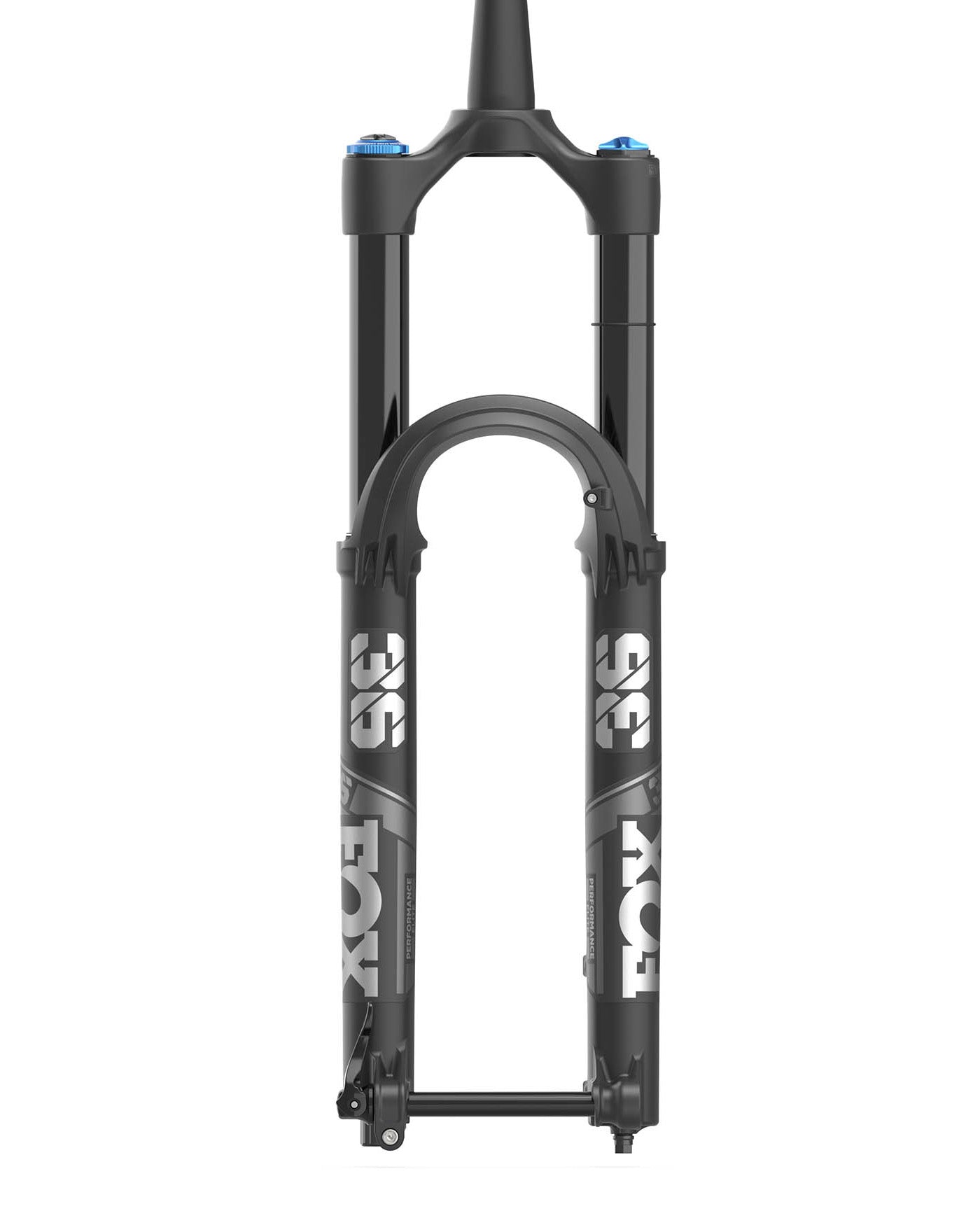

Fox Racing Shox 36 Performance Elite 29" GRIP2 15x110 - 44mm Offset - 2023
For 2023, the Fox 36 receives an update in the form of a new crown with updated design and engineering for more steer tube overlap improving durability and maintaining stiffness while dropping 20 grams.
Lighter by 20 grams, while increasing steerer-tube overlap at the CSU, the new crown design improves durability while the engineering maintains stiffness and drops weight.
Lower Leg Bypass Channels
Increasing air volume within the lower legs reduces the amount of additional unintended pressure ramping. Lower leg bath oil also circulates to the upper reaches of the legs, continuously lubricating the foam rings and bushings as the fork compresses and extends through its travel.

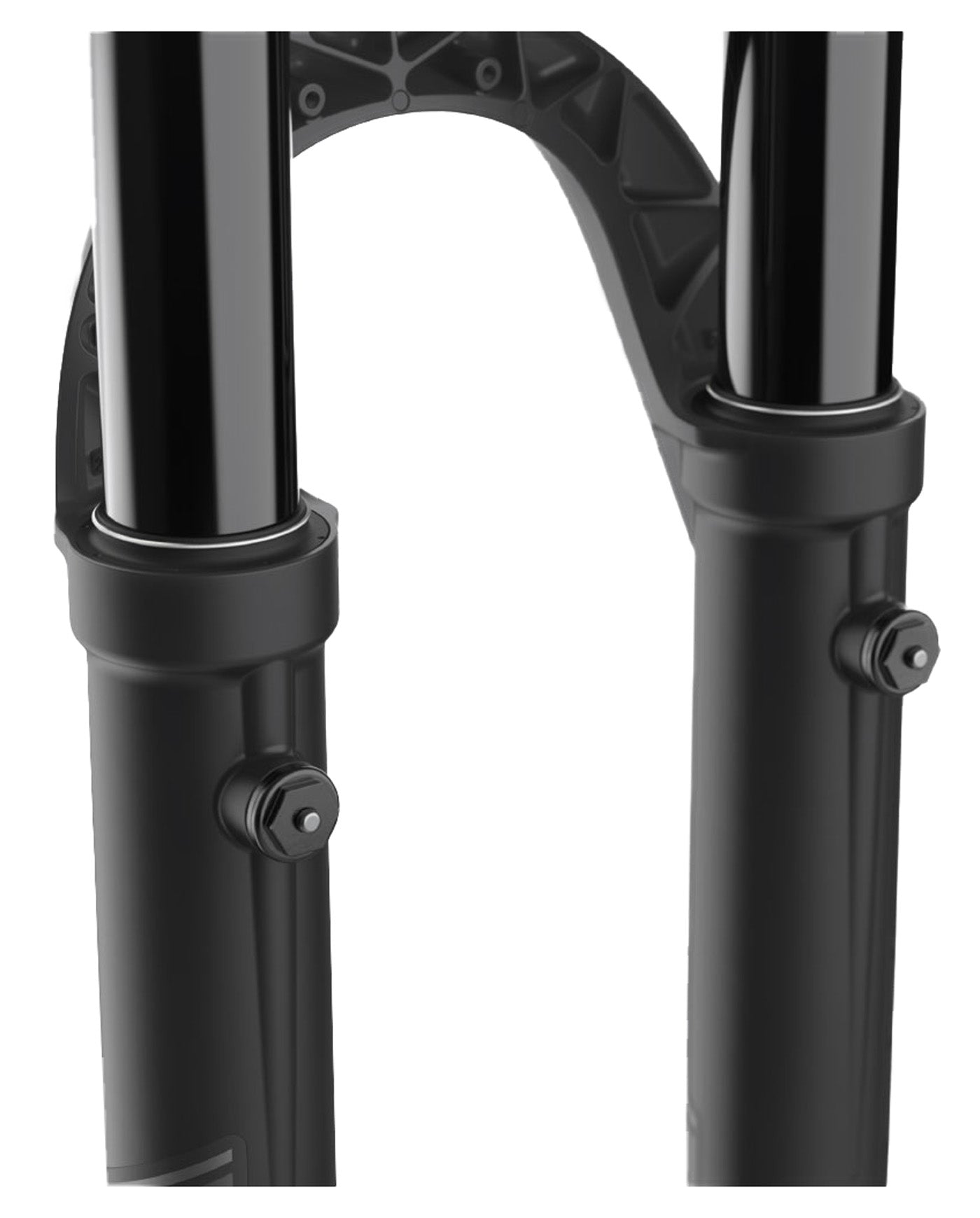

Lower Leg Bleeders
Allows for atmospheric pressure equalization for better fork performance, allowing full travel to be achieved and increasing small bump sensitivity and responsiveness.
Lower Leg Arch
The lower leg design pulls out all the stops, shaving every possible gram while making sure not to compromise stiffness or strength requirements of modern enduro and gravity-style riding.

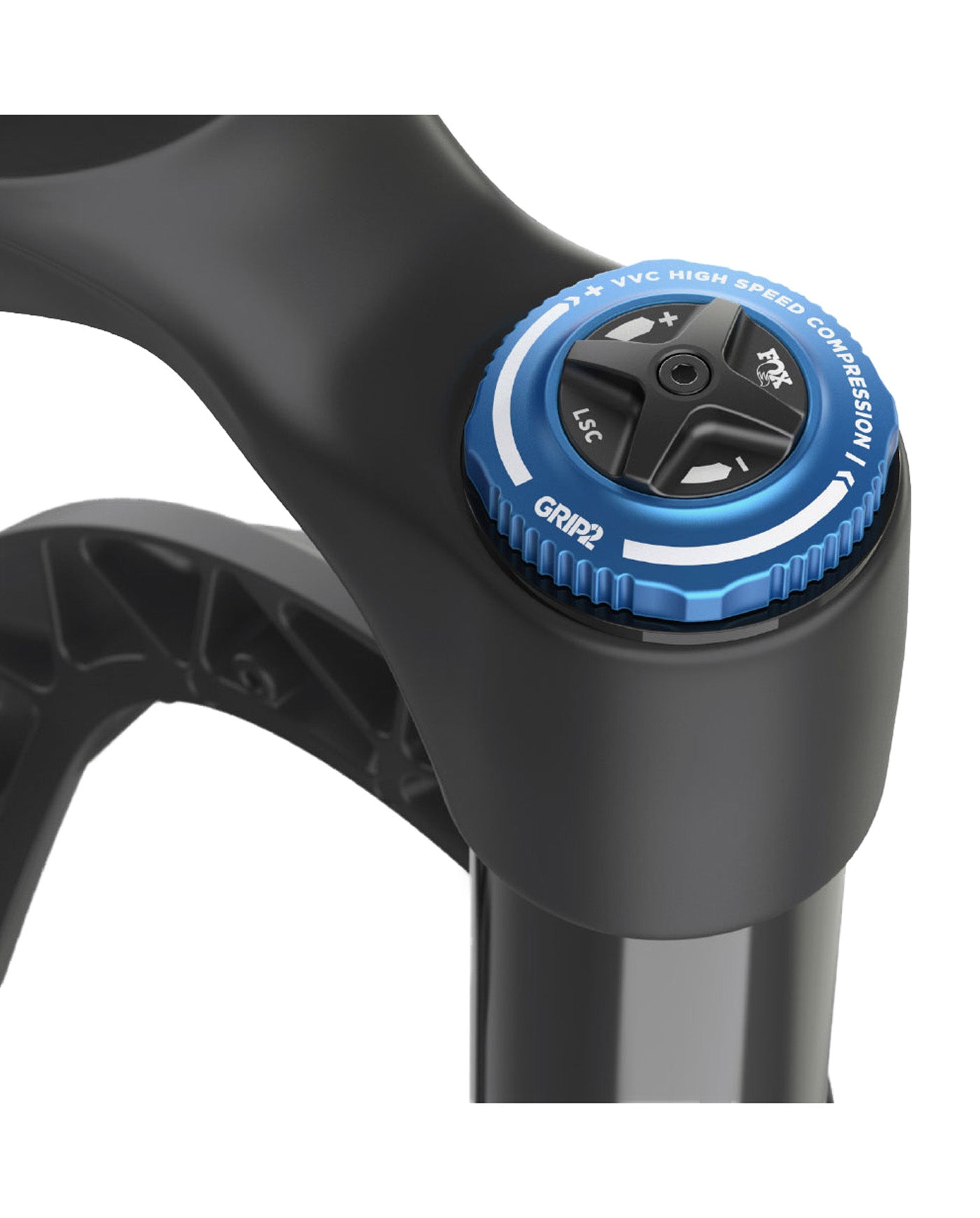

Unparalleled ride quality and ultra-precise adjustability. Allows for external fine-tuning of suspension performance thanks to Fox's patented Variable Valve Control (VVC) technology.
Optimizes small bump sensitivity by increasing negative air spring volume. Its linear spring curve delivers plushness off the top, extra mid-stroke support, and more tunable bottom-out progression.

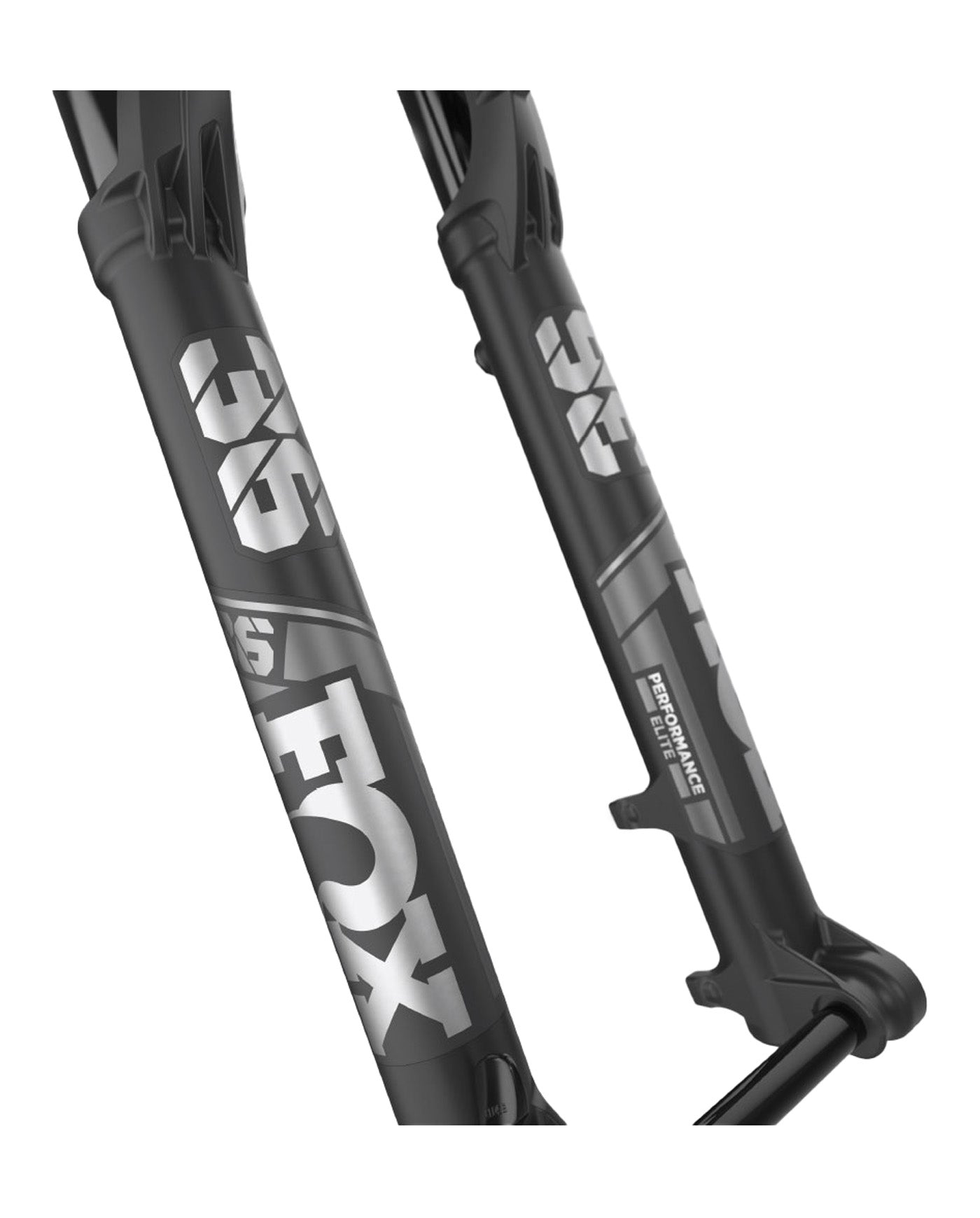

Performance Elite forks retain the same adjustments, features, dampers, weight, and 7000 series aluminum upper tubes as Factory Series, but have black anodized stanchions instead of Genuine Kashima Coat.
|Max Tire Size:||2.6" (varies by manufacturer)|
|Travel Adjust:||Internally Adjustable (requires additional parts)|
|Axle Configuration:||15x110mm Boost - QR|
|Disc Mount:||Post Mount 180mm|
|Min. Rotor Size:||180mm|
|Max. Rotor Size:||230mm|
|Steertube Diameter:||1.125" - 1.5" Tapered|
Specs subject to change without notice. Please check with manufacturer for the most up-to-date information.
