Fox Racing Shox

Float X Factory - 2-Position Lever - 2024



484 grams
484 grams

Many in stock

Length x Stroke
This item may only be shipped within the United States
We are required to follow our brand's policies on shipping and we cannot ship this product outside the United States.

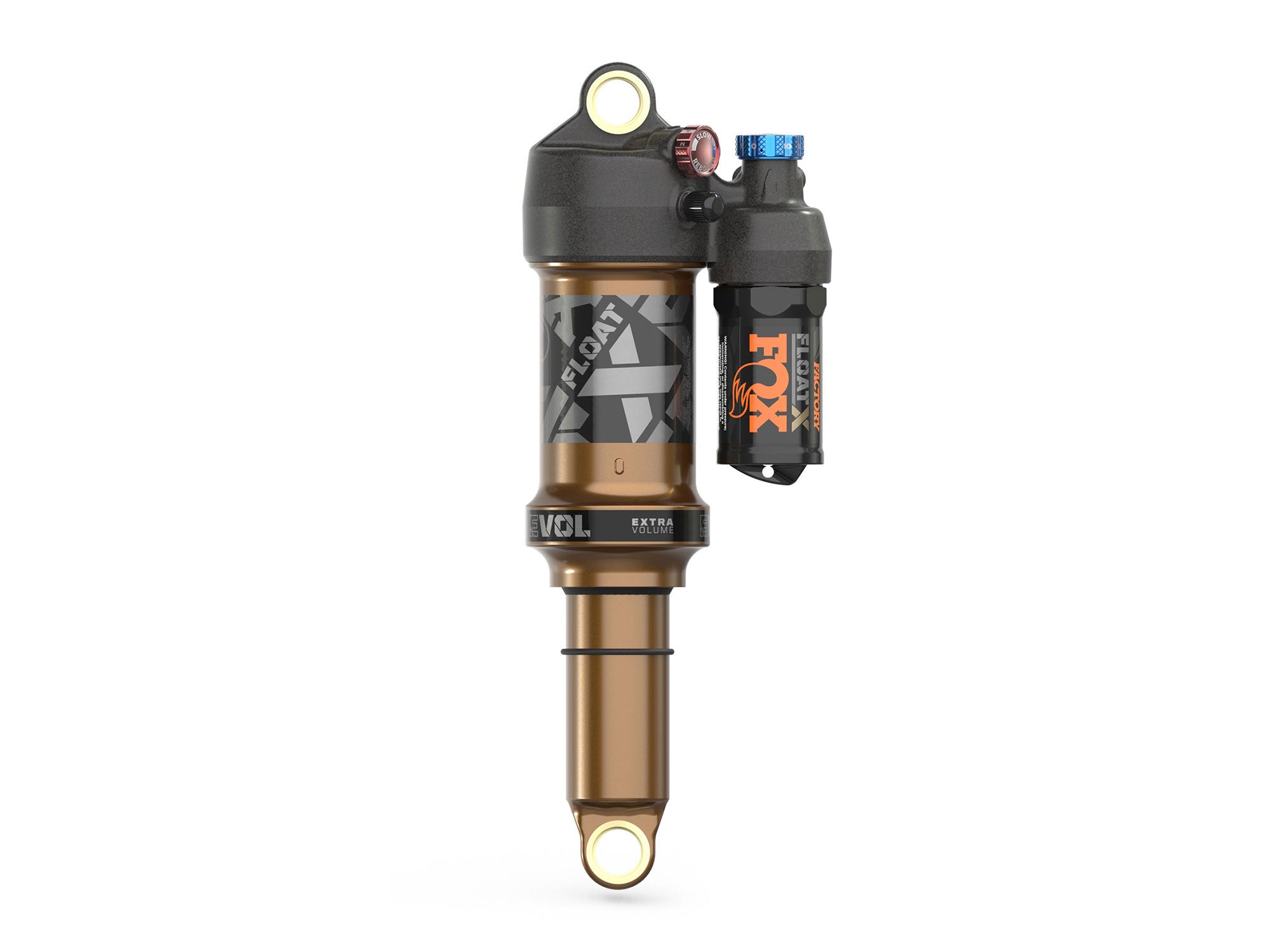

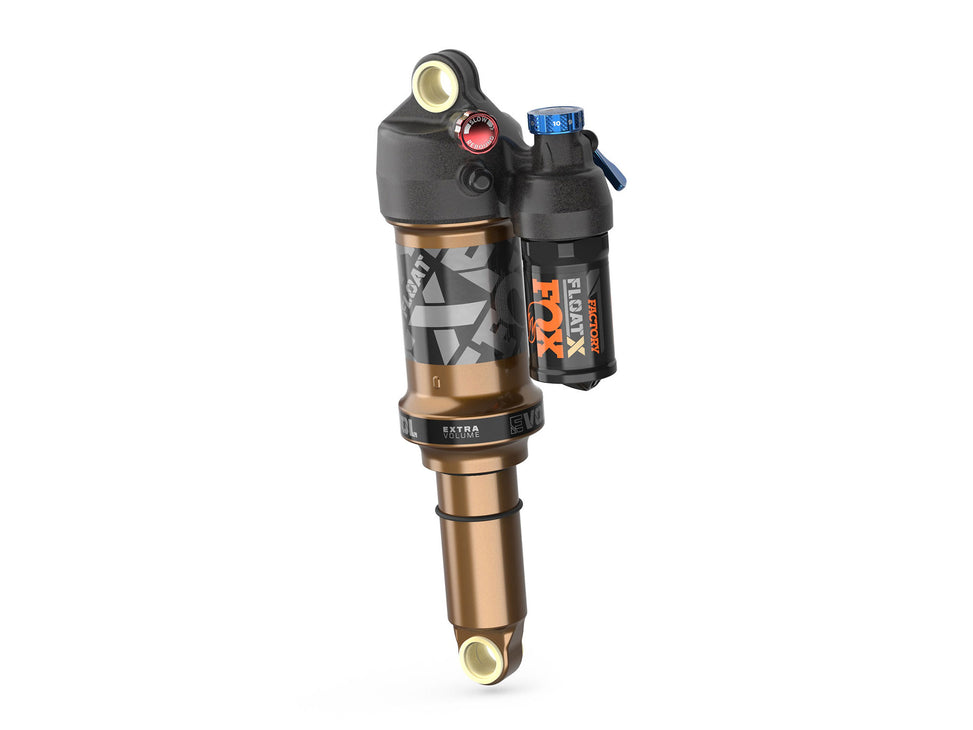

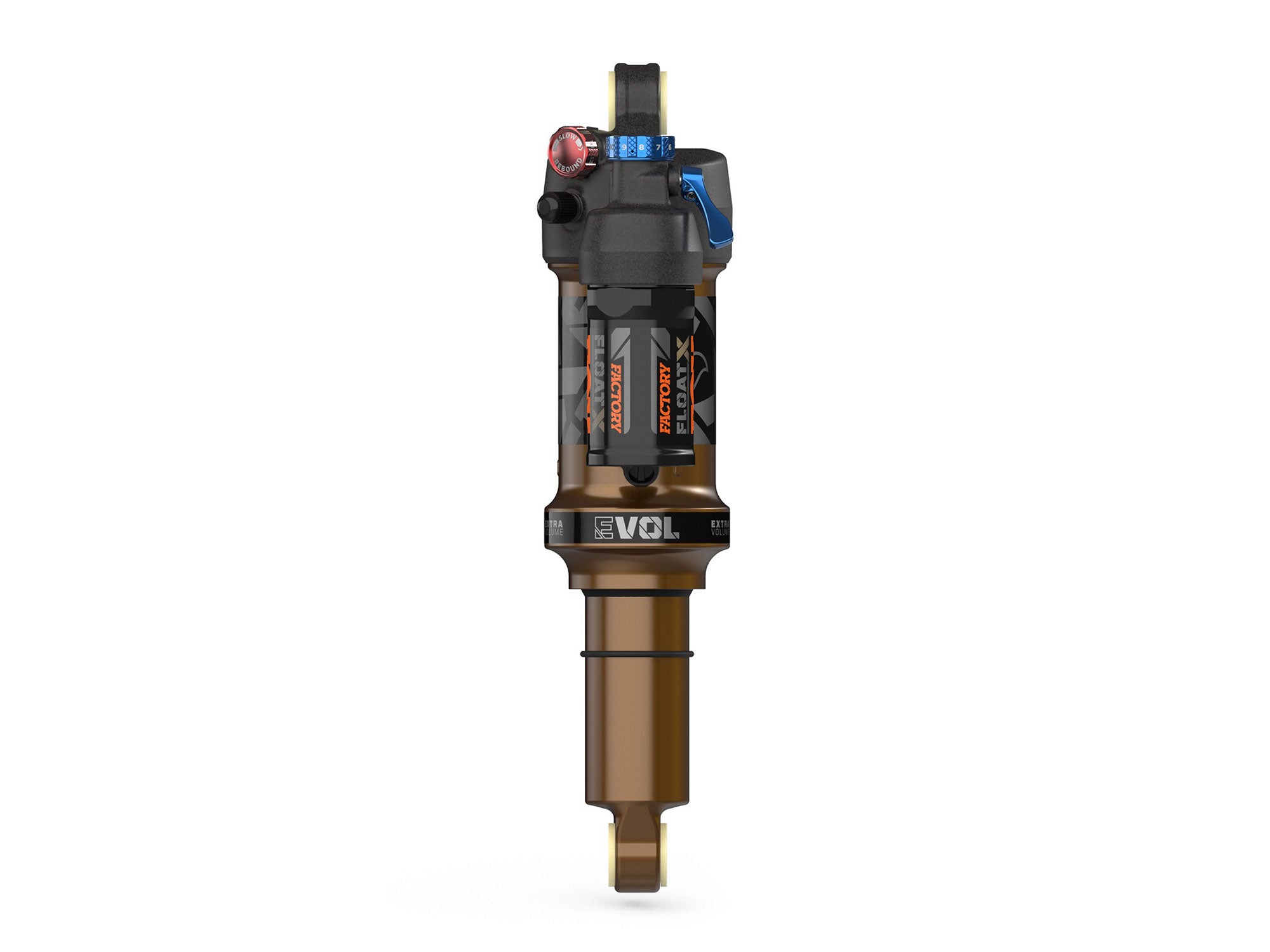

Fox Racing Shox Float X Factory - 2-Position Lever - 2024

From aggressive trail to enduro, the advanced damping, fade free performance and class-leading durability of FLOAT X makes it the versatile and lightweight choice for All-Mountain riders earning their descents.



Tool-free adjustment for compression and rebound means the FLOAT X can be quickly and easily set up or tuned for the current trail and riding conditions. The numbered 11-click low-speed compression dial and 2-position (Open or Firm) lever switch run on independent circuits, giving all-mountain riders the descent tuneability they need with the convenience of a single switch for climbing.



Each size of the FLOAT X is paired with a specific length of piggyback reservoir, giving the shock just the right amount of volume for maximum performance-to-weight ratio. Paired with the large EVOL air chamber, ride feel remains consistent over long descents. A hard-hitting shock geared for the gamut of aggressive trail and all-mountain riding while fitting a wide range of frame designs and geometries.


    • High-flow piston architecture for smooth compression and wide range of tuneability
    • Reservoir with secondary compression circuit for enhanced bump sensitivity, tire grip, and descending performance
    • Base Valve for lower IFP pressures without cavitation
    • Volume spacers in precise increments for ultra-fine air spring tuning
    • MCU bottom-out bumper for smooth end-stroke progressivity
    • Numbered tool-free 12-position single-turn LSC (Low Speed Compression) adjuster
    • Independent firm mode circuit via on-the-fly flickable 2-position adjuster
    • Wide range of rebound adjustment to suit all preferences and terrains
    • Optimized reservoir lengths per shock size for reduced weight and improved fitment
    • Hydraulic top-out feature to eliminate harshness at full extension
    • Optimized air volumes for lower operating pressures and winder range of tuning
    • Convenient air valve location for frame fitment and pump access
    • Bearing hardware compatible both sides

    Tech Specs

    Spring Type: Air
    External Adjustments: Low Speed Compression, Low Speed Rebound, Two Position Switch, Air Pressure
    Max Air Pressure: 350 PSI
    Mount: Eyelet top and bottom
    Mounting Hardware: Sold separately
    Warranty: 1 year

    Specs subject to change without notice. Please check with manufacturer for the most up-to-date information.

    Fox Racing Shox Float X Factory - 2-Position Lever - 2024: 190mm x 45mm: 979-01-085 - 210mm x 55mm: 979-01-088
