Optic C2 Shimano
Optic C2 Shimano Optic C2 Shimano

Norco

Optic C2 Shimano

$5,599.00 $4,099.95

1 in stock

0640822954

Color
Size

Sizing Chart

Don't see the pedal you want? Check out more here.
-
+

This item may only be shipped within the United States
We are required to follow our brand's policies on shipping and we cannot ship this product outside the United States.
Please allow a minimum of 5 business days before shipping.
This conservative time estimate allows our service department to fully check through the bike and make sure everything is built and adjusted to manufacturer's specifications before shipping.

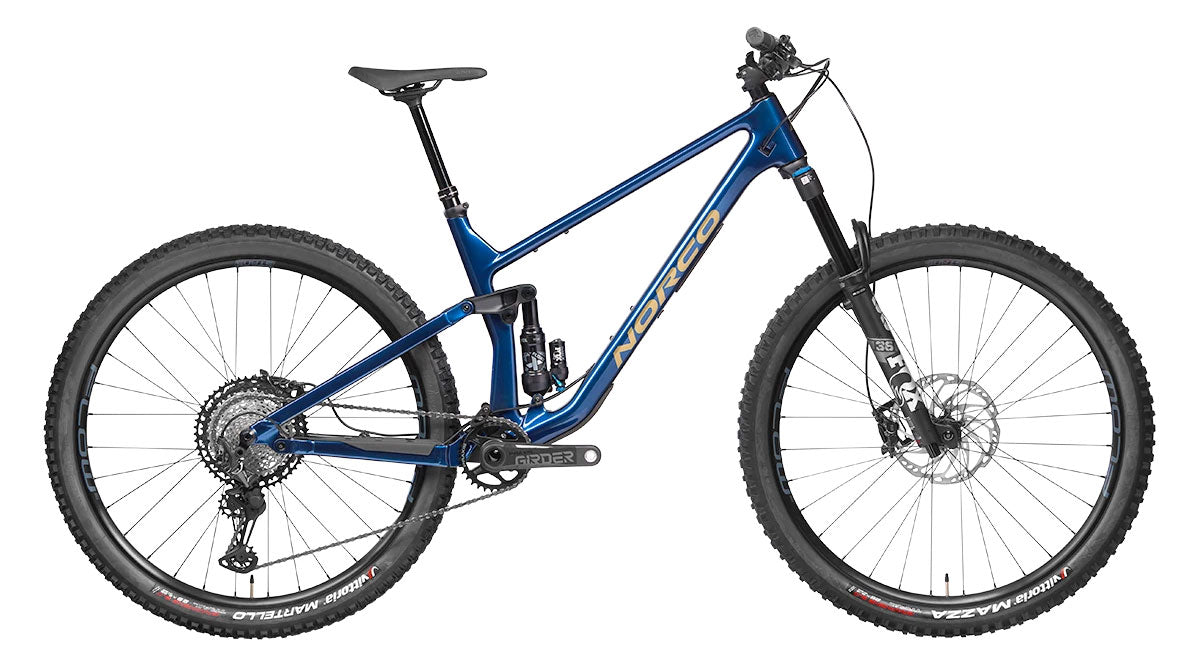

Norco Optic C2 Shimano

The Norco Optic C2 is a fast short-travel carbon fiber trail bike with the agility and confidence you need to look further up the trail.

Using Norco's Ride Aligned™ design system to create its fit, geometry and suspension kinematics, the Optic C2's playfully aggressive personality is complemented by 125mm of rear travel via a custom Fox Performance Elite FLOAT X shock and a 140mm Fox Performance Elite 36 fork.

Adding to its high-speed trail performance, the Optic C2 XT features a Shimano XT 12-speed drivetrain with Praxis Girder Carbon M30 cranks. Shimano XT 4-Piston 203/180mm brakes control speed, and the light weight, robust wheels feature Stan’s Flow S1 rims on Shimano XT Boost hubs.

    Tech Specs

    Frame Material: Carbon Front / Aluminum Rear
    Wheel Size: 29"
    Rear Axle Standard: 12x148mm Boost
    Rear Shock: Fox Float X Performance Elite
    Rear Shock Size: 190mm x 45mm
    Rear Shock Hardware: Body 10x40mm / Shaft 8x20mm
    Rear Suspension Travel: 125mm
    Headset: FSA Internal Sealed Bearing
    Headset Standard: ZS44mm/ZS56mm
    Fork: Fox 36 GRIP2 Performance Elite 140mm, 42mm offset
    Fork Axle: 15x110mm Boost
    Wheelset: Stans Flow S1 29", 32H / Shimano XT Hubs - Tubeless Ready
    Front Tire: Vittoria Mazza 2.4" Trail G2.0
    Rear Tire: Vittoria Martello 2.35" Trail G2.0
    Crankset: Praxis Girder Carbon M30, 30T, 170mm
    Bottom Bracket: Praxis M30 BB92
    BB Standard: BB92
    Chain: Shimano XT
    Rear Derailleur: Shimano XT RD-M8100
    Cassette: Shimano XT CS-M8100, 10-51T, 12 Speed
    Seatpost: X-Fusion Manic dropper
    Seat Post Diameter: 31.6mm
    Seat Post Clamp Diameter: 34.9mm
    Seat: Fizik Alpaca Terra, Wingflex
    Shifters: Shimano XT Sl-M8100 I-Spec
    Handlebar: TranzX Butted 6061 Alloy, 780mm, 20mm Rise
    Stem: Norco 6061 Alloy, 45mm Length, 35mm Clamp
    Grips: DMR Deathgrip
    Brakes: Shimano XT BR-M8020, 4 Piston
    Water Bottle Cage Mounts: Yes, 1
    Intended Use: Trail/AM
    Warranty: 5 Year Limited

    Specs subject to change without notice. Please check with manufacturer for the most up-to-date information.

    Geometry

    mm / inches

    Size
    Seat Tube
    Top Tube
    Reach
    BB Height
    Head Angle
    Seat Angle
    Standover
    Chainstay
    Head Tube
    Wheelbase
    Trail
    Stack
    Seatpost
    Insertion
    SM
    395
    572
    420
    337
    65
    76
    664
    425
    100
    1157
    129
    611
    205
    MD
    415
    605
    450
    337
    65
    76
    680
    430
    110
    1196
    129
    620
    220
    LG
    445
    637
    480
    337
    65
    76
    698
    435
    120
    1235
    129
    629
    240
    XL
    485
    669
    510
    337
    65
    76
    719
    440
    130
    1275
    129
    638
    250

    Sizing

    cm / ft

    Size SM MD LG XL
    Rider Height (cm) 155 - 165 163 - 173 172.5 - 182.5 181 - 191
    Norco Optic C2 Shimano: Blue/Copper / SM: 0640822954 - Silver/Chrome / XL: 0640812957
