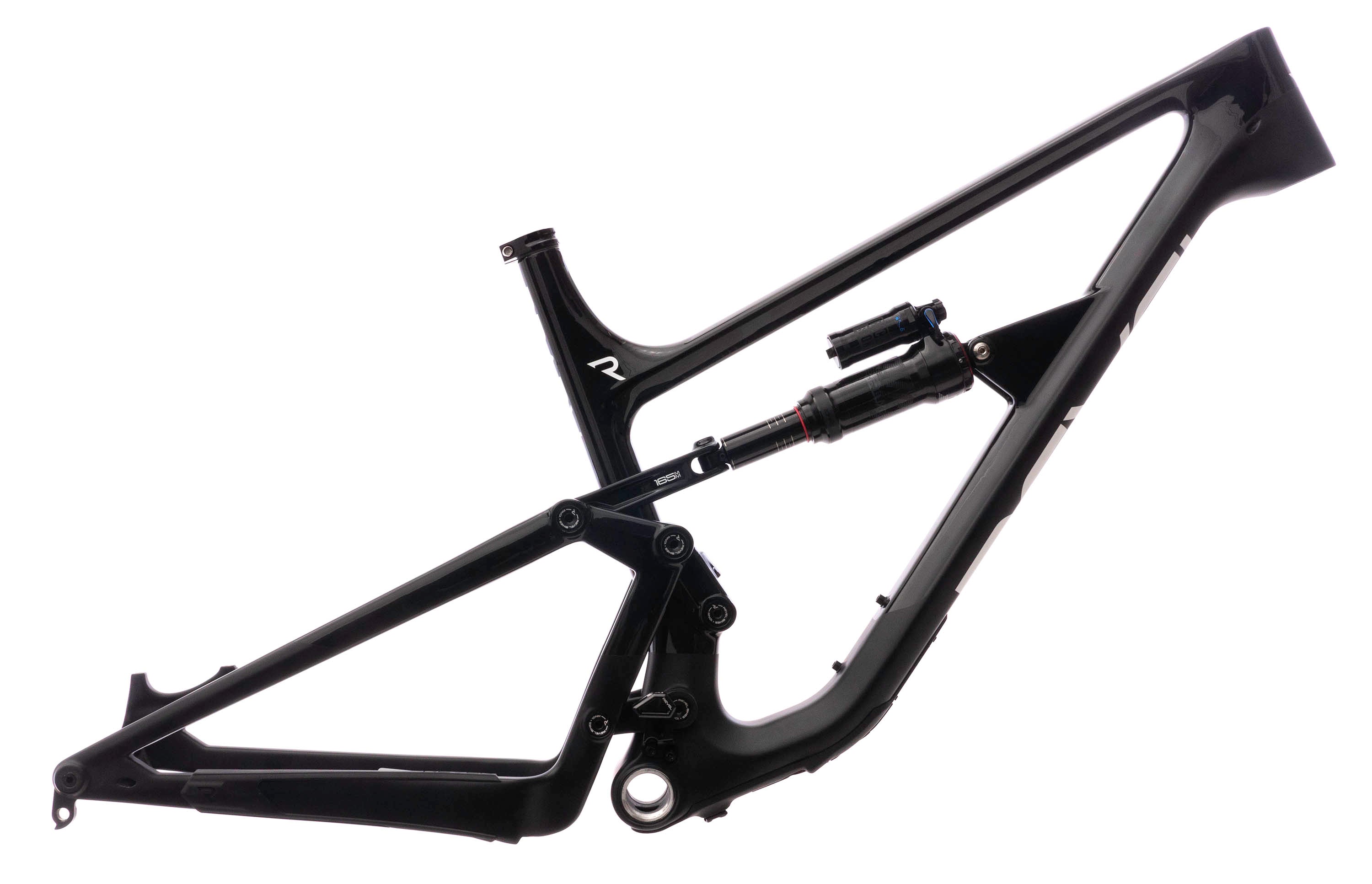

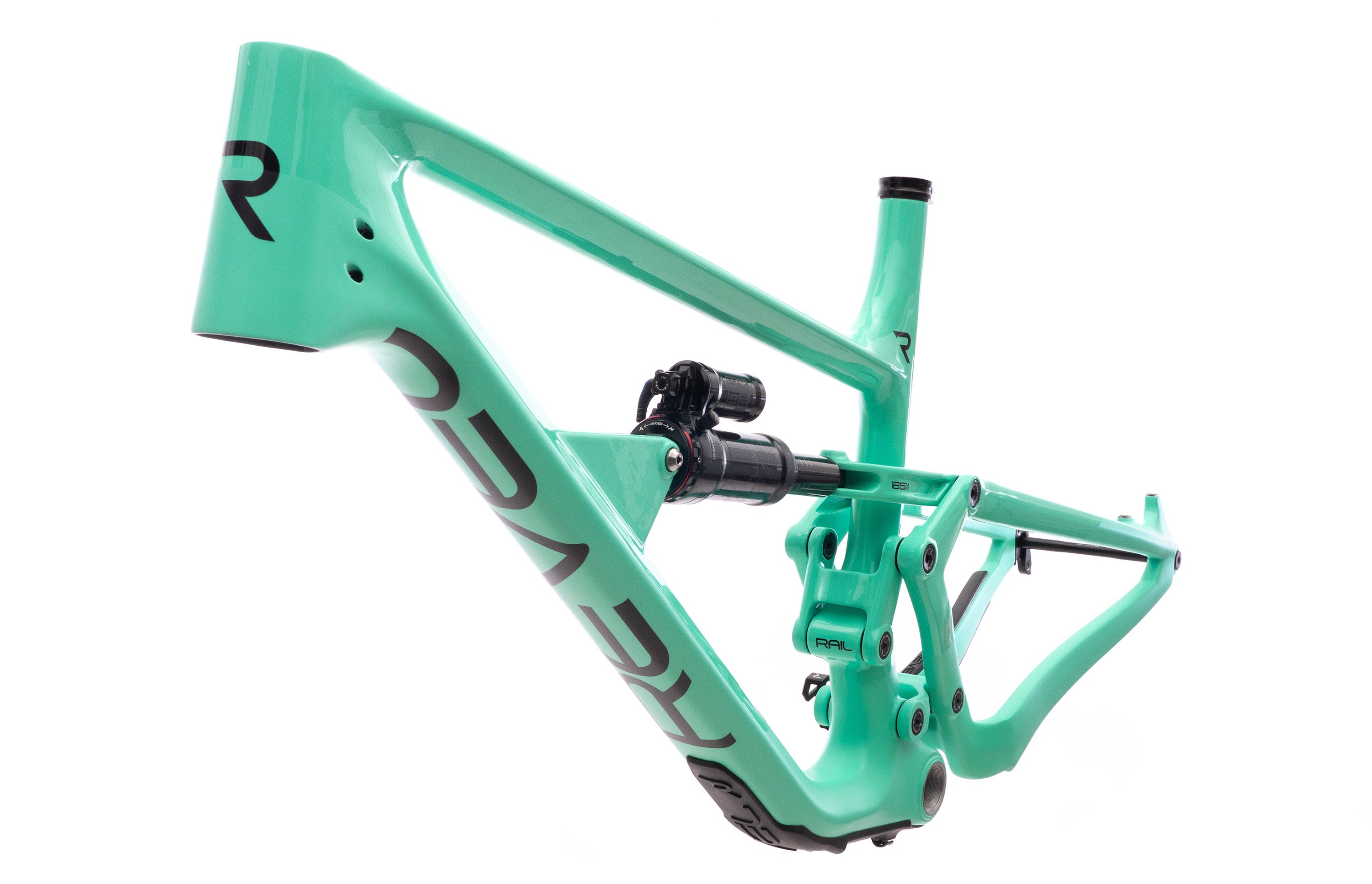

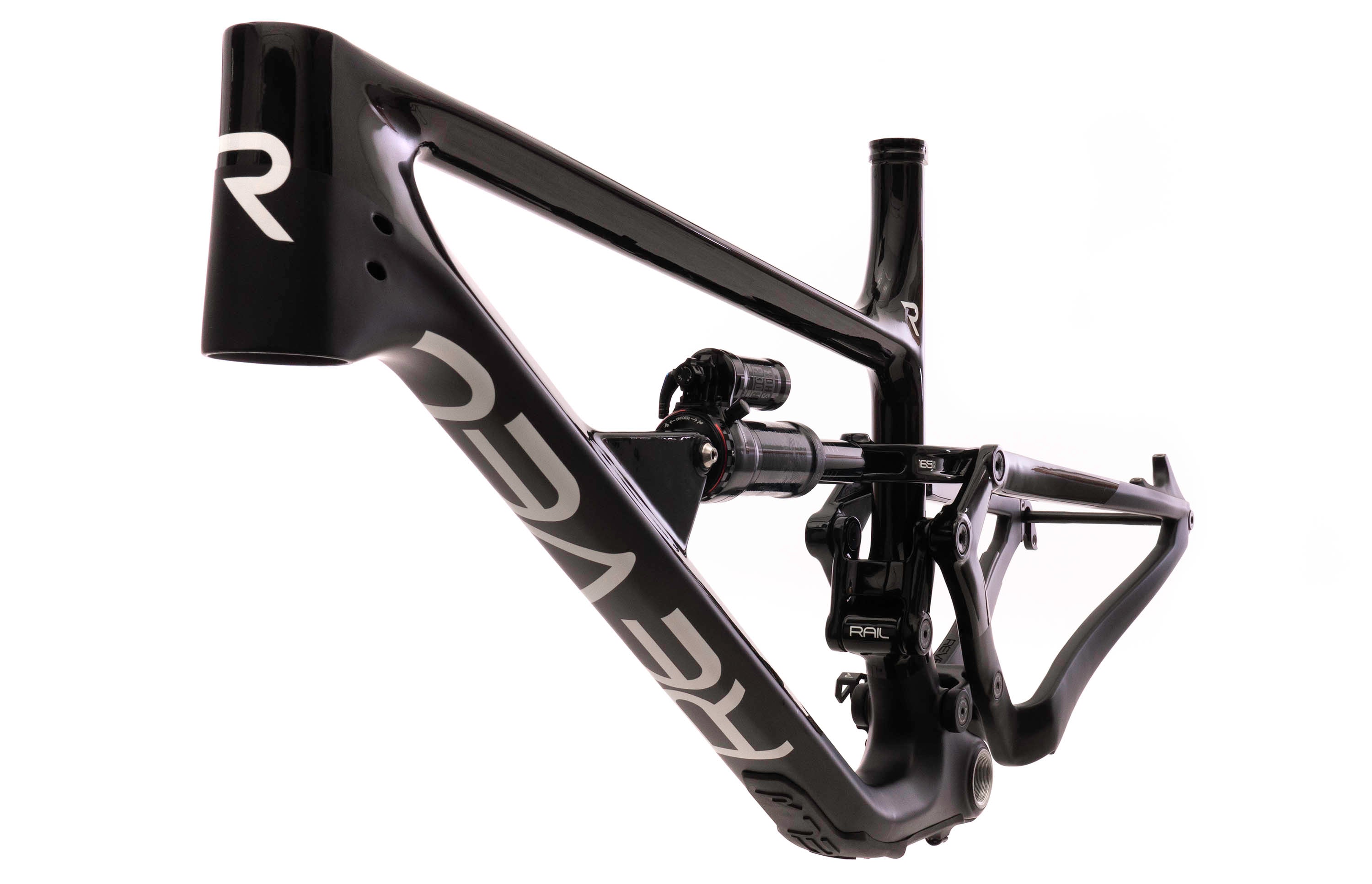

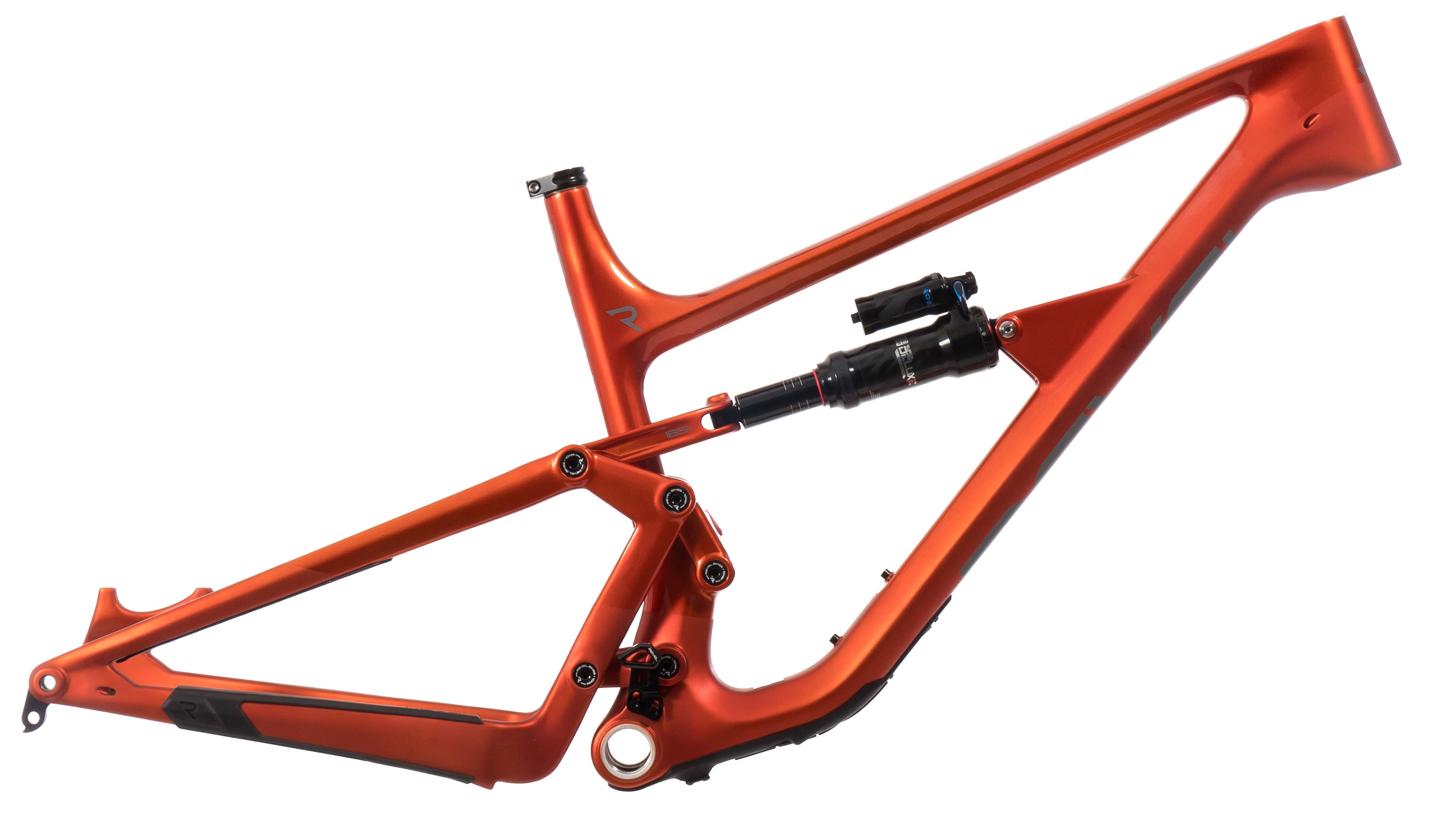

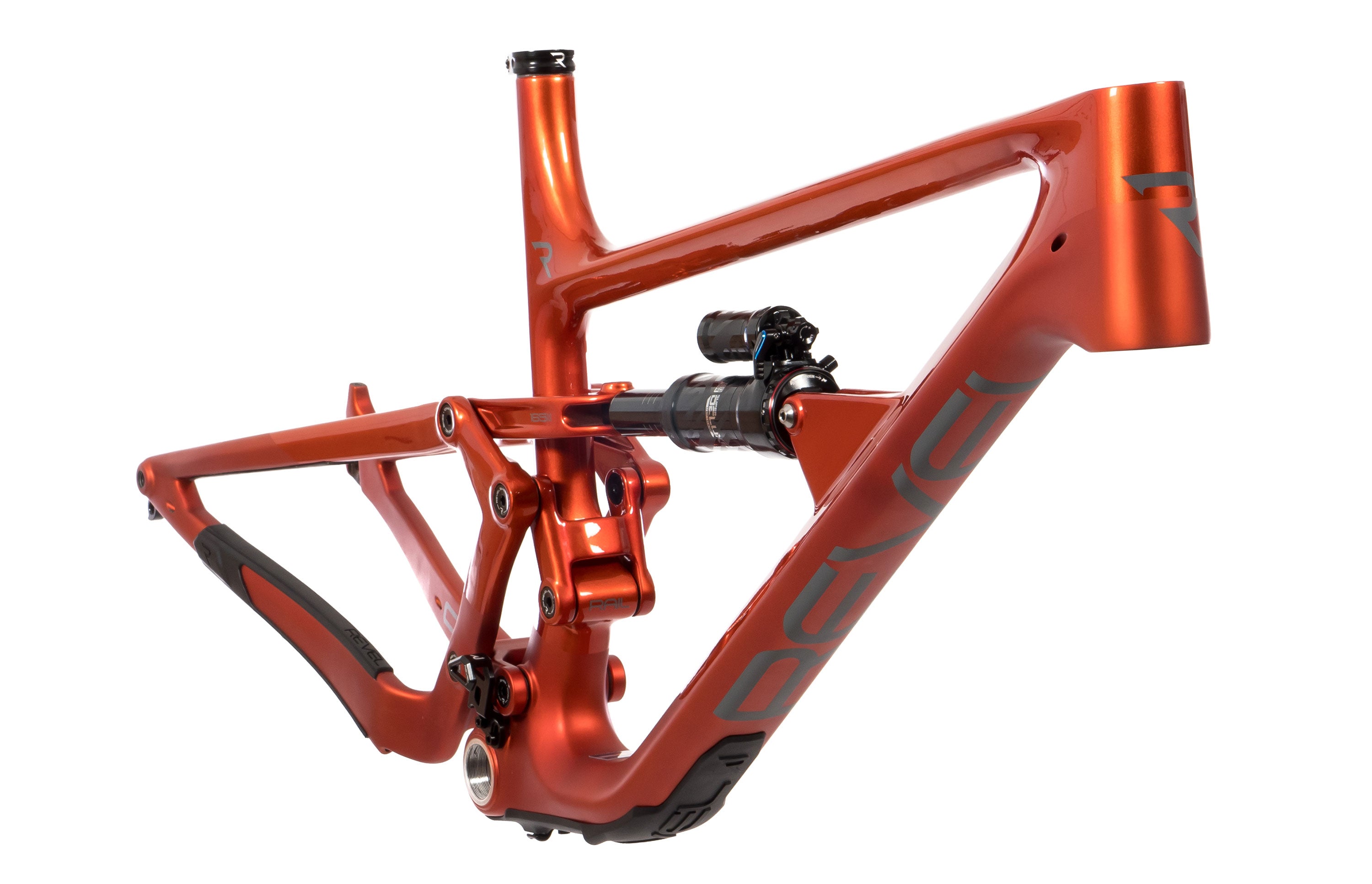

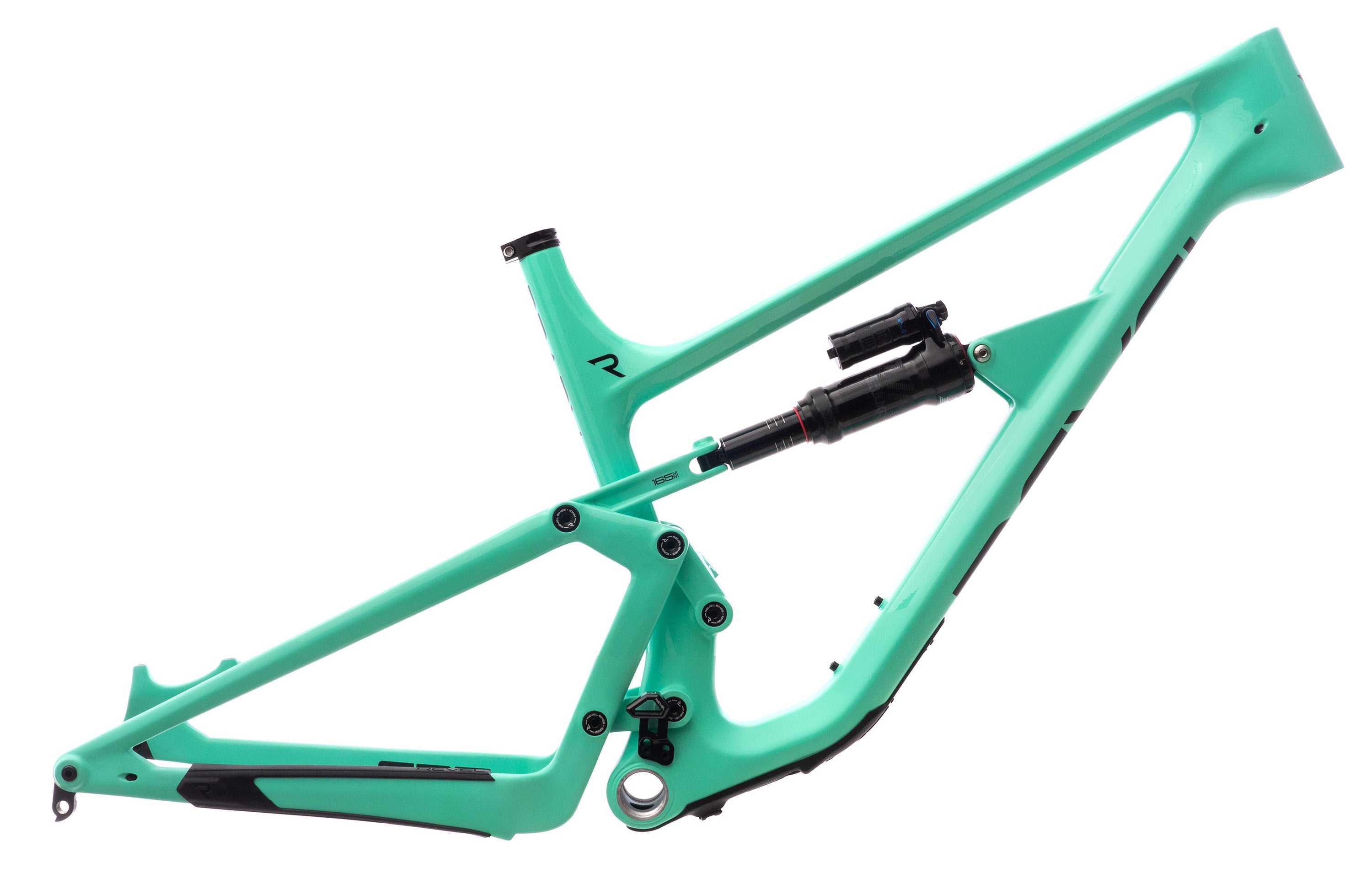

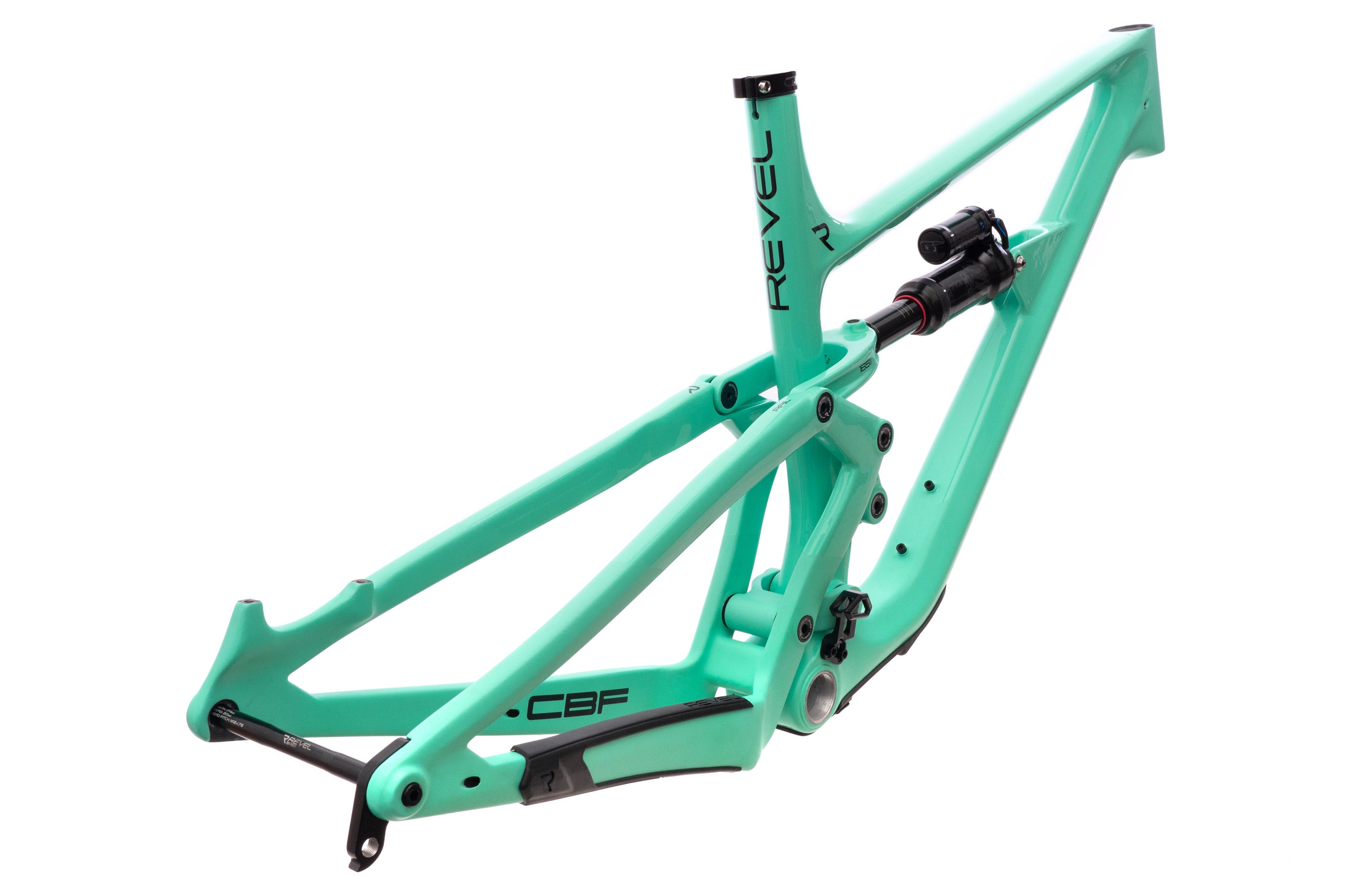

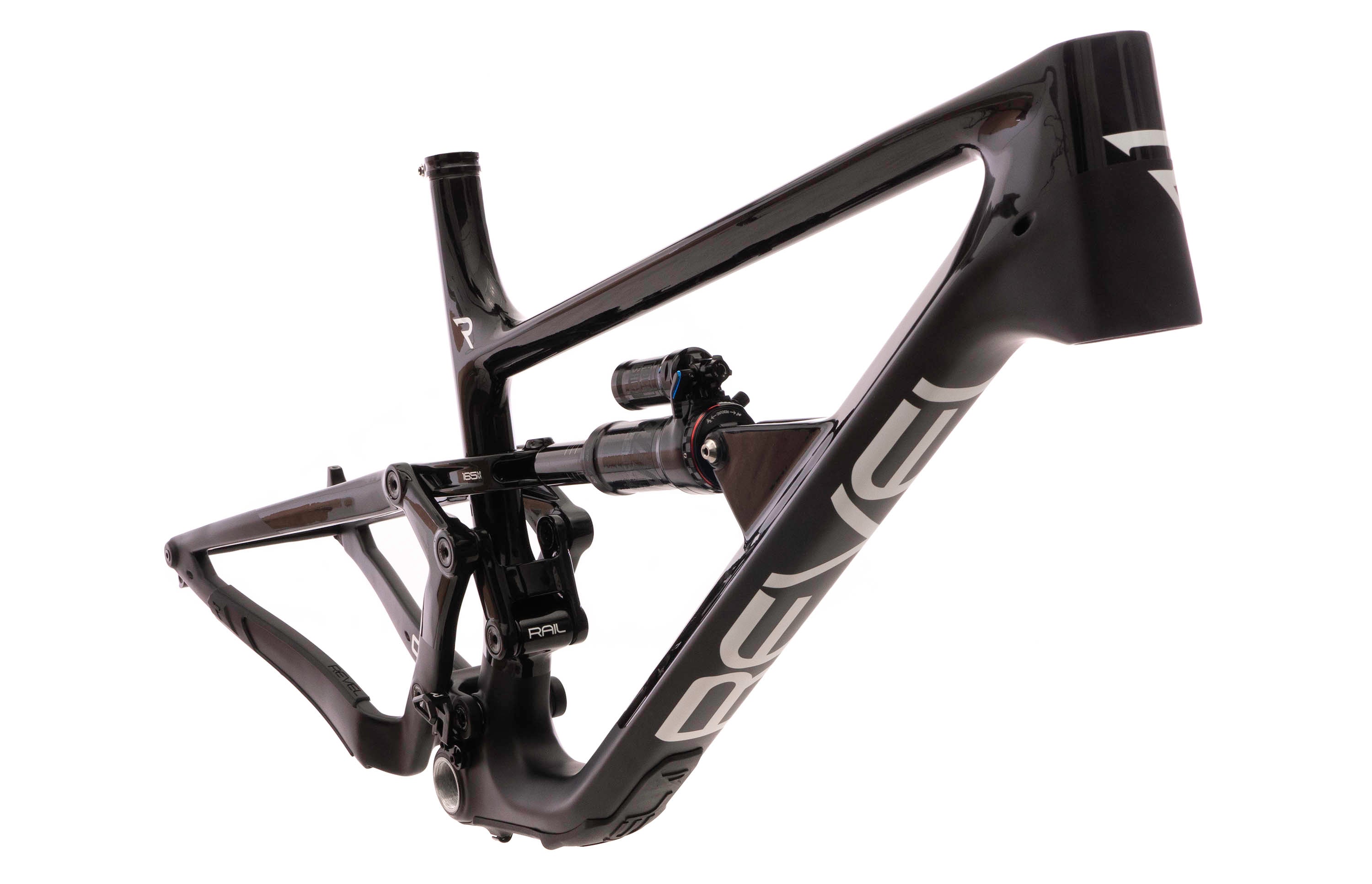

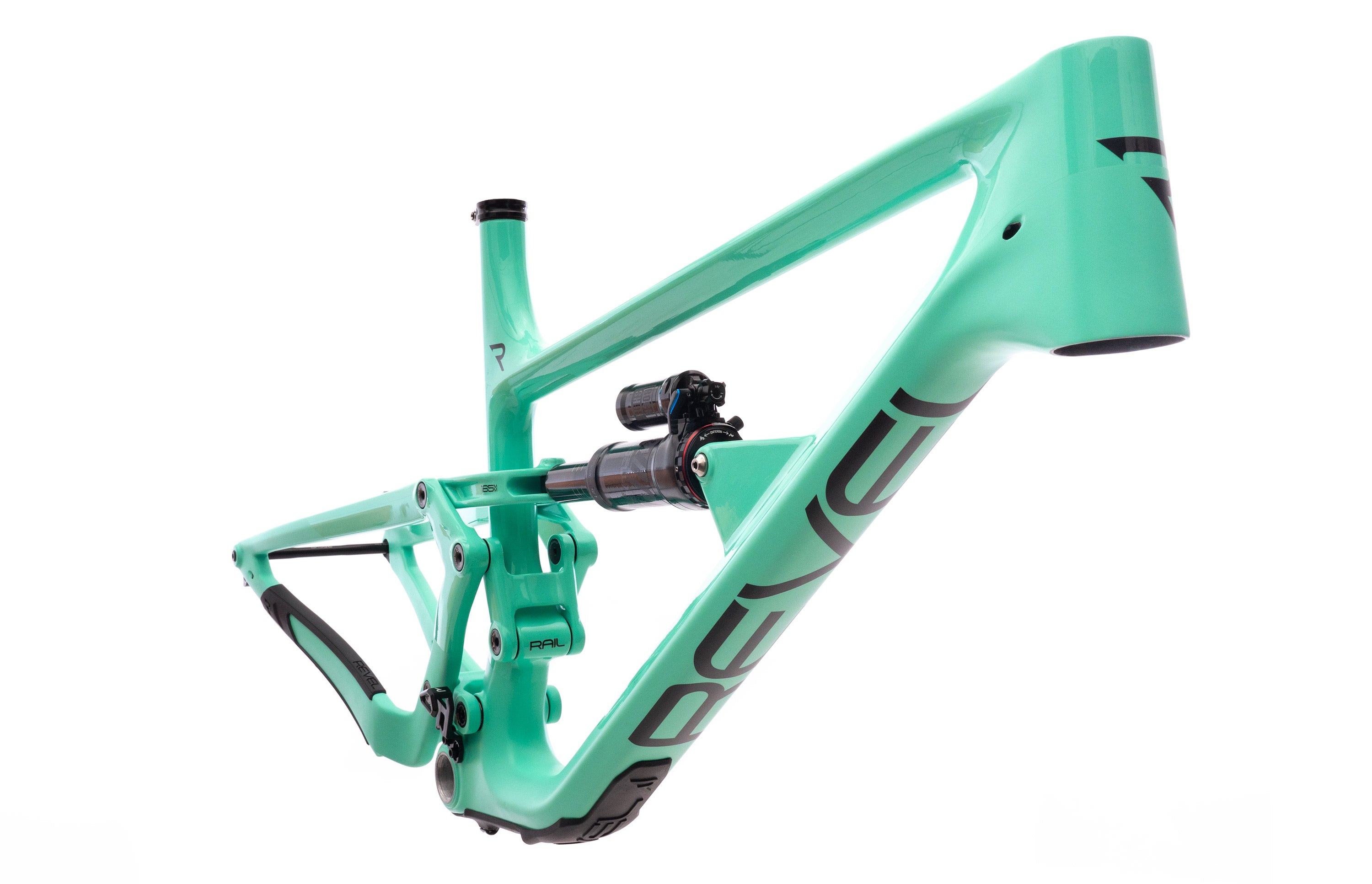

Revel Rail 27.5 Frame
The Revel team created the Rail with two things in mind: maximum thrills and climbing hills. A tuned carbon layup makes railing through berms pure joy. The Rail will put an end to the traditional trail bike compromises to ascent efficiency to which you’ve grown accustomed.
The Canfield Balance Formula is the heart of every Revel bike, which maximizes the amount you pedal in the sweet spot. CBF™ focuses on designing rear suspension around the Center of Curvature (CC). Until now, most suspension systems have focused solely on the instant center. CBF points the chainline and corresponding drive forces around the top of the chainring through 100-percent of the travel resulting in maximum pedaling efficiency, regardless of where you are in the travel, what terrain you are on or what kind of power you’re putting down. All the power you put into the pedals goes into turning the rear wheel, allowing the suspension to do its job completely independent of drivetrain and braking forces and making the sag setting much less critical. When Revel first rode the largely-unknown CBF system, they knew it was something special, and knew they could make the best riding carbon mountain bikes using this magical formula.
In the box
- Rail frame
- Cane Creek 40 IS42/IS52 headset
- Seat collar
- Maxle axle
- Integrated chain guide
- Derailleur hanger
Features
- Internal cable routing with full carbon tubes
- Unique carbon layup creates stronger and stiffer tubing using less material
- BOLU 6801 VRS full compliment bearings used in all pivot locations
Tech Specs
| Frame Material: | Carbon |
| Wheel Size: | 27.5" |
| Front Suspension Travel: | 170mm |
| Rear Suspension Travel: | 165mm |
| Rear Shock: | Rock Shox Super Deluxe Ultimate |
| Rear Shock Size: | 230mm x 65mm |
| Rear Shock Hardware: | Front: 8x22.2mm / Rear: Open |
| Rear Axle Width: | 12x148mm Boost |
| Included Headset: | Cane Creek 40 |
| Headset Standard: | IS42mm/IS52mm |
| BB Standard: | 73mm BSA |
| Brake Mount Type: | Post-Mount 180mm |
| Max Rear Rotor Size: | 203mm |
| Maximum Chainring Size: | 36T |
| Seat Post Diameter: | 31.6mm |
| Seat Clamp Diameter: | 34.9mm |
| Water Bottle Cage Mounts: | One |
| Intended Use: | AM/Enduro |
| Warranty: | Lifetime |
Specs subject to change without notice. Please check with manufacturer for the most up-to-date information.
Geometry
mm / inches
170mm fork
Insertion
Sizing
cm / ft
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Rider Height (cm) | 155 - 170 | 167.6 - 177.8 | 175.3 - 188 | 185.4 - 200.6 |
