Rascal GX Eagle / RockShox Build - Purple - LG
Rascal GX Eagle / RockShox Build - Purple - LG Rascal GX Eagle / RockShox Build - Purple - LG Rascal GX Eagle / RockShox Build - Purple - LG Rascal GX Eagle / RockShox Build - Purple - LG Rascal GX Eagle / RockShox Build - Purple - LG Rascal GX Eagle / RockShox Build - Purple - LG

Revel

Rascal GX Eagle / RockShox Build - Purple - LG

$6,695.00 $5,199.00

1 in stock

ras-rsgx-pur-lg

14742 grams

Sizing Chart

Don't see the pedal you want? Check out more here.
-
+

This item may only be shipped within the United States
We are required to follow our brand's policies on shipping and we cannot ship this product outside the United States.
Please allow a minimum of 5 business days before shipping.
This conservative time estimate allows our service department to fully check through the bike and make sure everything is built and adjusted to manufacturer's specifications before shipping.

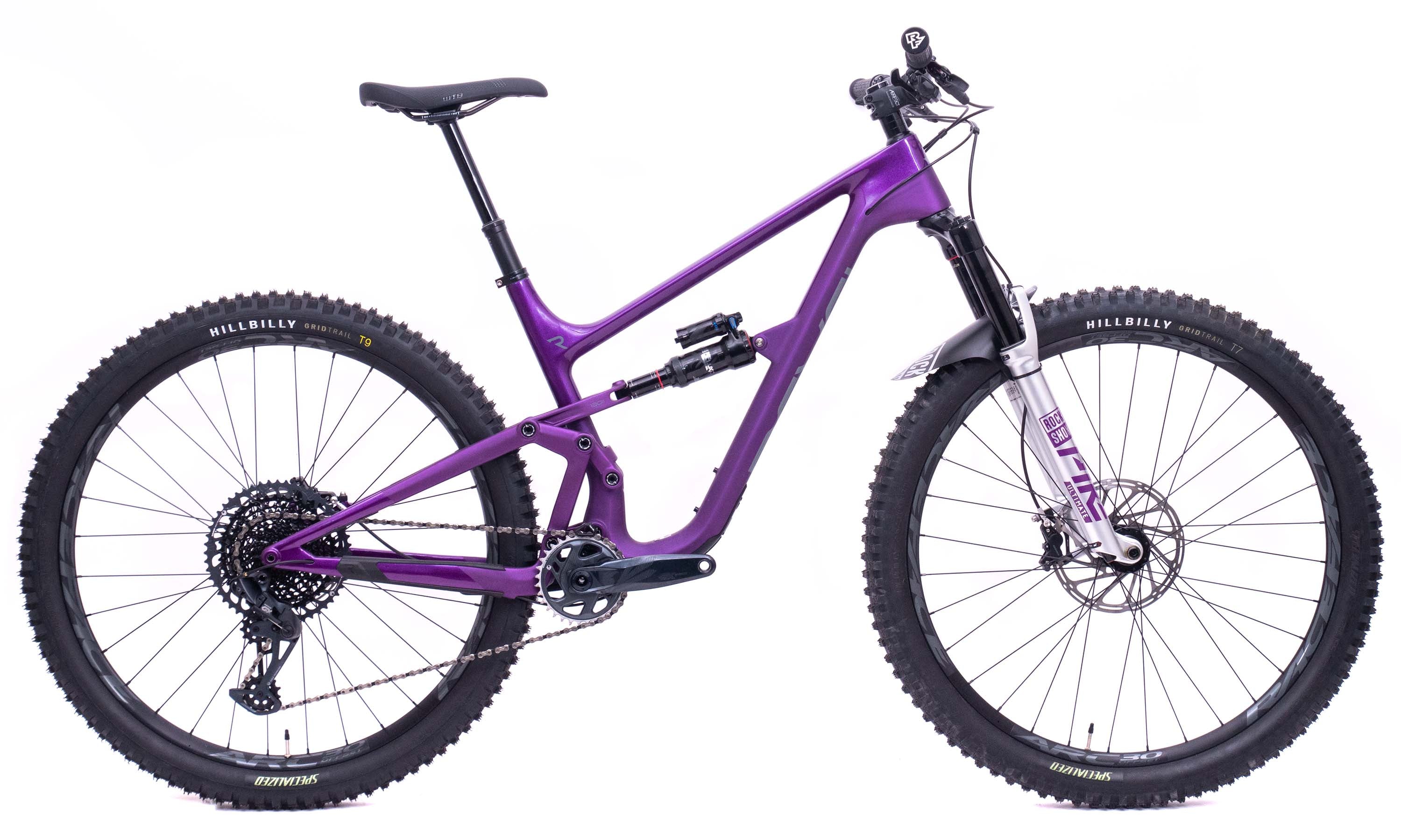

Revel Rascal GX Eagle / RockShox Build - Purple - LG

The Rascal lives up to its name- it is a sleek looking machine that is mischievously fast, nimble, and adept. Think capability and playfulness in both ascend and full send mode. Revel's vision for the Rascal was to deliver a confidence-inspiring and ultra-versatile mountain bike in all applications. The Rascal is a fast and capable mountain bike in a sleek package that you can ride every day, regardless of terrain.

The Canfield Balance Formula is the heart of every Revel bike, which maximizes the amount you pedal in the sweet spot. CBF™ focuses on designing rear suspension around the Center of Curvature (CC). Until now, most suspension systems have focused solely on the instant center. CBF points the chainline and corresponding drive forces around the top of the chainring through 100-percent of the travel resulting in maximum pedaling efficiency, regardless of where you are in the travel, what terrain you are on or what kind of power you’re putting down. All the power you put into the pedals goes into turning the rear wheel, allowing the suspension to do its job completely independent of drivetrain and braking forces and making the sag setting much less critical. When Revel first rode the largely-unknown CBF system, they knew it was something special, and knew they could make the best riding carbon mountain bikes using this magical formula.

    Features

    • Internal cable routing with full carbon tubes
    • Unique carbon layup creates stronger and stiffer tubing using less material
    • BOLU 6801 VRS full compliment bearings used in all pivot locations

    Tech Specs

    Frame Material: Carbon
    Wheel Size: 29"
    Rear Axle Standard: 12x148mm Boost

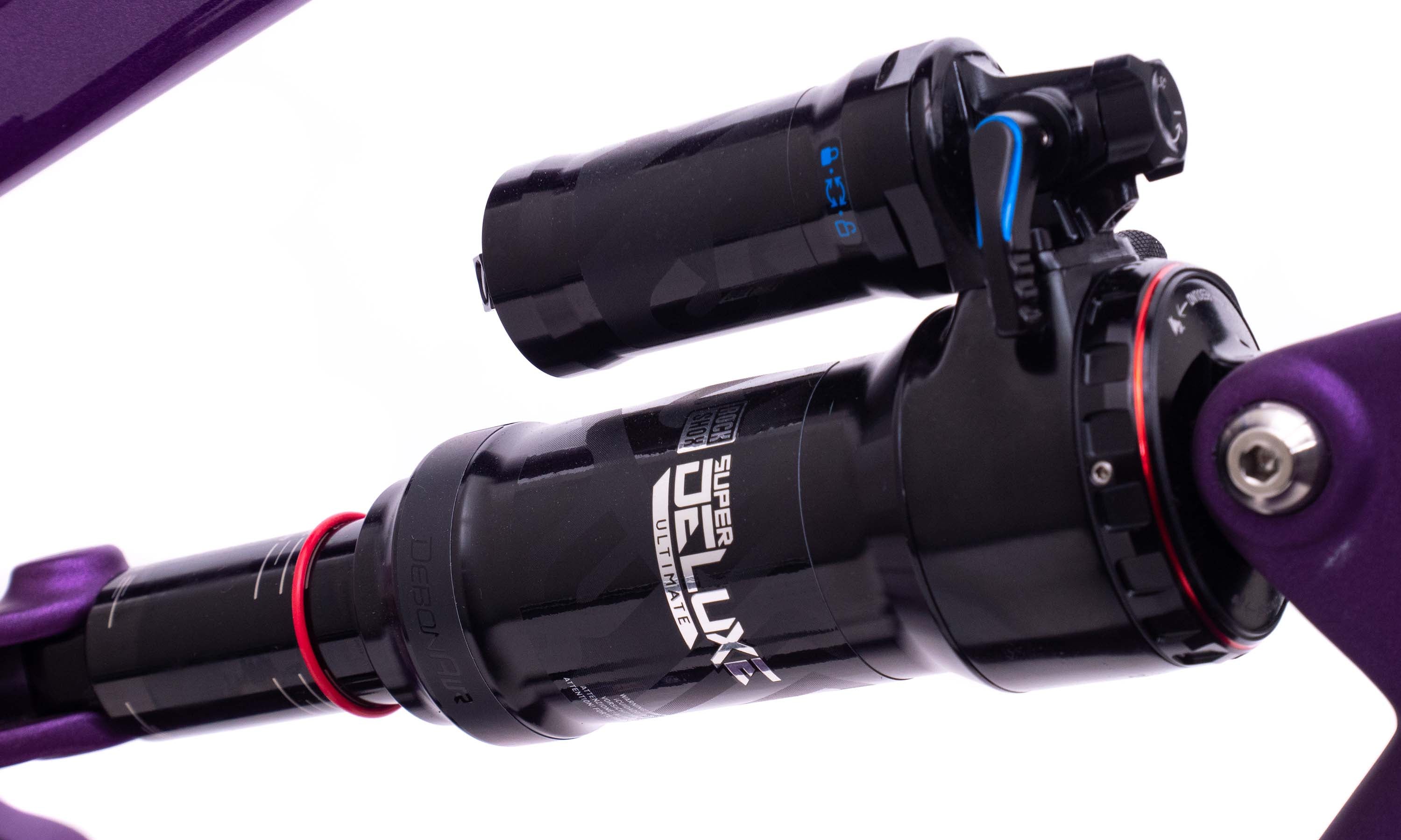

    Rear Shock: RockShox Super Deluxe Ultimate
    Rear Shock Size: 210mm x 50mm
    Rear Shock Hardware: Front: 8x22.2mm / Rear: Open
    Rear Suspension Travel: 130mm
    Headset: Cane Creek Hellbender 70
    Headset Standard: IS42mm/IS52mm

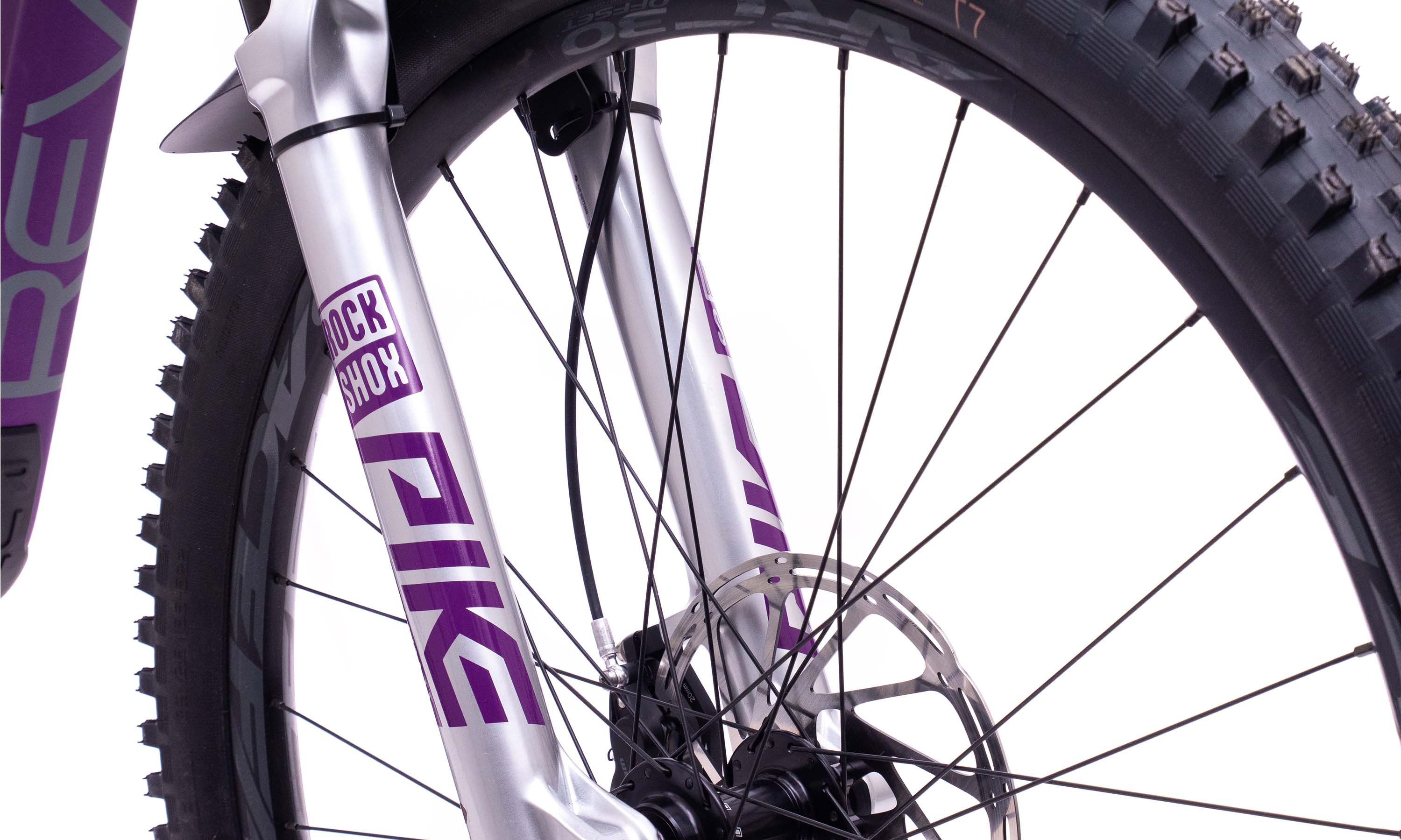

    Fork: RockShox Pike Ultimate - 51mm offset - 140mm
    Custom Die-Cut Decals
    Fork Axle: 15x110mm Boost
    Wheelset: Race Face Arc 30 Offset w/ Hope Pro 4 Hubs
    Front Tire: Specialized Hillbilly Grid Trail T7 2.6"
    Rear Tire: Specialized Hillbilly Grid Trail T9 2.4"

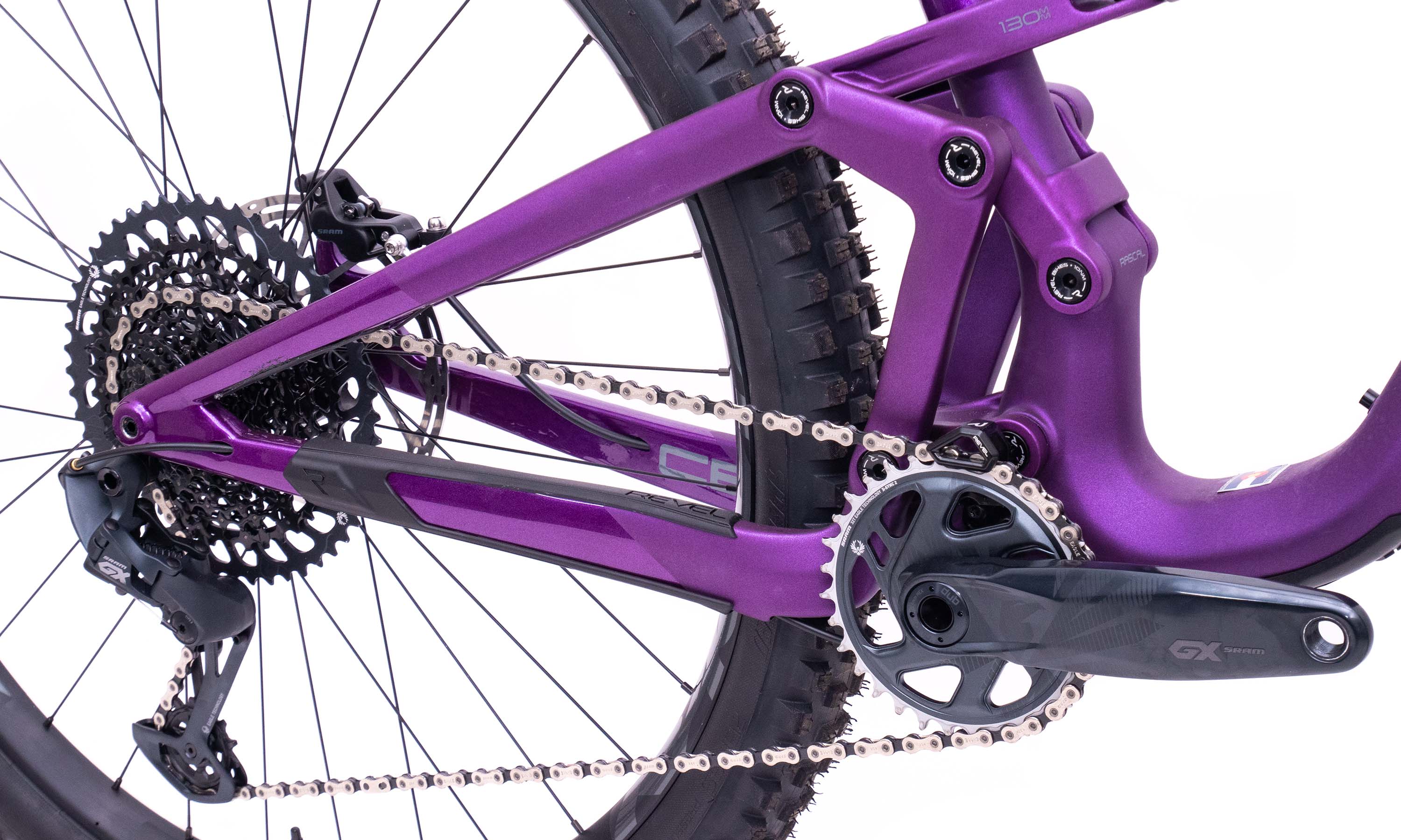

    Crankset: SRAM GX Eagle
    Chainguide: Revel Integrated
    Bottom Bracket: SRAM DUB
    BB Standard: 73mm BSA
    Chain: SRAM GX Eagle
    Rear Derailleur: SRAM GX Eagle
    Cassette: SRAM GX Eagle
    Seatpost: OneUp Dropper V2 150mm w/ V3 remote
    Seat Post Diameter: 31.6mm
    Seat Post Clamp: Revel
    Seat Post Clamp Diameter: 34.9mm
    Seat: WTB Volt
    Shifters: SRAM GX Eagle

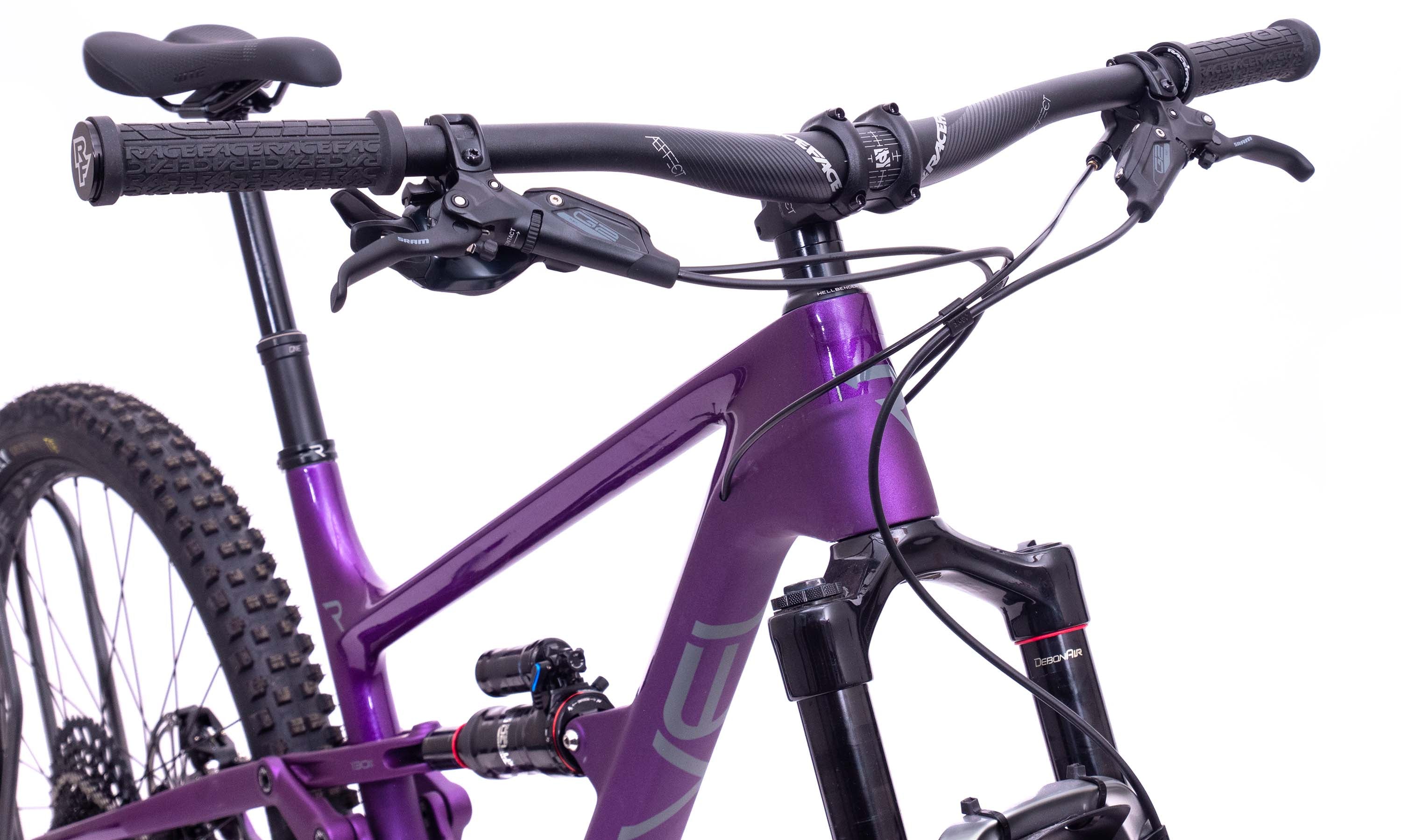

    Handlebar: Race Face Aeffect - 20mm Rise -760mm width

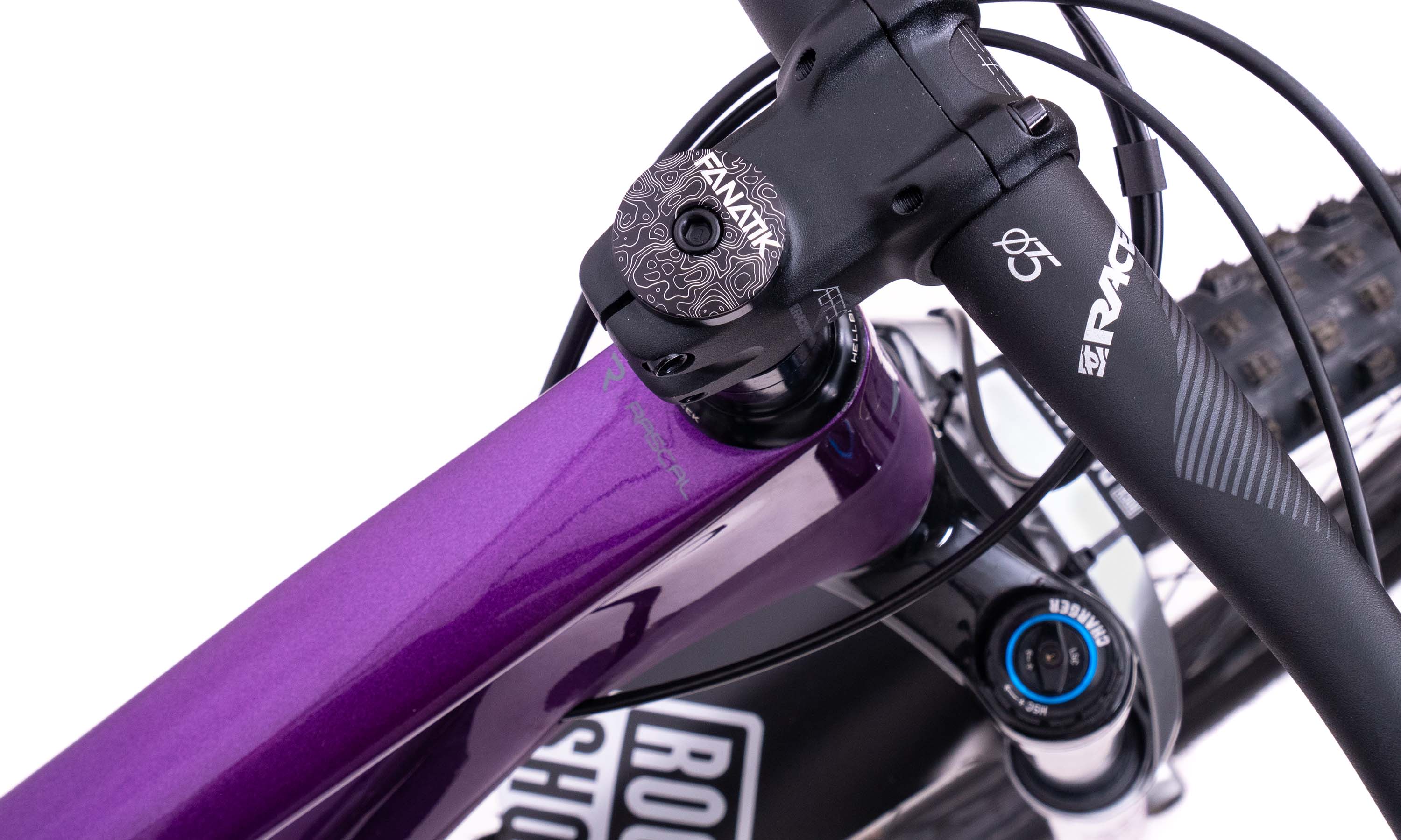

    Stem: Race Face Aeffect R - 50mm
    Grips: Race Face Grippler - 30mm
    Brakes: SRAM G2 RSC w/200-180mm Centerline V2 rotors
    Water Bottle Cage Mounts: One
    Intended Use: Trail/AM
    Warranty: Lifetime for frame

    Specs subject to change without notice. Please check with manufacturer for the most up-to-date information.

    Geometry

    mm / inches

    140mm fork

    Size
    Seat Tube
    Top Tube
    Reach
    BB Height
    Head Angle
    Seat Angle
    Standover
    Chainstay
    Head Tube
    Wheelbase
    Trail
    Stack
    SM
    385
    547
    424
    335
    66
    75
    682
    433
    96
    1182
    107
    600
    MD
    415
    547
    444
    335
    66
    75
    698
    433
    107
    1202
    107
    610
    LG
    445
    590
    464
    335
    66
    75
    716
    433
    116
    1220
    107
    618
    XL
    475
    612
    489
    335
    66
    75
    736
    433
    127
    1247
    107
    628

    Sizing

    cm / ft

    Size SM MD LG XL
    Rider Height (cm) 155 - 170 168 - 178 175 - 188 185 - 201
