Rocky Mountain
Reaper 26

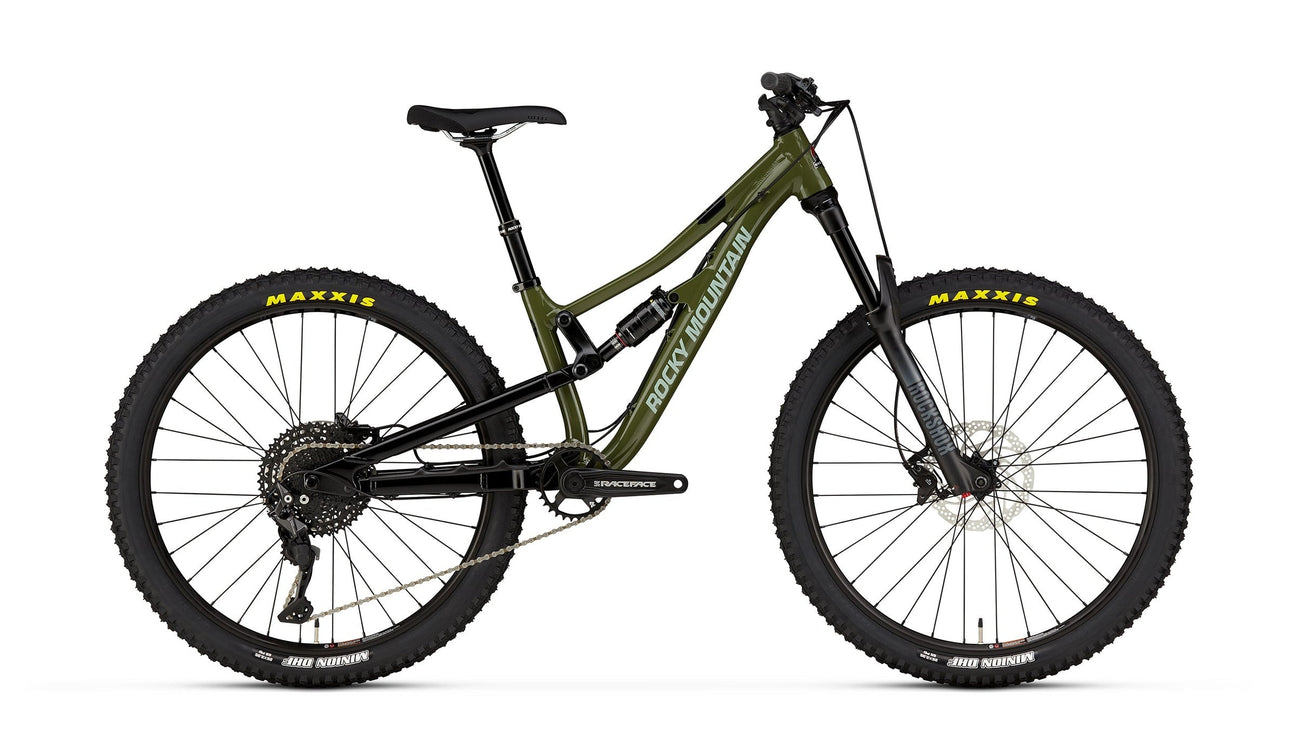

Rocky Mountain Reaper 26
Guess what? Kids want to rip trails, too. That’s why the Reaper incorporates decades of trail, enduro, and park prowess and condenses it into a shred ready package for kids. The result? Full-sized trail bike levels of competence and composure in a kid-friendly package. The objective? To pass on a love of riding and ripping to the next generation.Tech Specs
| Frame Material: | Aluminum |
| Wheel Size: | 26" |
| Rear Axle Standard: | 12x148mm Boost |
| Rear Shock: | RockShox Monarch R High Volume | Light Tune |
| Rear Shock Size: | 165mm x 38mm |
| Rear Shock Hardware: | 25x8mm Hardware |
| Rear Suspension Travel: | 130mm |
| Headset: | FSA Orbit NO.57B |
| Headset Standard: | ZS44mm/ZS56mm |
| Fork: | RockShox Recon Gold 130mm | 27.5 = 37mm Offset |
| Fork Axle: | 15x110mm Boost |
| Wheelset: | WTB ST i21 TCS Tubeless Rims | Front Hub: Rocky Mountain Sealed | Rear Hub: Novatec D462 |
| Tires: | Maxxis Minion DHF 2.35 |
| Crankset: | Race Face Ride Cinch | 30T | 24mm Spindle | 165mm Crank Length |
| Bottom Bracket: | Shimano SM-BBMT500 |
| BB Standard: | BB92 |
| Rear Derailleur: | MicroShift Advent X 10spd With Clutch |
| Cassette: | Sunrace CSMS2 11-46T |
| Seatpost: | Rocky Mountain Toonie Drop Composite 30.9mm | 80mm |
| Seat Post Diameter: | 30.9mm |
| Seat Post Clamp Diameter: | 34.9mm |
| Seat: | WTB Volt Race 133 |
| Shifters: | MicroShift Advent X 10spd |
| Handlebar: | SDG Slater | 650mm Width | 20mm Rise | 8° Backsweep | 5° Upsweep | 31.8 Clamp |
| Stem: | Rocky Mountain 31.8 AM | 5° Rise | All Sizes = 40m |
| Grips: | SGD Slater JR Lock On |
| Brakes: | Shimano MT4100 2 Piston | Resin Pads | Front: Shimano RT30 180mm | Rear: Shimano RT30 180mm |
| Intended Use: | Youth MTB |
| Warranty: | 5 years |
Specs subject to change without notice. Please check with manufacturer for the most up-to-date information.
Geometry
mm / inches
Position 5 (Neutral)
Size
Seat Tube
Top Tube
Reach
BB Drop
Head Angle
Seat Angle
Standover
Chainstay
Head Tube
Wheelbase
Stack
Seatpost
Insertion
Insertion
One Size
331
504
340
14
63.9
73.4
727
420
93
1072
551
180
Sizing
cm / in
| One Size | |
|---|---|
| Inseam (cm) | 55 - 80 |
