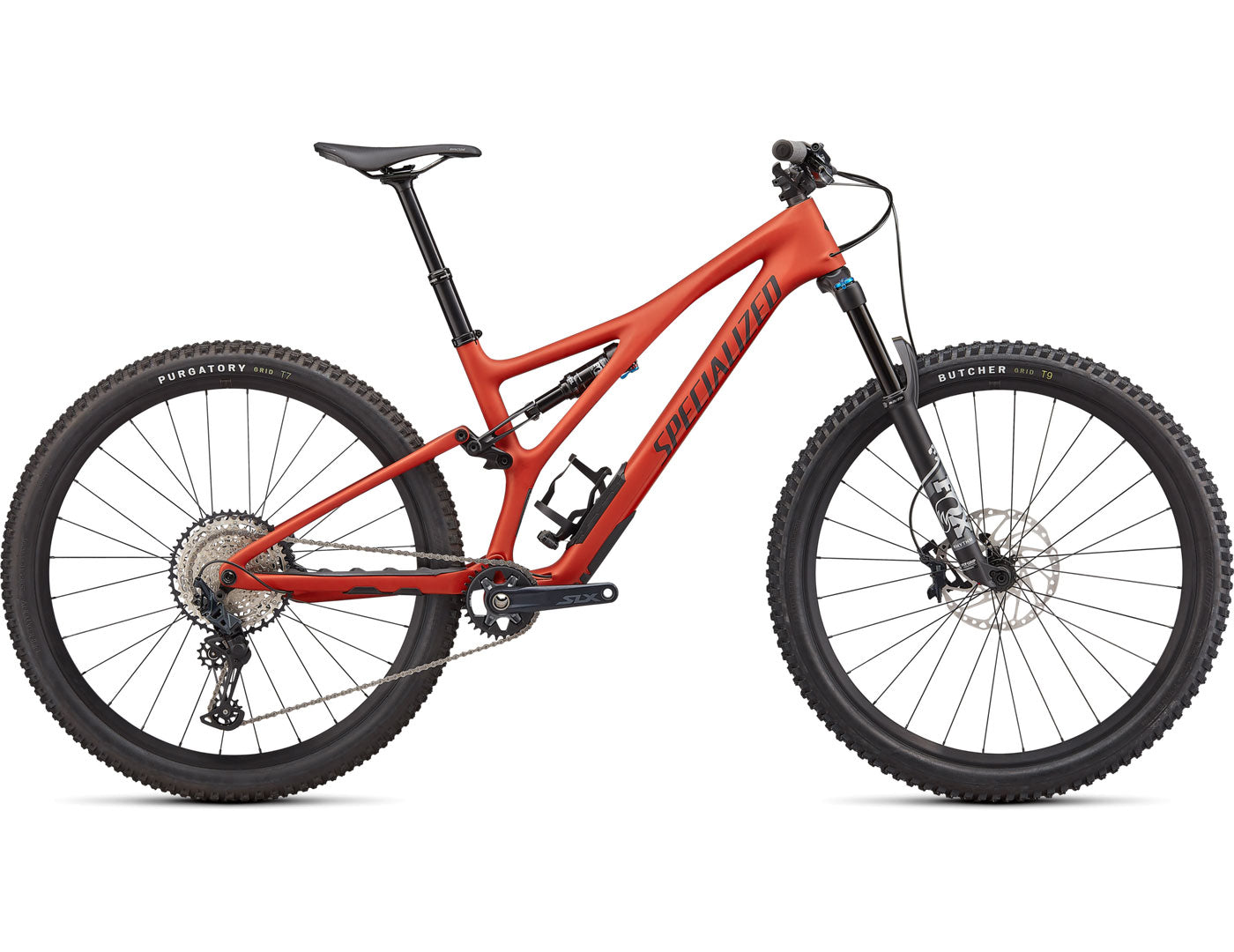

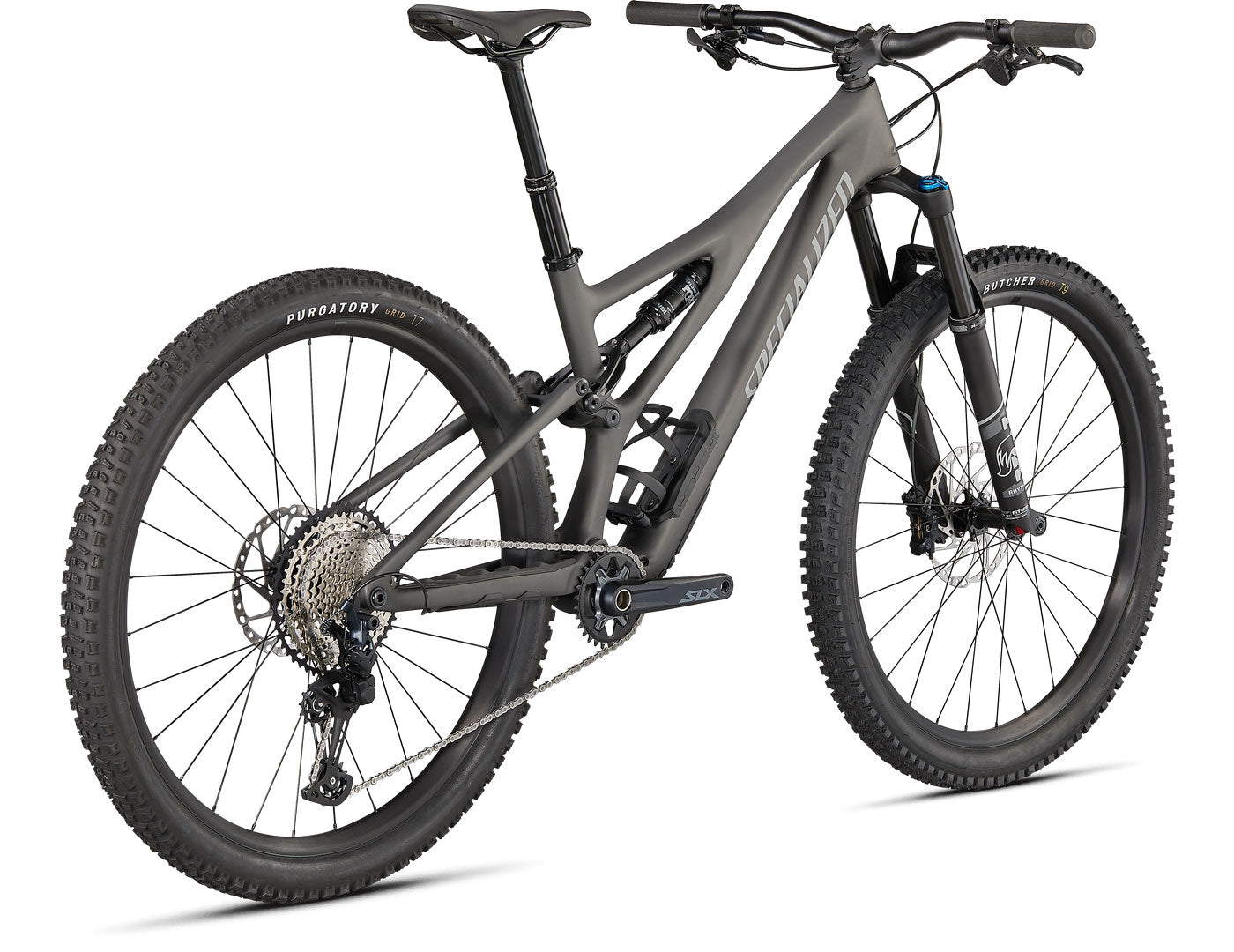

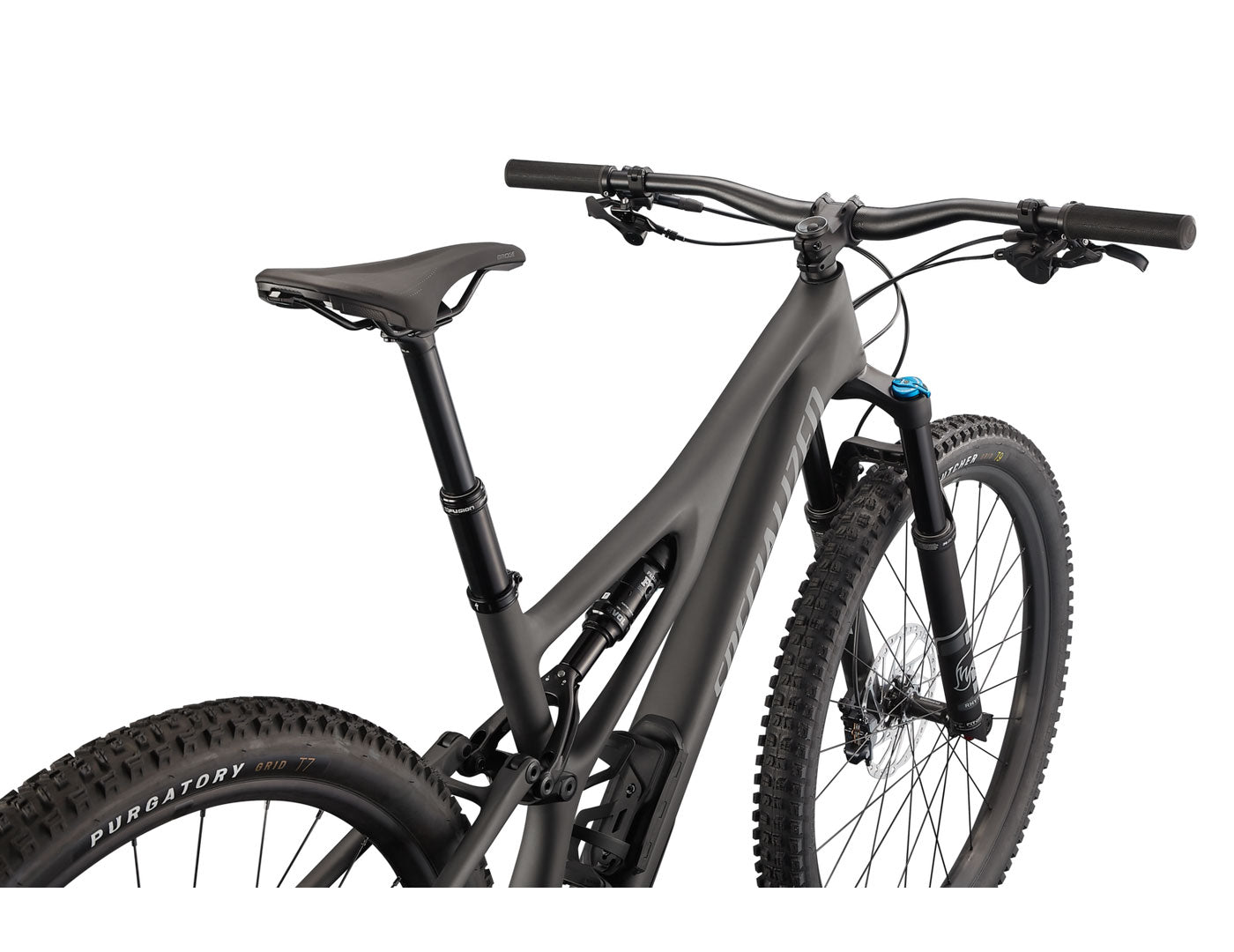

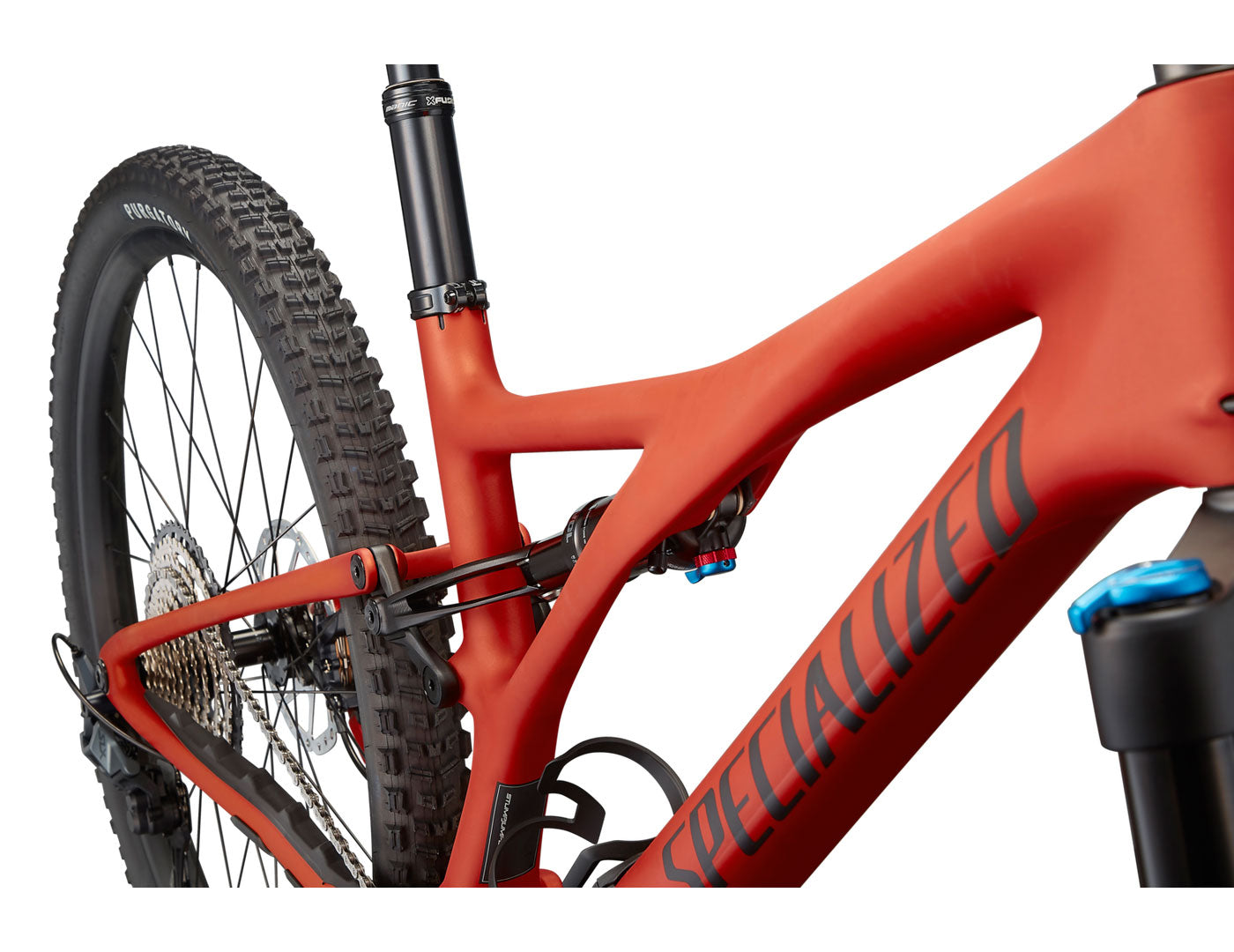

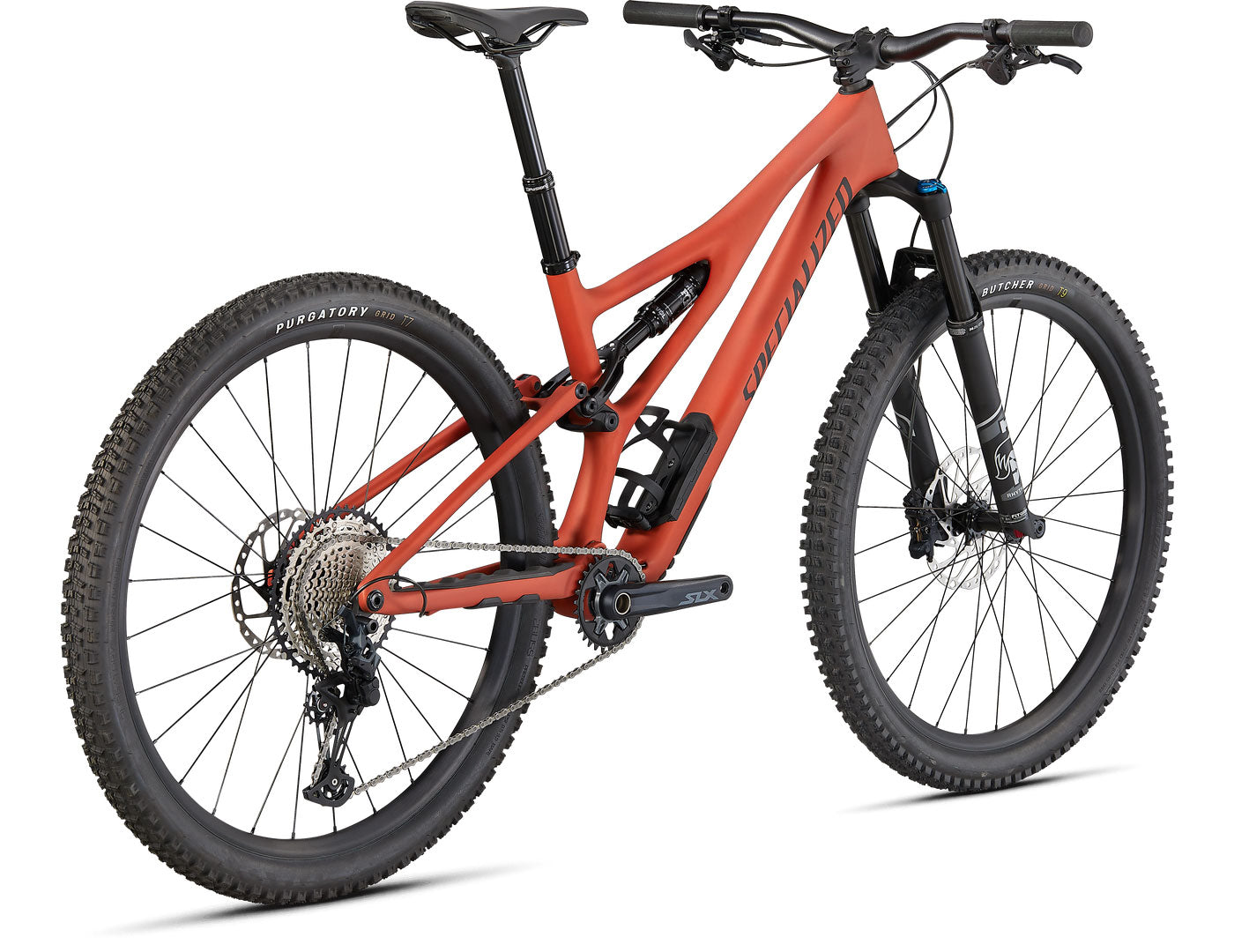

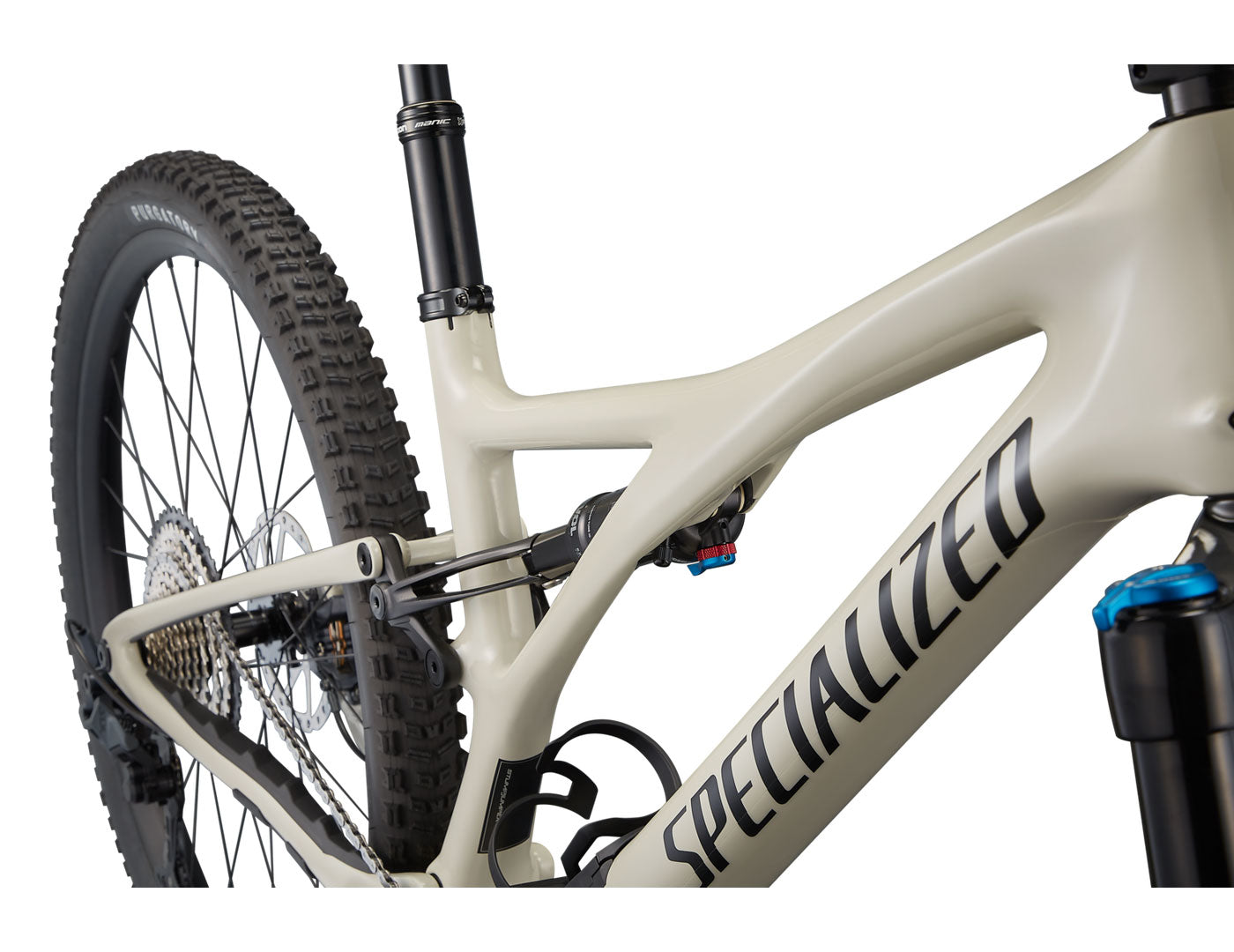

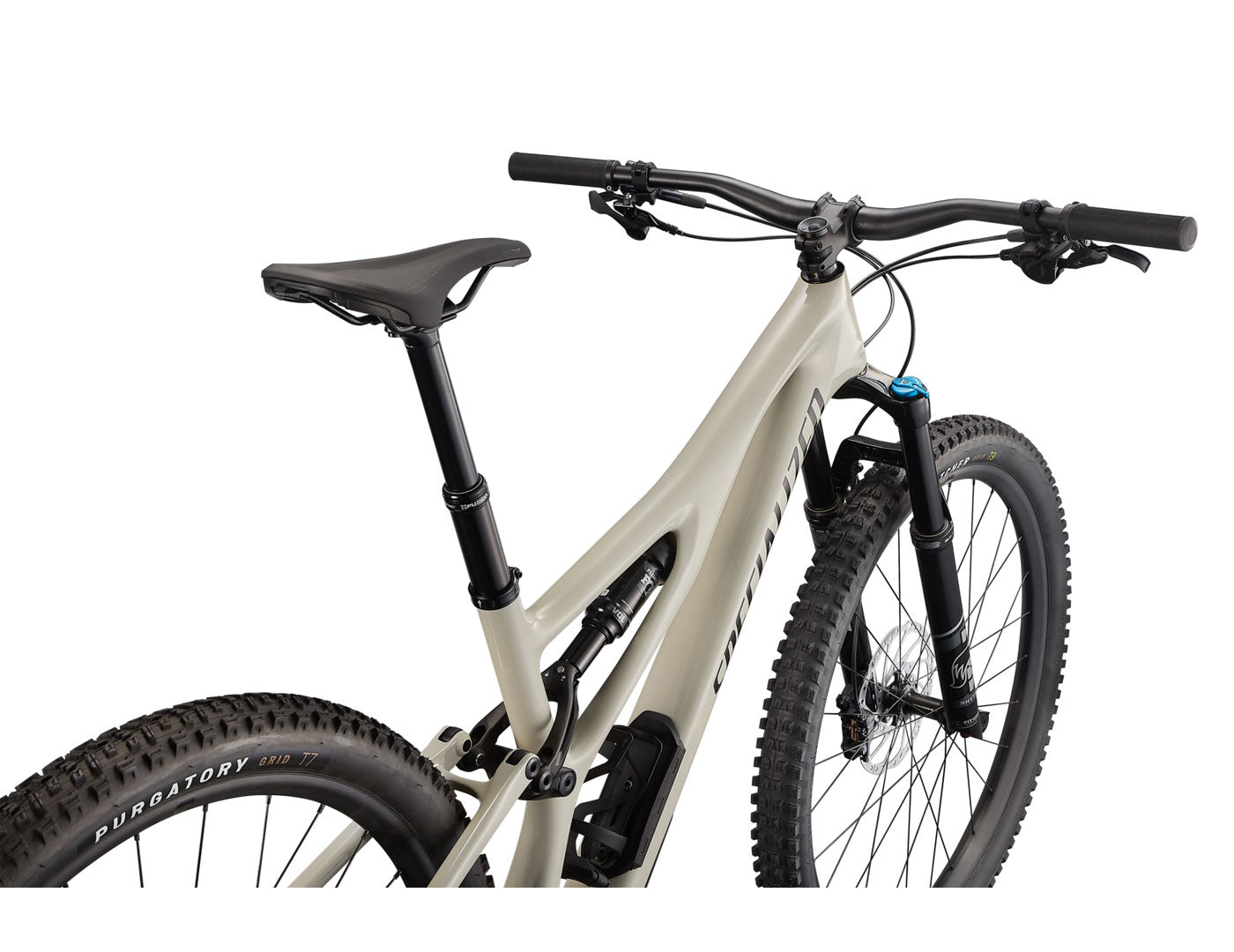

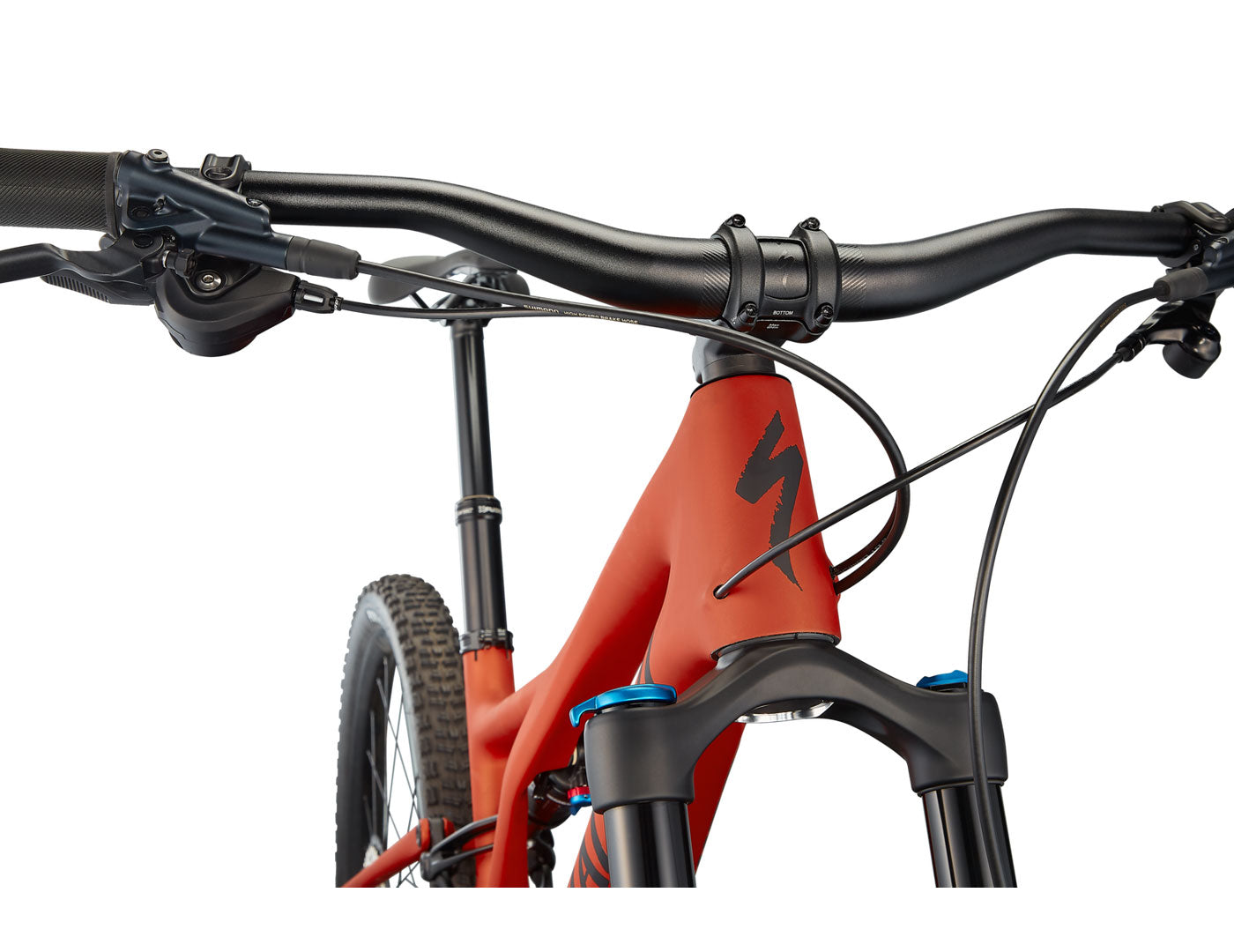

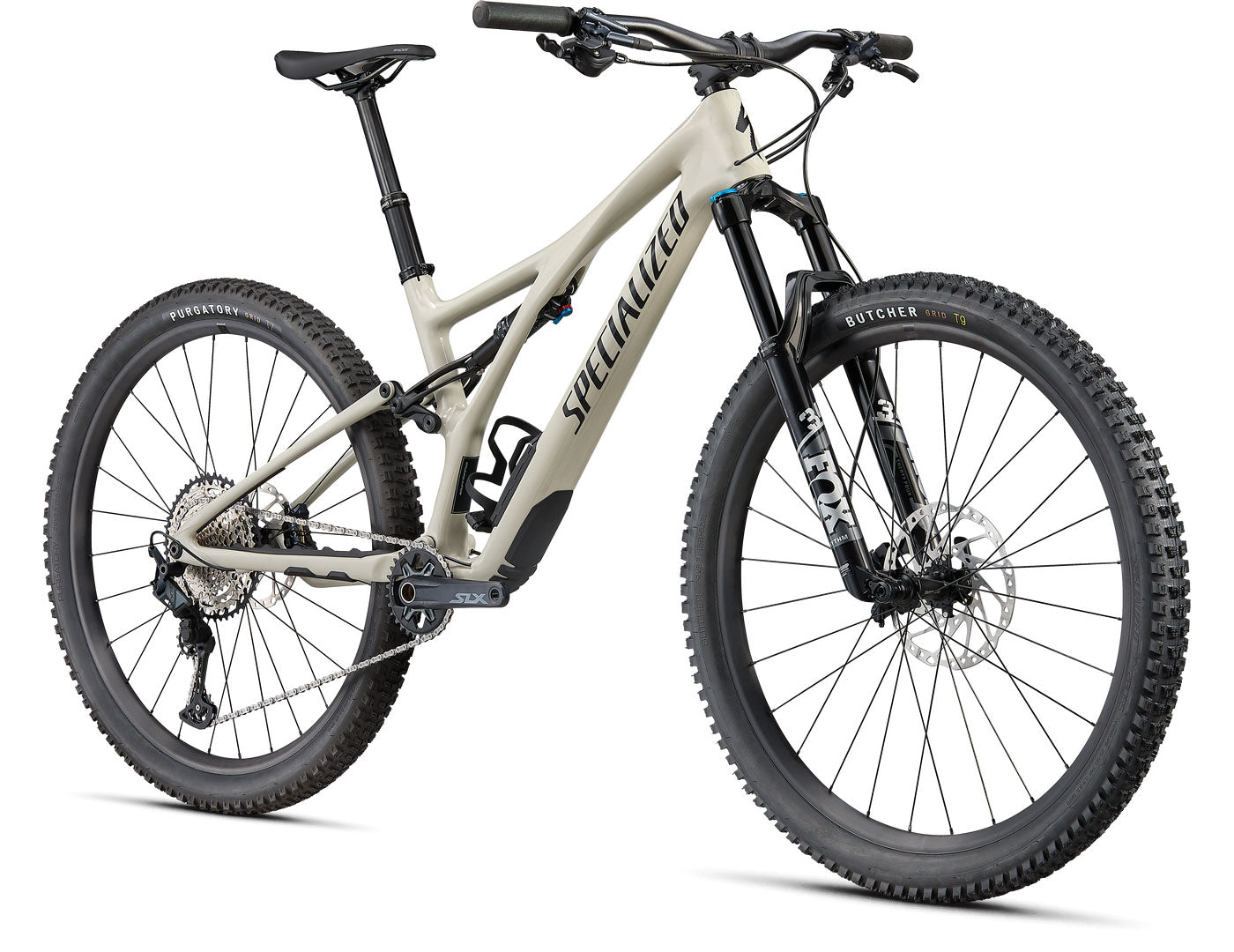

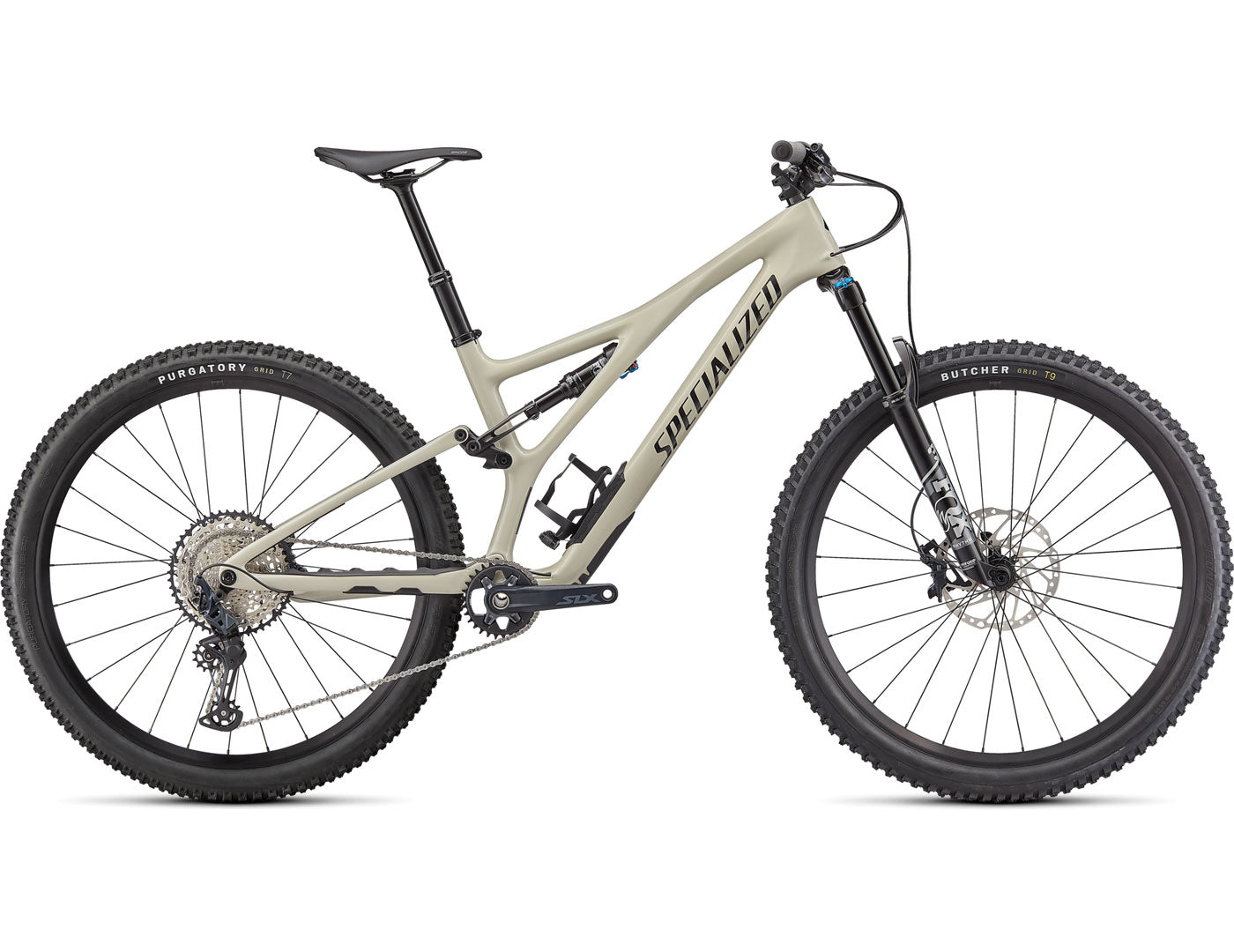

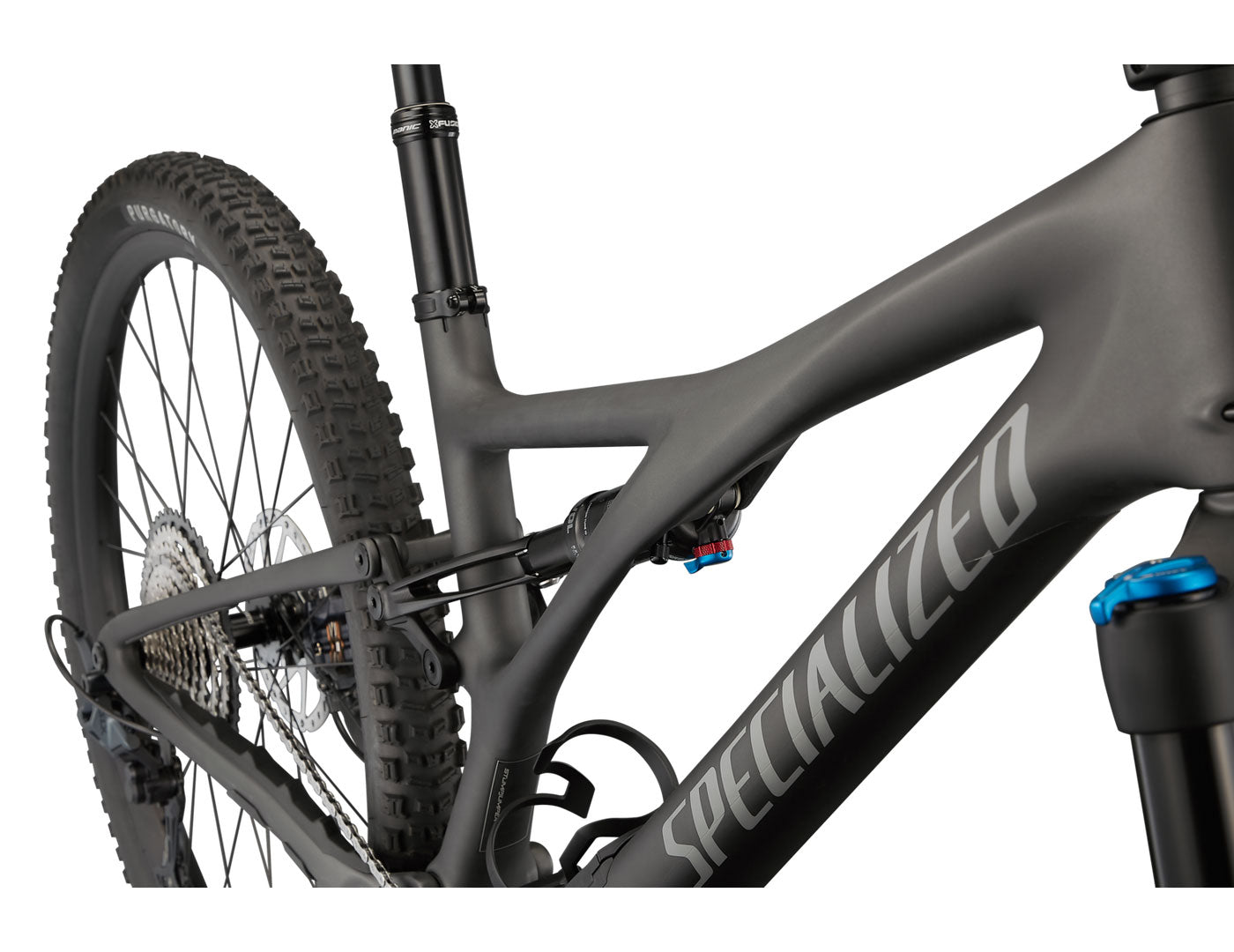

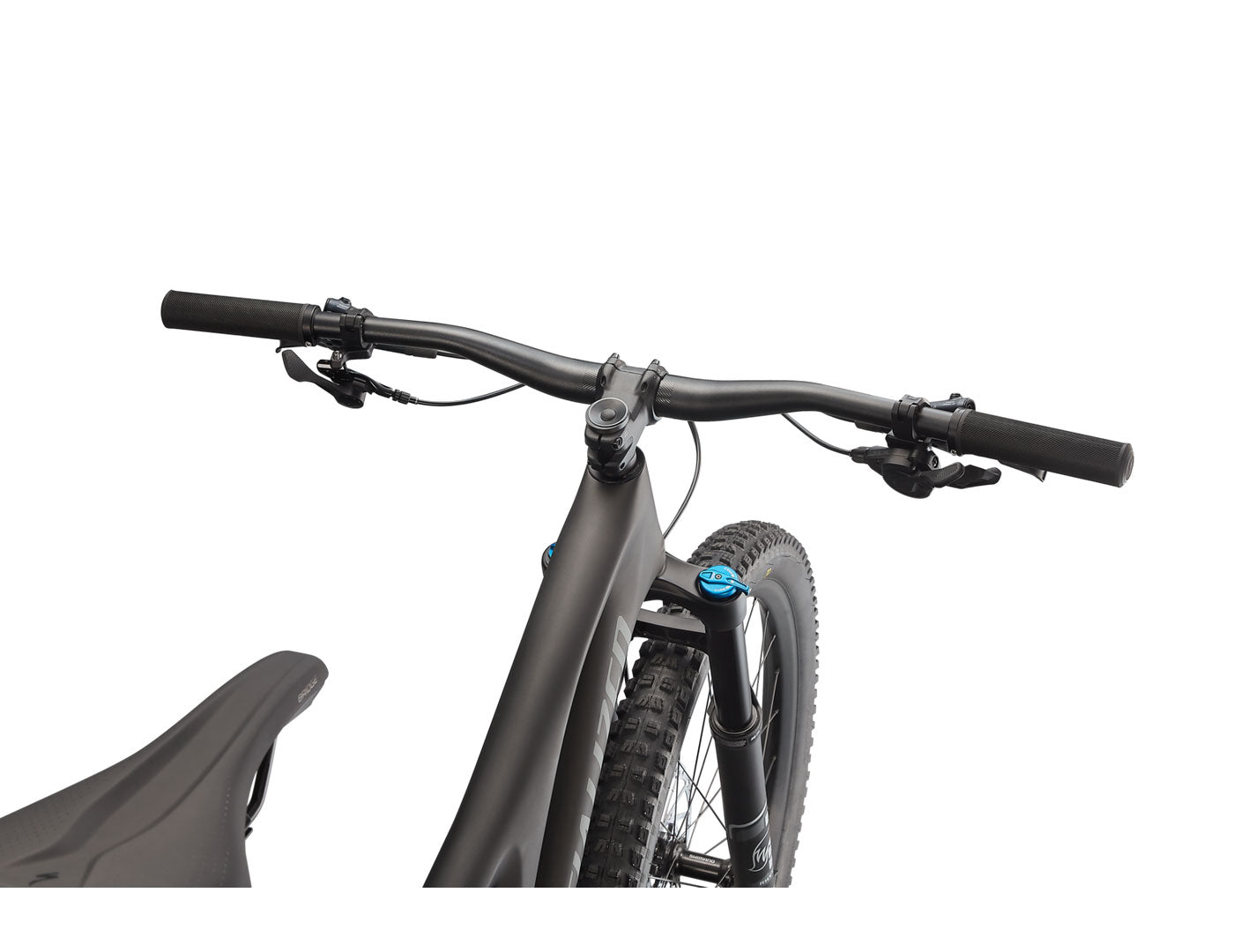

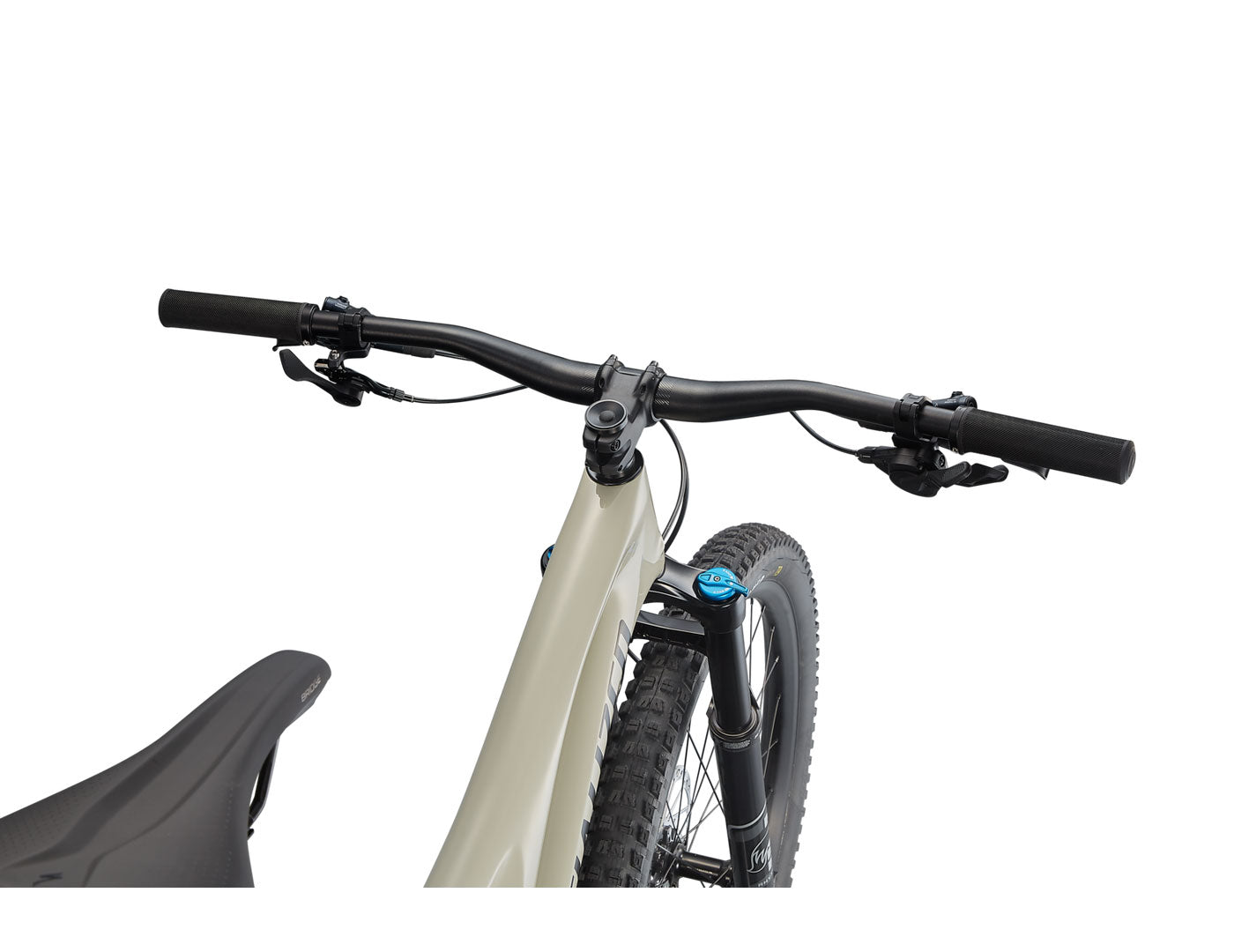

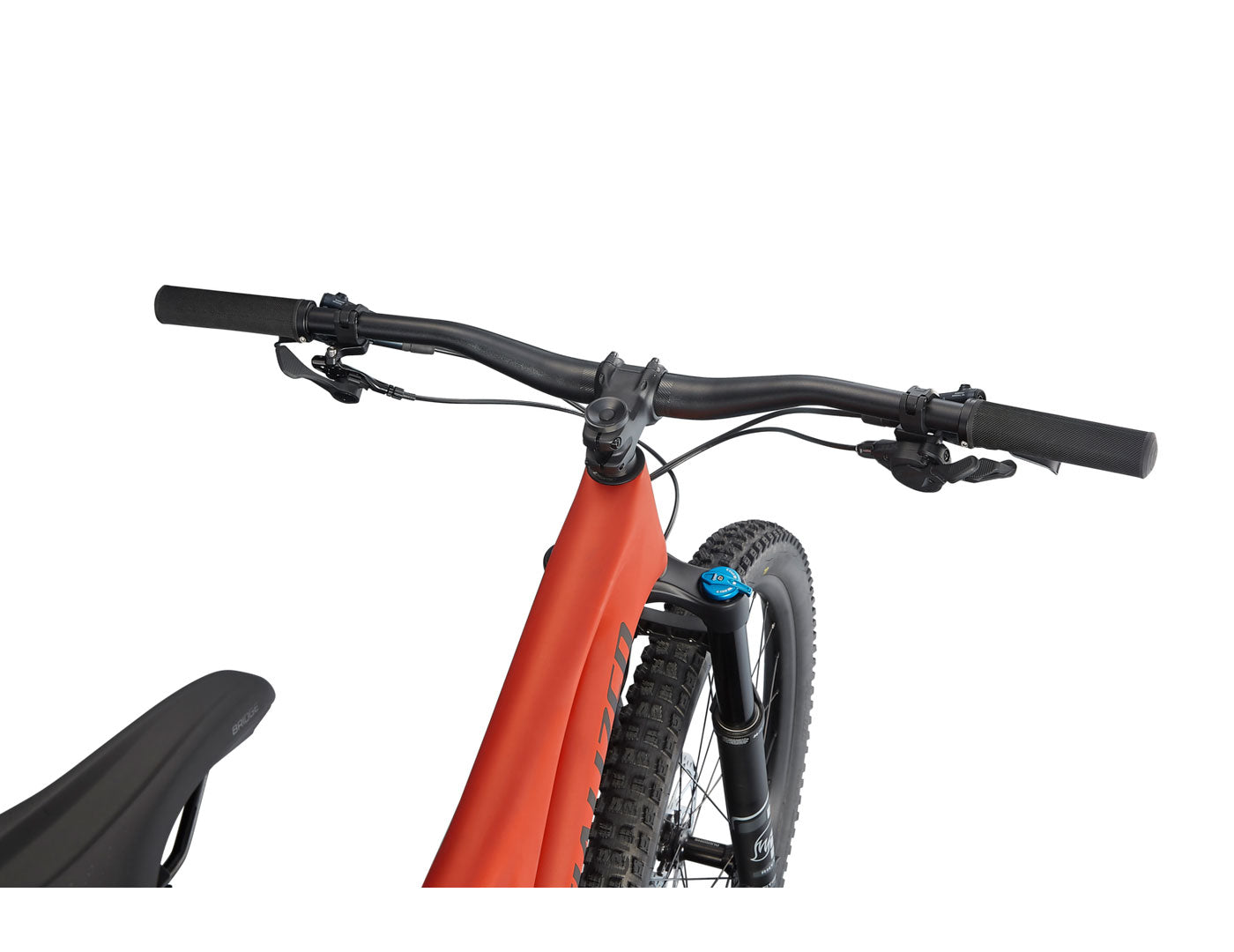

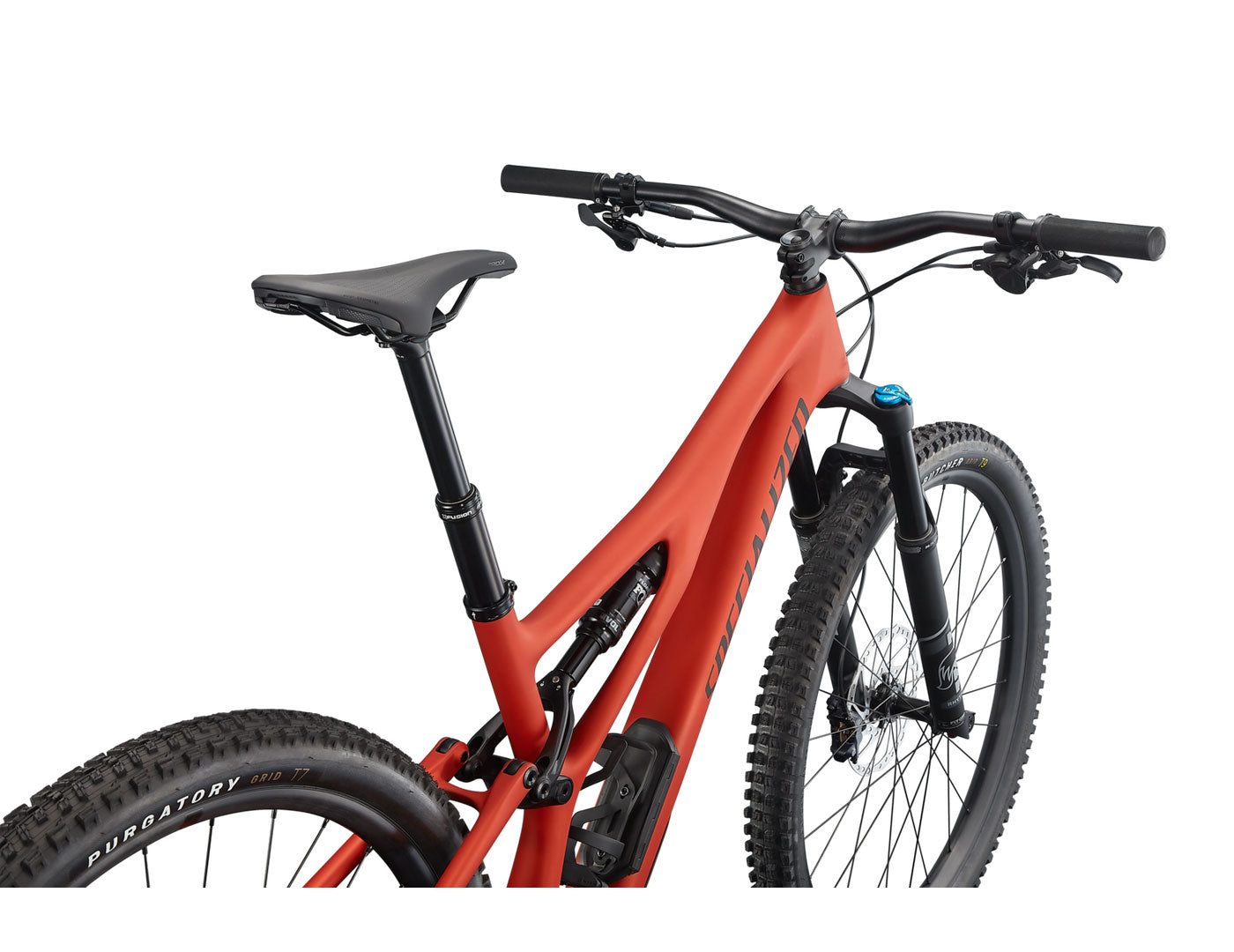

Specialized Stumpjumper Comp
Unrivaled suspension kinematics, sublime handling, perfectly-tuned frame stiffness—the Stumpjumper Comp is Specialized's fully featured, fully affordable, full-carbon, definitive trail bike. All-new geometry, all-new suspension, thoughtfully spec’d—it’s ready to take you wherever the trail may lead.
Features
- Adjustable geometry - Choose between a high and low bottom-bracket setting to suit your riding style.
- FACT 11m carbon chassis
- Rider-First Engineered - Progressive "S" size range that encourages size choice based on riding style.

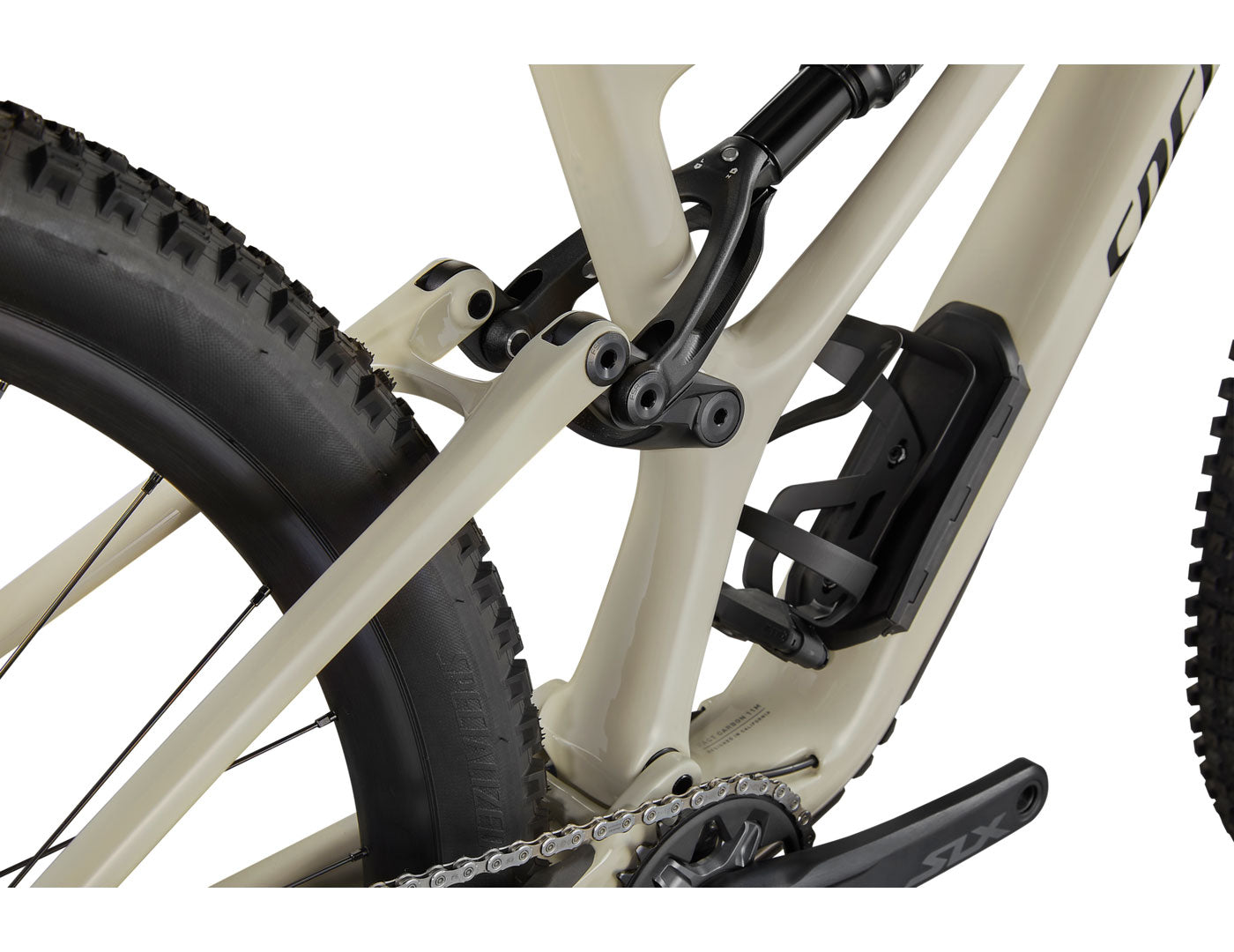

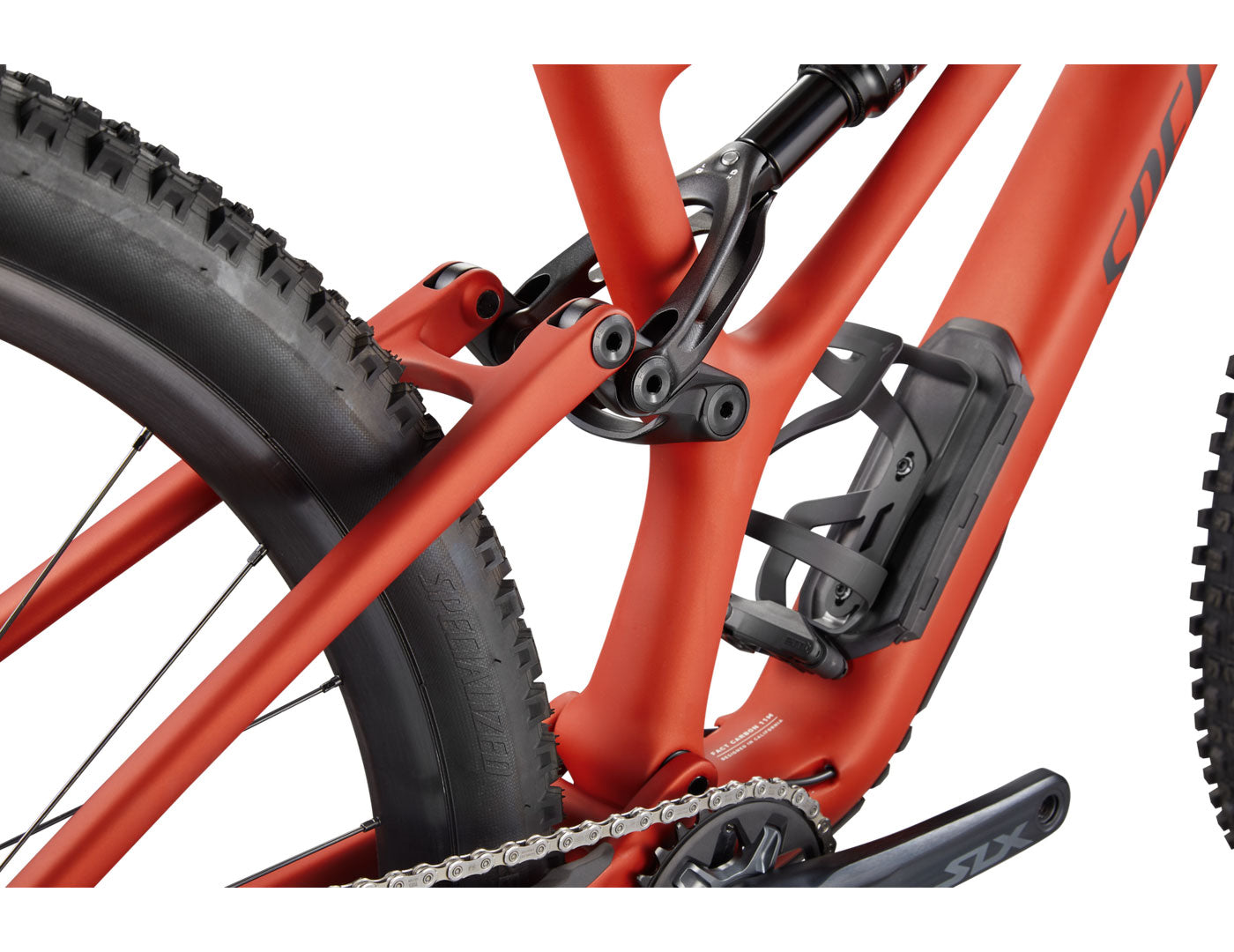

- SWAT Storage - Integrated downtube storage for tools and snacks.
Tech Specs
| Frame Material: | Carbon |
| Wheel Size: | 29" |
| Rear Axle Standard: | 12x148mm Boost |
| Rear Shock: | FOX Float DPS Performance |
| Rear Shock Size: | 190mm x 45mm |
| Rear Suspension Travel: | 130mm |
| Headset: | Specialized specific FSA integrated |
| Fork: | FOX FLOAT 34 Rhythm, GRIP damper, two position switch, 44mm offset, 140mm of travel |
| Fork Axle: | 15x110mm Boost |
| Wheelset: | Shimano MT400-B Centerlock 28h hubs / Specialized 29" 30mm rims / Setup tubless |
| Front Tire: | Specialized Butcher, GRID casing, GRIPTON® T7 compound, 29x2.3" |
| Rear Tire: | Specialized Purgatory, GRID casing, GRIPTON® T7 compound, 29x2.3" |
| Crankset: | Shimano SLX, S1:165mm, S2-S5: 170mm, S6: 175mm |
| Chainguide Tabs: | ISCG '05 2-Bolt |
| Bottom Bracket: | Shimano, BB-MT800, Threaded |
| BB Standard: | 73mm BSA |
| Chain: | Shimano SLX, M7100, 12-speed |
| Rear Derailleur: | Shimano SLX M7100, SGS, 12-speed |
| Cassette: | Shimano SLX, CS-M7100, 12-speed, 10-51t |
| Seatpost: | X-Fusion Manic, infinite adjustable, remote SRL LE lever, 34.9 (S1:100mm, S2: 125mm, S3: 150mm, S4/S5: 170mm, S6: 190mm) |
| Seat Post Diameter: | 34.9mm |
| Seat Post Clamp Diameter: | 38.6mm |
| Seat: | Specialized Bridge Comp, Hollow Cr-mo rails, 155/143mm |
| Shifters: | Shimano SLX, M7100, 12spd |

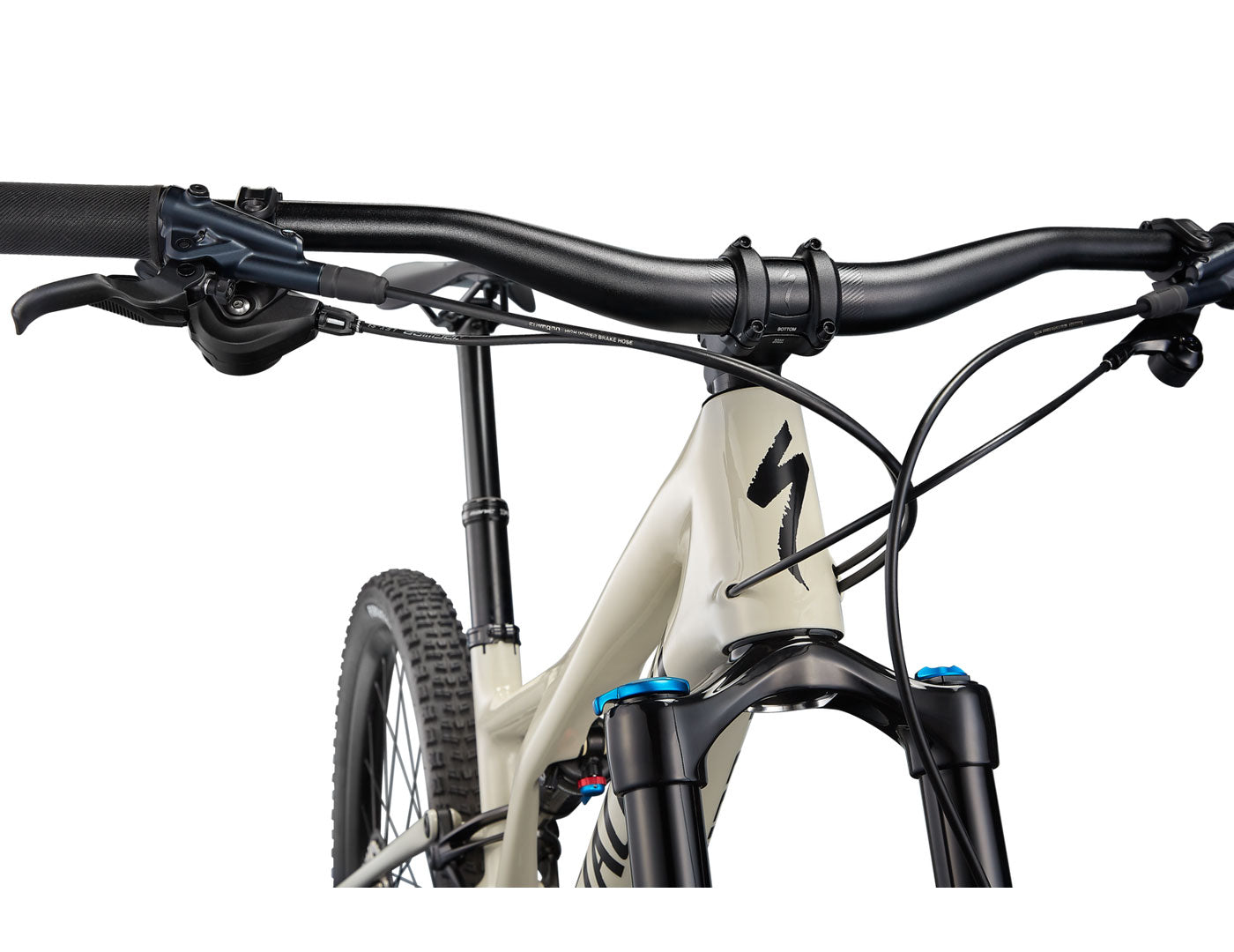

| Handlebar: | Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm width |
| Stem: | Specialized Alloy Trail Stem |
| Grips: | Specialized Trail Grips |
| Brakes: | Shimano SLX M7120, 4-piston caliper, hydraulic disc, 200mm front/180mm rear |
| Water Bottle Cage Mounts: | 1 Standard. SWAT cage included. |
| Intended Use: | Trail/AM |
| Warranty: | Frame: Lifetime if registered, otherwise 2 years |
Specs subject to change without notice. Please check with manufacturer for the most up-to-date information.
Geometry
mm / inches
Low Bottom Bracket
Size
Seat Tube
Top Tube
Reach
BB Height
Head Angle
Seat Angle
Standover
Chainstay
Head Tube
Wheelbase
Trail
Stack
Seatpost
Insertion
Insertion
S1
385
563
410
328
65
76
730
432
95
1152
126
614
220
S2
385
583
430
333
65
76
734
432
100
1175
126
613
220
S3
405
605
450
333
65
76
744
432
110
1200
126
622
240
S4
425
632
475
333
65
76
749
432
120
1228
126
632
260
S5
445
660
500
333
65
76
757
442
130
1268
126
641
280
S6
465
692
530
333
65
76
757
442
140
1302
126
650
300
High Bottom Bracket
Size
Seat Tube
Top Tube
Reach
BB Height
Head Angle
Seat Angle
Standover
Chainstay
Head Tube
Wheelbase
Trail
Stack
Seatpost
Insertion
Insertion
S1
385
563
415
335
65.5
76.5
730
432
432
1152
123
614
220
S2
385
583
435
340
65.5
76.5
734
432
100
1175
123
609
220
S3
405
605
455
340
65.5
76.5
744
432
110
1200
123
618
240
S4
425
632
480
340
65.5
76.5
749
432
120
1228
123
627
260
S5
445
660
505
340
65.5
76.5
757
442
130
1268
123
636
280
S6
465
692
535
340
65.5
76.5
757
442
140
1302
123
646
300
Sizing
cm / ft
| Size | S1 | S2 | S3 | S4 | S5 | S6 |
|---|---|---|---|---|---|---|
| Rider Height (cm) | 150 - 160 | 157 - 173 | 165 - 180 | 173 - 188 | 177 - 193 | 188 - 198 |
Specialized Stumpjumper Comp:
Smoke / Cool Grey / S2: 93321-5002 -
Smoke / Cool Grey / S5: 93321-5005 -
