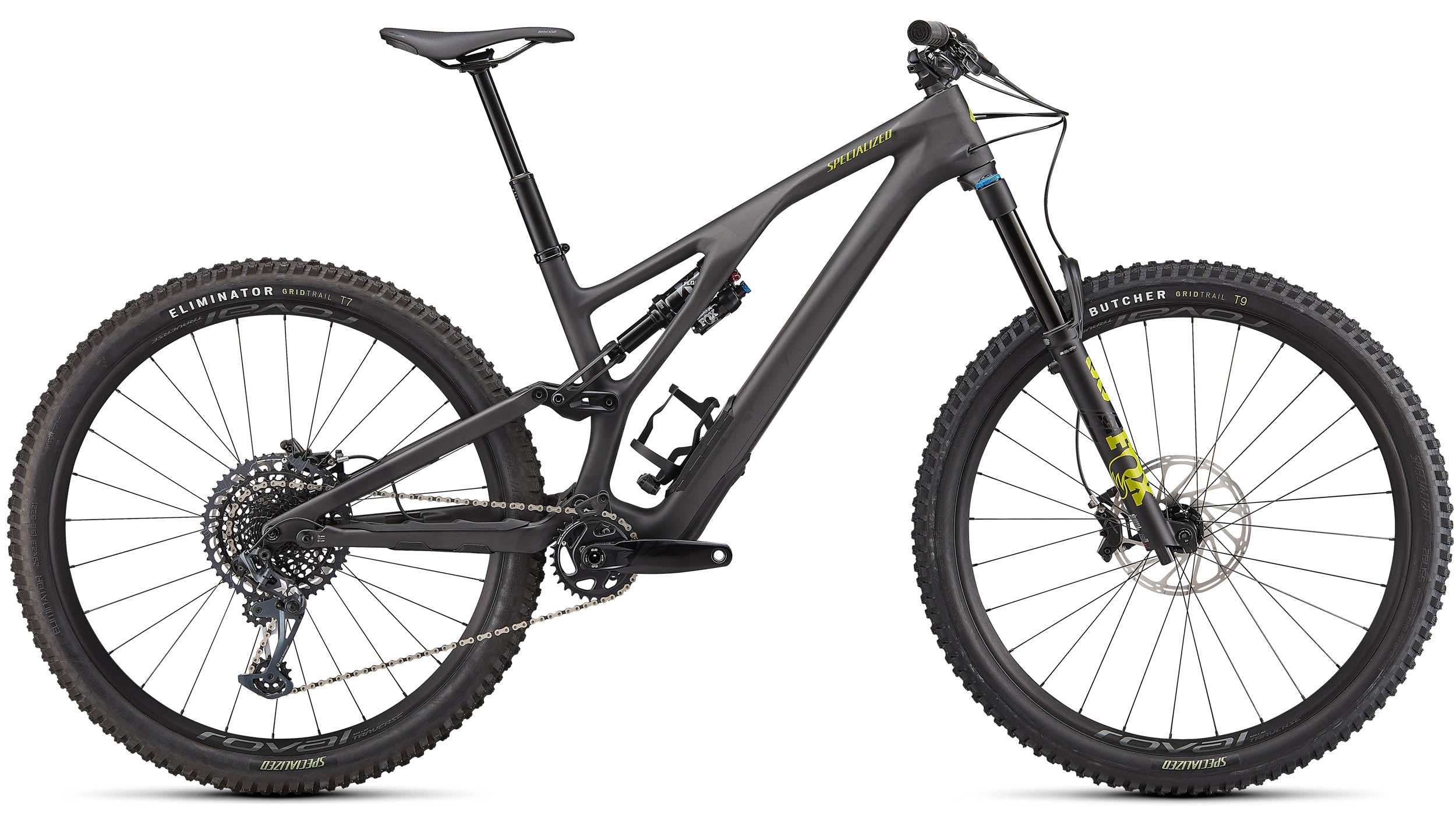

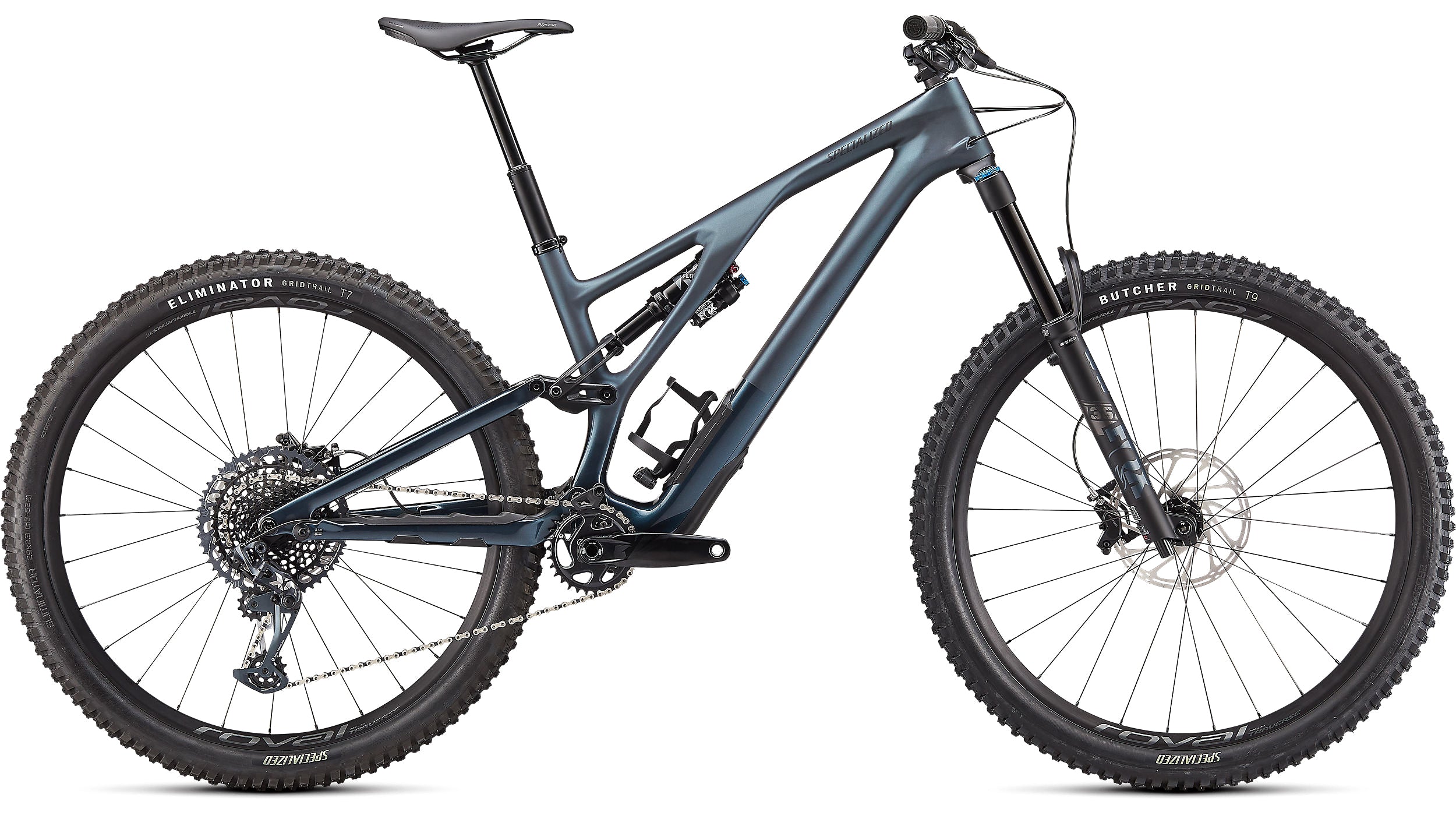

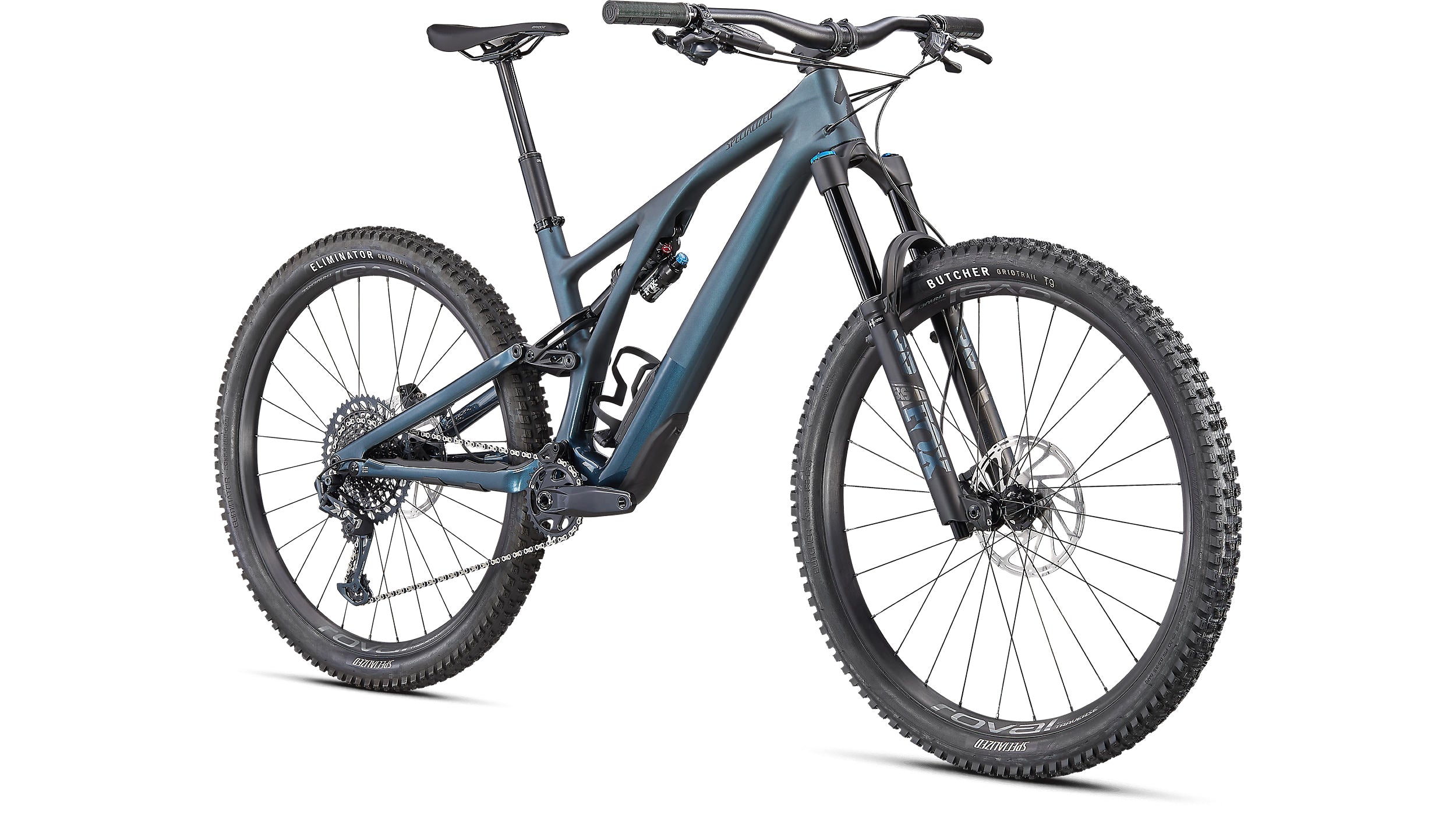

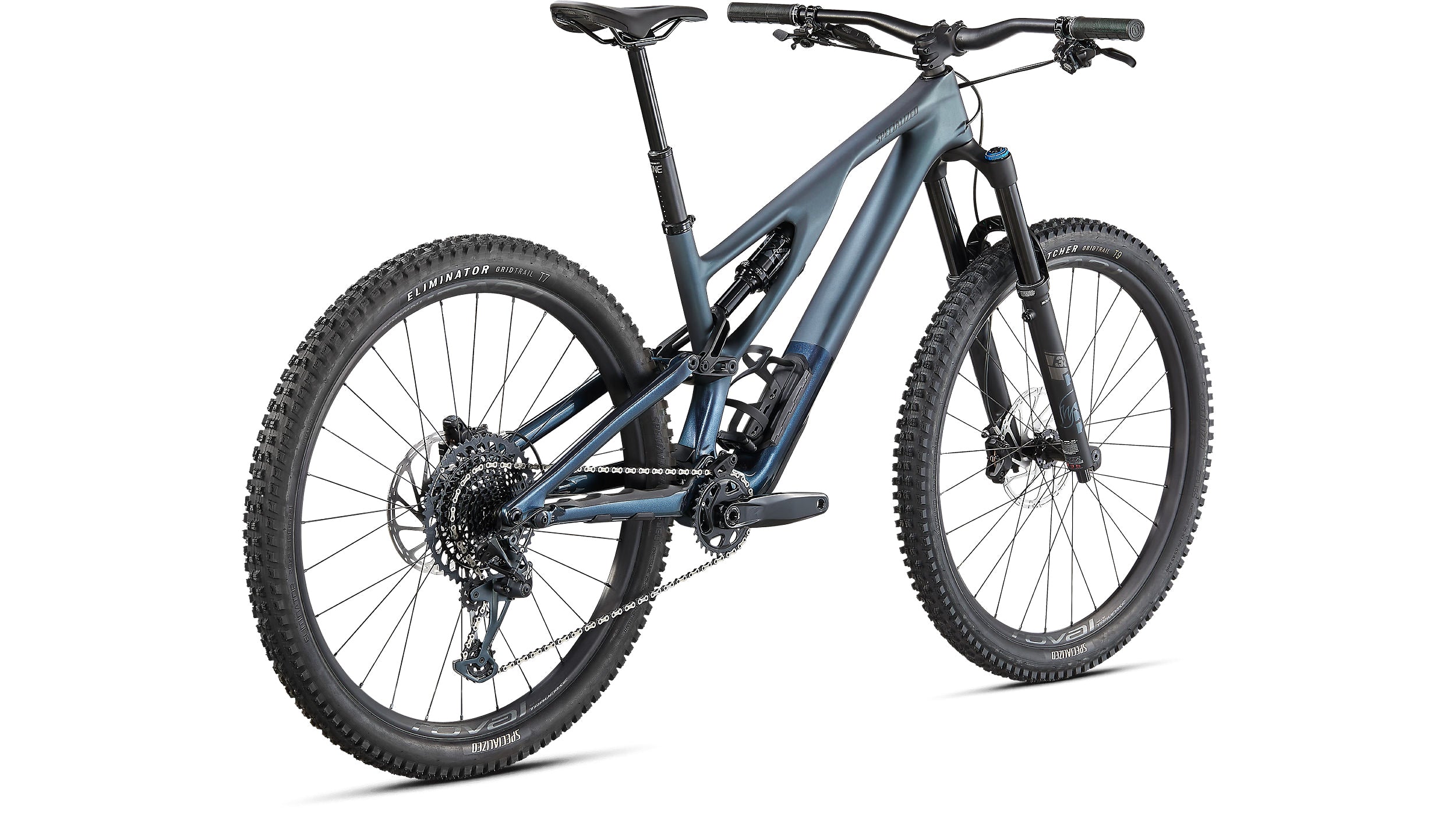

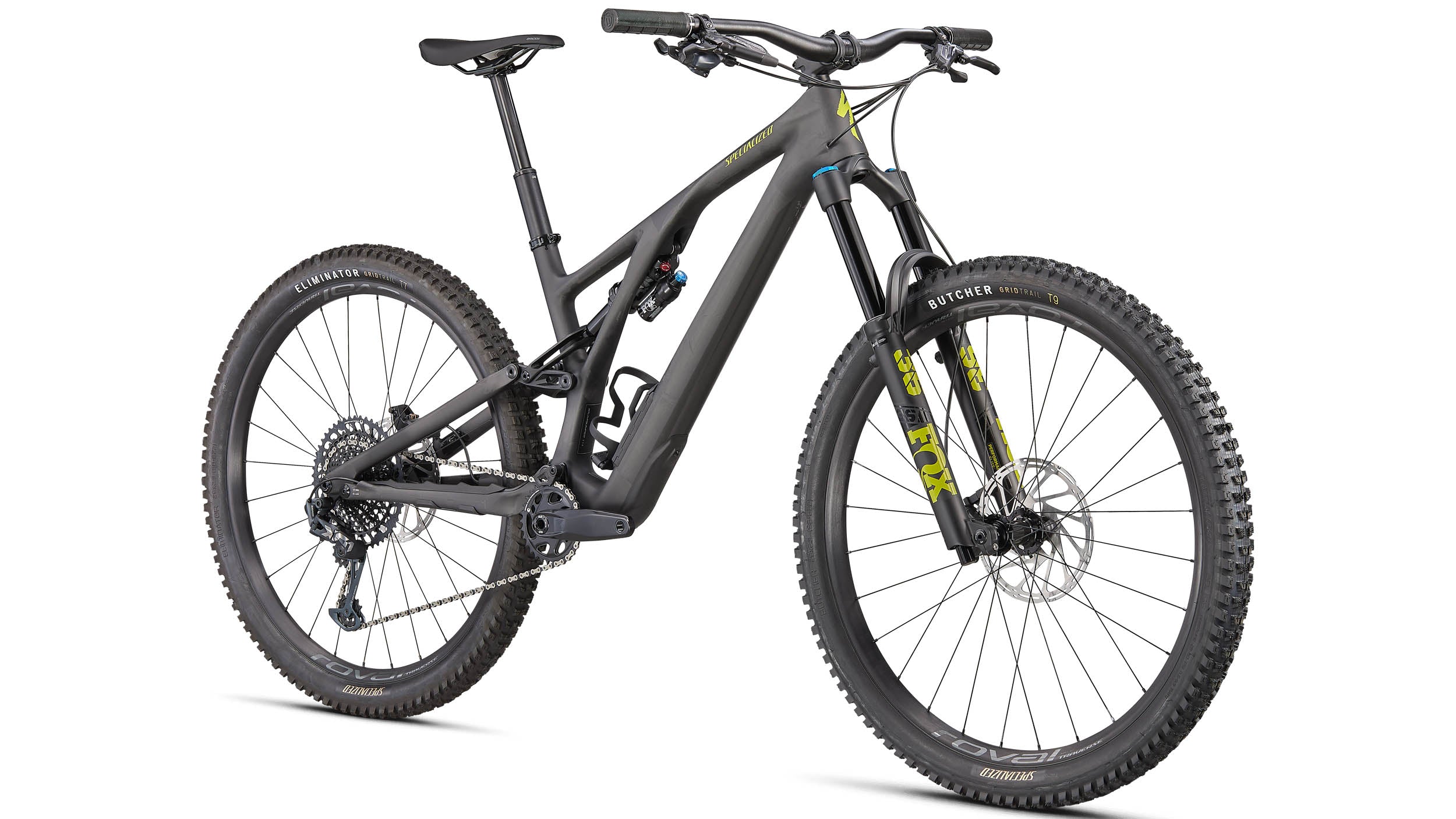

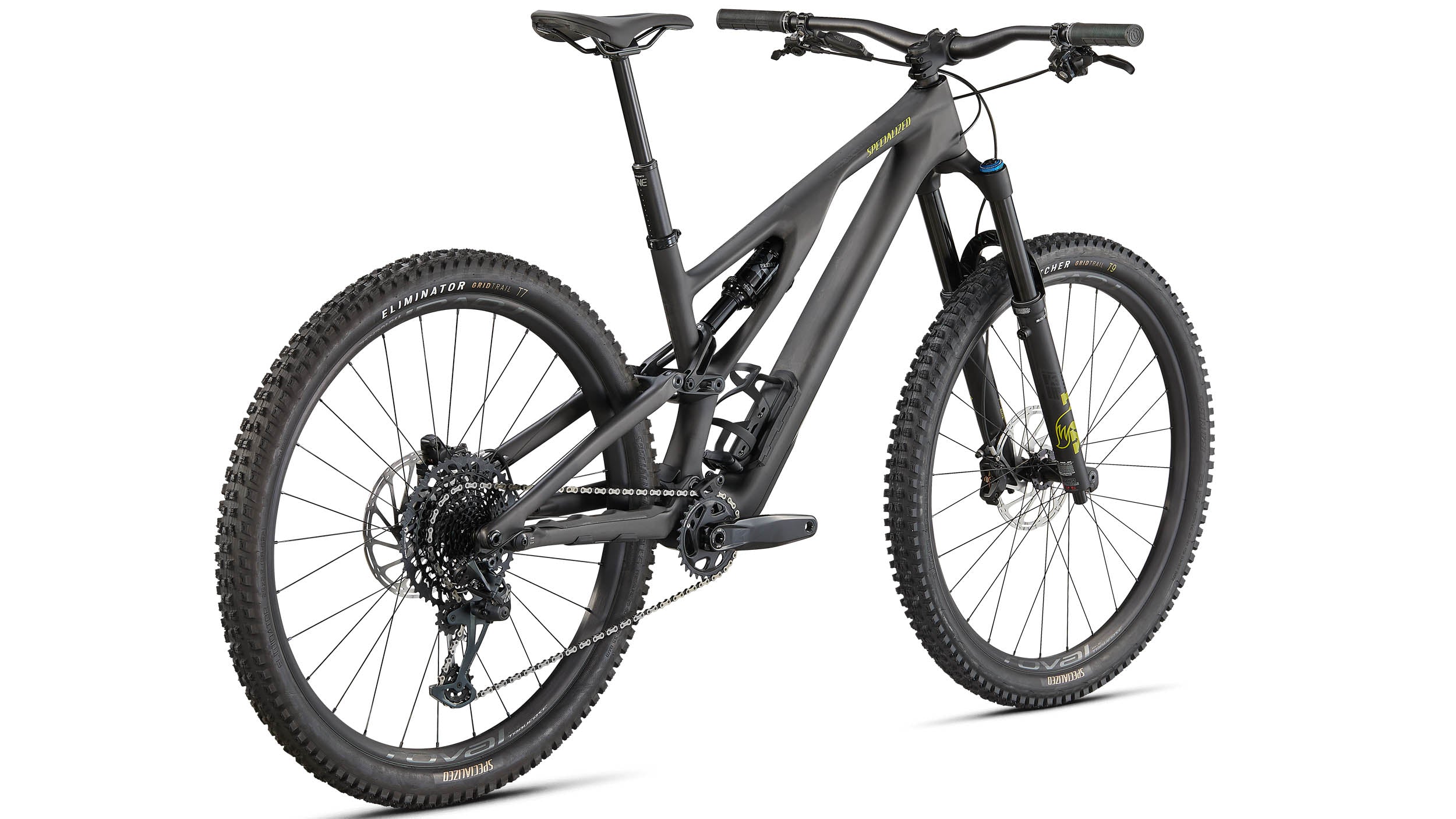

Specialized Stumpjumper Evo Expert
The Specialized Stumpjumper Evo continues the Stumpjumper evolution to meet the demands of modern mountain bikers. Greater control, capability, and adjustability in a chassis designed to handle it all, this is the last bike you’ll ever need.
With progressive suspension kinematics, tunable geometry and SWAT frame storage, the Stumpy Evo is designed to attack the rowdiest trails with ease.
Derived from its award-winning long travel sibling (the Enduro), the 150/160mm travel EVO employs an axle path and leverage rate that are designed to be compliant but controlled when going big, small, and everything in between.
No matter where you live or how you ride, you can set up the EVO to suit you best. With two BB settings and three headset combinations, get a headtube angle from 63 to 65.5 degrees.
With flexible "S" sizing, getting the exact fit for your riding style is easy. The recommended ranges for each size are larger than in the past, with reach and wheelbase being the main numbers you'll want to keep your eye on. Start by honing in on the recommended sizes for you, and don't hesitate to go for that longer or shorter size to suit your riding style.
Features
- Adjustable geometry - Independently adjust both head-tube angle and bottom bracket height
- SWAT Storage - Integrated storage for tools, snacks, and now water! SWAT water storage holds an extra 22oz for those long rides.
- Rider-First Engineered - Progressive "S" size range that encourages size choice based on riding style.
- Mullet Compatible - With an aftermarket shock link, set up your Evo 29" in the front and 27.5" in the rear for a mixed wheel ride.
Tech Specs
| Frame Material: | Carbon |
| Wheel Size: | 29" |
| Rear Axle Standard: | 12x148mm Boost |
| Rear Shock: | FOX FLOAT X Performance Elite 2-position lever w/ LSC adjustment |
| Rear Shock Size: | 210mm x 55mm |
| Rear Suspension Travel: | 150mm |
| Headset: | Specialized IS |
| Fork: | FOX FLOAT 36 Performance Elite, GRIP2 damper, 15x110mm, 44mm offset |
| Fork Axle: | 15x110mm Boost |
| Wheelset: | Roval Traverse 29 Alloy 28H Rims / Roval front and DT Swiss 370 rear hub |
| Front Tire: | Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3" |
| Rear Tire: | Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 29x2.3" |
| Crankset: | SRAM Descendant 7K |
| Chainguide Tabs: | ISCG '05 3-Bolt |
| Chainguide: | Specialized Top Guide |
| Bottom Bracket: | SRAM DUB |
| BB Standard: | 73mm BSA |
| Chain: | SRAM GX Eagle |
| Rear Derailleur: | SRAM X01 Eagle |
| Cassette: | SRAM XG-1295 Eagle, 10-52t |
| Seatpost: | OneUp, Dropper Post-V2, MMX lever, 34.9 (S1:120mm, S2/S3:150mm, S4: 180mm, S5/S6: 210mm) |
| Seat Post Diameter: | 34.9mm |
| Seat Post Clamp: | Specialized |
| Seat: | Bridge Comp, Hollow Cr-mo rails |
| Shifters: | SRAM X01 Eagle |
| Handlebar: | Specialized Trail, 7050 alloy, 8-degree backsweep, 6-degree upsweep, 30mm rise, 800mm, 35mm clamp |
| Stem: | Alloy Trail Stem, 35mm bar bore |
| Grips: | Deity, Knuckleduster, Black |
| Brakes: | SRAM Code RS, 4-piston caliper, hydraulic disc, 200mm |
| Water Bottle Cage Mounts: | Yes, 1 |
| Intended Use: | AM/Enduro |
| Warranty: | Limited lifetime (on frame) |
Specs subject to change without notice. Please check with manufacturer for the most up-to-date information.
Geometry
mm / inches
160mm fork travel
Insertion
Sizing
cm / ft
| Size | S1 | S2 | S3 | S4 | S5 | S6 |
|---|---|---|---|---|---|---|
| Rider Height (cm) | 150 - 160 | 157 - 173 | 165 - 180 | 173 - 188 | 177 - 193 | 188 - 198 |
