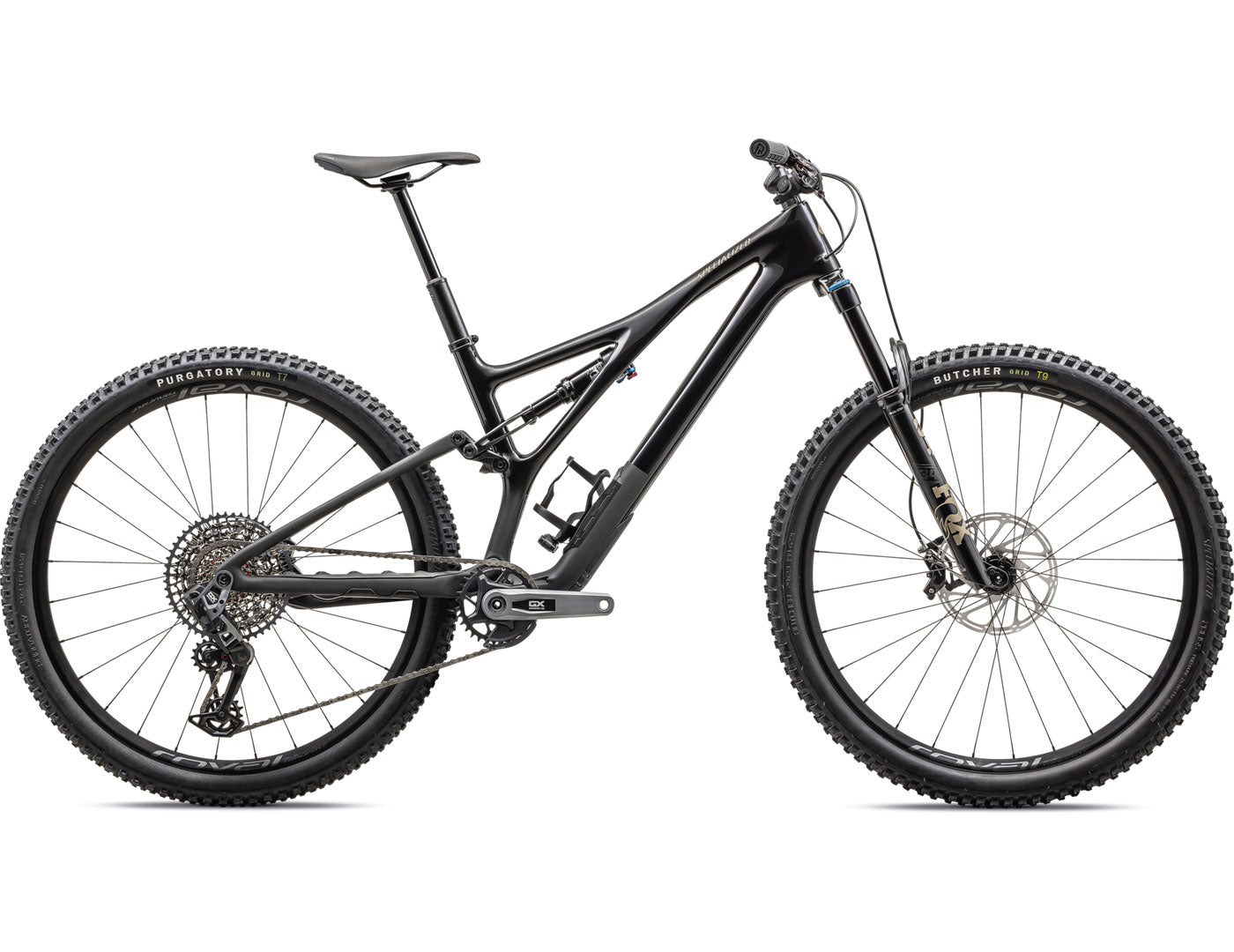

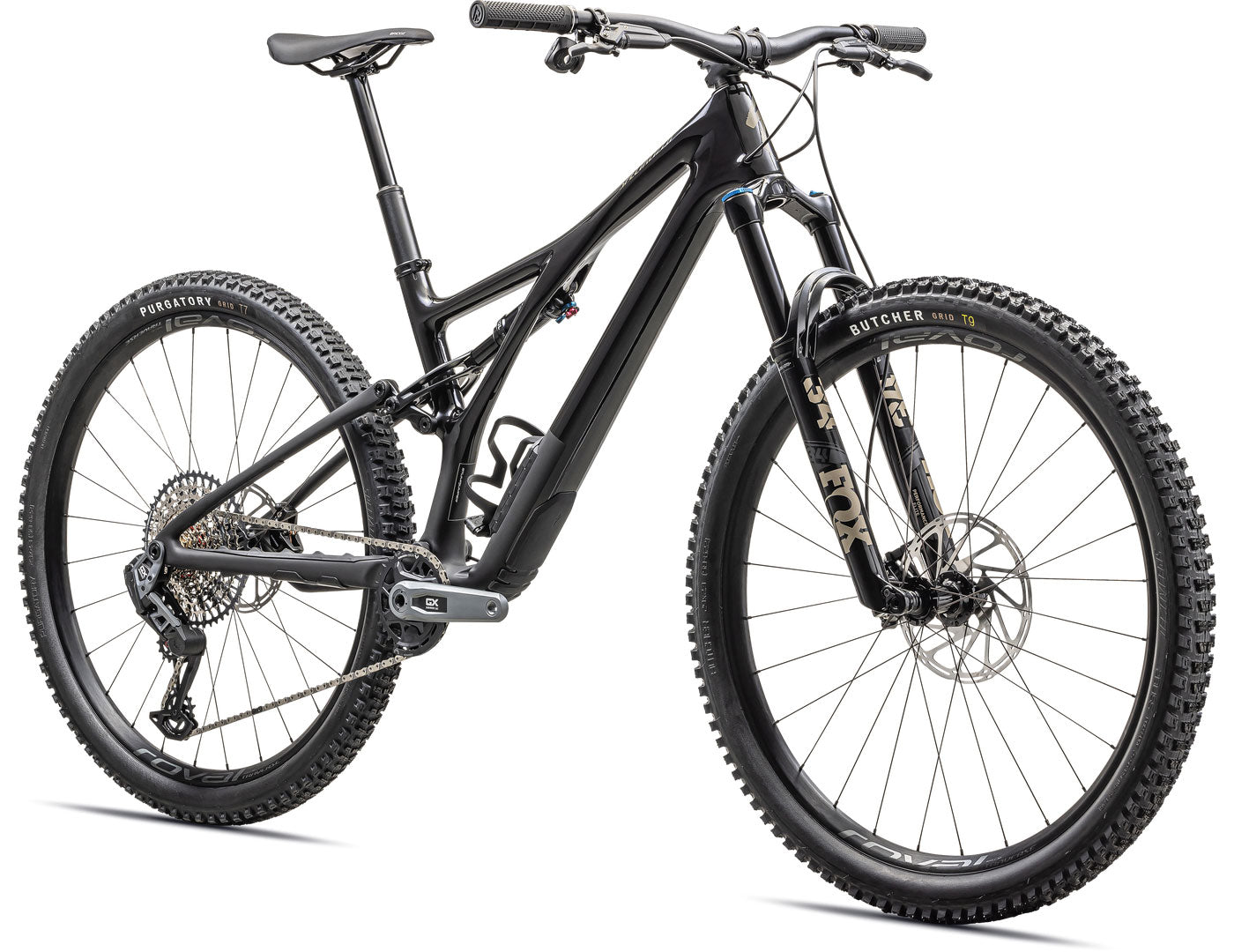

Specialized Stumpjumper Expert - 2023
With the all-new Stumpjumper Expert, Specialized bottled up that "new bike day" feeling and put it into a radical new trail bike so agile, so lively, so in-tune with the trail, that it feels like an extension of your body. Levitate up the climbs. Decimate the descents. The Stumpjumper Expert is going to make you rethink how a trail bike should ride.Features
- Adjustable geometry - Choose between a high and low bottom-bracket setting to suit your riding style
- Rider-First Engineered - Progressive "S" size range that encourages size choice based on riding style
- SWAT Storage - Integrated downtube storage for tools and snacks
Tech Specs
| Frame Material: | Carbon |
| Wheel Size: | 29" |
| Rear Axle Standard: | 12x148mm Boost |
| Rear Shock: | FOX FLOAT DPS Performance Elite, Rx Trail Tune, EVOL Air sleeve, 3-position adjustment w/ Open Mode Adjustment |
| Rear Shock Size: | 190mm x 45mm |
| Rear Suspension Travel: | 130mm |
| Headset: | Specialized specific FSA integrated |
| Fork: | FOX FLOAT 34 Performance Elite, GRIP2 damper, 15x110mm, 44mm offset, 140mm of travel |
| Fork Axle: | 15x110mm Boost |
| Wheelset: | Roval Traverse 29 Alloy 30mm rims | Front Hub: Roval sealed 28h | Rear Hub: DT Swiss 370 28h |
| Front Tire: | Butcher, GRID casing, GRIPTON® T9 compound, 29x2.3" |
| Rear Tire: | Purgatory, GRID casing, GRIPTON® T7 compound, 29x2.3" |
| Crankset: | SRAM GX Eagle Transmission Crankset, Alloy, Integrated Guard, 55mm Chainline, S1:165mm, S2-S5: 170mm, S6: 175mm |
| Chainguide Tabs: | ISCG '05 2-Bolt |
| Bottom Bracket: | SRAM DUB, BSA 73mm Wide, Threaded |
| BB Standard: | 73mm BSA |
| Chain: | SRAM GX Eagle Transmission T-Type |
| Rear Derailleur: | SRAM GX Eagle Transmission |
| Cassette: | SRAM GX Eagle Transmission, 12spd, 10-52t |
| Seatpost: | OneUp, Dropper Post-V2, MMX lever, (S1:120mm, S2/S3:150mm, S4: 180mm, S5/S6: 210mm) |
| Seat Post Diameter: | 34.9mm |
| Seat Post Clamp Diameter: | 38.6mm |
| Seat: | Specialized Bridge Comp, Hollow Cr-mo rails, 155/143mm |
| Shifters: | SRAM AXS POD Controller |
| Handlebar: | Specialized Trail, 7050 alloy, 8-degree backsweep, 6-degree upsweep, 30mm rise, 780mm, 35mm clamp |
| Stem: | Specialized Alloy Trail Stem, 35mm bar bore |
| Grips: | Deity Lockjaw |
| Brakes: | SRAM Code Silver Stealth | Front Rotor: 200mm | Rear Rotor: 180mm |
| Water Bottle Cage Mounts: | 1 Standard. SWAT cage included. |
| Intended Use: | Trail/AM |
| Warranty: | Frame: Lifetime if registered, otherwise 2 years |
Specs subject to change without notice. Please check with manufacturer for the most up-to-date information.
Geometry
mm / inches
Low Bottom Bracket
Size
Seat Tube
Top Tube
Reach
BB Height
Head Angle
Seat Angle
Standover
Chainstay
Head Tube
Wheelbase
Trail
Stack
Seatpost
Insertion
Insertion
S1
385
563
410
328
65
76
730
432
95
1152
126
614
220
S2
385
583
430
333
65
76
734
432
100
1175
126
613
220
S3
405
605
450
333
65
76
749
432
120
1228
126
632
260
S5
445
660
500
333
65
76
757
442
1360
1268
126
641
280
S6
465
692
530
333
65
76
757
442
140
1302
126
650
300
Sizing
cm / ft
| Size | S1 | S2 | S3 | S4 | S5 | S6 |
|---|---|---|---|---|---|---|
| Rider Height (cm) | 150 - 160 | 157 - 173 | 165 - 180 | 173 - 188 | 178 - 193 | 188 - 203 |
Specialized Stumpjumper Expert - 2023:
Satin Harvest Gold / Midnight Shadow / S1: 93323-3101 -
Satin Harvest Gold / Midnight Shadow / S2: 93323-3102 -
Satin Harvest Gold / Midnight Shadow / S3: 93323-3103 -
Satin Harvest Gold / Midnight Shadow / S4: 93323-3104 -
Satin Harvest Gold / Midnight Shadow / S5: 93323-3105 -
Satin Harvest Gold / Midnight Shadow / S6: 93323-3106 -
Gloss Obsidian / Satin Taupe / S6: 93323-3006 -
Gloss Obsidian / Satin Taupe / S3: 93323-3003 -
Gloss Obsidian / Satin Taupe / S1: 93323-3001 -
Gloss Obsidian / Satin Taupe / S2: 93323-3002 -
Gloss Obsidian / Satin Taupe / S4: 93323-3004 -
Gloss Obsidian / Satin Taupe / S5: 93323-3005
