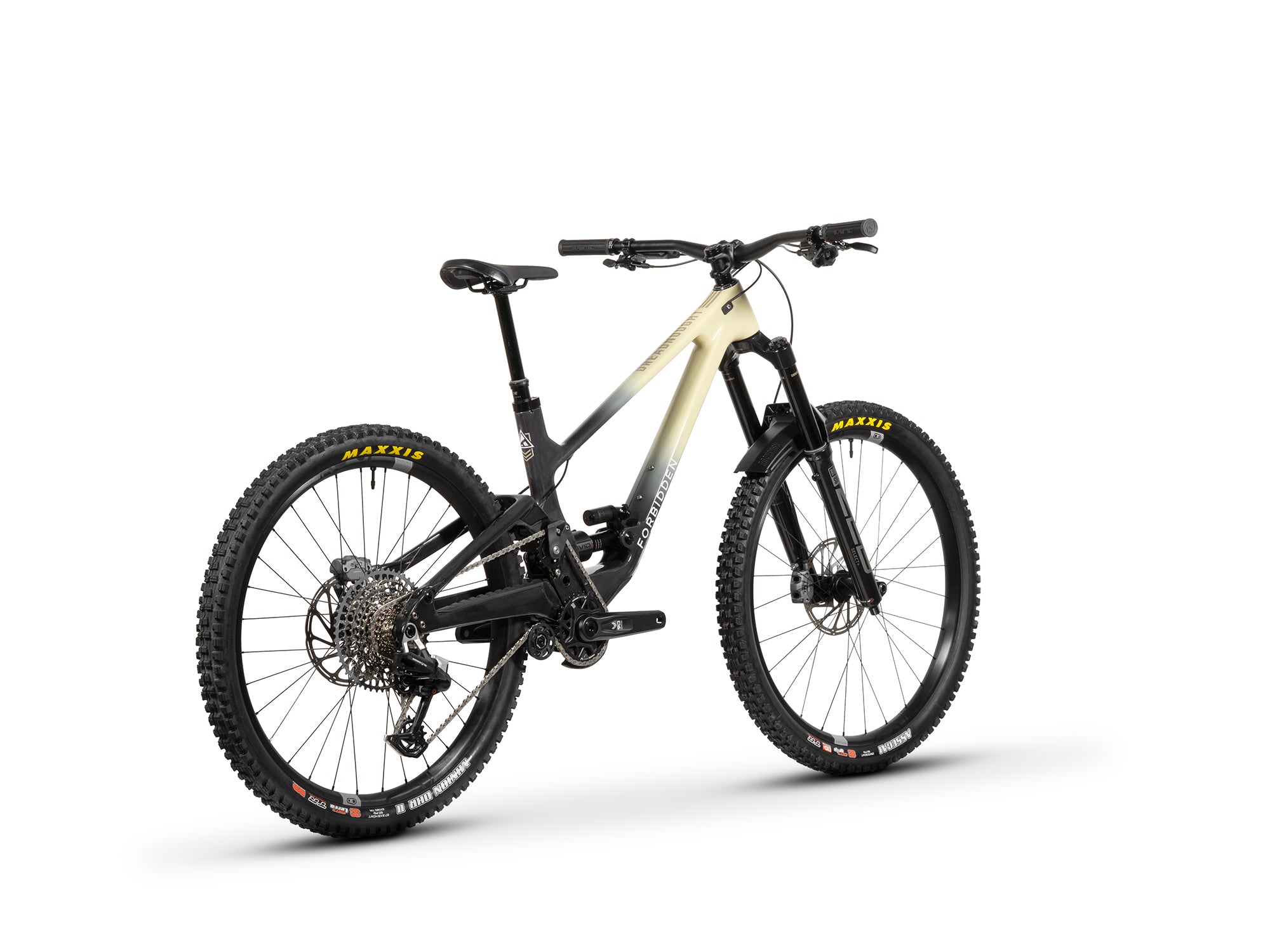

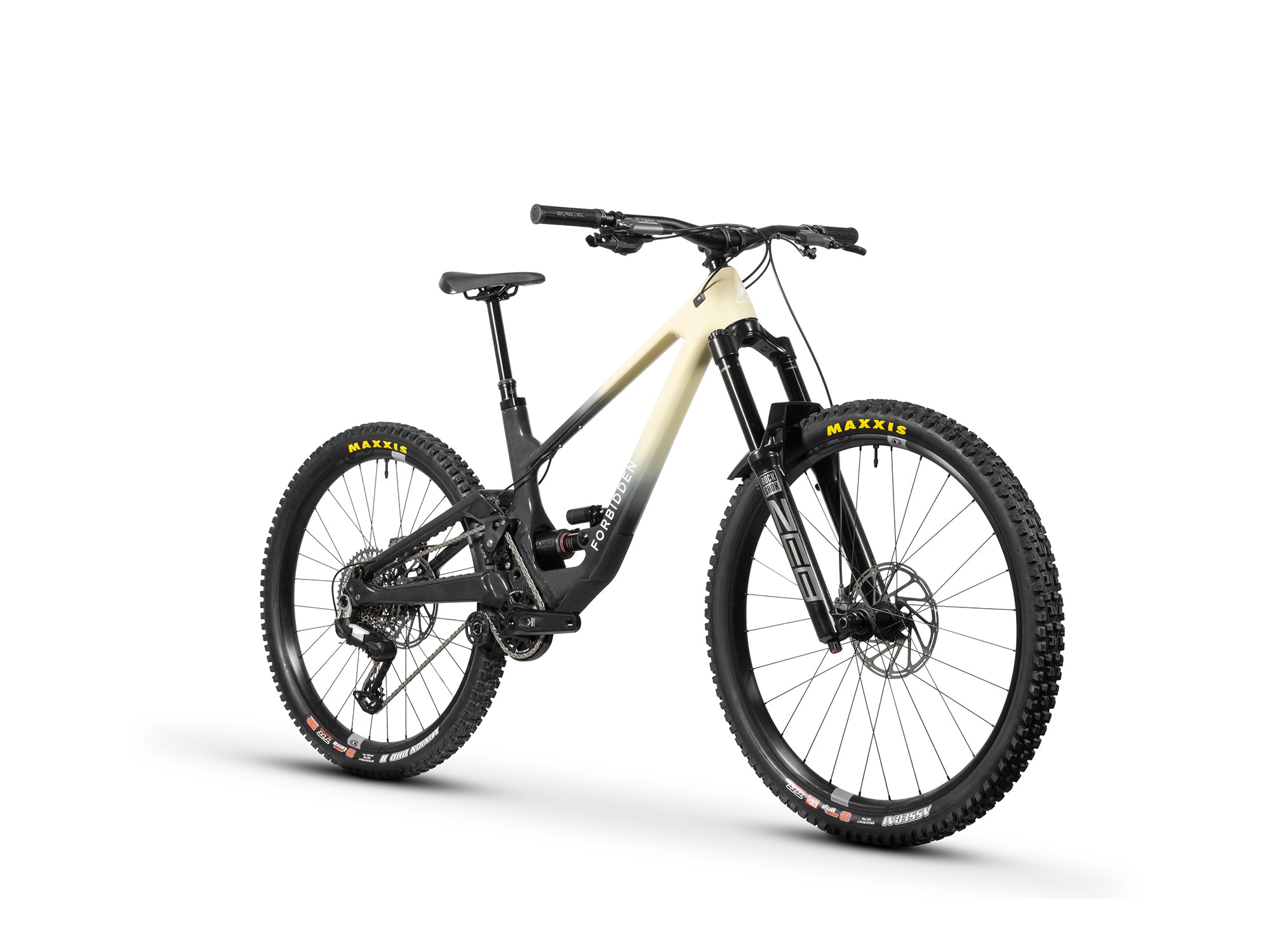

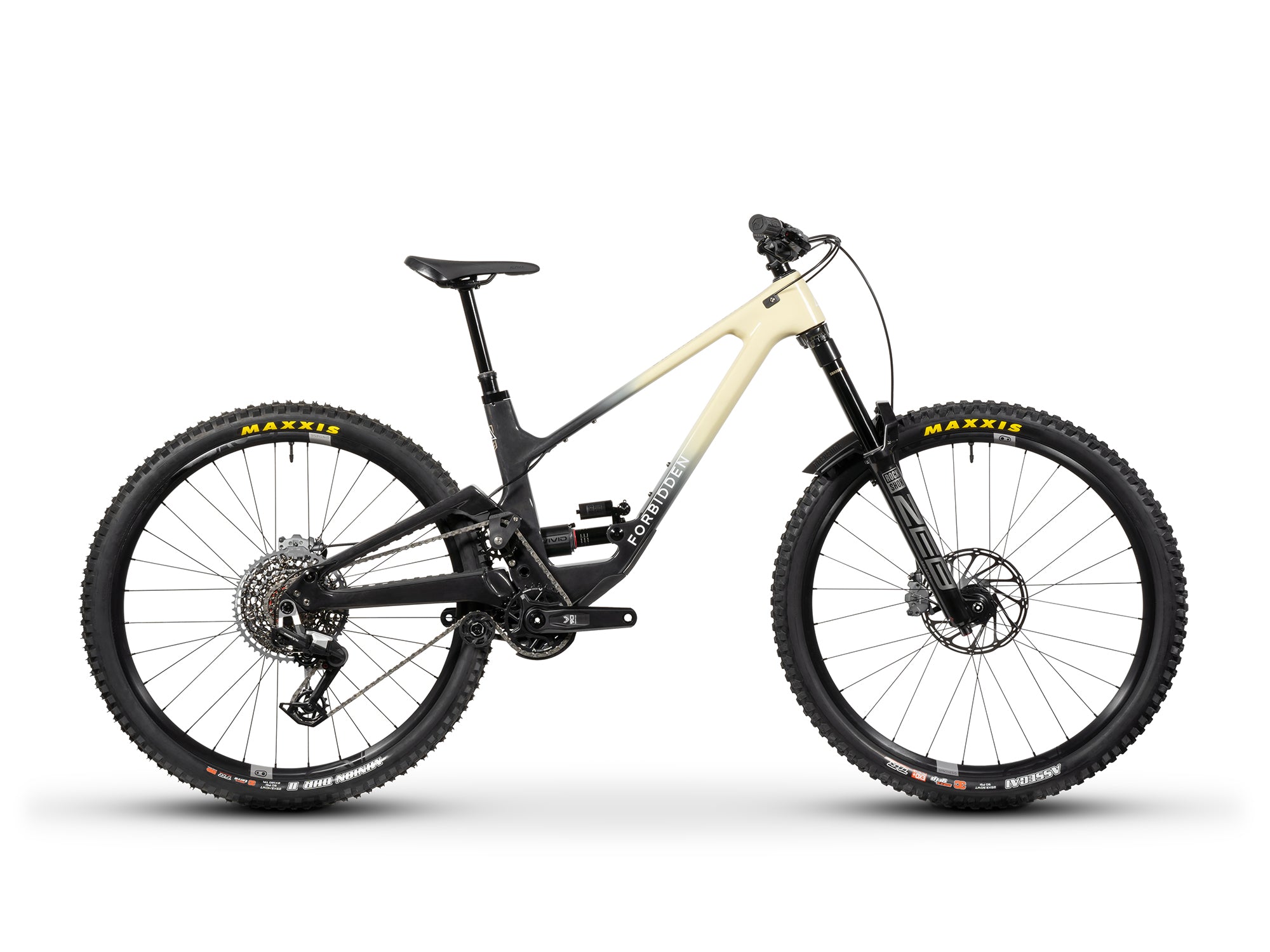

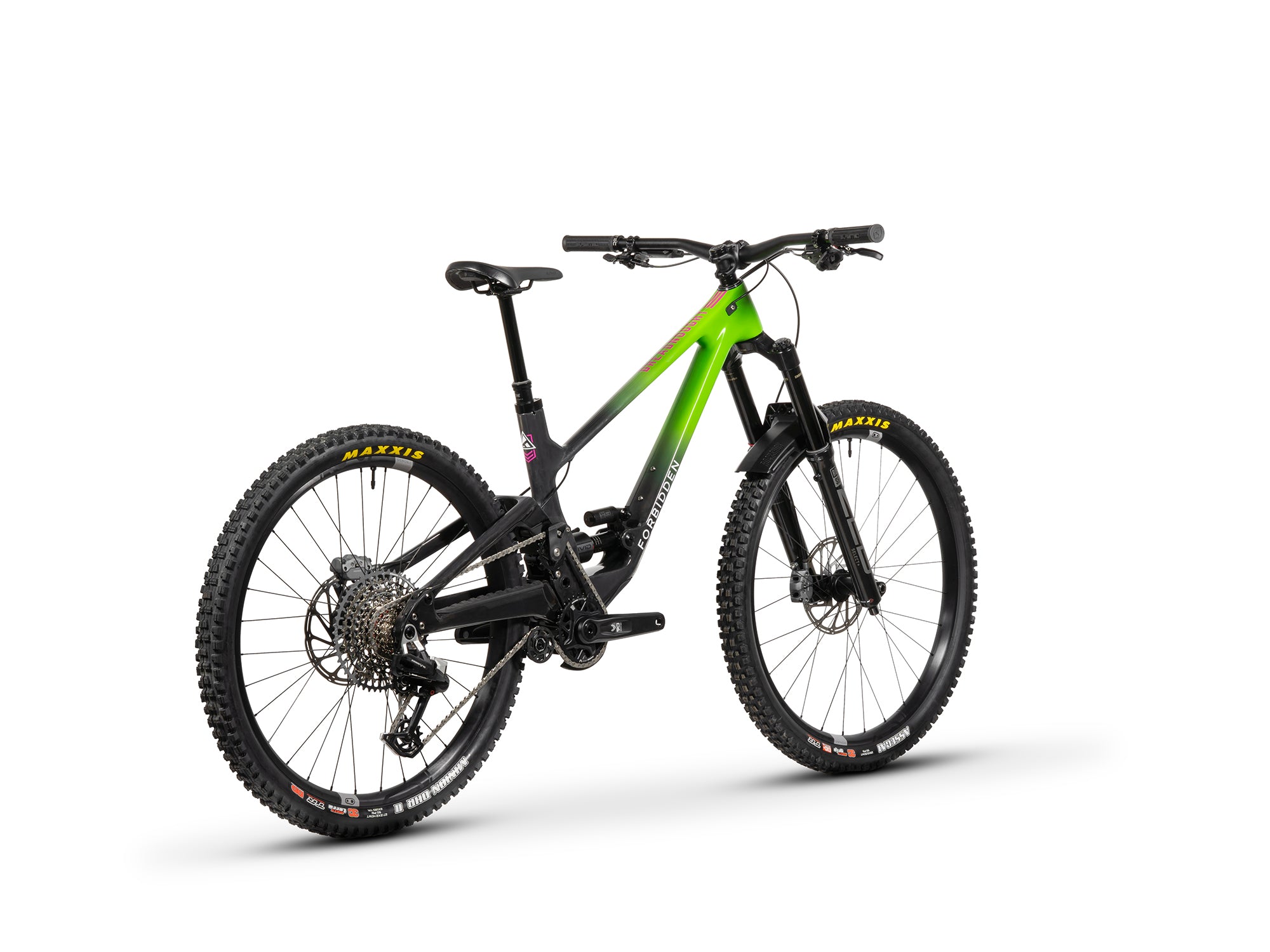

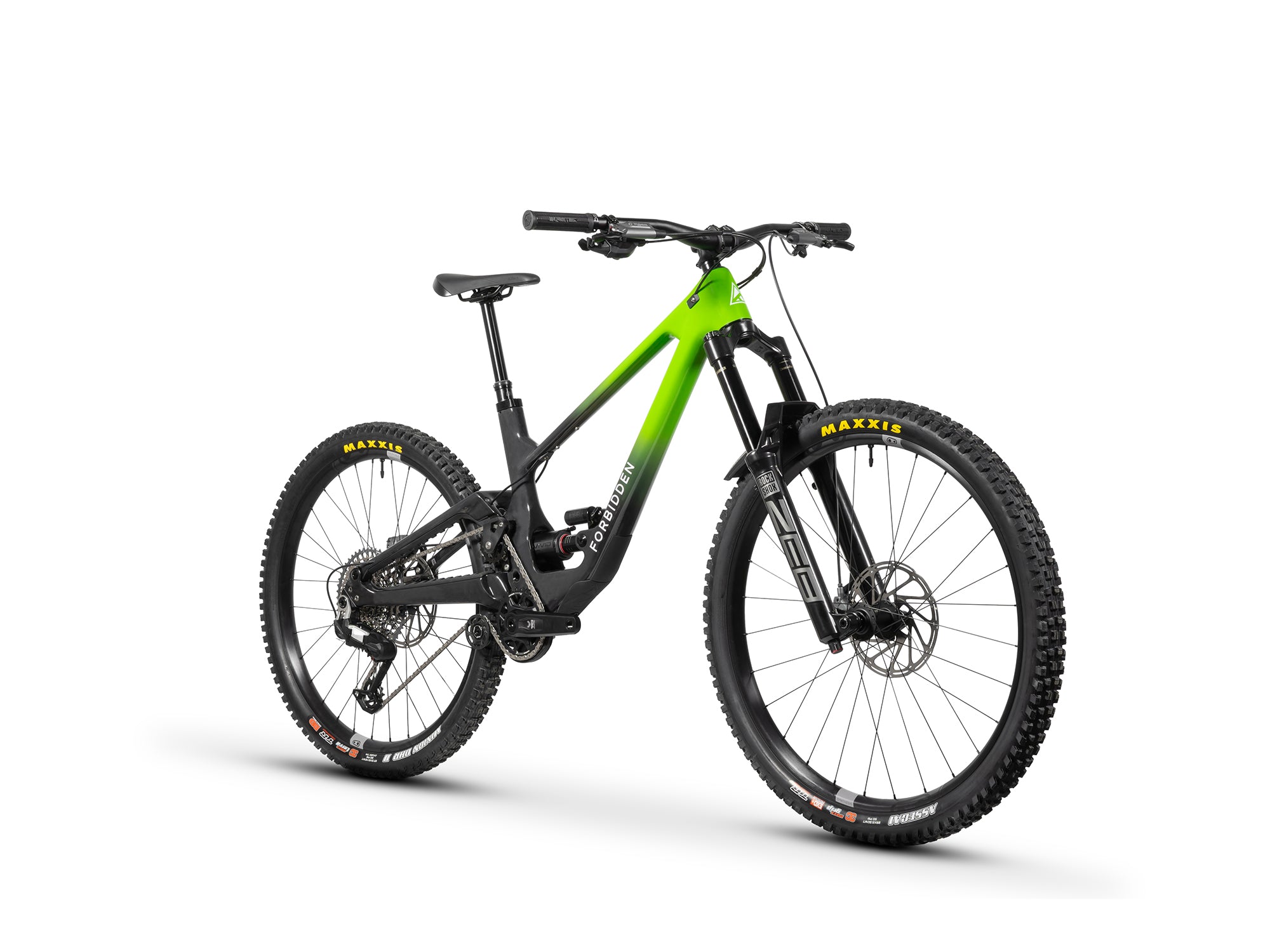

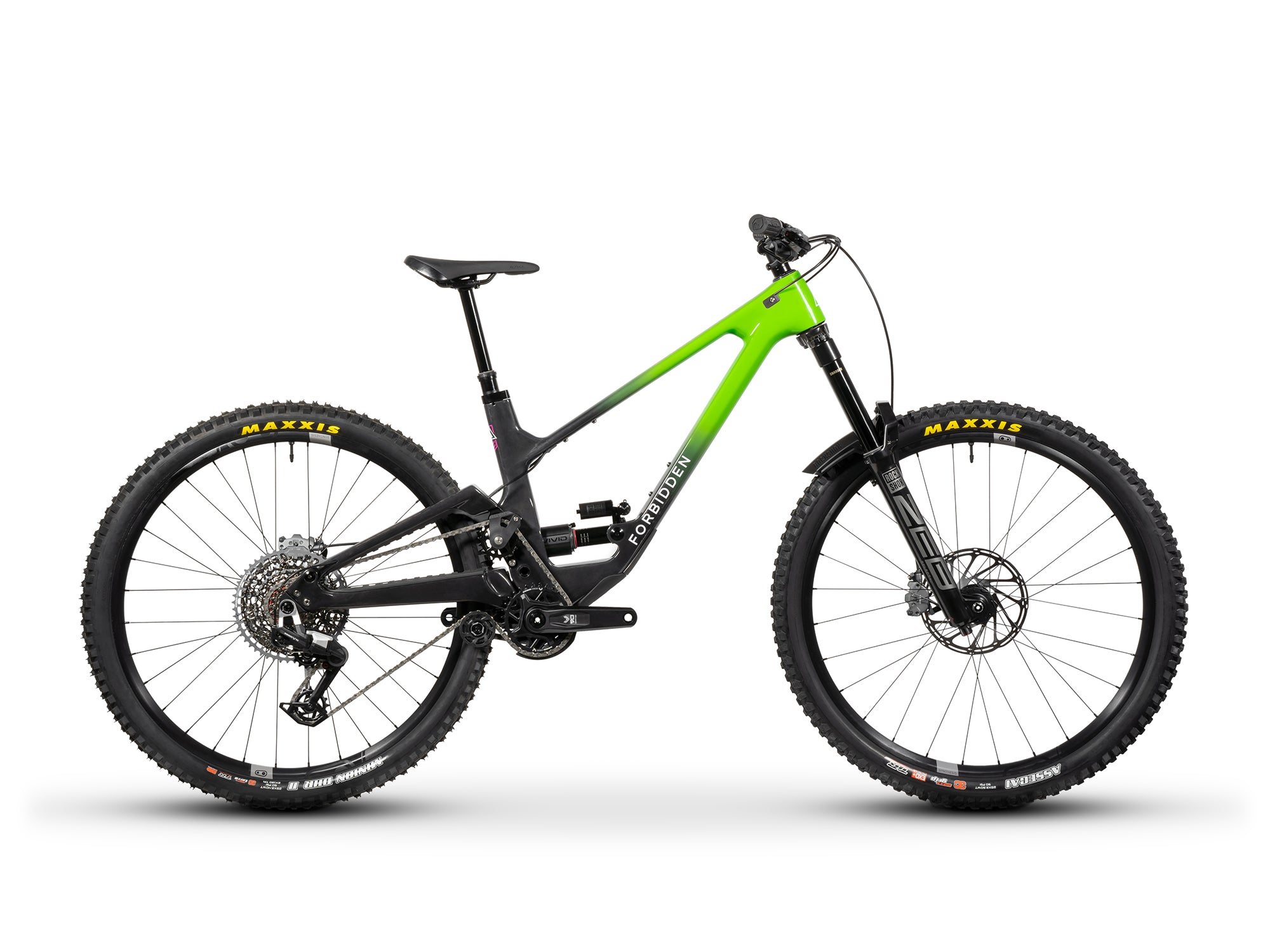

Dreadnought V2 - 29" - Build Kit 3 - Complete Bike - 2025
Dreadnought V2 - 29" - Build Kit 3 - Complete Bike - 2025
Arrakis / S1
Fanatik Bike
1812 N. State St.
Bellingham WA 98225
United States
Choose options
Dreadnought
Highlights
- V2 Trifecta Suspension Kinematics: Increased sensitivity and grip, supportive mid-stroke, improved bottom-out control, rearward axle path, and optimized braking characteristics.
- Balanced Geometry: Size specific chainstays and updated balance for improved weight distribution and control.
- Dual Crown Rated: Designed around 170mm fork and rated for dual crown.
- Modular Dropouts: Geometry and weight bias adjustments can be made via 27.5” +10mm, 27.5” -10mm, and 29” +10mm dropouts giving riders the option to customize weight bias and handling characteristics to suit riding style or terrain type. (Not included)

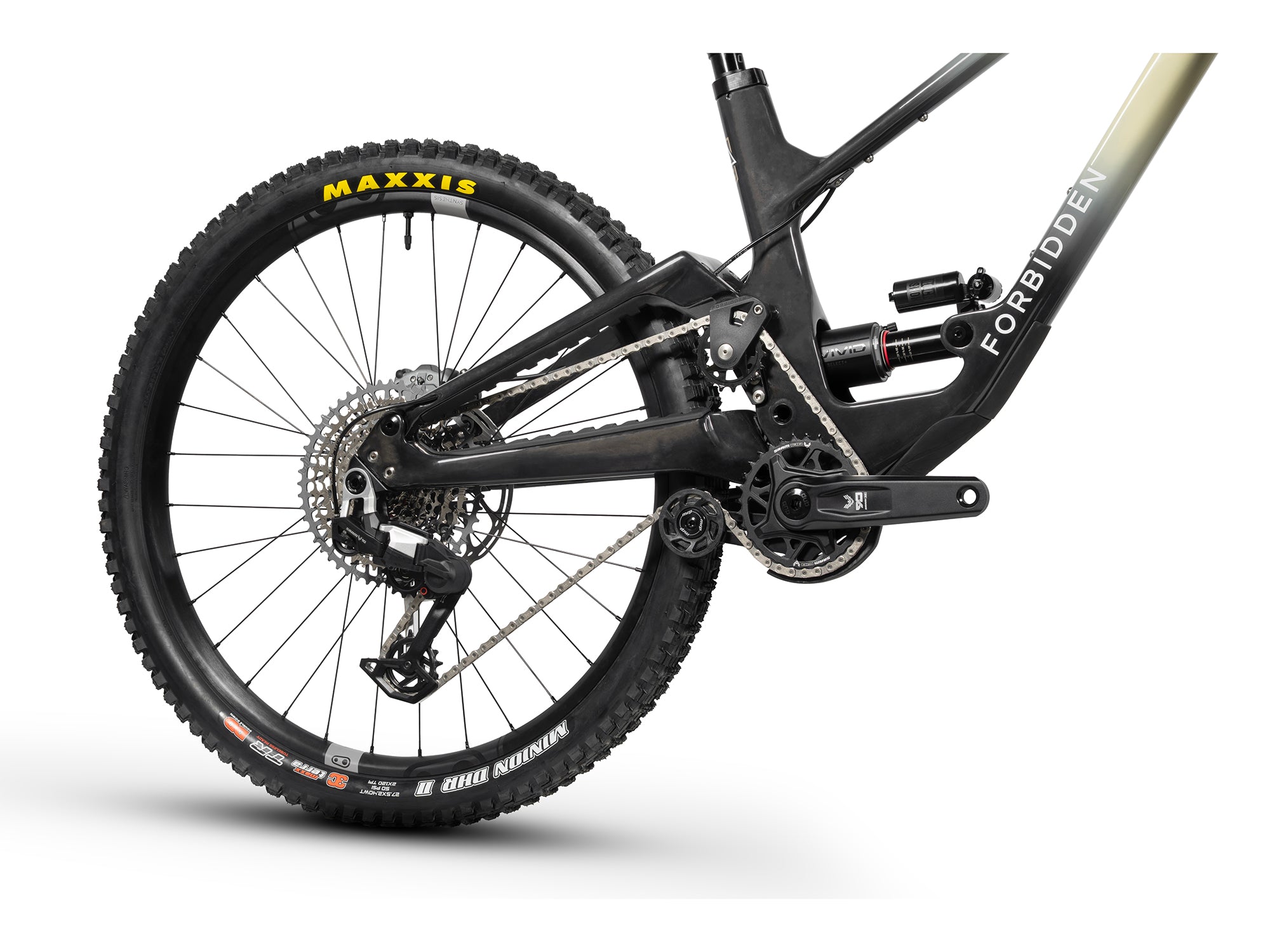

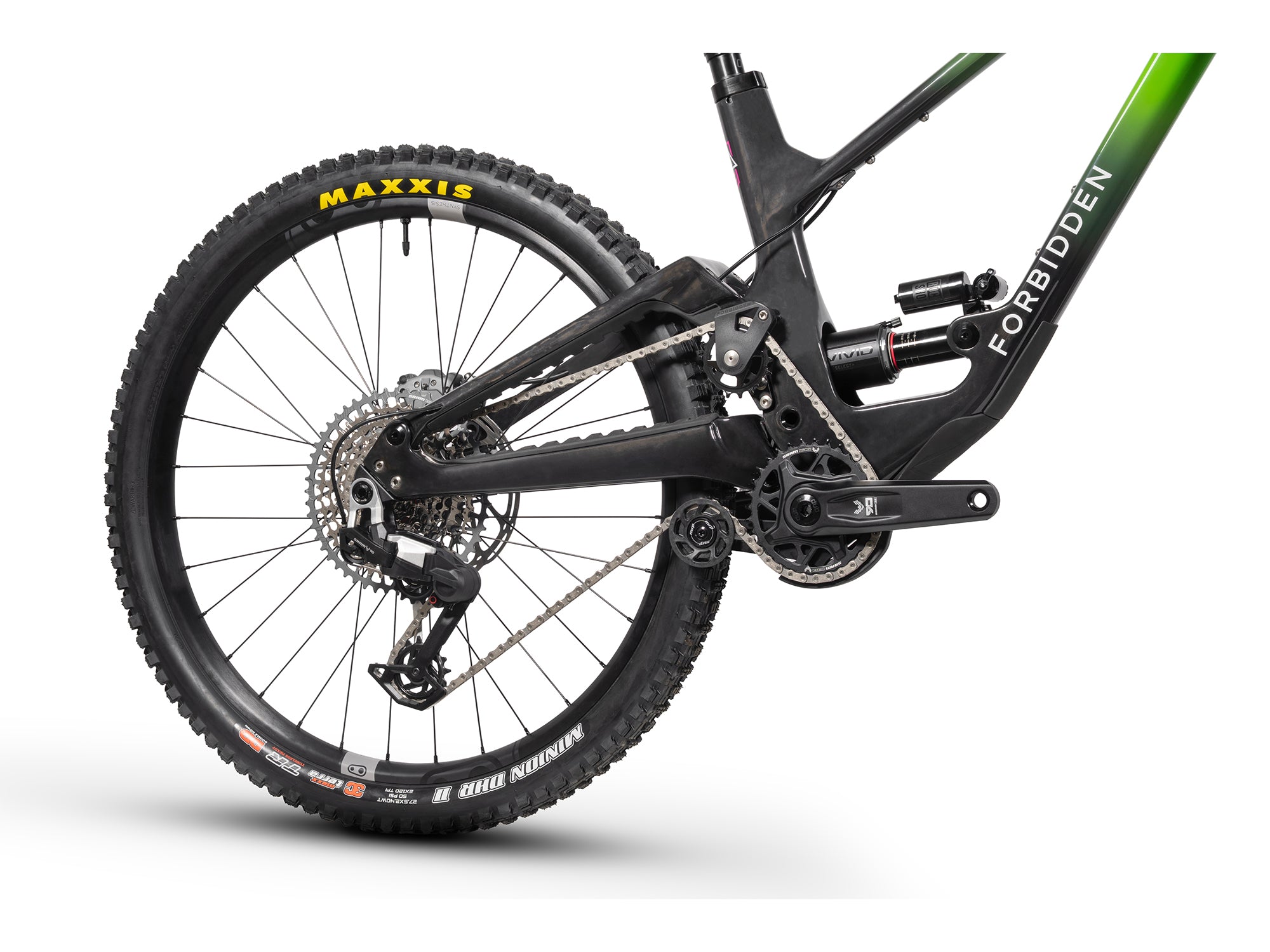

- New Idler Pulley: The re-designed 18-tooth steel idler uses a solid lube bearing to ensure longevity.
- Transmission Compatible: UDH equipped and fully compatible with SRAM’s new Transmission drivetrain.
- Hardware: The new V2 Linkage uses locking collet axles and oversized bearings for easy maintenance and dependability.
- Full Custom Plastics: Chain and cable/hose management and next-gen race guide.
Description
Dreadnought forged a new path for performance high pivot bikes and cemented the platform’s category-defying nature. It handled the demands of the World Cup Downhill circuit, survived the rigors of enduro racing, and took lap after lap of bike park abuse. All the while, still asking for more. From the race track to the bike park and everything in between Dreadnought has proven its unparalleled versatility.
Now it’s time for the big guns to get the V2 treatment. Dreadnought V2 carries the torch forward into a new realm of capability, giving riders even more firepower than ever before. Forbidden has taken their next-gen suspension system seen on class-leading Druid and Supernought and applied it to their revered brawler of a bike. Forbidden didn’t just up the caliber, add more travel, and call it good. They overhauled every detail to refine and distill its purpose into something that truly exhilarates.
Dreadnought. Fear Nothing.
| Frame Material: | Carbon |
| Wheel Size: | 29" |
| Rear Axle Standard: | 12x148mm Boost |
| Rear Shock: | RockShox Vivid Select+ | Touchdown RT | Rebound And Hydraulic Bottom Out Adjust | Threshold Lever | Trunnion/Bearing Mount | R85C26 Tune | 205x60mm |
| Rear Shock Size: | 205mm x 60mm |
| Rear Suspension Travel: | 160mm |
| Headset: | Cane Creek 40 |
| Headset Standard: | ZS44mm/ZS56mm |
| Fork: | RockShox ZEB Select+ | 170mm Travel | Charger 3.1 RC2 | Debonair + | Rebound, HSC/LSC Adjust | 44mm Offset | Maxle Stealth Thru-Axle | Gloss Black |
| Fork Axle: | 15x110mm Boost |
| Wheelset: | Crankbrothers Synthesis Enduro - Alloy |
| Front Tire: | Maxxis Assegai - 3C Maxx Grip - EXO+ |
| Rear Tire: | Maxxis DHRII - 3C MaxxTerra - Double Down |
| Crankset: | SRAM Eagle 90 T-Type 32T | 165mm All Sizes | 32T | 55mm Chainline | Black |
| Bottom Bracket: | SRAM DUB Threaded BSA | 28.99mm Spindle | DUB | Threaded BSA |
| BB Standard: | 73mm BSA |
| Chain: | SRAM Eagle 70 T-Type Flattop | 12speed | Links = S1:120 / S2:122 / S3:124 / S4:126 |
| Rear Derailleur: | SRAM Eagle 90 T-Type 12speed |
| Cassette: | SRAM XS-1275 T-Type 10-52T 12speed |
| Seatpost: | OneUp Dropper Post | 31.6mm | Size Specific Travel S1:120mm / S2:150mm / S3:180mm / S4:210mm |
| Seat Post Diameter: | 31.6mm |
| Seat Post Clamp: | Forbidden |
| Seat Post Clamp Diameter: | 34.9mm |
| Seat: | Fizik Terra Alpaca X5 | 145mm Width | X5: Ride-Compliant Fiber Reinforced Nylon Shell And S-Alloy Rail | Black |
| Shifters: | SRAM Eagle 90 |

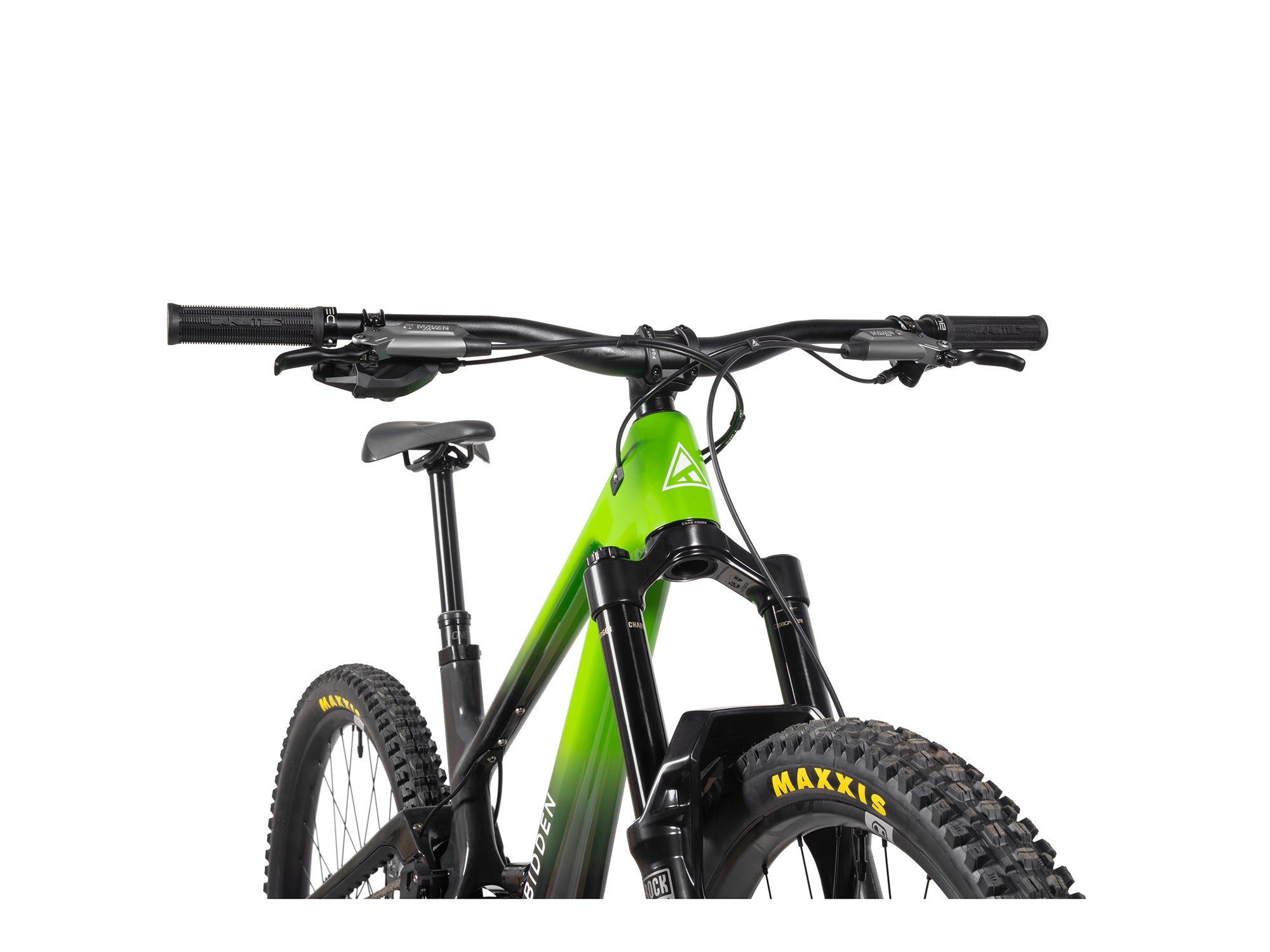

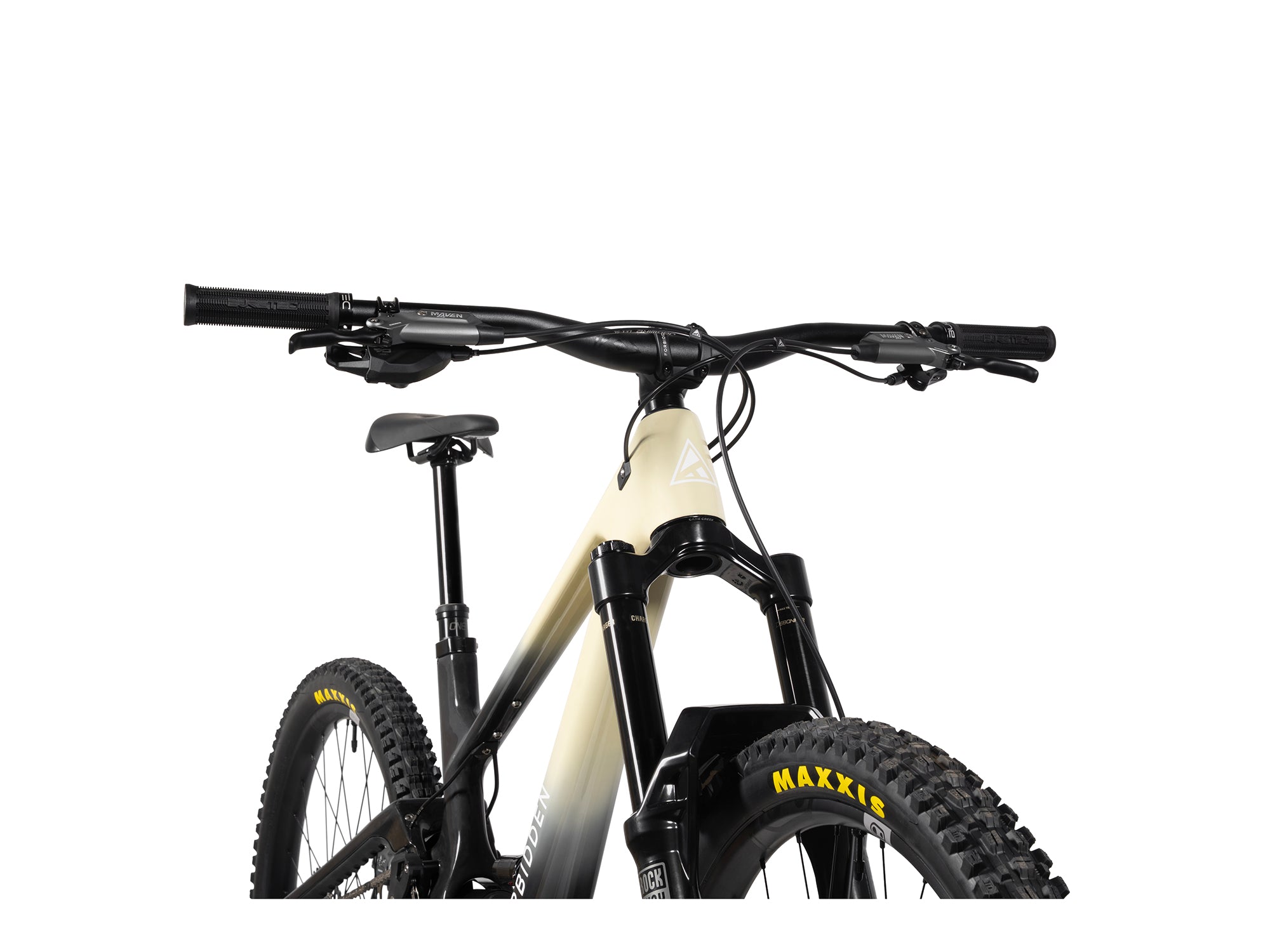

| Handlebar: | Forbidden | 800mm Width | S1-S2:22.5 / S3-S4:30 Rise | 9° Backsweep 5° Upward | 35mm Bar Bore | Black |
| Stem: | Forbidden | 40mm Length | 35mm Bar Clamp | Black |
| Grips: | Forbidden | 128mm length | Single Sided Lock-On | Black |
| Brakes: | SRAM Maven Bronze 4-Piston | Rotors: SRAM Centerline 2.0 - 200mm Front and Rear |
| Water Bottle Cage Mounts: | One on downtube + one accessory mount on top tube |
| Intended Use: | AM/Enduro |
| Warranty: | 5 year warranty against defects in workmanship and materials |
29" - 170mm Fork
| Size | S1 | S2 | S3 |
|---|---|---|---|
| Reach | 435 | 455 | 475 |
| Stack | 615 | 628 | 642 |
| Top Tube | 571 | 594 | 617 |
| Wheelbase | 1206.5 | 1247.7 | 1288.9 |
| Head Tube° | 63.5° | 63.5° | 63.5° |
| Head Tube | 90 | 105 | 120 |
| Seat Tube° | 77.5° | 77.5° | 77.5° |
| Seat Tube | 400 | 420 | 440 |
| BB Height | 347 | 347 | 347 |
| BB Drop | 26 | 26 | 26 |
| Standover | 771 | 775 | 777 |
| Chainstay | 431 | 446 | 460 |
Size Guide
| Size | S1 | S2 | S3 | S4 |
|---|---|---|---|---|
| Height | 158 - 168 | 168 - 178 | 178 - 188 | 188 - 198 |
