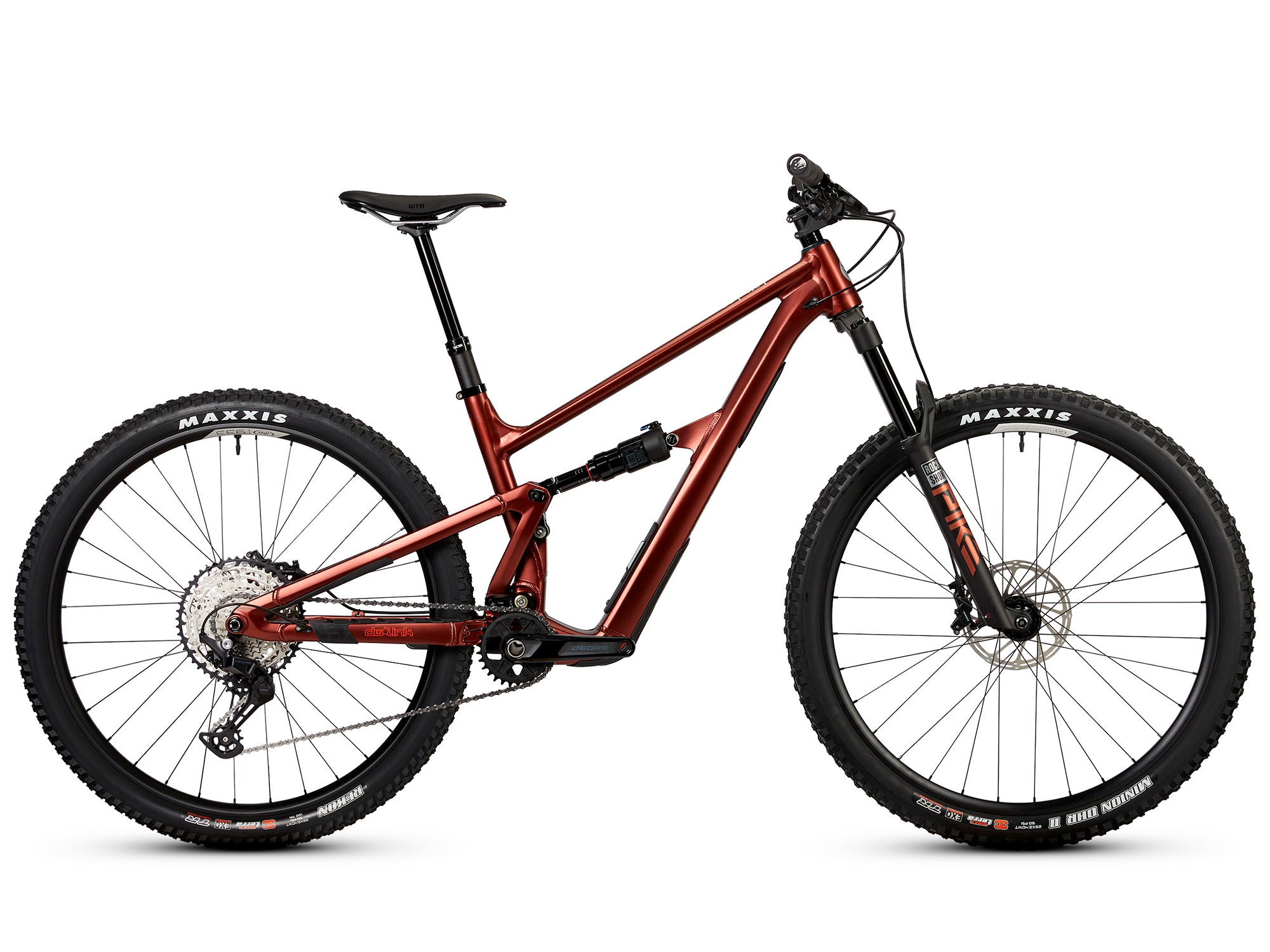

Ripley AF Deore Complete Bike - 2026
Ripley AF Deore Complete Bike - 2026
Burnt Orange / SM
Fanatik Bike
1812 N. State St.
Bellingham WA 98225
United States
Choose options

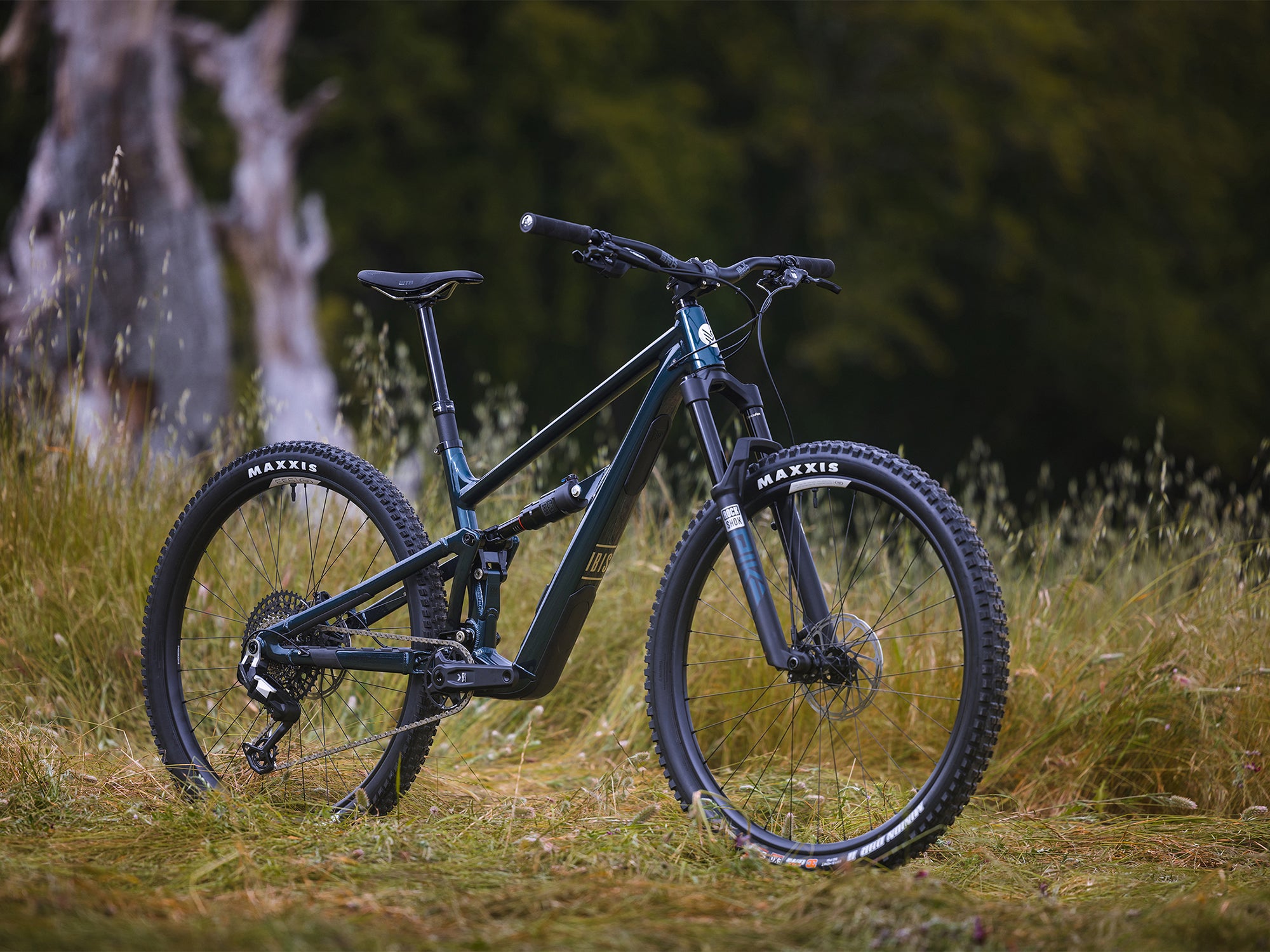

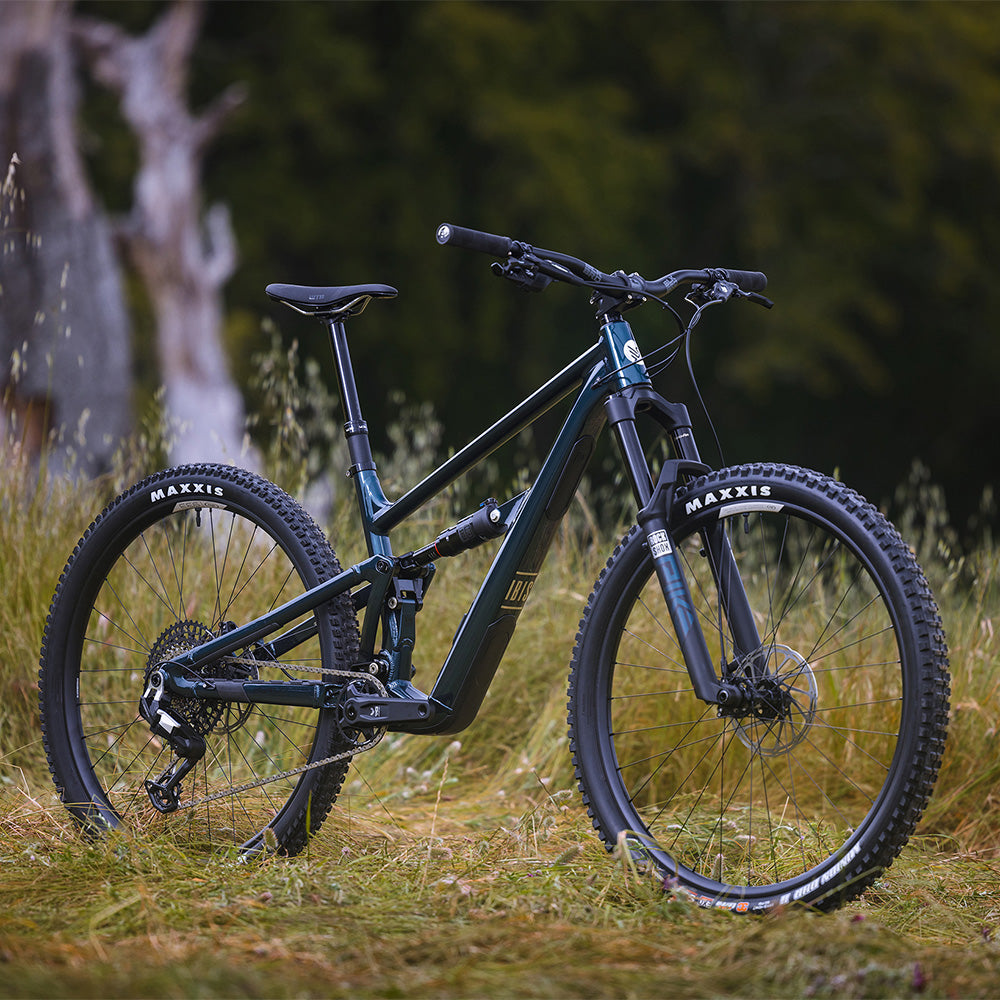

Ripley AF
Highlights

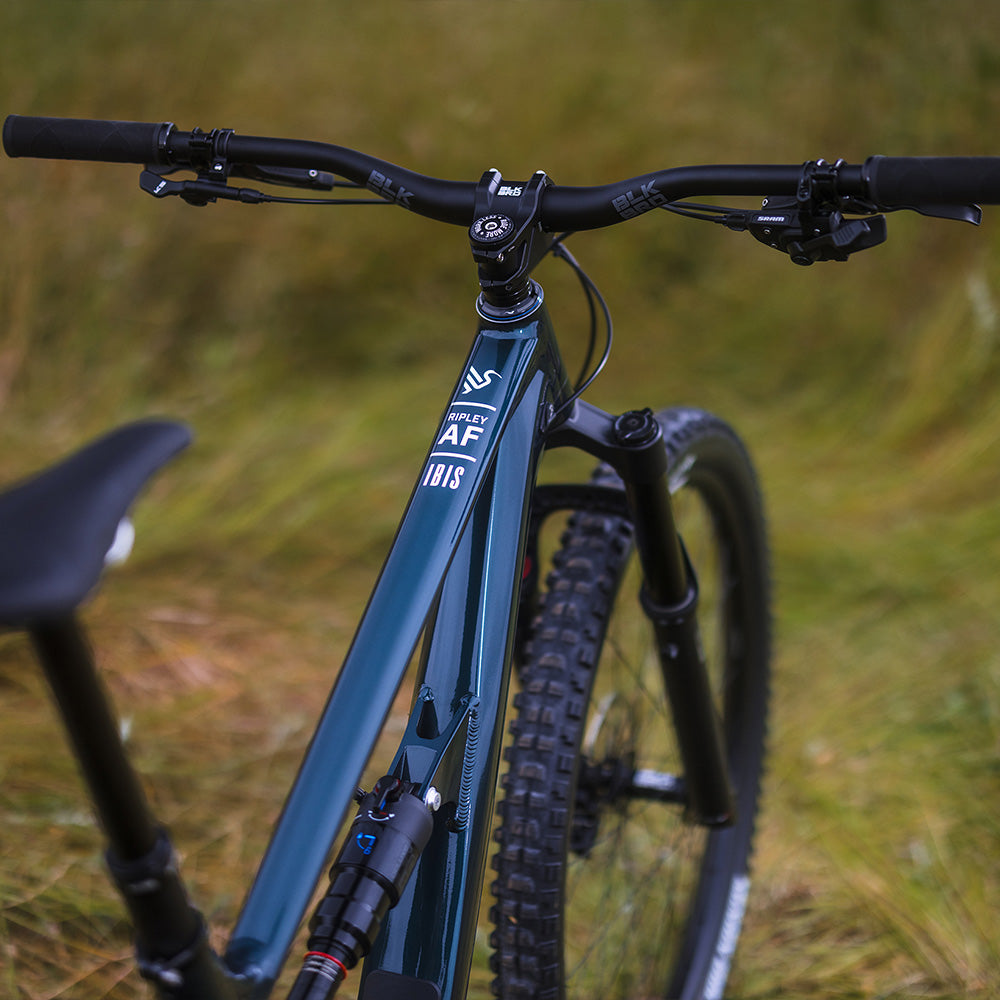

- Aluminum Frame, All Fun: Built from aluminum front to rear, the Ripley AF delivers the same legendary performance as its carbon sibling—at a more attainable price point.

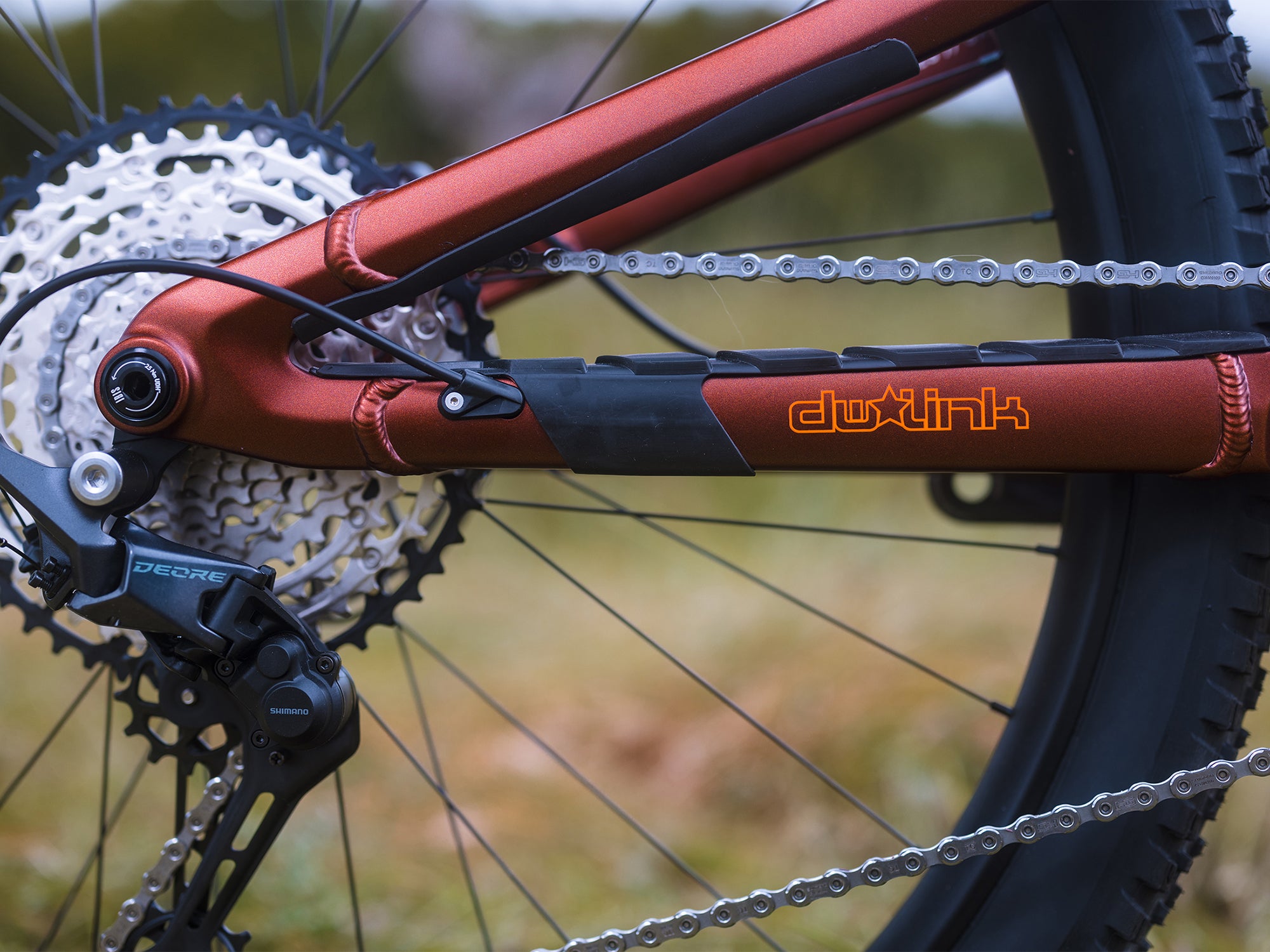

- Trail-Balanced Travel: 130mm DW-Link rear travel paired with 140mm up front for confident climbing and playful descending.
- Modern Geometry, Tuned for Speed: A 64.9° head angle offers stability at speed and sharp handling in the tight stuff.

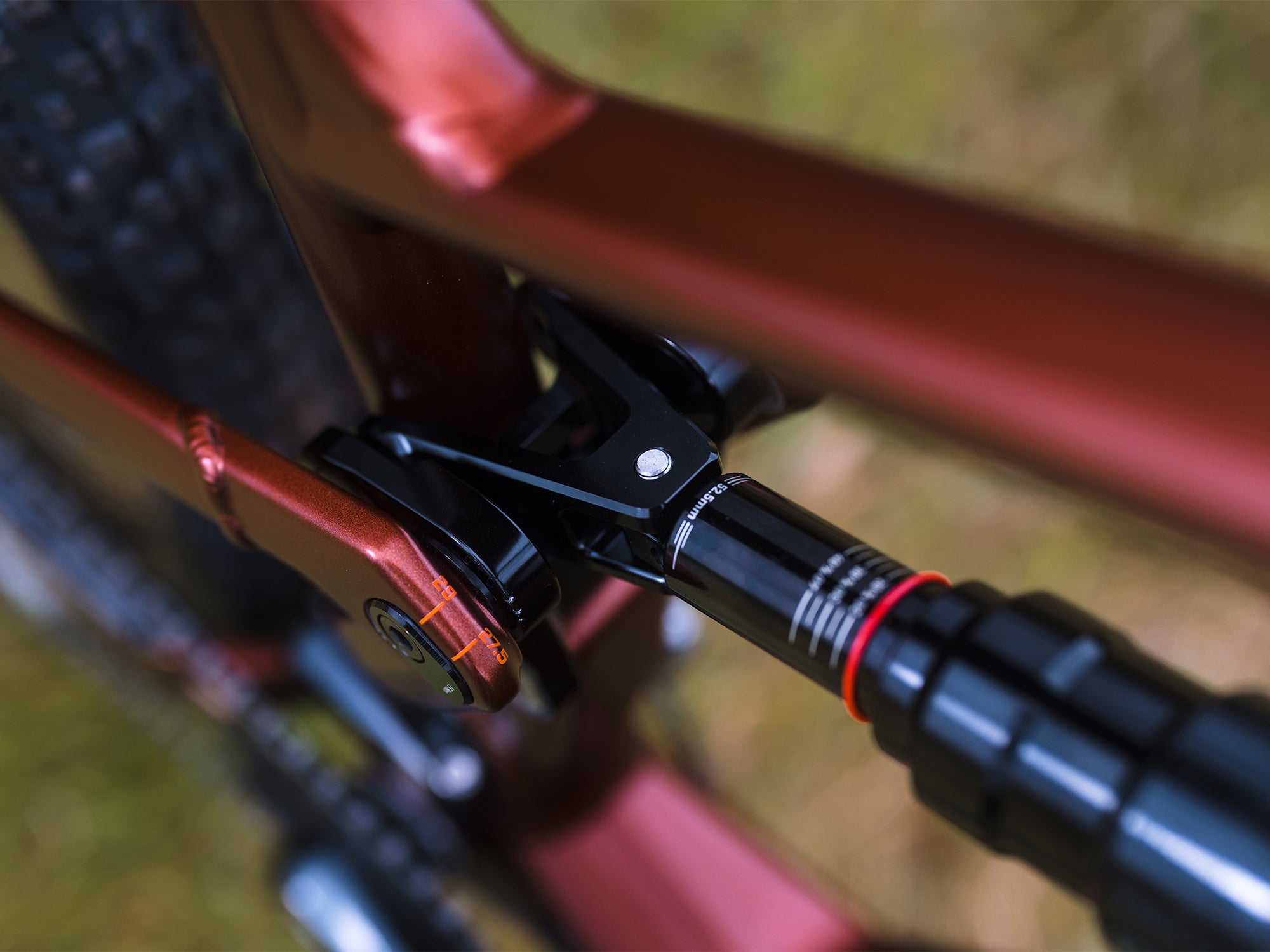

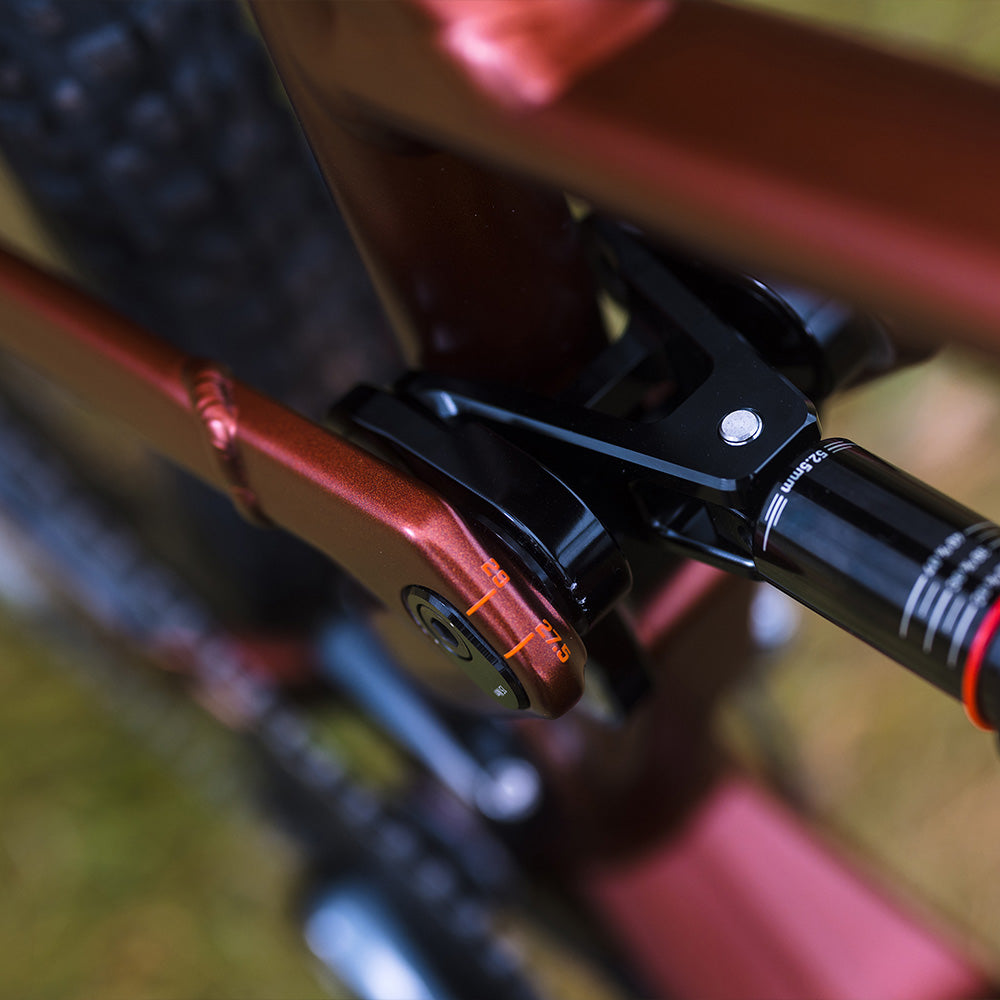

- 29” Wheels Standard, Mullet Compatible: Flip chip allows a 27.5" rear wheel setup for riders who want more agility or clearance.

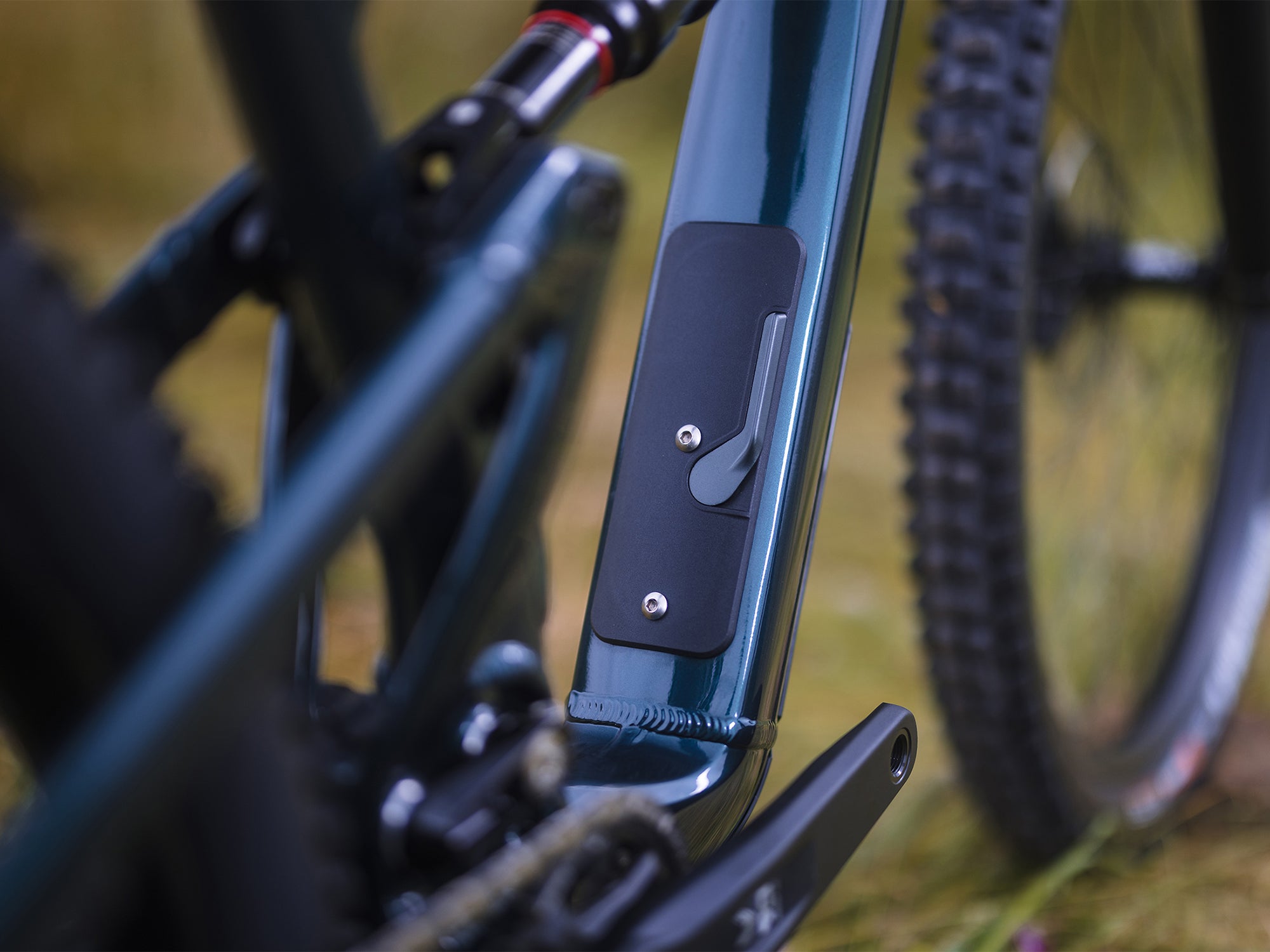

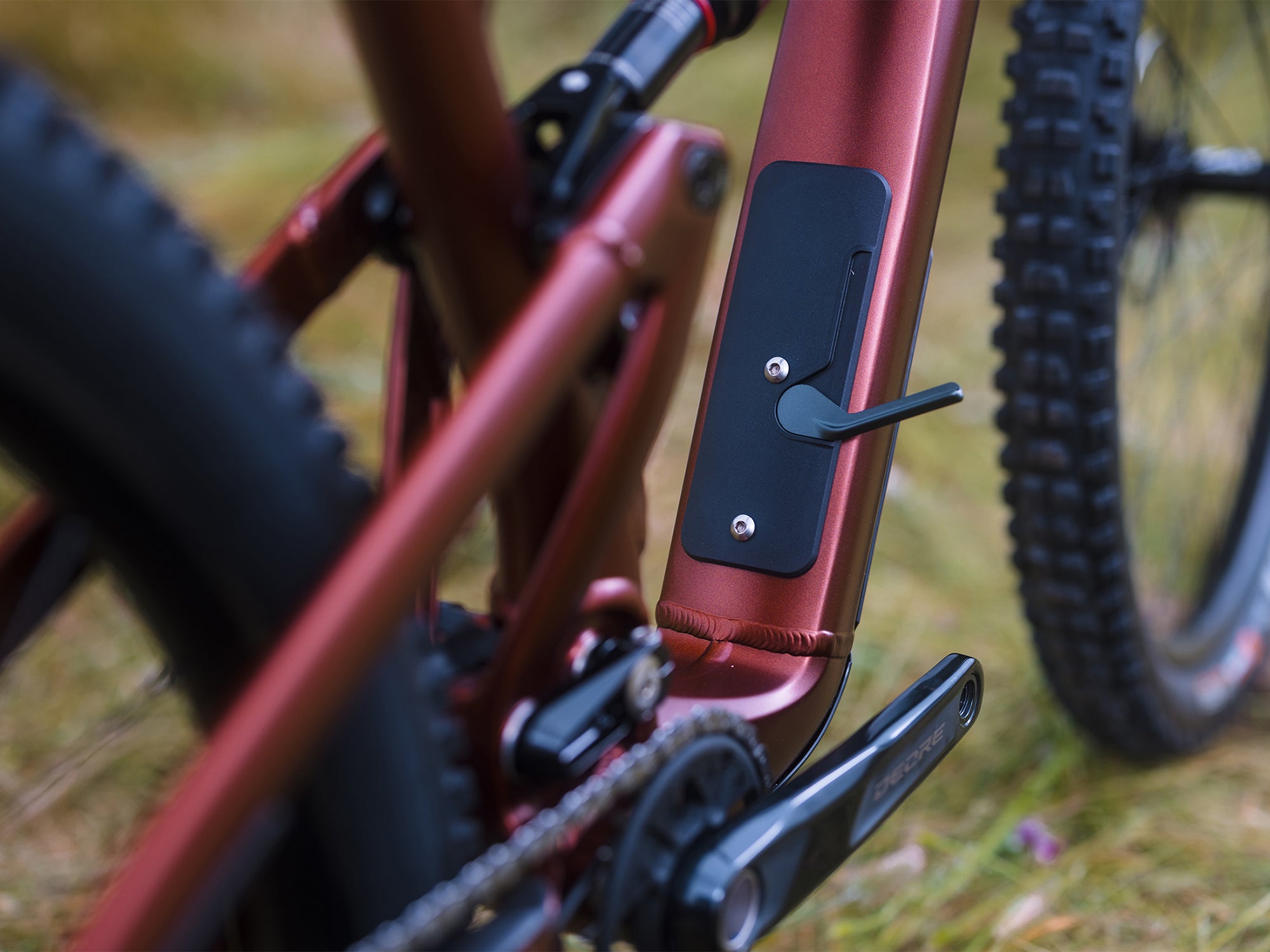

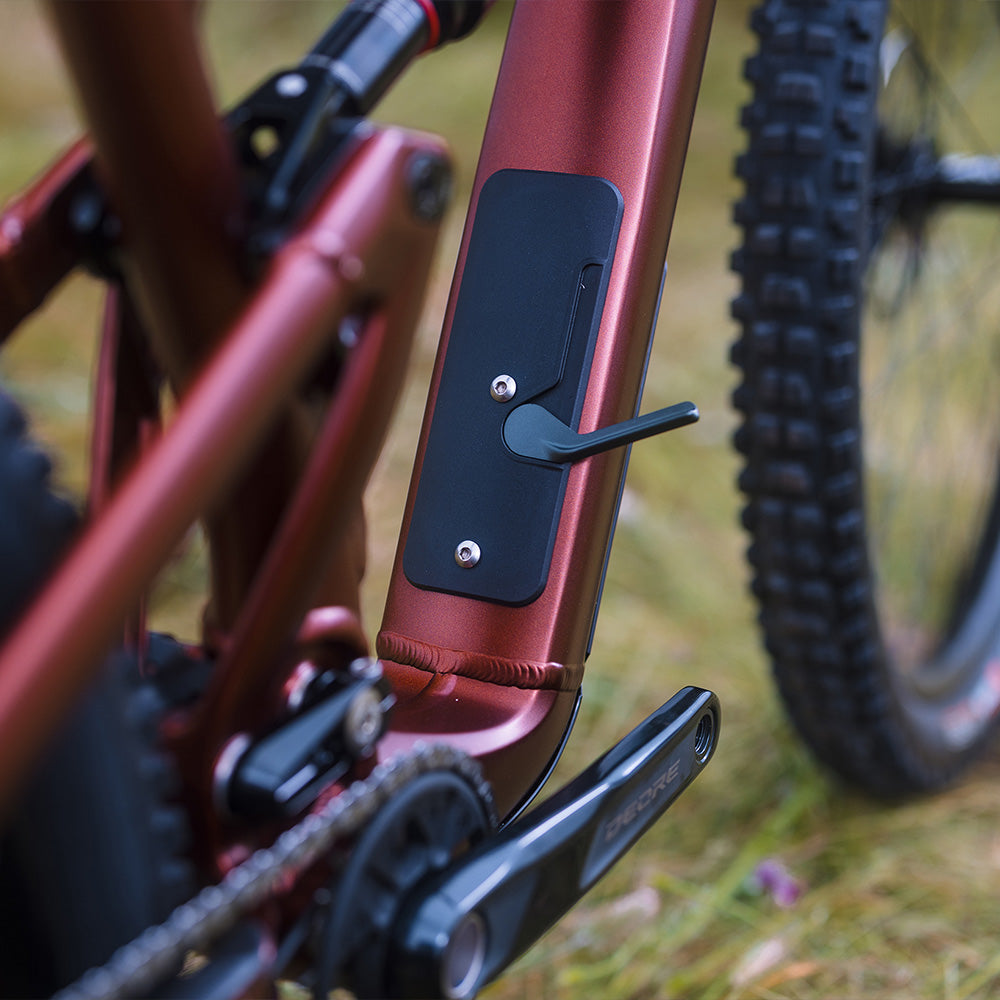

- In-Frame Storage with Ibis Stow Bags: Integrated downtube storage includes two custom Ibis bags for your tools, snacks, or essentials.
- Frame Protection Built In: Molded rubber protection and a robust, unapologetically metal chassis—ready to get rowdy.
- Full Spec Flexibility: Fits 2.5” tires, coil shocks, 220mm rotors, ISCG 05 tabs, and full-size water bottles across five sizes (S–XL).
- Modern Sizing & Fit: Five sizes (S–XL) fit riders from 5’0” to 6’7”, with size specific chainstays and seat angles.
- Boost Spacing + UDH: Modern features include SRAM UDH, 148x12 boost rear axle, 34.9mm seatpost, and full internal cable routing.
- Lifetime Warranty: Ibis backs the frame, bushings, and rims with a lifetime warranty for worry-free ownership.
Description
Ripley is good AF at pretty much everything.
Perfect for both seasoned shredders and stoked newcomers, the newest AF version packs the same fast, playful feel the Ripley is known for—into a tough aluminum package that’s ready for anything.
With 130mm of rear travel and 140mm up front, it climbs efficiently and descends way above its travel class. The confident progressive geometry gives it quick and responsive handling on tight trails while keeping things stable when the speed picks up. Designed for riders who value agility, capability, and all-around fun, the Ripley AF shares all the features of its carbon counterpart: DW-Link suspension, 29” wheels front and rear, with flip chips to run a 27.5” rear wheel (if you’re into mullets), and in-frame storage with two included Ibis bags — for all your snacks and tools.
The Ripley AF brings everything you love about the Ripley to a more attainable price point. It’s fast. It's fun. It's unapologetically metal … AF.
Frame Material: | Aluminum |
Wheel Size: | 29" |
Rear Axle Standard: | 12x148mm Boost |
Rear Shock: | RockShox Deluxe Select + |
Rear Shock Size: | 210mm x 52.5mm |
Rear Suspension Travel: | 130mm |
Headset: | Cane Creek 40 |
Headset Standard: | ZS44mm/ZS56mm |
Fork: | RockShox Pike |
Fork Axle: | 15x110mm Boost |
Wheelset: | Blackbird Send Alloy |
Front Tire: | Maxxis DHR II, 29x2.5, Exo TR |
Rear Tire: | Maxxis Rekon, 29x2.4, Exo TR |
Crankset: | Shimano Deore M6120, 24mm Spindle, 30T, SM-MD:165mm, XM-XL: 170mm |
Chainguide Tabs: | ISCG '05 3-Bolt |
Bottom Bracket: | Shimano MT501 |
BB Standard: | 73mm BSA |
Chain: | KMC X12 |
Rear Derailleur: | Shimano Deore M6100, SGS |
Cassette: | Shimano Deore M6100, 10-51T |
Seatpost: | KS Vantage Dropper, 34.9mm, SM: 110-140mm, MD/XM: 140-170mm, L-XL: 180-210mm |
Seat Post Diameter: | 34.9mm |
Seat: | WTB Silverado, Fusion, 142mm |
Shifters: | Shimano Deore M6100 |
Handlebar: | Blackbird 35 Aluminum 30mm Riser Bar, 800mm |
Stem: | Blackbird 35, SM-MD: 35mm, XM-XL: 50mm |
Grips: | Lizard Skins Strata Single Clamp |
Brakes: | SRAM G2 R |
Water Bottle Cage Mounts: | One bottle mount: 26oz bottle fits on all sizes |
Intended Use: | Trail/AM |
Warranty: | Lifetime frame warranty | Lifetime replacement on bushings |
140mm Fork (555mm Axle to Crown)
Size | SM | MD | XMD | LG | XL |
---|---|---|---|---|---|
Reach | 440 | 460 | 483 | 511 | 545 |
Stack | 613 | 619 | 629 | 640 | 650 |
Top Tube | 577 | 604 | 629 | 654 | 684 |
Wheelbase | 1187 | 1211 | 1241 | 1279 | 1321 |
Head Tube° | 64.9° | 64.9° | 6439° | 64.9° | 64.9° |
Head Tube | 85 | 95 | 110 | 125 | 140 |
Seat Tube° | 77.4° | 76.9° | 76.9° | 77.4° | 77.9° |
Seat Tube | 395 | 400 | 416 | 457 | 477 |
BB Height | 326 | 329 | 332 | 335 | 338 |
BB Drop | 48 | 45 | 42 | 39 | 36 |
Standover | 680 | 721 | 744 | 759 | 772 |
Chainstay | 436 | 436 | 437 | 440 | 442 |
