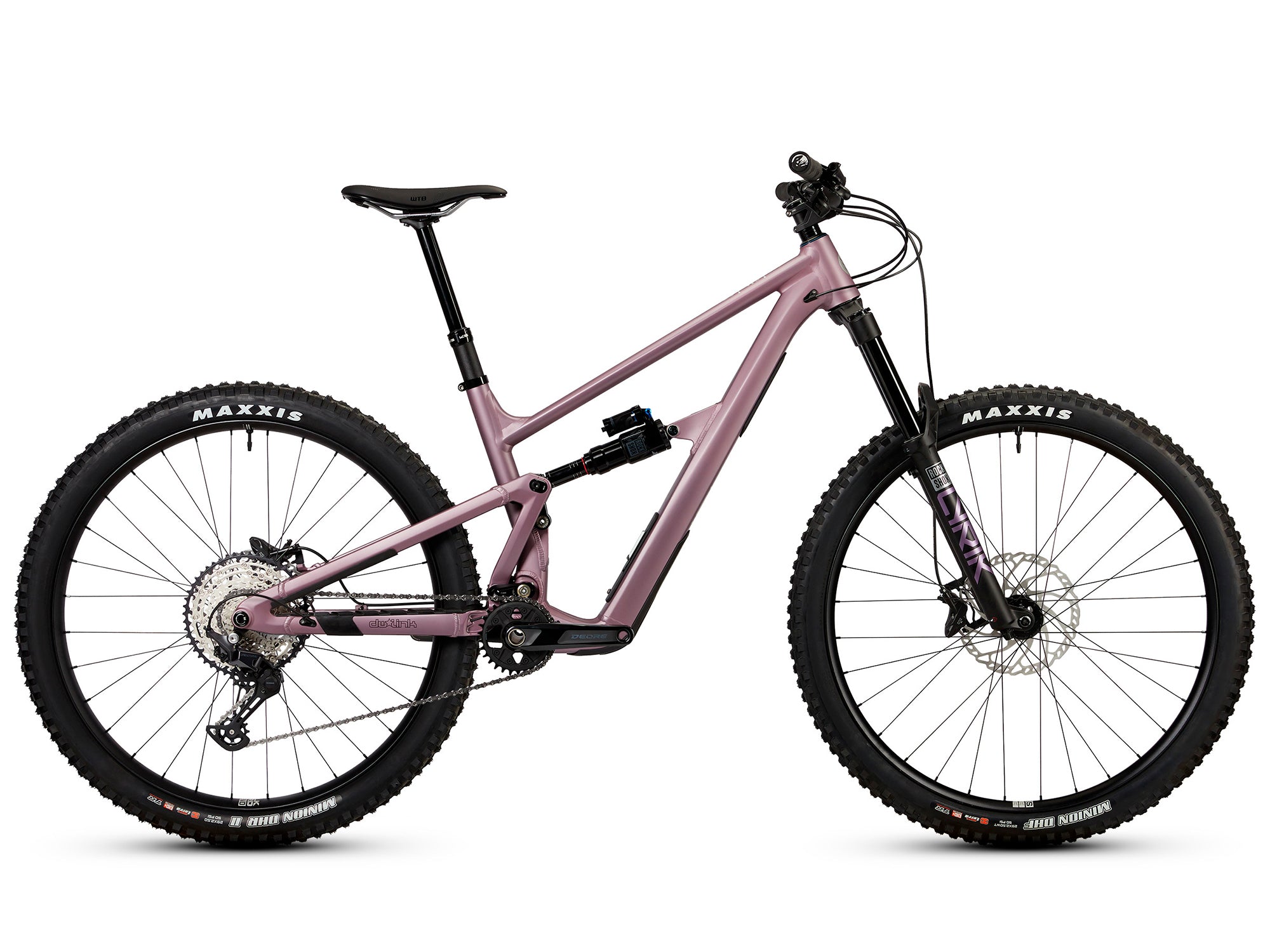

Ripmo AF Deore Complete Bike - 2026
Rose Dust / SM (MX)
Fanatik Bike
Pickup available, usually ready in 4 hours
1812 N. State St.
Bellingham WA 98225
United States
Color:Rose Dust
Size:SM (MX)
Quantity:
Choose options
Color:Rose Dust
Size:SM (MX)
Quantity:
Color:Rose Dust
Size:SM (MX)
Quantity:
Ripmo AF
Aluminum
Material
29" | MX
Wheel Size
150
Rear (MM)
160
Front (MM)
Highlights
- Long Travel Confidence: 160mm front and 150mm rear travel with dw-Link suspension gives the Ripmo AF serious enduro capability while still climbing like a champ.
- MX or 29” Wheel Options: Use the adjustable flip chip to run either full 29” or a mixed wheel (MX) setup—29” front, 27.5” rear—for the right blend of rollover and agility.
- Progressive Geometry: A slack 64.5° head angle, steep seat tube angles (76.5–77.5°), and chainstay lengths that grow with frame size create a fast, capable, and balanced ride.

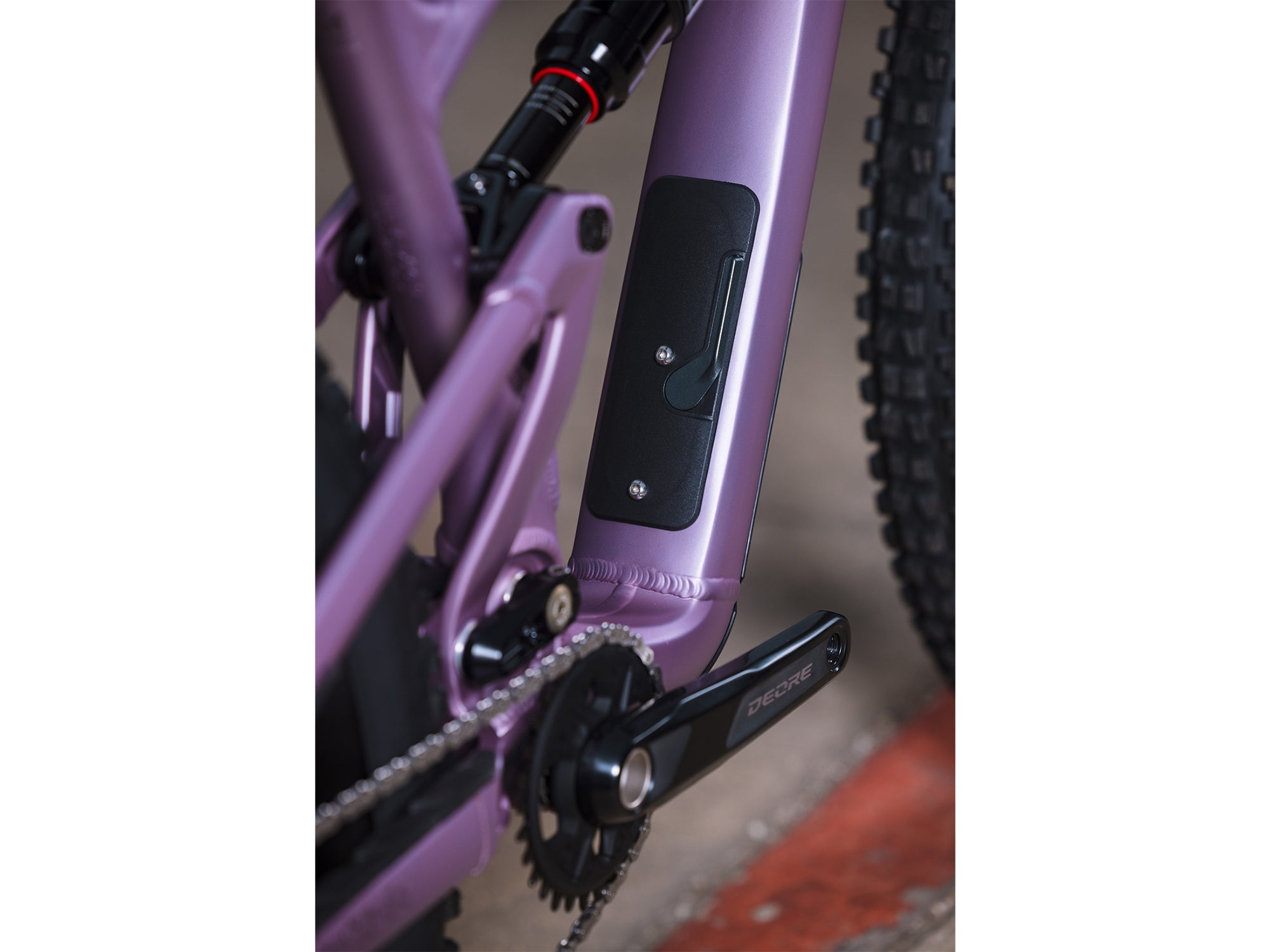

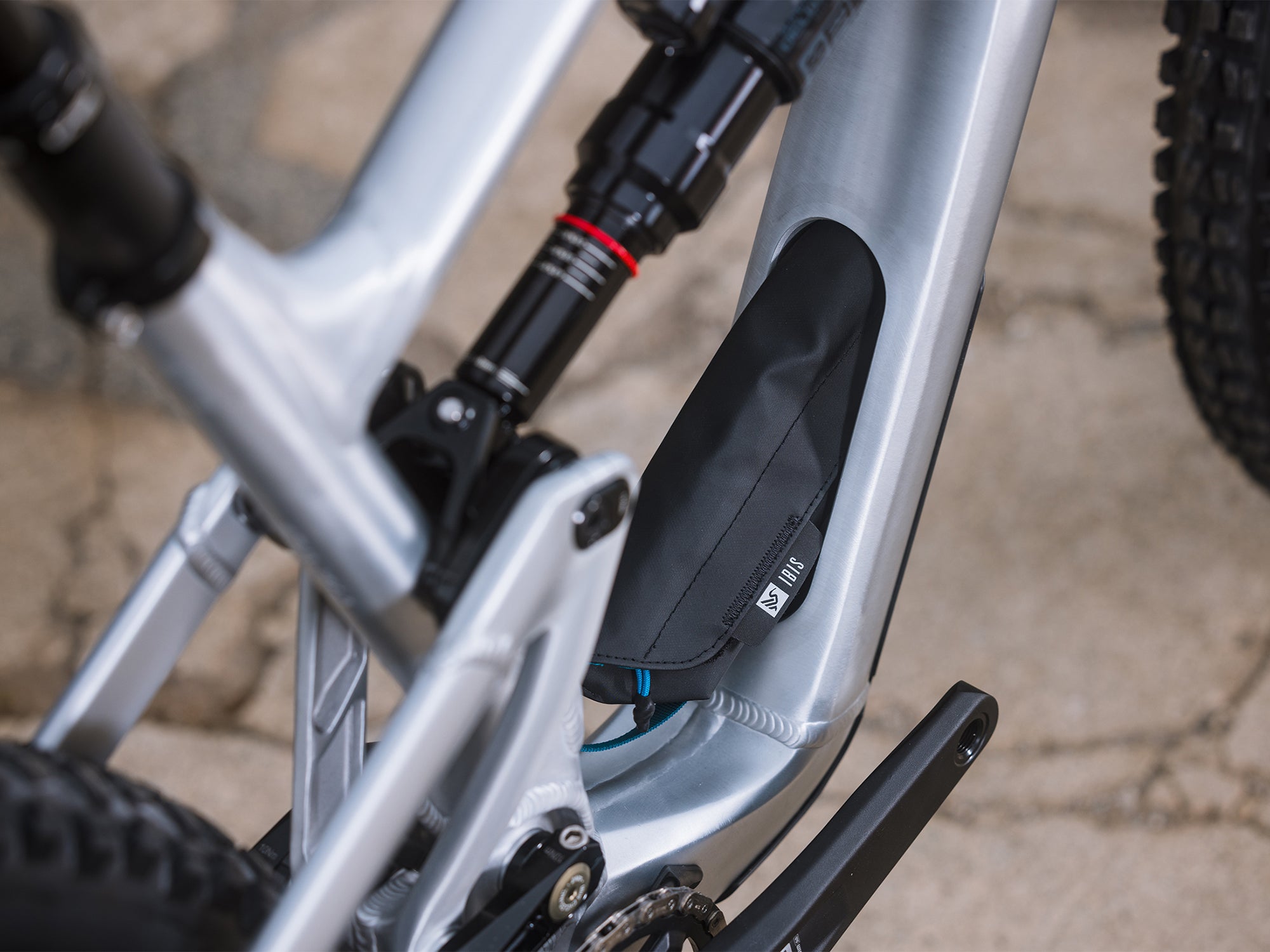

- In-Frame Storage: Integrated Ibis Stow system includes two internal storage bags for carrying tools, snacks, or layers.
- Coil Compatible: The Ripmo AF is ready for a coil shock, giving riders more options to fine-tune their suspension feel.
- Durable Alloy Frame: Full aluminum construction with molded rubber frame protection makes this the Ripmo you can beat on, lap after lap.
- Modern Sizing & Fit: Five sizes (S–XL) fit riders from 5’0” to 6’7”, and everything is size-specific—from seat angles to chainstays and dropper post lengths.
- Big Brake Ready: Supports up to 220mm rotors for aggressive braking on big descents.
- Universal Derailleur Hanger: SRAM UDH compatibility ensures future-proof drivetrain flexibility.
- Refined Cable Routing: Updated internal cable ports keep things quiet and service-friendly.
- Boost Spacing & Threaded BB: 148x12mm Boost rear spacing and a 73mm BSA threaded bottom bracket for ease of maintenance.
- Massive Tire Clearance: Room for 2.5” wide tires lets you run rubber that matches the terrain.
- Lifetime Warranty: Ibis backs the frame and bushings with a lifetime warranty, so you can ride hard and worry less.
Description

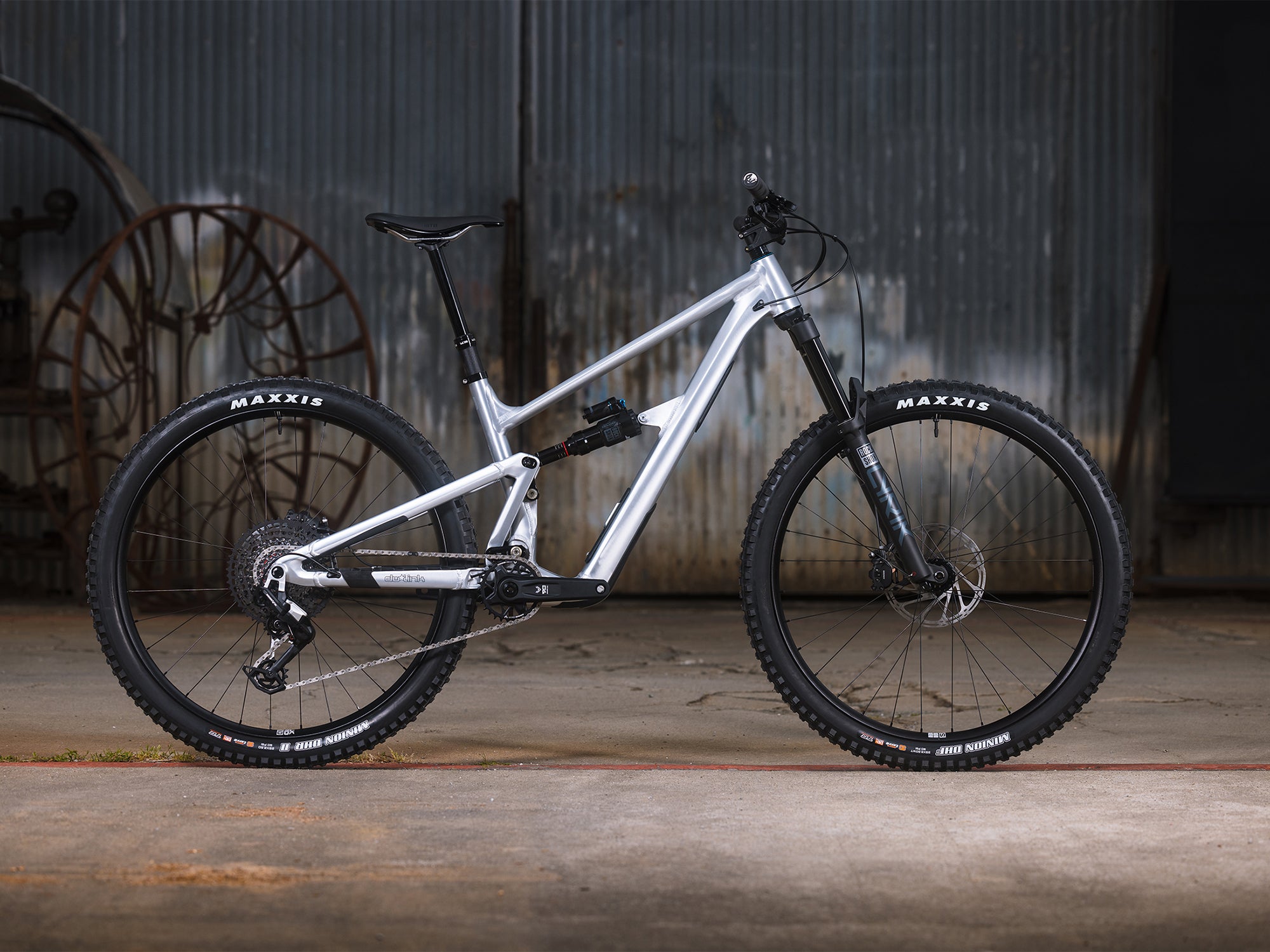

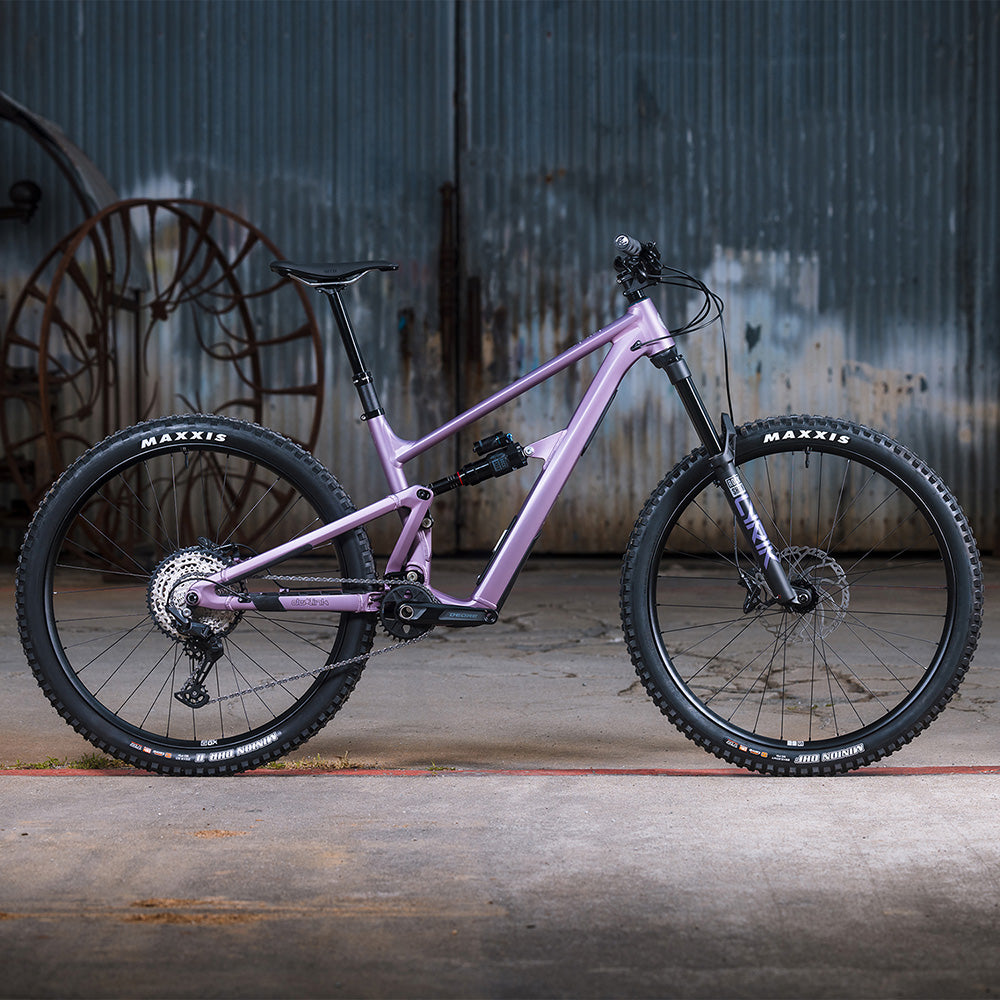

The Ripmo AF legend continues, bringing big-mountain capability to a rugged, aluminum package — blending long-travel confidence with trail-friendly efficiency.
With 160mm front and 150mm rear travel, DW-Link suspension, and Flip chips for using a 27.5” or 29” rear wheel, it’s built for steep descents, chunky terrain, and climbs better than it should. Progressive geometry and a durable frame make it ideal for riders who push hard and want a bike that can keep up, lap after lap. Whether you're racing enduro, exploring alpine singletrack, or sending the local lines, the Ripmo AF delivers the same legendary performance as its carbon sibling. The Ripmo AF has all of the same features as the carbon bike, in-frame storage with two bags, coil compatibility, progressive geometry, all at a more approachable price.
| Frame Material: | Aluminum |
| Wheel Size: | 29", Mixed: 29" front/27.5" rear |
| Rear Axle Standard: | 12x148mm Boost |
| Rear Shock: | RockShox Super Deluxe Select |
| Rear Shock Size: | 230mm x 60mm |
| Rear Suspension Travel: | 150mm |
| Headset: | Cane Creek 40 |
| Headset Standard: | ZS44mm/ZS56mm |
| Fork: | RockShox Lyrik |
| Fork Axle: | 15x110mm Boost |
| Wheelset: | Blackbird Send Alloy |
| Front Tire: | Maxxis DHF, 29x2.5, Exo+ TR |
| Rear Tire: | XM-XL: Maxxis DHR II, 29x2.5, Exo+ TR SM-MD: Maxxis DHR II, 27.5x2.5, Exo+ TR |
| Crankset: | Shimano Deore M6120, 24mm Spindle, 30T, SM-MD:165mm, XM-XL: 170mm |
| Chainguide Tabs: | ISCG '05 3-Bolt |
| Bottom Bracket: | Shimano MT501 |
| BB Standard: | 73mm BSA |
| Chain: | KMC X12 |
| Rear Derailleur: | Shimano Deore M6100, SGS |
| Cassette: | Shimano Deore M6100, 10-51T |
| Seatpost: | KS Vantage Dropper, 34.9mm, SM: 110-140mm, MD/XM: 140-170mm, L-XL: 180-210mm |
| Seat Post Diameter: | 34.9mm |
| Seat: | WTB Silverado, Fusion, 142mm |
| Shifters: | Shimano Deore M6100 |

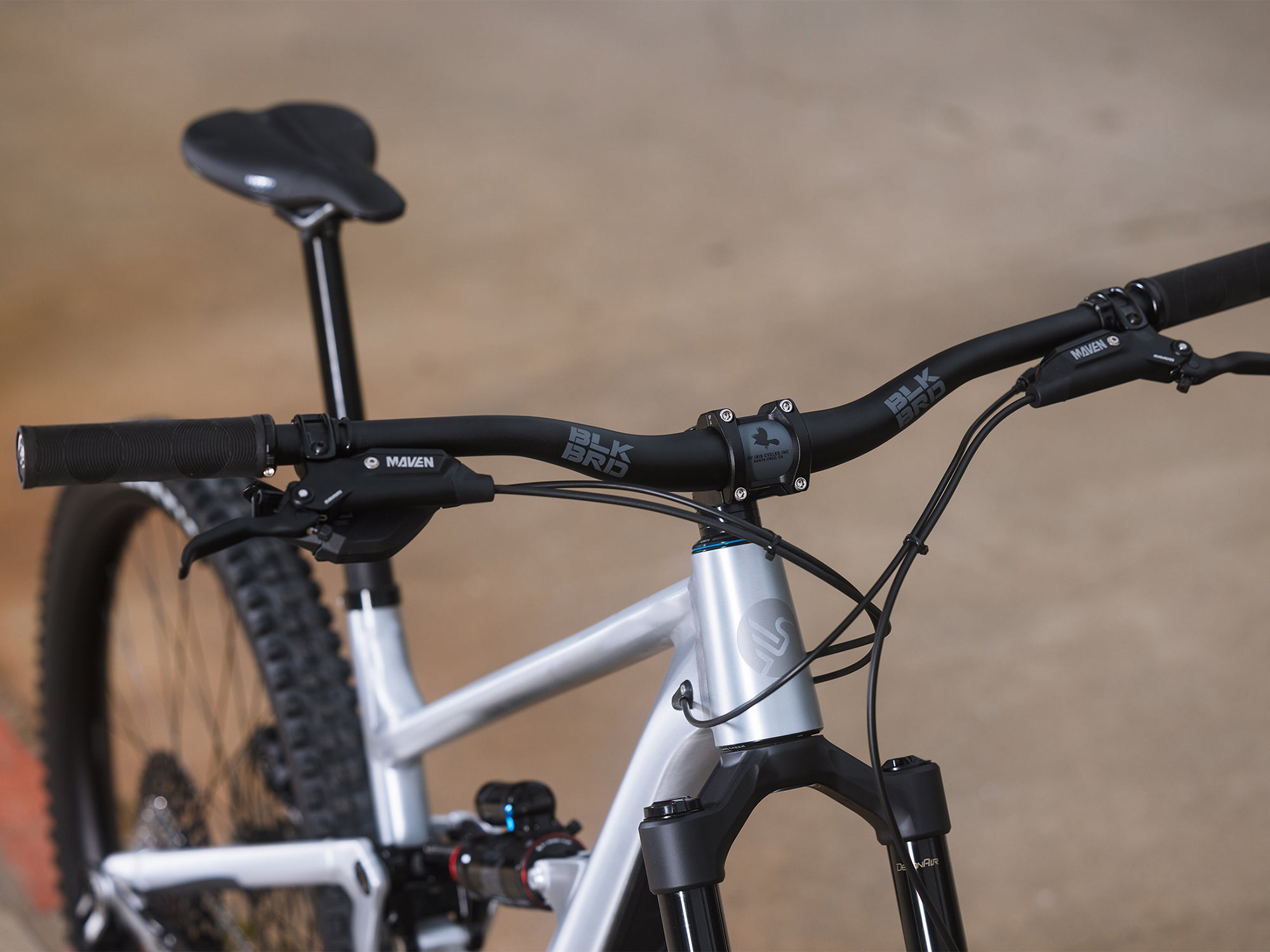

| Handlebar: | Blackbird 35 Aluminum 30mm Riser Bar, 800mm |
| Stem: | Blackbird 35, SM-MD: 35mm, XM-XL: 50mm |
| Grips: | Lizard Skins Strata Single Clamp |
| Brakes: | Shimano Deore M6120, 4-Piston |
| Water Bottle Cage Mounts: | One bottle mount: 26oz bottle fits on all sizes |
| Intended Use: | AM/Enduro |
| Warranty: | Lifetime frame warranty | Lifetime replacement on bushings |
160mm Fork (575mm Axle to Crown)
| Size | SM | MD | XMD | LG | XL |
|---|---|---|---|---|---|
| Reach | 436 | 456 | 478 | 506 | 540 |
| Stack | 616 | 622 | 633 | 643 | 654 |
| Top Tube | 578 | 605 | 630 | 655 | 685 |
| Wheelbase | 1195 | 1219 | 1249 | 1286 | 1329 |
| Head Tube° | 64.5° | 64.5° | 64.5° | 64.5° | 64.5° |
| Head Tube | 85 | 95 | 110 | 125 | 140 |
| Seat Tube° | 77° | 76.5° | 76.5° | 77° | 77.5° |
| Seat Tube | 395 | 400 | 415 | 457 | 477 |
| BB Height | 338 | 341 | 344 | 349 | 350 |
| BB Drop | 36 | 33 | 30 | 27 | 24 |
| Standover | 693 | 734 | 757 | 772 | 784 |

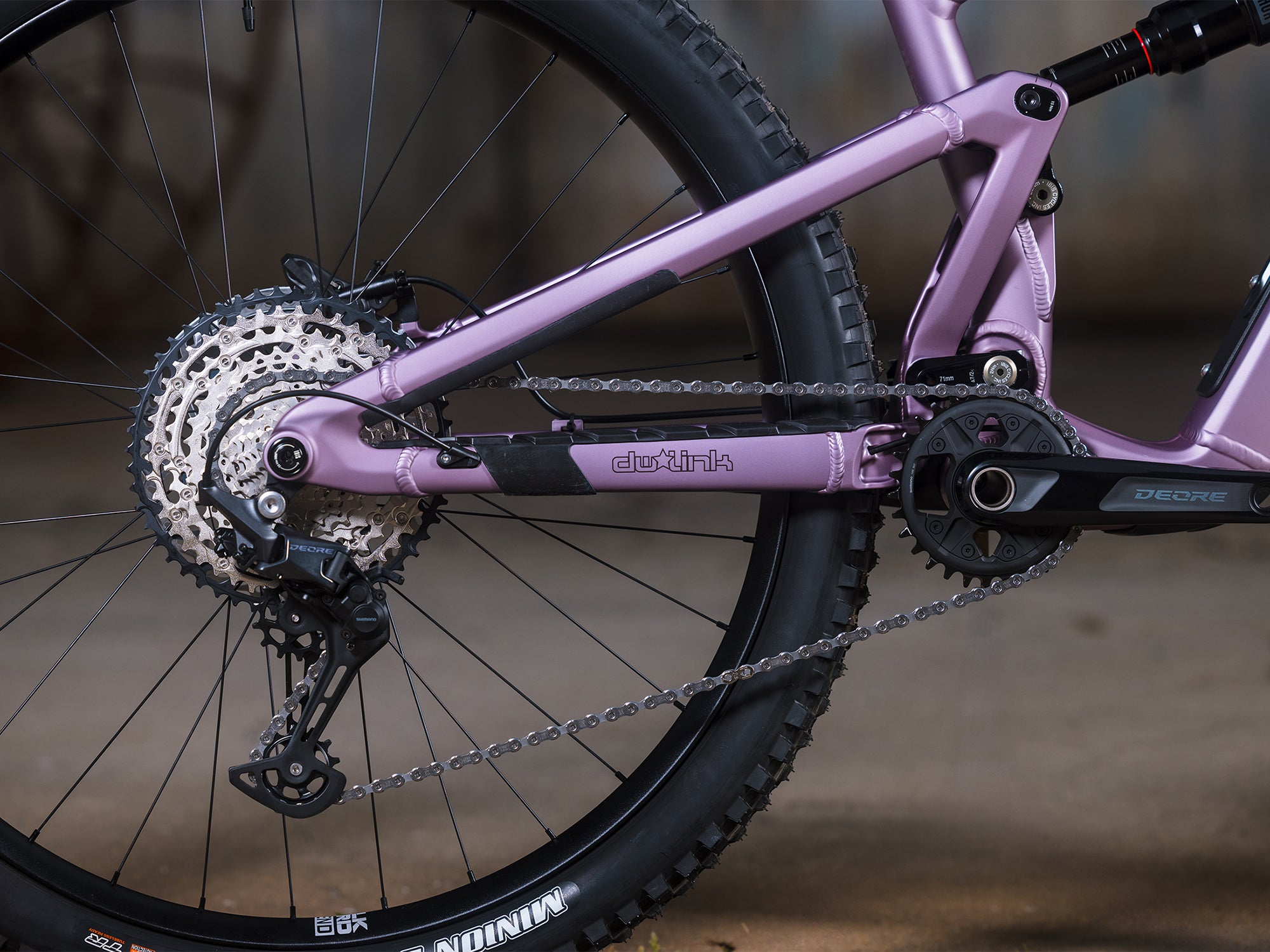

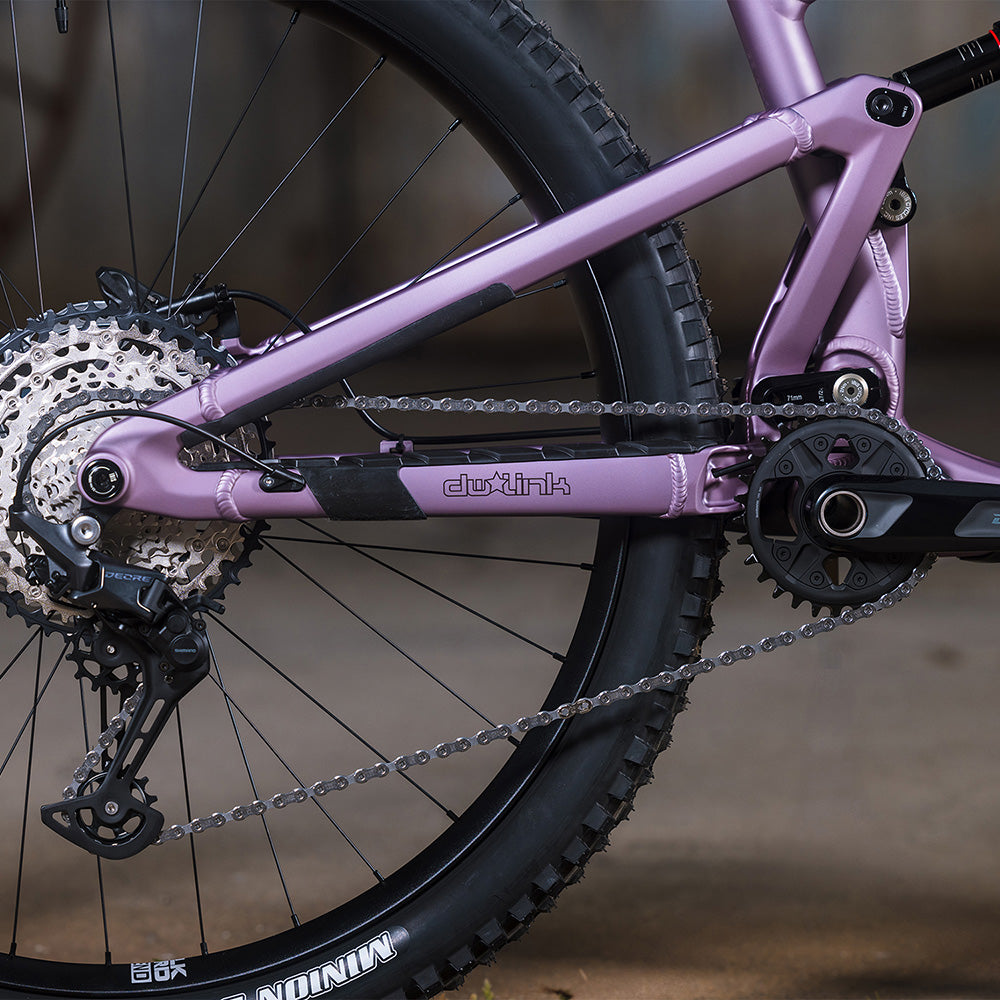

| Chainstay | 435 | 435 | 436 | 438 | 440 |
Size Guide
| Size | SM | MD | XM | LG | XL |
|---|---|---|---|---|---|
| Height | 152 - 168 | 165 - 175 | 173 - 183 | 180 - 191 | 188 - 201 |
