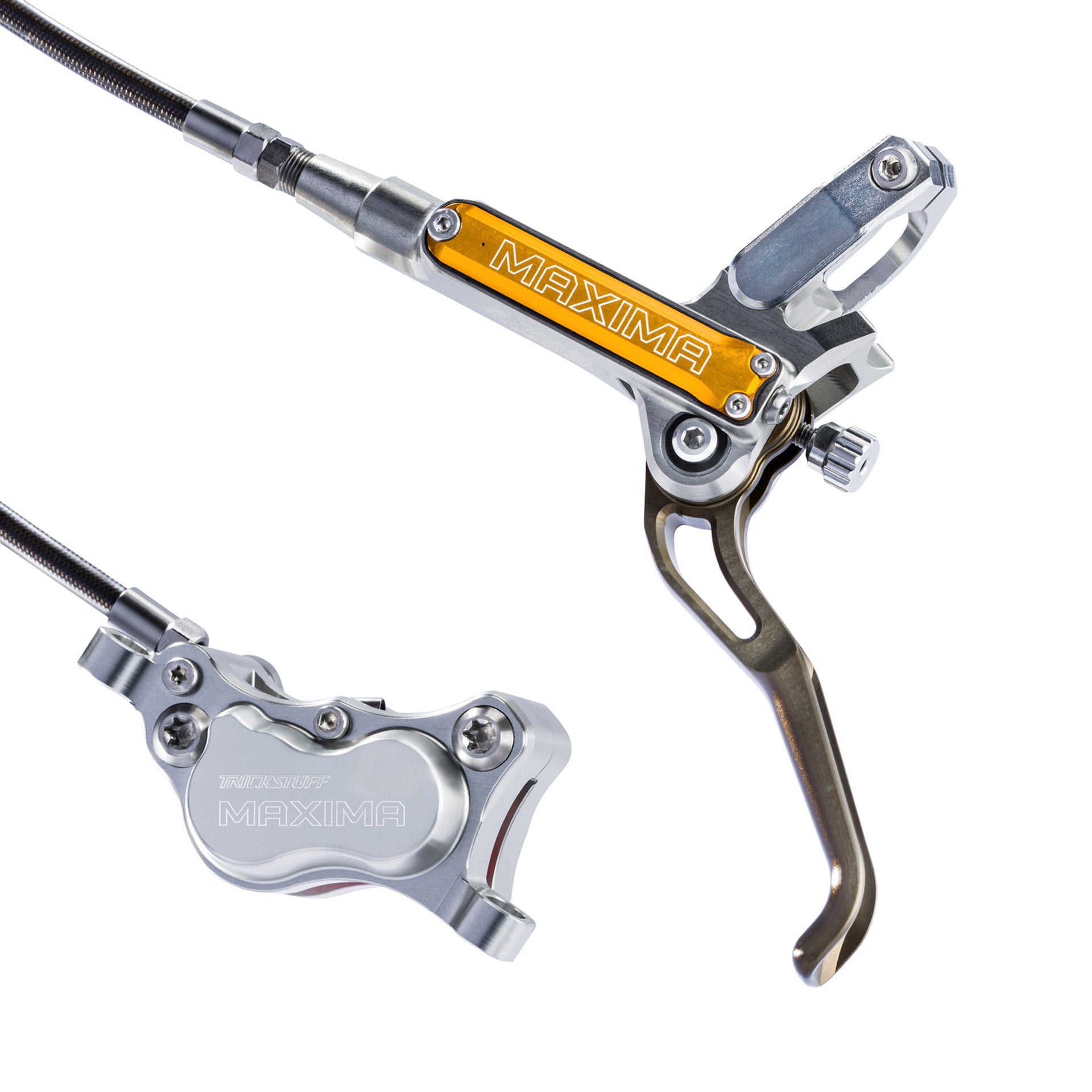

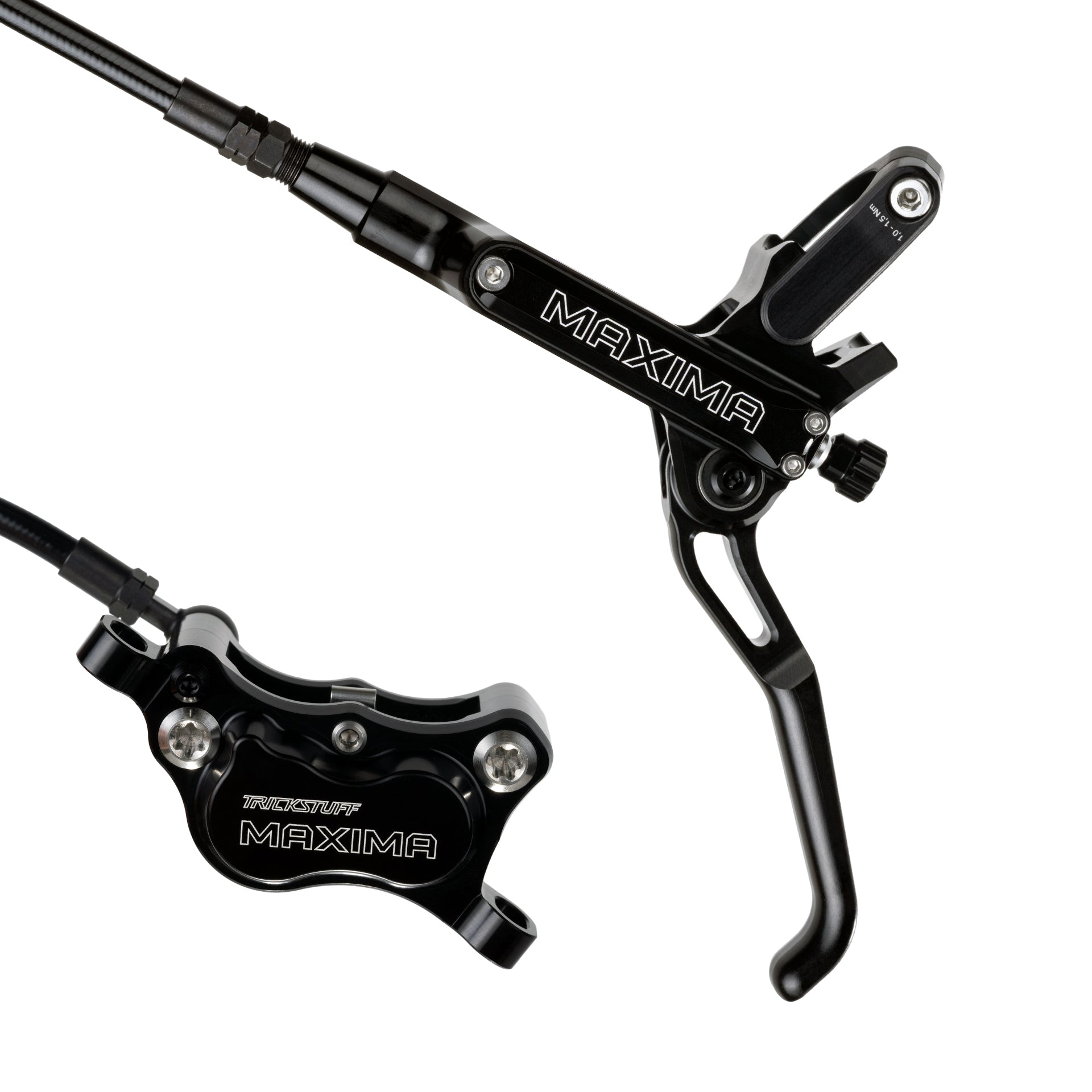

Trickstuff Maxima Complete Brakeset
On the steepest, most demanding trails, where adrenaline and focus collide, staying composed is essential. The Trickstuff MAXIMA is designed for those moments when you're pushing your limits with one purpose in mind: delivering unmatched braking power and precision. At first glance, the MAXIMA’s smooth operation might seem subtle, but don’t be fooled, its true nature shines when it counts most. The mechanism's refined action provides a consistent, predictable bite point, giving you the control to modulate braking force with incredible sensitivity, even through the roughest terrain.
This precision is vital for harnessing the power of the MAXIMA brakes, which is ready to unleash when you need it most. The immense strength comes from a hydraulic system that drives a 9mm pump piston to four 16/17mm caliper pistons, all backed by an exceptional mechanical transmission ratio created by the lever geometry. This design minimizes the effort needed at the lever, even when navigating steep, technical descents. CNC-milled from 7075 aluminum, the calipers feature optimized steel yoke bolts for maximum stiffness. Paired with Goodridge steel flex or Kevlar hoses, the entire system boasts exceptional rigidity, ensuring that power is always controlled, never overpowered.
In the box
- Trickstuff Maxima brake set
- Pair of Trickstuff brake pads
- Caliper mounting bolts
- Olive and barb set for hose shortening
- Bleed port plug
Features
- Unmatched Braking Power -- The MAXIMA delivers immense braking strength with a hydraulic system that transfers power from a 9mm pump piston to four 16/17mm caliper pistons, ensuring exceptional stopping performance.
- Precise Control and Modulation -- Enjoy a smooth, predictable bite point that allows for the finest modulation of braking force, giving you control even in the roughest terrain.
- Reduced Finger Force with High Mechanical Ratio -- Lever geometry minimizes finger force required, making it easier to maintain control on the steepest descents without compromising power.
- Durable and Stiff CNC-Milled Calipers -- The 7075 aluminum CNC-milled calipers, combined with optimized steel yoke bolts, provide high caliper stiffness for a more responsive braking experience.
- Ready for the Toughest Terrain -- Built to handle the steepest and most challenging tracks, the MAXIMA maintains control and reliability even in seemingly unrideable sections.
Tech Specs
| Fluid: | Bionol |
| Pistons: | Four |
| Lever Reach Adjust: | Yes |
| Pad Contact Adjust: | No |
| Reversible Lever Body: | No |
| Lever Material: | Aluminum |
| Lever Pivot: | Bearing |
| Hose Length: | Front: 900mm | Rear: 1,700mm |
| Intended Use: | Enduro / DH |
Specs subject to change without notice. Please check with manufacturer for the most up-to-date information.
