Chromag
Lowdown Frame - 2025
Pickup currently unavailable at our Bellingham Store
This item can only be shipped
Lowdown Frame - 2025
Black / S
Fanatik Bike
Pickup currently unavailable
1812 N. State St.
Bellingham WA 98225
United States
Color:Black
Size:S
Quantity:
Choose options
Color:Black
Size:S
Quantity:
Color:Black
Size:S
Quantity:
Aluminum|Steel
Material
29"
Wheel Size
158
Rear (MM)
170
Front (MM)
Highlights
- Long and slack geometry with upright riding position for sure footed versatility in demanding terrain
- 29" wheels (mullet link option)
- 4130 heat-treated Chromoly and 6066 T-6 Alloy tubing
- Robust precision hardware and bearings at all pivot points
- Tough, reliable, easy to maintain
Description

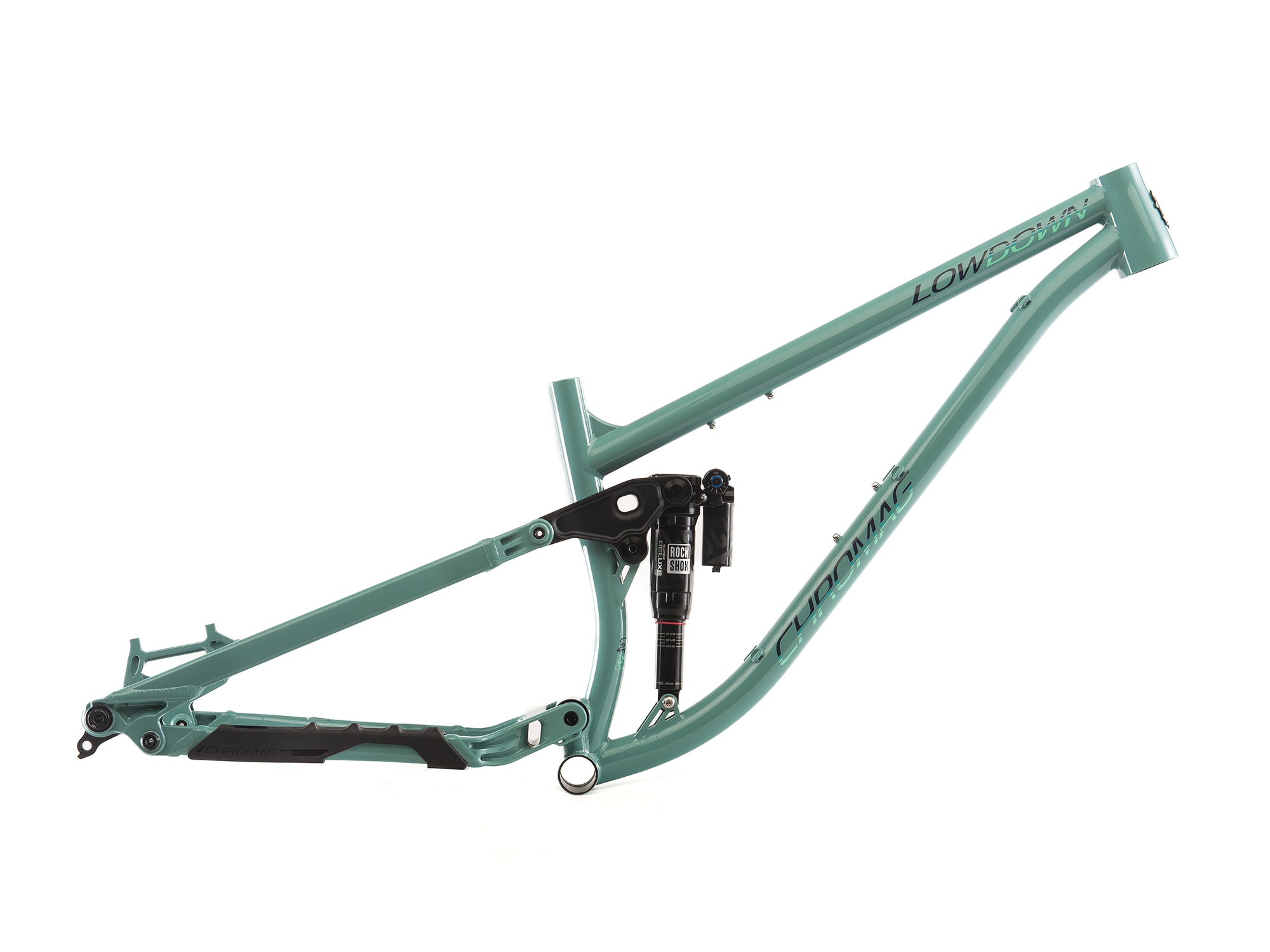

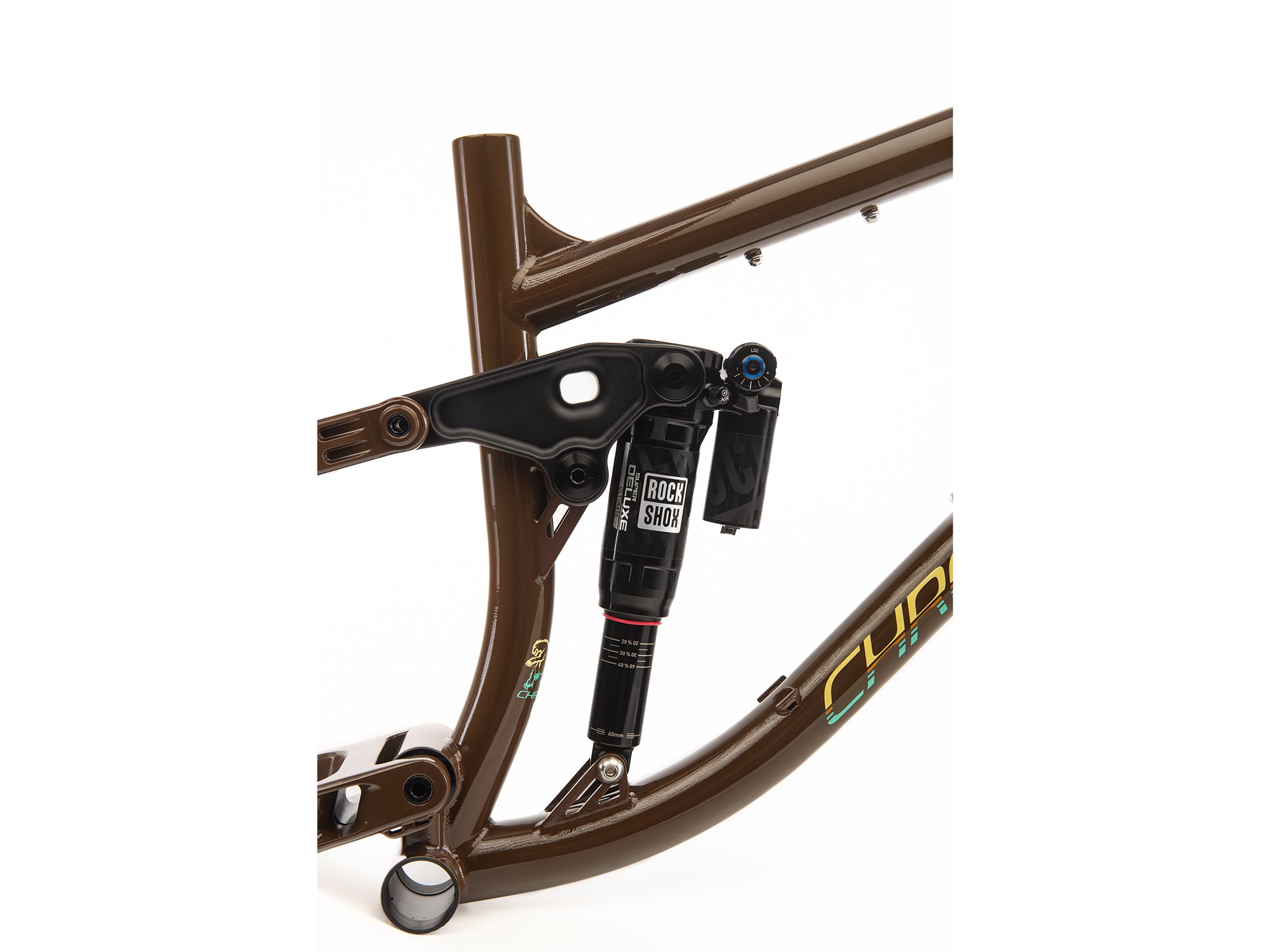

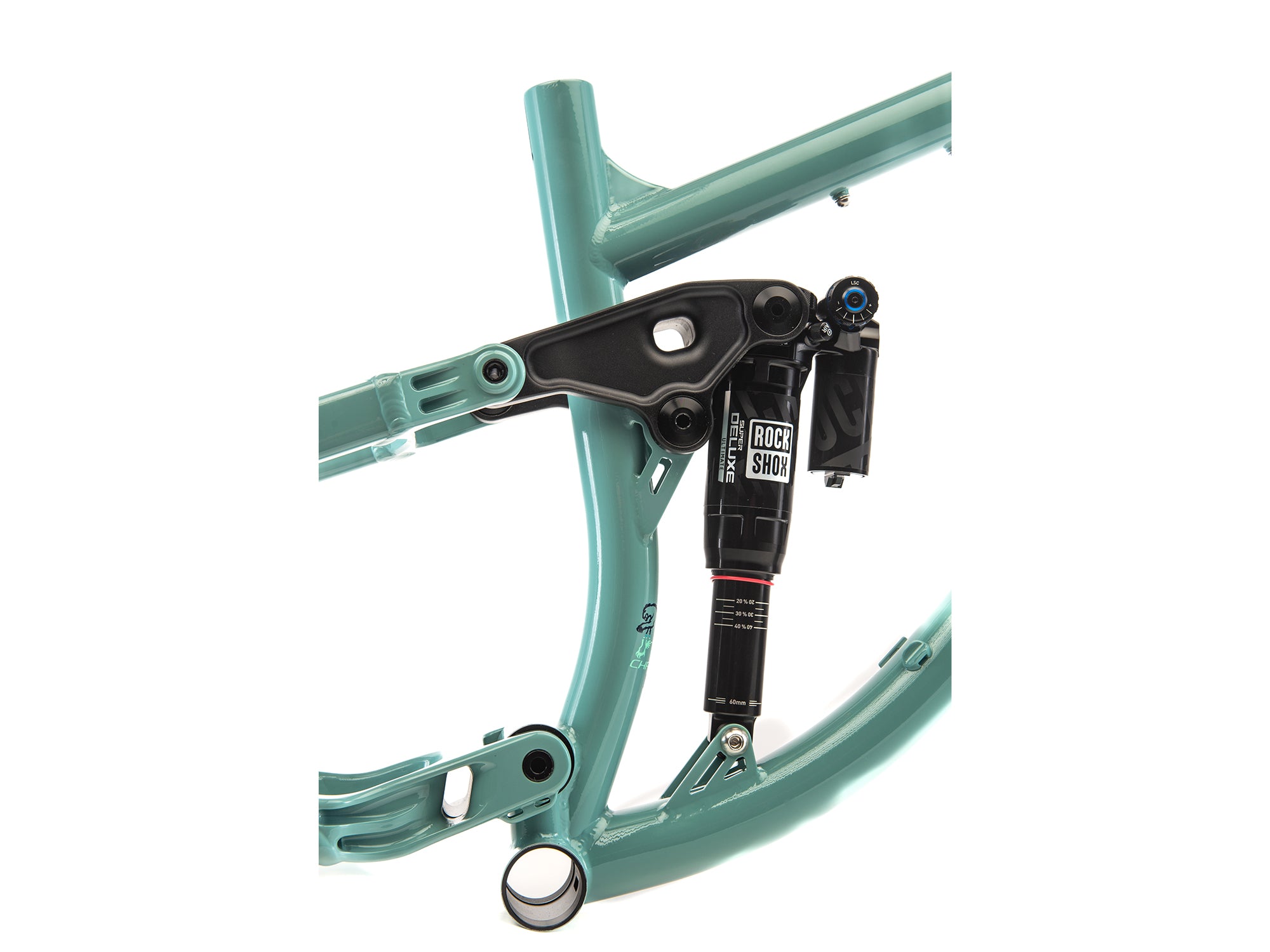

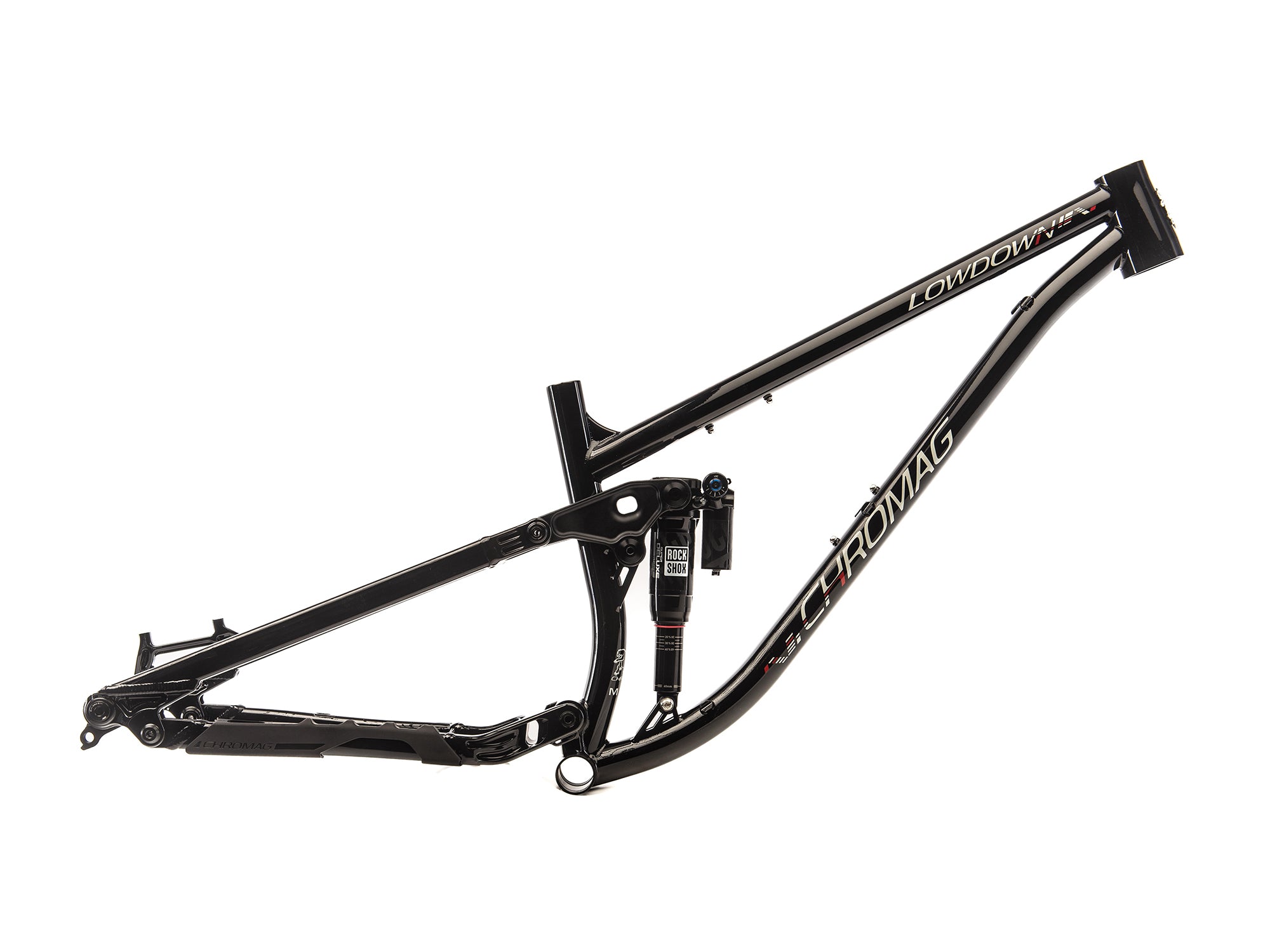

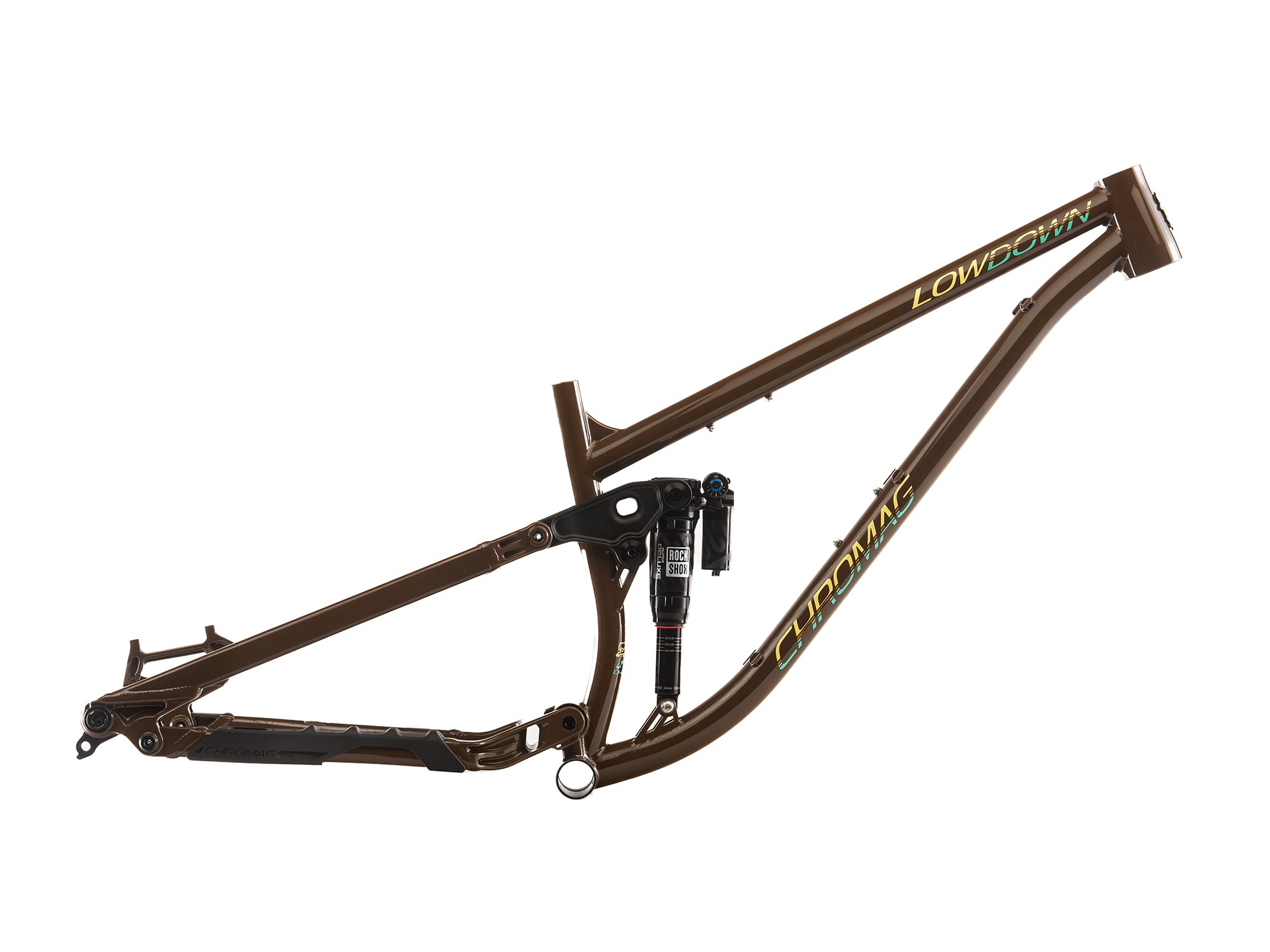

The Lowdown Frame - 2025 is expertly designed for demanding terrain with long and slack geometry, an upright riding position, and 158mm rear suspension paired with a 170mm fork. Made with 4130 heat-treated Chromoly and 6066 T-6 Alloy tubing, and equipped with precision hardware and bearings, this frame delivers durability, reliability, and easy maintenance. Also featuring a mullet link option and a Rockshox Super Deluxe rear shock with reservoir.
| Frame Material: | Aluminum|Steel |
| Wheel Size: | 29" |
| Front Suspension Travel: | 170mm |
| Rear Suspension Travel: | 158mm |
| Rear Shock: | Rockshox Super Deluxe rear shock with reservoir |
| Rear Shock Size: | 205mm x 60mm |
| Rear Shock Hardware: | 20 x 8mm |
| Rear Axle Width: | 12x148mm Boost |
| Headset Standard: | ZS44mm/ZS56mm |
| BB Standard: | 73mm BSA |
| Brake Mount Type: | Post-Mount 180mm |
| Seat Post Diameter: | 31.6mm |
| Seat Clamp Diameter: | 36mm |
| Water Bottle Cage Mounts: | One mount on downtube |
| Intended Use: | AM/Enduro, Trail/AM |
| Warranty: | 3 Years |
| Size | S | M | M/L | L | XL |
|---|---|---|---|---|---|
| Reach | 449 | 471 | 490 | 513 | 530 |
| Stack | 623 | 623 | 625 | 637 | 646 |
| Top Tube | 570 | 592 | 612.5 | 637 | 656 |
| Wheelbase | 1232 | 1254 | 1280 | 1302 | 1324 |
| Head Tube° | 63.5° | 63.5° | 63.5° | 63.5° | 63.5° |
| Head Tube | 100 | 100 | 63.5 | 115 | 125 |
| Seat Tube° | 79° | 79° | 79° | 79° | 79° |
| Seat Tube | 350 | 380 | 410 | 440 | 470 |
| BB Height | 345 | 345 | 345 | 345 | 345 |
| BB Drop | 30 | 30 | 30 | 30 | 30 |
| Standover | 689 | 718 | 747 | 777 | 806 |
| Chainstay | 440 | 440 | 440 | 440 | 440 |
| Max Seatpost Insertion | 201 | 231 | 260 | 288 | 316 |
Size Guide
| Size | S | M | M/L | L | XL |
|---|---|---|---|---|---|
| Height | 155 - 168 | 162 - 176 | 170 - 186 | 180 - 193 | 188 - 201 |
