Evil
Chamois Hagar Rival AXS
Pickup currently unavailable at our Bellingham Store
Item is out of stock

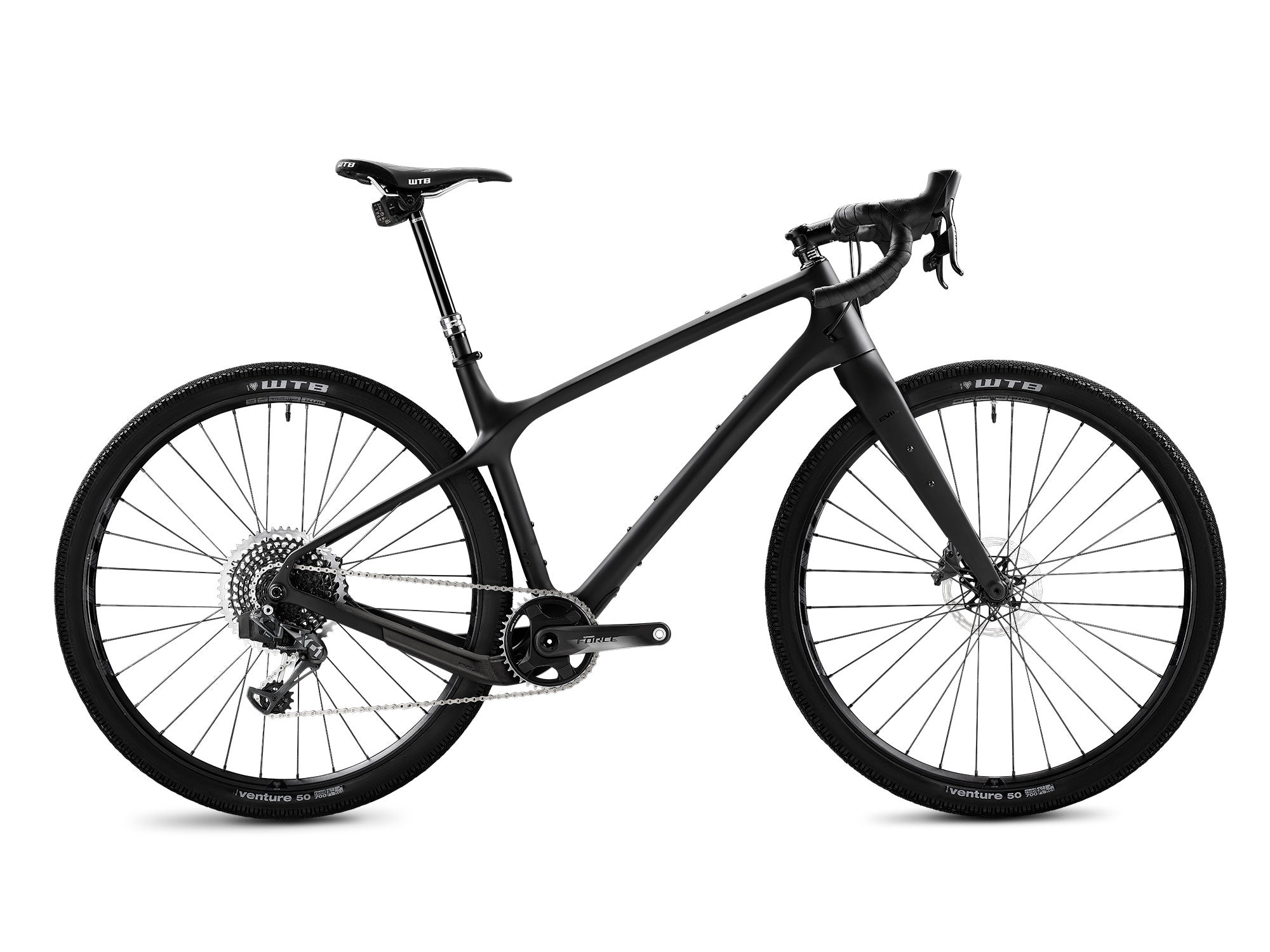

Chamois Hagar Rival AXS
Blackout Drunk / SM
Fanatik Bike
Pickup currently unavailable
1812 N. State St.
Bellingham WA 98225
United States
Color:Blackout Drunk
Size:SM
Choose options
Color:Blackout Drunk
Size:SM
Color:Blackout Drunk
Size:SM
Highlights
- Compatible with braze on front derailleurs. Includes custom braze on front derailleur hanger that comes with each Chamois frame.
- Tire Size: 700x50c max, 700x40c max with front derailleur or fenders installed, 700x34c ideal for road riding
- There is clearance and mounts to run Fenders
- Minimum chainring size is 36T
- All cables are internally routed
Description
The Chamois Hagar defies classification and exudes stoke, taking what Evil knew gravel to be, and redefining it. 700 x 50c tire clearance, 430mm chainstays, a 66.67-degree headtube angle, 80mm of BB drop, real reach and wheelbase measurements, and a mind-numbing array of customizable configurations.
NOTE: This build comes with tanwall tires, not black.
| Frame Material: | Carbon |
| Wheel Size: | 700c |
| Rear Axle Standard: | 12x142mm |
| Headset: | CaneCreek 40-Series, Bearing: 36° x 45° - 41mm (upper) and 36° x 45° - 52mm (Lower) ZN40 Zinc Coated (no race) w/compression preload plug |
| Fork: | Evil Carbon Chamois Hagar Fork, 12x100mm Thru-Axle, Flat Mount Brakes |
| Wheelset: | WTB Proterra Light i23, Tubeless |
| Tires: | WTB Riddler 700x45 TCS Light-Fast Tire Tanwall |
| Crankset: | SRAM Force 1 Carbon, DUB, 38t, 172.5mm |
| Bottom Bracket: | SRAM DUB |
| BB Standard: | 68mm BSA |
| Chain: | SRAM GX Eagle |
| Rear Derailleur: | SRAM GX AXS Lunar |
| Cassette: | SRAM GX 10-52 Lunar |
| Seatpost: | SRAM AXS Reverb, 30.9, S: 125mm, M/L: 150mm, XL: 170mm |
| Seat Post Diameter: | 30.9mm |
| Seat: | WTB Volt Medium (142mm) Width Chromoly Saddle |
| Shifters: | SRAM Rival eTap AXS HRD Shift-Brake |
| Handlebar: | EASTON EA70 AX,Reach 80mm, Drop 120mm, Flare 16°, S 42cm / M 44cm / L/XL 46cm |
| Stem: | Evil Stem, Length:50mm, Clamp:31.8 |
| Grips: | Evil Gravel Tape w/Gel |
| Brakes: | SRAM Rival eTap, Flat Mount | SRAM Center Line X Rotors 160mm Front and Rear |
| Water Bottle Cage Mounts: | Seven bottle mounts (six for size SM) with three inside the the front triangle |
| Intended Use: | Gravel |
| Warranty: | 3 year limited |
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Reach | 400 | 420 | 440 | 460 |
| Stack | 575 | 594 | 612 | 631 |
| Top Tube | 586 | 605 | 624 | 643 |
| Wheelbase | 1098 | 1126 | 1154 | 1182 |
| Head Tube° | 66.67° | 66.67° | 66.67° | 66.67° |
| Head Tube | 140 | 160 | 180 | 200 |
| Seat Tube° | 73° | 73.5° | 74° | 74.5° |
| Seat Tube | 450 | 470 | 490 | 510 |
| BB Height | 278 | 278 | 278 | 278 |
| Standover | 662 | 671 | 682 | 696 |
| Chainstay | 430 | 430 | 430 | 430 |
| Trail | 93 | 93 | 93 | 93 |
Size Guide
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Height | 152.4 - 172.7 | 170.2 - 183 | 178 - 193 | 190.5 - 216 |
