Insurgent LS Frame
Insurgent LS Frame Insurgent LS Frame

Evil

Insurgent LS Frame

$3,750.00 $3,000.00

INS-SB-SM

2860 grams
3060 grams
3260 grams
3460 grams
weight without shock

Out of Stock

Color
Size

Sizing Chart

-
+
This item may only be shipped within the United States
We are required to follow our brand's policies on shipping and we cannot ship this product outside the United States.

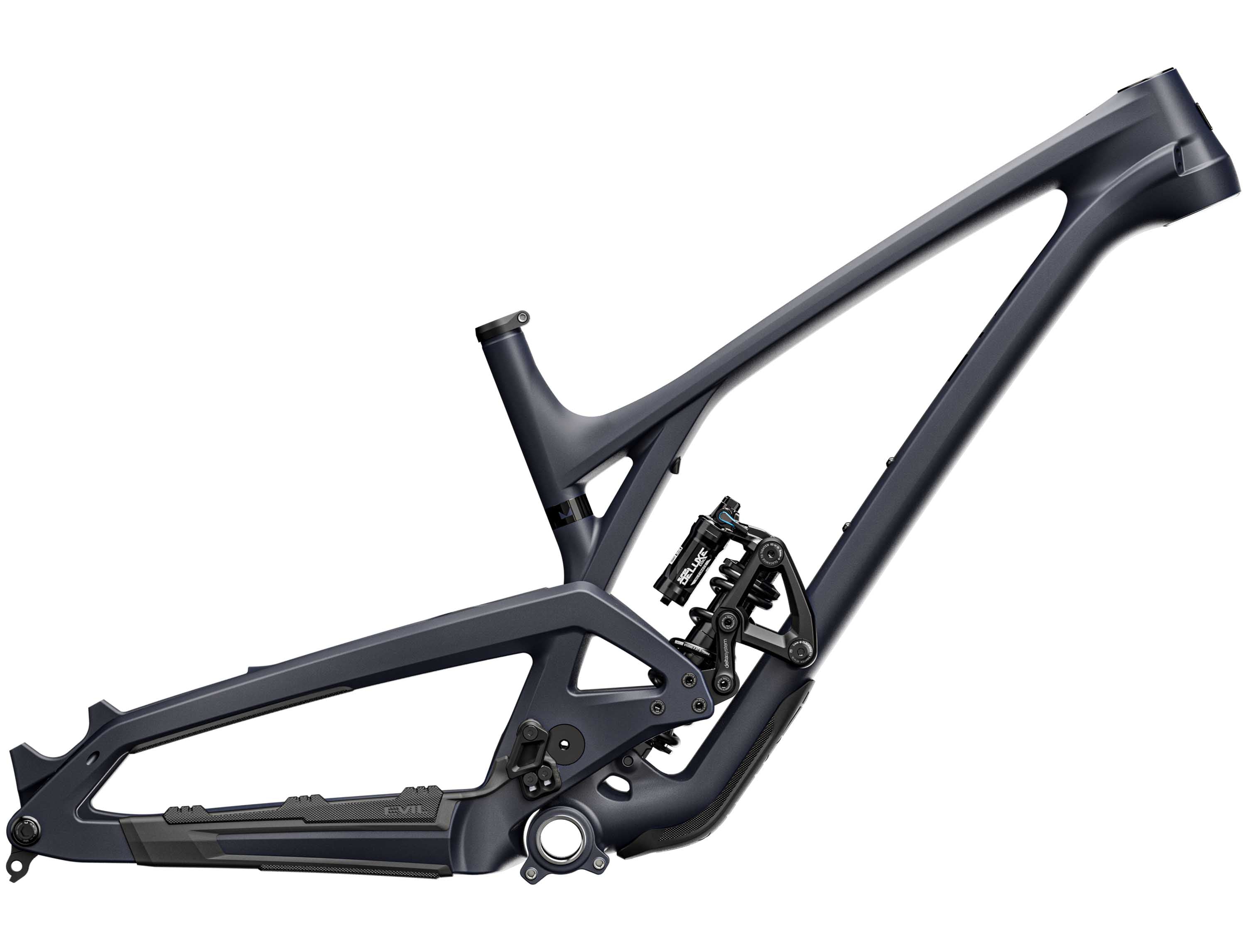

Evil Insurgent LS Frame

The Evil Insurgent LS is a rolling battering ram, pushing more travel than any current Evil model with a 168mm rear travel and 180mm up front. No matter how battered the bike park becomes, the Insurgent serves up rippin’ laps and dusty grins. Pick your platform, with a full 27.5” build or an MX mixed-wheel option. Small wheels with a 180mm fork for mind-melting laps, or MX with a 170mm fork for added stability, steeper lines, and plowing down stream. 27.5” never died. It just quit caring what people think.

    Features

    • Compatible with both full 27.5" and a mixed wheel 29"/27.5" setup
    • Revised shock mount designed to retain the spacers when removing the shock
    • Evil will offer registered frame owners, from 2022+ a free bearing kit once per season
    • Low and X-Low geometry settings
    • SRAM Universal Derailleur Hanger compatible
    • Integrated chainguide is as light as it gets, and removable for those who want even lighter
    • Tube within tubes = setup bliss and tidy looks

    Tech Specs

    Frame Material: Carbon
    Wheel Size: 27.5", Mixed: 29" front/27.5" rear
    Front Suspension Travel: Single Crown: 170mm 29" and 180mm 27.5", 44mm offset
    Dual Crown: 190mm 29" and 200mm 27.5"
    Rear Suspension Travel: 168mm
    Rear Shock: RockShox Super Deluxe Coil Ultimate
    Installed Springs: SM - 350lb / MD - 350lb / LG - 400lb / XL - 400lb
    Rear Shock Size: 205mm x 65mm
    Rear Shock Hardware: Trunnion Top, 20x8mm Bottom
    Rear Axle Width: 12x157mm Super Boost
    Included Headset: Works Components 1° Integrated Angle Headset
    Headset Standard: ZS44mm/ZS62mm
    BB Standard: 73mm BSA
    ISCG Tabs: ISCG '05 2-Bolt
    Brake Mount Type: Post-Mount 180mm
    Max Rear Rotor Size: 203mm
    Minimum Chainring Size: 30T
    Maximum Chainring Size: 36T
    Chainline: 56.5mm
    Maximum Tire Size: 27.5 x 2.6
    Seat Post Diameter: 30.9mm
    Seat Clamp Diameter: 34.9mm
    Water Bottle Cage Mounts: One
    Intended Use: AM/Enduro
    Warranty: Limited lifetime

    Specs subject to change without notice. Please check with manufacturer for the most up-to-date information.

    Geometry

    mm / inches

    27.5 - Low with 180mm fork

    Size
    Seat Tube
    Top Tube
    Reach
    BB Height
    Head Angle
    Seat Angle
    Standover
    Chainstay
    Head Tube
    Wheelbase
    Trail
    Stack
    SM
    390
    590
    456
    349
    65.3
    78.2
    692
    430
    104
    1211
    116
    612
    MD
    425
    607
    473
    349
    65.3
    78.2
    703
    430
    114
    1233
    116
    621
    LG
    460
    628
    492
    349
    65.3
    78.2
    711
    430
    127
    1258
    116
    632
    XL
    490
    650
    512
    349
    65.3
    78.2
    724
    430
    139
    1283
    116
    643

    29/27.5 - Low with 170mm fork

    Size
    Seat Tube
    Top Tube
    Reach
    BB Height
    Head Angle
    Seat Angle
    Standover
    Chainstay
    Head Tube
    Wheelbase
    Trail
    Stack
    SM
    390
    595
    443
    358
    64.2
    76.9
    705
    430
    104
    1215
    131
    621
    MD
    425
    612
    460
    358
    64.2
    76.9
    716
    430
    114
    1236
    131
    630
    LG
    460
    633
    480
    358
    64.2
    76.9
    724
    430
    127
    1262
    131
    642
    XL
    490
    654
    500
    358
    64.2
    76.9
    736
    430
    139
    1287
    131
    652

    Sizing

    cm / ft

    Size SM MD LG XL
    Rider Height (cm) 160 - 165 167 - 175 178 - 185 188 - 213
    Evil Insurgent LS Frame: Space Bot / SM: INS-SB-SM - Space Bot / MD: INS-SB-MD - Space Bot / LG: INS-SB-LG - Space Bot / XL: INS-SB-XL
