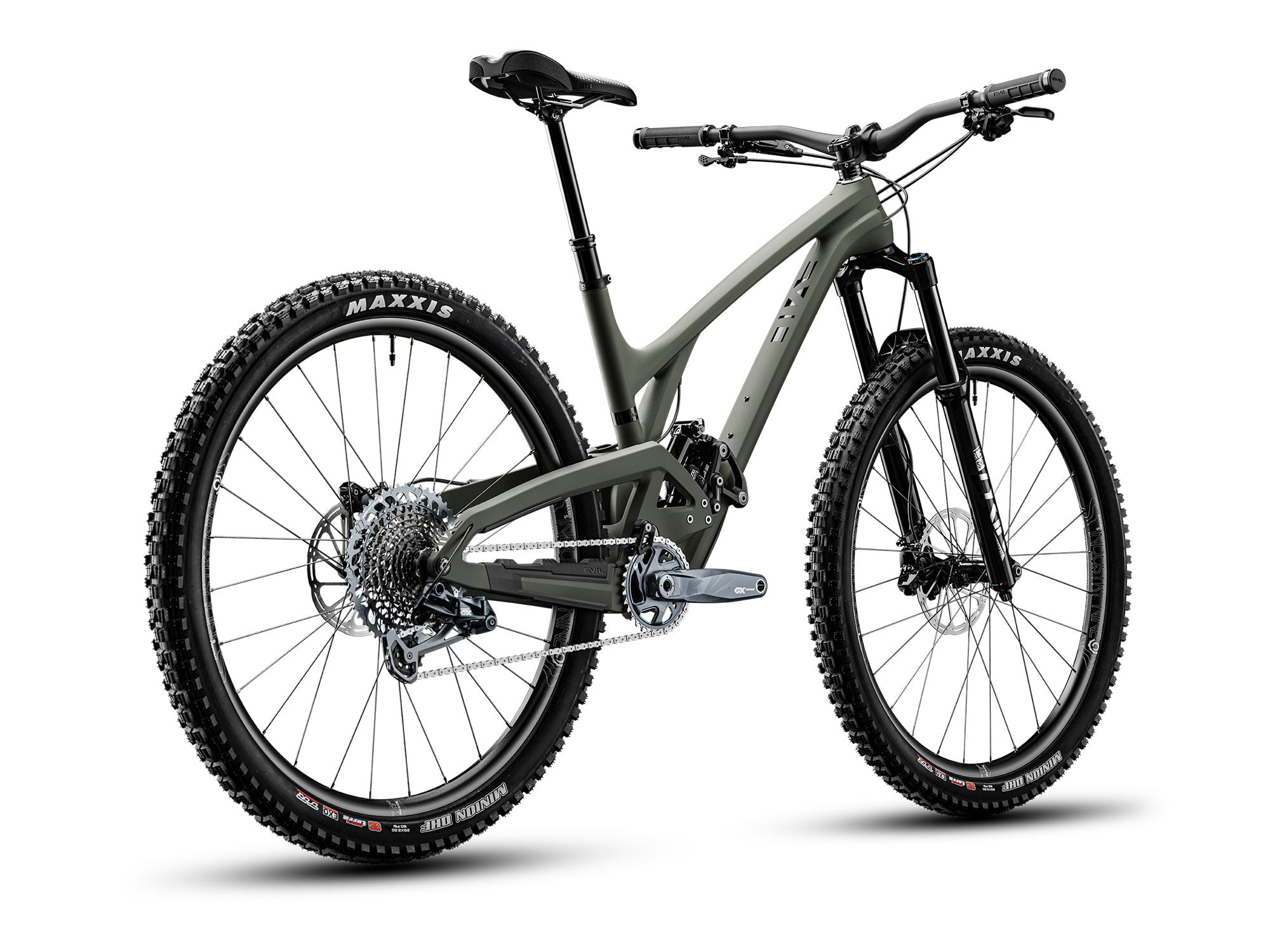

Evil Offering LS GX
The Evil Offering LS isn’t your ordinary Evil bike. Crowned the Dark Lord of Singletrack, this 141mm 29” trail bike platform, like a versatile Swiss Army Knife, has proven itself more capable than any jumble of geo numbers can describe. Bridging conventional genres, the Evil Offering LS strives to bang on a broader drum.Features
- Revised shock mount designed to retain the spacers when removing the shock
- Evil will offer registered frame owners, from 2022+ a free bearing kit once per season
- Low and X-Low geometry settings
- SRAM Universal Derailleur Hanger compatible
- Integrated chainguide is as light as it gets, and removable for those who want even lighter
- Tube within tubes cable routing = setup bliss and tidy looks
Tech Specs
| Frame Material: | Carbon |
| Wheel Size: | 29" |
| Rear Axle Standard: | 12x157mm Super Boost |
| Rear Shock: | Rockshox Super Deluxe Ultimate Trunnion | 0L1 LNLC HB 38TS C1 |
| Rear Shock Size: | 185mm x 55mm |
| Rear Shock Hardware: | Trunion top, 20x8mm Lower |
| Rear Suspension Travel: | 141mm |
| Headset: | FSA Integrated Tapered |
| Headset Standard: | ZS44mm/ZS62mm |
| Fork: | Rockshox Lyrik Ultimate, Charger 2.1 RC2, Debonair, 150mm Travel, 42mm Offset |
| Fork Axle: | 20x110mm Boost |
| Wheelset: | Industry Nine Enduro S Hydra |
| Front Tire: | Maxxis Minion DHF EXO TR, 29x2.5 |
| Rear Tire: | Maxxis Minion DHR II EXO TR, 29x2.4 |
| Crankset: | SRAM GX Eagle DUB | SUPERBOOST+ | 170mm Direct Mount 32t | 56.5mm Chainline | Lunar |
| Chainguide Tabs: | ISCG '05 2-Bolt |
| Bottom Bracket: | SRAM DUB |
| BB Standard: | 73mm BSA |
| Chain: | SRAM GX Eagle |
| Rear Derailleur: | SRAM GX Eagle |
| Cassette: | SRAM XG-1275-B1 Eagle, 10-52T |
| Seatpost: | Bike Yoke Revive, S:125mm, M: 160mm, L:185m XL: 185mm |
| Seat Post Diameter: | 30.9mm |
| Seat Post Clamp Diameter: | 34.9mm |
| Seat: | WTB Volt Pro |
| Shifters: | SRAM GX Eagle |
| Handlebar: | Evil Boomstick 7075 Alloy, Backsweep: 8°, Upsweep: 5° Clamp: 35mm, Rise: 35mm, Width: 810mm |
| Stem: | Race Face Aeffect, Clamp: 35mm, Length: 40mm |
| Grips: | Evil Palmela Handerson lock-on |
| Brakes: | SRAM G2 RS | SRAM Center Line 200mm Rotors Front and Rear |
| Water Bottle Cage Mounts: | One |
| Intended Use: | AM/Enduro, Trail/AM |
| Warranty: | Limited Lifetime |
Specs subject to change without notice. Please check with manufacturer for the most up-to-date information.
Geometry
mm / inches
Low - Standard Setting
Size
Seat Tube
Top Tube
Reach
BB Height
BB Drop
Head Angle
Seat Angle
Standover
Chainstay
Head Tube
Wheelbase
Trail
Stack
Seatpost
Insertion
Insertion
SM
355
594
448
347
26
66.4
77
647
430
95
1180
115
613
220
MD
390
617
469
347
26
66.4
77
684
430
105
1205
115
622
245
LG
425
639
491
347
26
66.4
77
695
430
115
1231
115
632
305
XL
465
661
512
347
26
66.4
77
706
430
125
1256
115
641
315
X-Low
Size
Seat Tube
Top Tube
Reach
BB Height
BB Drop
Head Angle
Seat Angle
Standover
Chainstay
Head Tube
Wheelbase
Trail
Stack
Seatpost
Insertion
Insertion
SM
355
596
442
339
34
65.8
76
664
432
95
1182
116
618
220
MD
390
619
463
339
34
65.8
76
676
432
105
1207
116
627
245
LG
425
641
485
336
34
65.8
76
687
432
115
1233
116
637
305
XL
465
663
506
339
34
65.8
76
698
432
125
1258
116
646
315
Sizing
cm / ft
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Rider Height (cm) | 160 - 173 | 167 - 183 | 178 - 193 | 188 - 193 |
Evil Offering LS GX:
Reigning Blood / SM: OFR-RB-S-GX-i9 -
Reigning Blood / MD: OFR-RB-M-GX-i9 -
Reigning Blood / LG: OFR-RB-L-GX-i9 -
Reigning Blood / XL: OFR-RB-XL-GX-i9 -
Absinthe / SM: OFR-AB-S-GX-i9 -
Absinthe / MD: OFR-AB-M-GX-i9 -
Absinthe / LG: OFR-AB-L-GX-i9 -
Absinthe / XL: OFR-AB-XL-GX-i9
