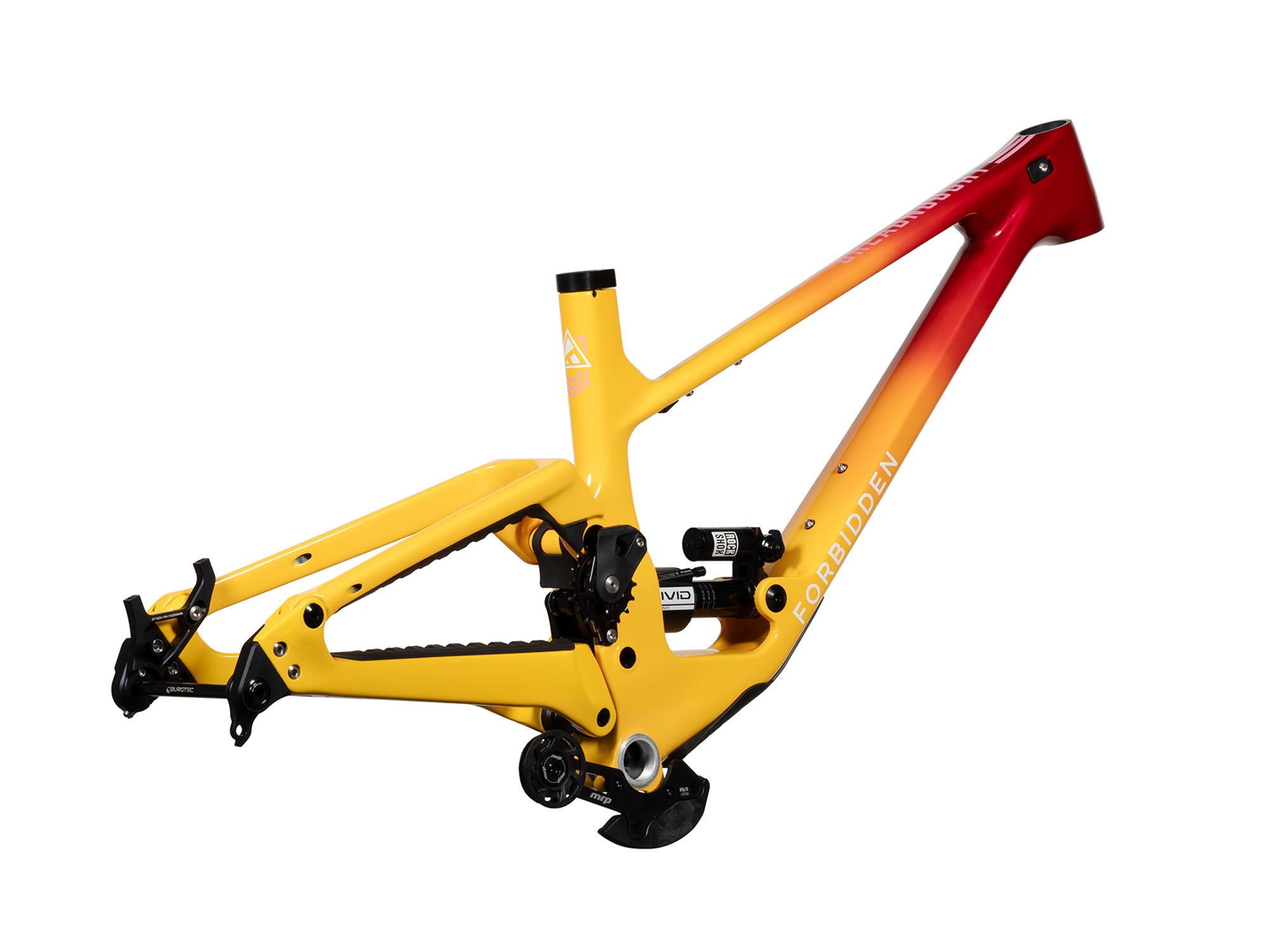

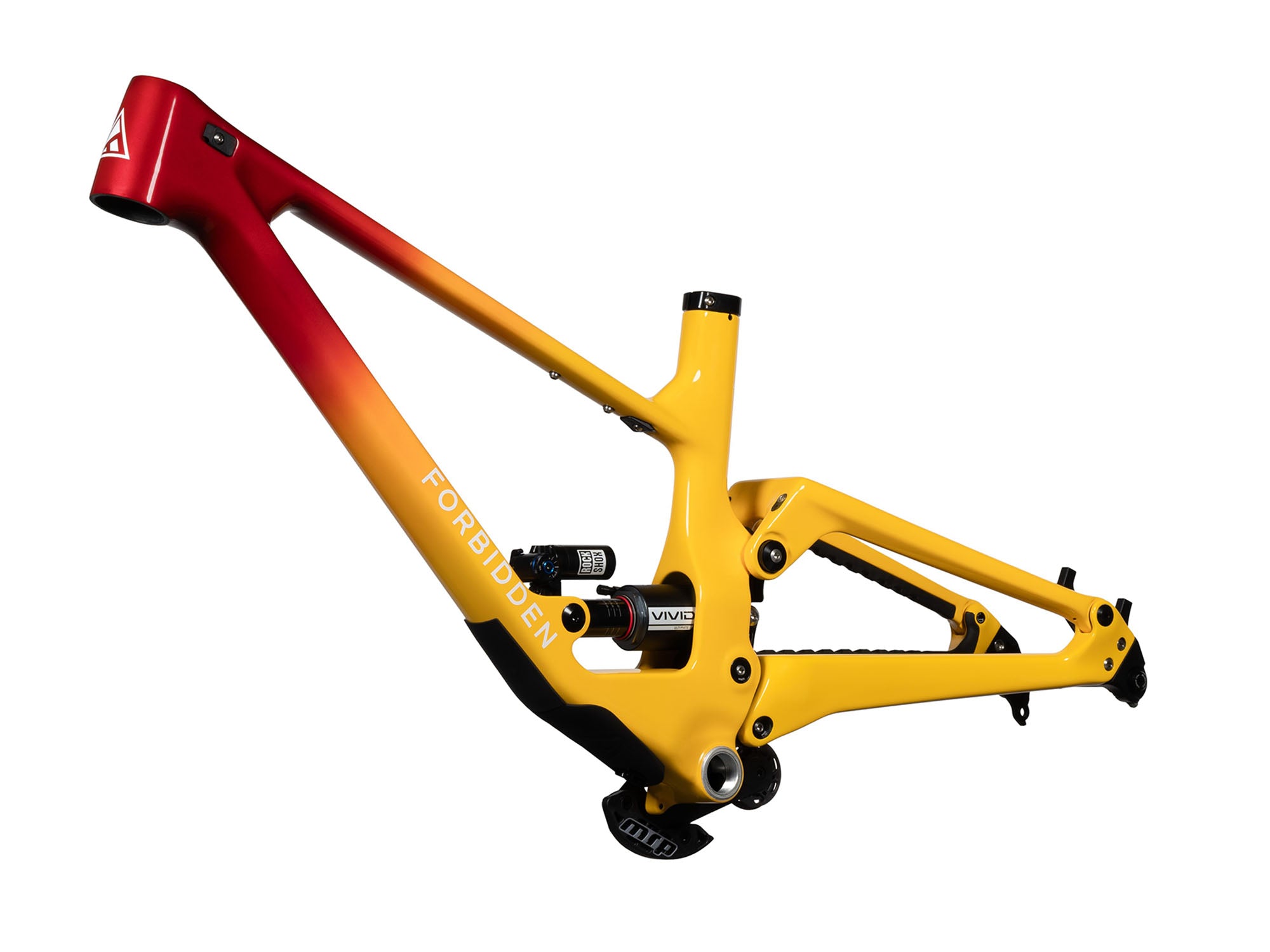

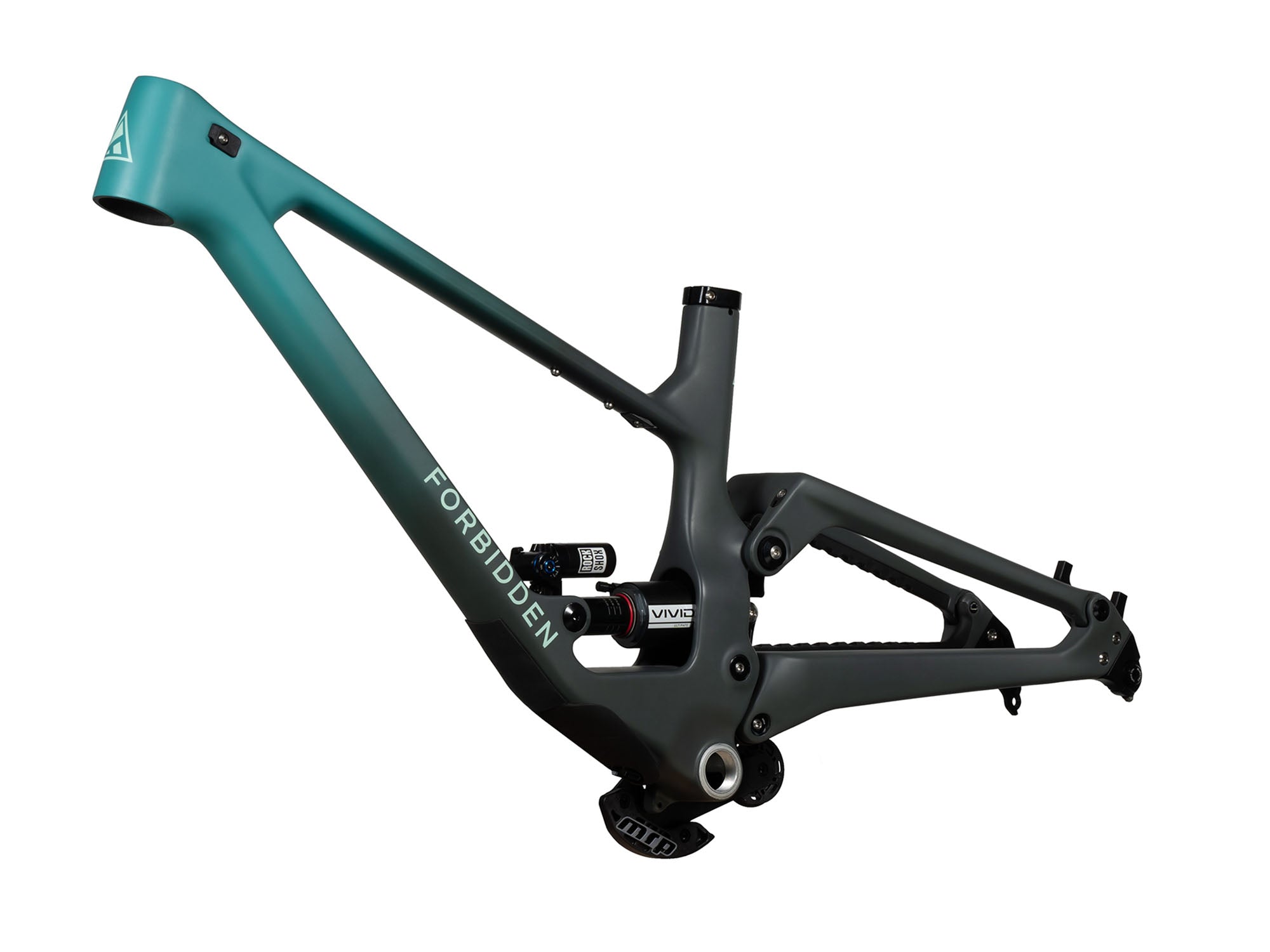

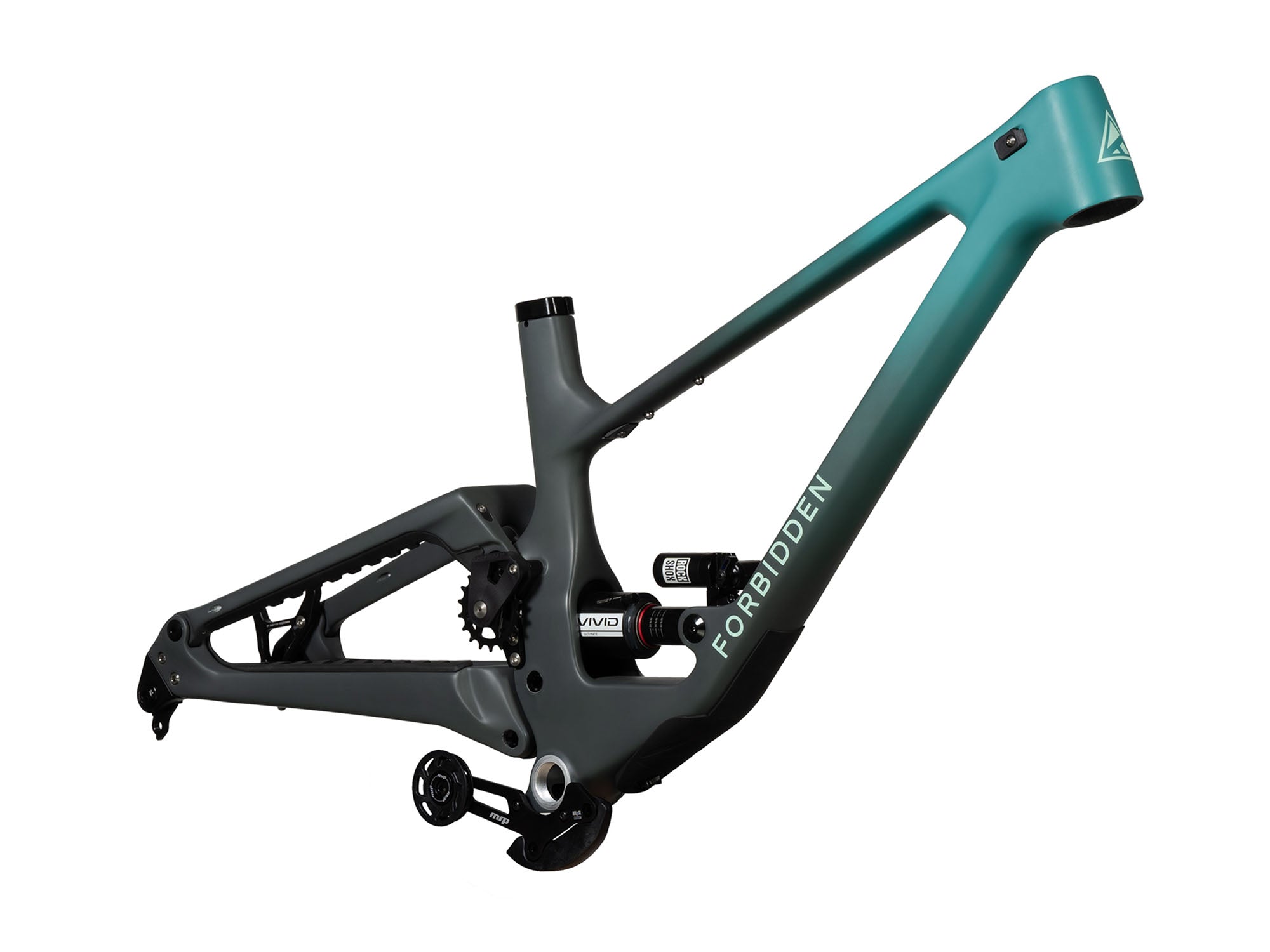

Forbidden Bike Co. Dreadnought V2 MX/29 Frame
Dreadnought forged a new path for performance high pivot bikes and cemented the platform’s category-defying nature. It handled the demands of the World Cup Downhill circuit, survived the rigors of enduro racing, and took lap after lap of bike park abuse. All the while, still asking for more. From the race track to the bike park and everything in between Dreadnought has proven its unparalleled versatility.
Now it’s time for the big guns to get the V2 treatment. Dreadnought V2 carries the torch forward into a new realm of capability, giving riders even more firepower than ever before. Forbidden has taken their next-gen suspension system seen on class-leading Druid and Supernought and applied it to their revered brawler of a bike. Forbidden didn’t just up the caliber, add more travel, and call it good. They overhauled every detail to refine and distill its purpose into something that truly exhilarates.
Dreadnought. Fear Nothing.
In the box
- Dreadnought V2 Frame
- RockShox Vivid Ultimate
- 29" and MX Dropouts (0mm)
- 200mm Brake Mount
- MRP Mxg Lower Guide
Features
- V2 Trifecta Suspension Kinematics: Increased sensitivity and grip, supportive mid-stroke, improved bottom-out control, rearward axle path, and optimized braking characteristics.
- Balanced Geometry: Size specific chainstays and updated balance for improved weight distribution and control.
- Dual Crown Rated: Designed around 170mm fork and rated for dual crown.
- Modular Dropouts: Geometry and weight bias adjustments can be made via 27.5” +10mm, 27.5” -10mm, and 29” +10mm dropouts giving riders the option to customize weight bias and handling characteristics to suit riding style or terrain type. (Not included)
- Mullet compatible: Includes dropouts for 29” and 27.5” rear wheel.
- New Idler Pulley: The re-designed 18-tooth steel idler uses a solid lube bearing to ensure longevity.
- Transmission Compatible: UDH equipped and fully compatible with SRAM’s new Transmission drivetrain.
- Hardware: The new V2 Linkage uses locking collet axles and oversized bearings for easy maintenance and dependability.
- Full Custom Plastics: Chain and cable/hose management and next-gen race guide.
Tech Specs
| Frame Material: | Carbon |
| Wheel Size: | 29", MX (29"/27.5") |
| Front Suspension Travel: | 170mm |
| Rear Suspension Travel: | 160mm |

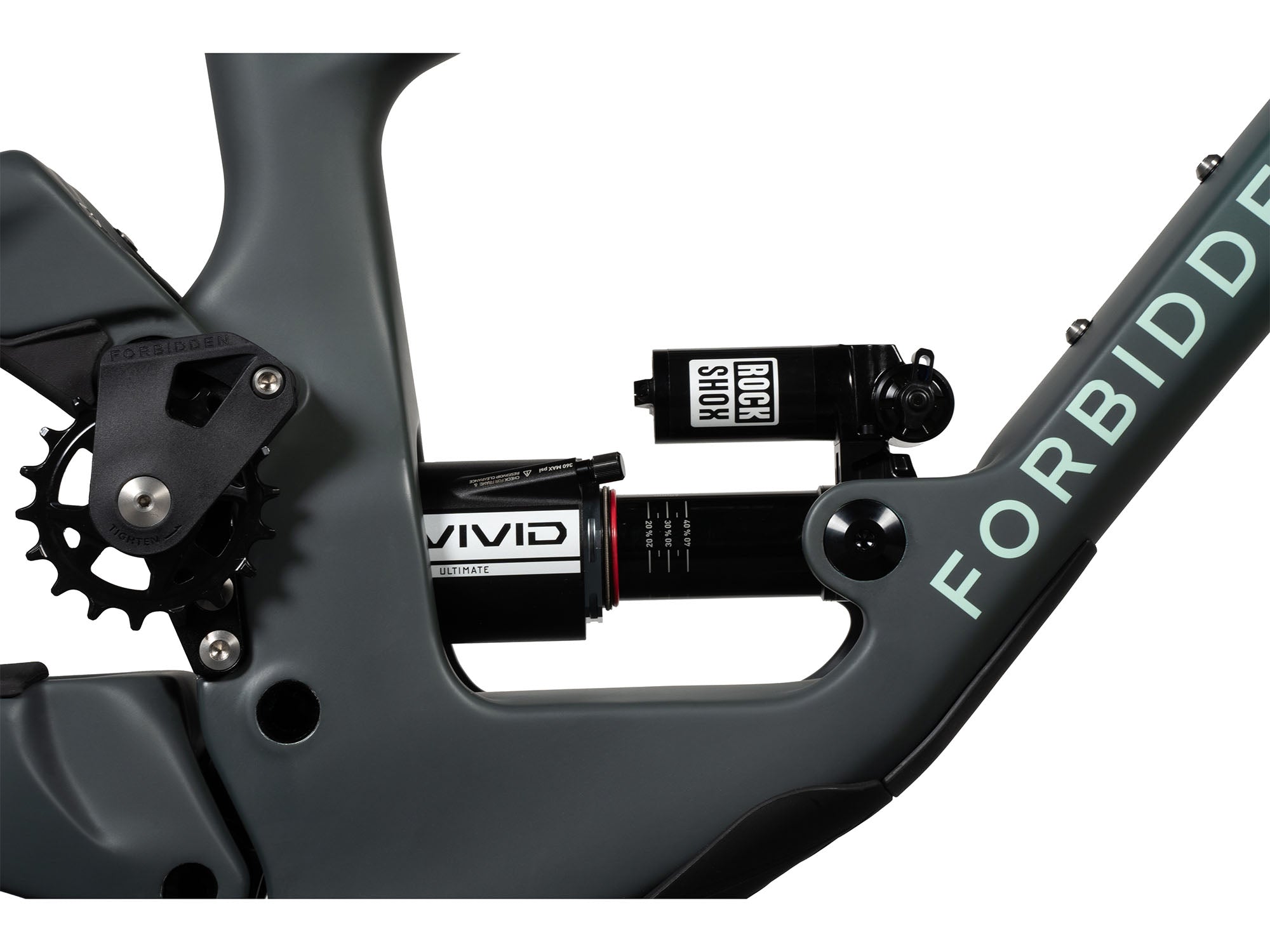

| Rear Shock: | Rockshox Vivid Ultimate |
| Rear Shock Size: | 205mm x 60mm |
| Rear Shock Hardware: | 30 x 8mm Lower | Trunnion Upper |
| Rear Axle Width: | 12x148mm Boost |
| Headset Standard: | ZS44mm/ZS56mm |
| BB Standard: | 73mm BSA |
| ISCG Tabs: | ISCG '05 2-Bolt |
| Brake Mount Type: | Post-Mount 200mm |
| Maximum Chainring Size: | S1: 30T S2: 32T S3: 34T S4: 36T (52mm Chainline ) | S1: 30T S2: 32T S3: 34T S4: 36T (55mm Chainline) |
| Maximum Tire Size: | 2.5" |
| Seat Post Diameter: | 31.6mm |
| Seat Clamp Diameter: | 34.9mm |
| Water Bottle Cage Mounts: | One on downtube + one accessory mount on top tube |
| Intended Use: | DH/FR, AM/Enduro |
| Warranty: | 5 year warranty against defects in workmanship and materials |
Specs subject to change without notice. Please check with manufacturer for the most up-to-date information.
Geometry
mm / inches
29" - 170mm Fork
MX - 170mm Fork
Sizing
cm / ft
| Size | S1 | S2 | S3 | S4 |
|---|---|---|---|---|
| Rider Height (cm) | 158 - 168 | 168 - 178 | 178 - 188 | 188 - 198 |
