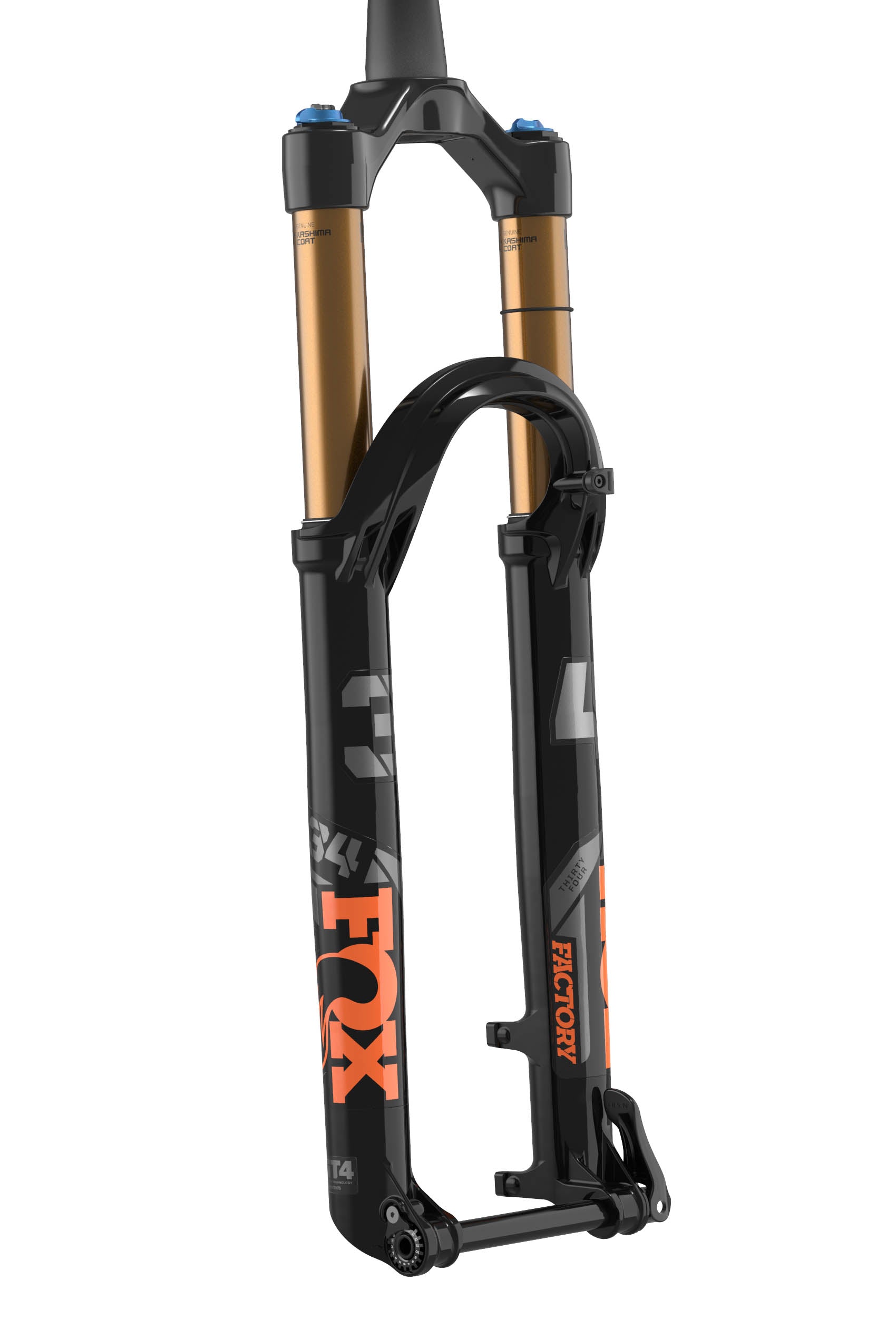

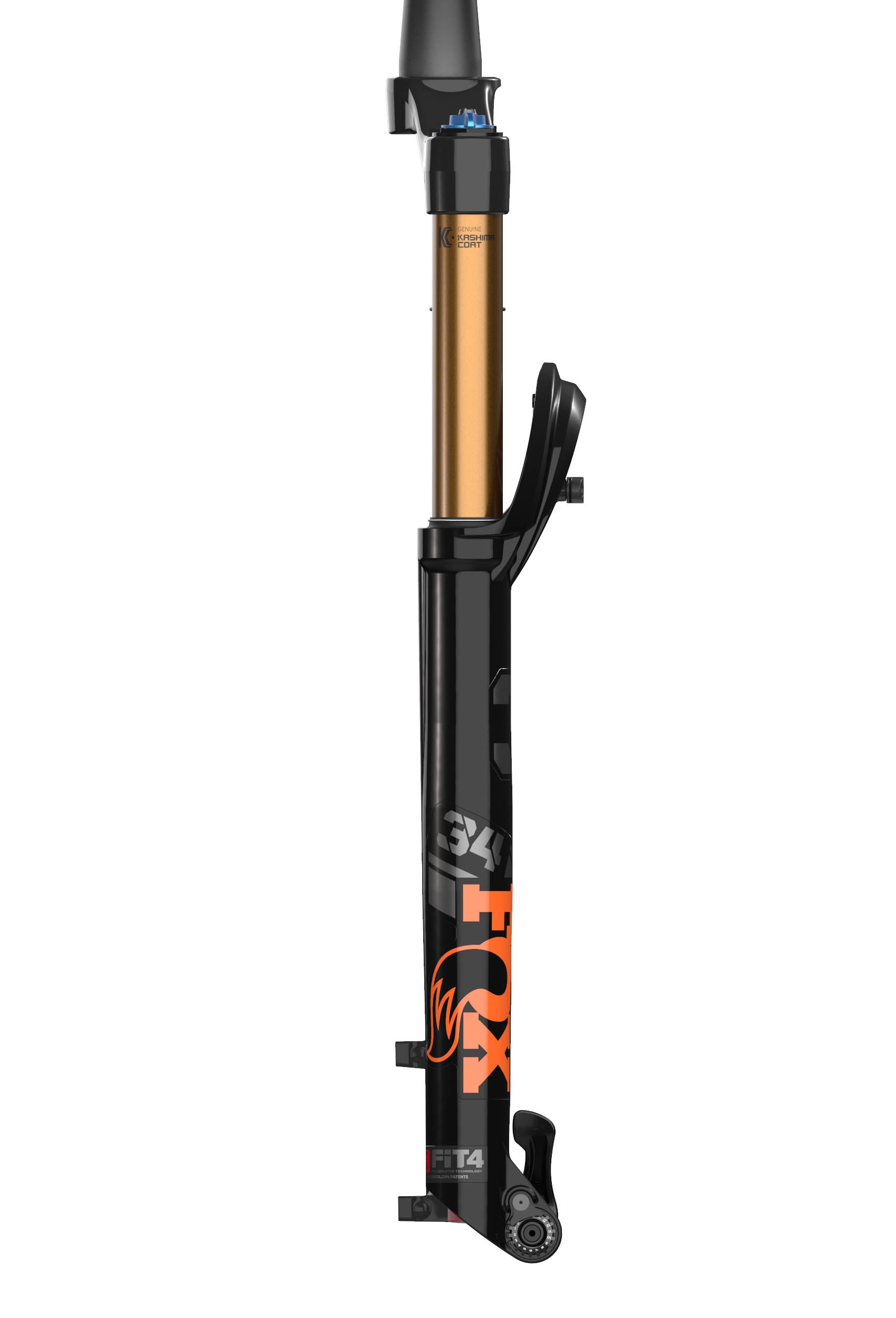

Fox Racing Shox 34 Factory 29" FIT4 15x110 - 51mm Offset - 2022
Smoother, lighter, more tunable, and more capable than ever before; when it comes to a do-it-all trail fork the Fox 34 is in a class of its own.
Lower Leg Bypass Channels
As a fork compresses, the air volume within the lower legs decreases, increasing air pressure. The more the fork compresses, the more pressure increases. This effect can have the unintended consequence of preventing full travel from being achieved. Fox’s lower leg channels help alleviate this issue by dramatically increasing air volume within the lower legs and thereby reducing the amount of additional unintended pressure ramping.
Another benefit of these channels is that lower leg bath oil is circulated to the upper reaches of the lower legs, continuously lubricating the foam rings and bushings as the fork compresses and extends through its travel.
Lower Leg Arch
Stiffness-to-weight is the ultimate metric for bicycle design. Engineers invest countless hours poring over every ounce of material in an effort to optimize this critical ratio. The all-new 34 pulls out all the stops, shaving every possible gram while making sure not to compromise the stiffness or strength requirements of modern trail riding.
Modern frame designs and geometry trends require modern suspension design solutions. The arch design is designed to pair perfectly with modern trail bikes. Head tube profiles have grown larger and larger, and fork offsets shorter and shorter. Fox’s new arch shape takes this need into account by jutting forward to provide ample headtube clearance at full compression. State-of-the-art computer modeling techniques helped Fox to create an organic lower leg shape that optimizes stiffness with the absolute minimal amount of material.
In its fourth generation, Fox's patented FIT4 closed cartridge system provides three on-the-fly compression damping positions—Open, Medium, and Firm—to adapt to varying trail conditions. Factory and Performance Elite Series forks feature an additional 22 clicks of low-speed compression adjust in the Open mode, allowing riders to fine-tune their exact damping preferences.
Returning with the same legendary suppleness and longevity, the EVOL air spring in 34’s now has an enlarged negative air spring to assist with mid-stroke support.
- Three on-the-fly compression damping positions - Open, Medium, Firm
- Additional low-speed compression (Open mode adjust) - 22 clicks
- Low-speed rebound - 10 clicks
|Travel Adjust:||Internally Adjustable (requires additional parts)|
|Axle Configuraton:||15x110mm Boost|
|Disc Mount:||Post Mount 160mm|
|Min. Rotor Size:||160mm|
|Max. Rotor Size:||203mm|
|Steertube Diameter:||1.125" - 1.5" Tapered|
Specs subject to change without notice. Please check with manufacturer for the most up-to-date information.
