36 Factory 27.5" GRIP2 15x110 - 44mm Offset - 2023
36 Factory 27.5" GRIP2 15x110 - 44mm Offset - 2023 36 Factory 27.5" GRIP2 15x110 - 44mm Offset - 2023 36 Factory 27.5" GRIP2 15x110 - 44mm Offset - 2023 36 Factory 27.5" GRIP2 15x110 - 44mm Offset - 2023 36 Factory 27.5" GRIP2 15x110 - 44mm Offset - 2023 36 Factory 27.5" GRIP2 15x110 - 44mm Offset - 2023 36 Factory 27.5" GRIP2 15x110 - 44mm Offset - 2023 36 Factory 27.5" GRIP2 15x110 - 44mm Offset - 2023 36 Factory 27.5" GRIP2 15x110 - 44mm Offset - 2023

Fox Racing Shox

36 Factory 27.5" GRIP2 15x110 - 44mm Offset - 2023

$1,149.00 $699.95

910-21-122

1945 grams
1945 grams

Many in stock

Travel
Color
-
+
This item may only be shipped within the United States
We are required to follow our brand's policies on shipping and we cannot ship this product outside the United States.

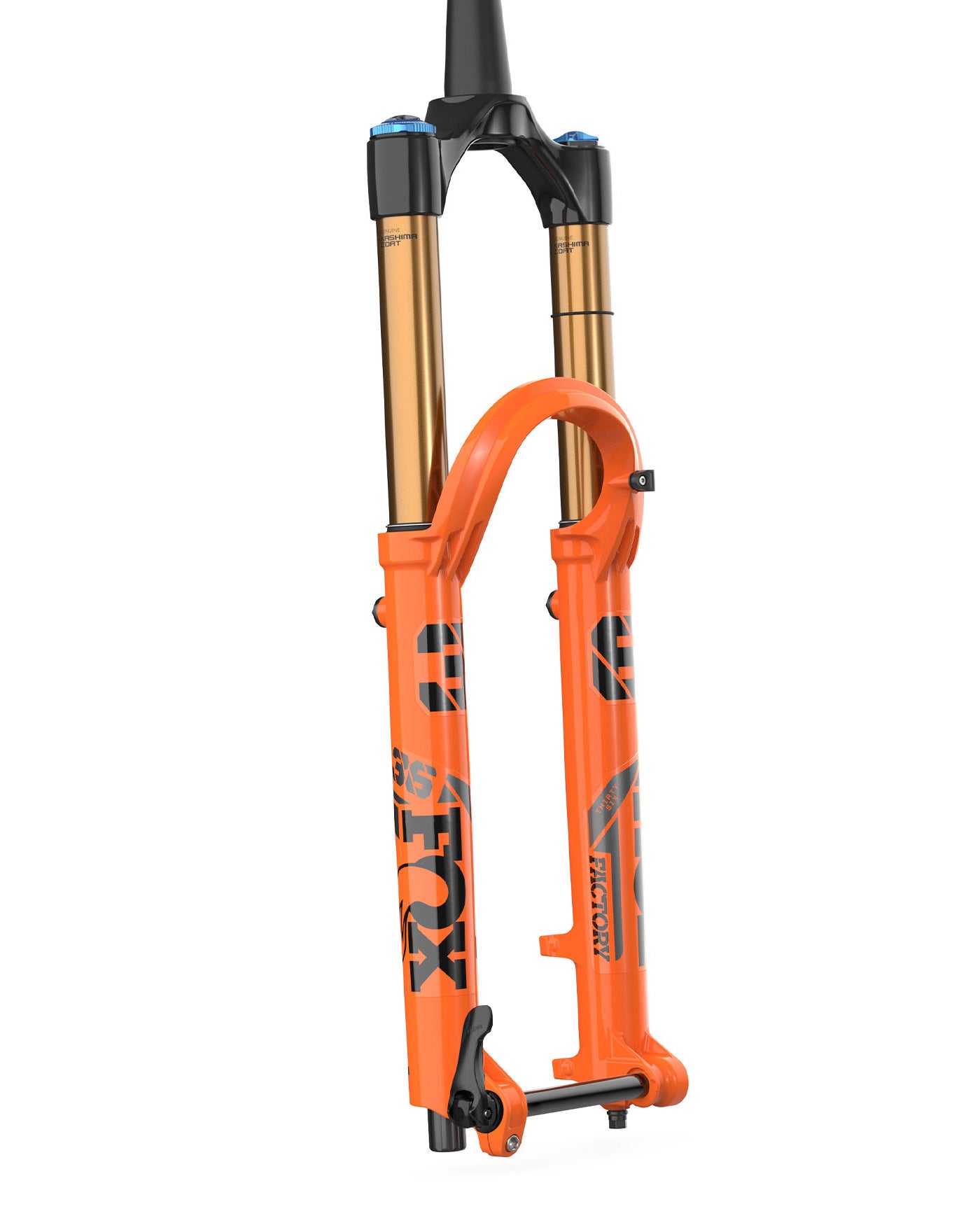

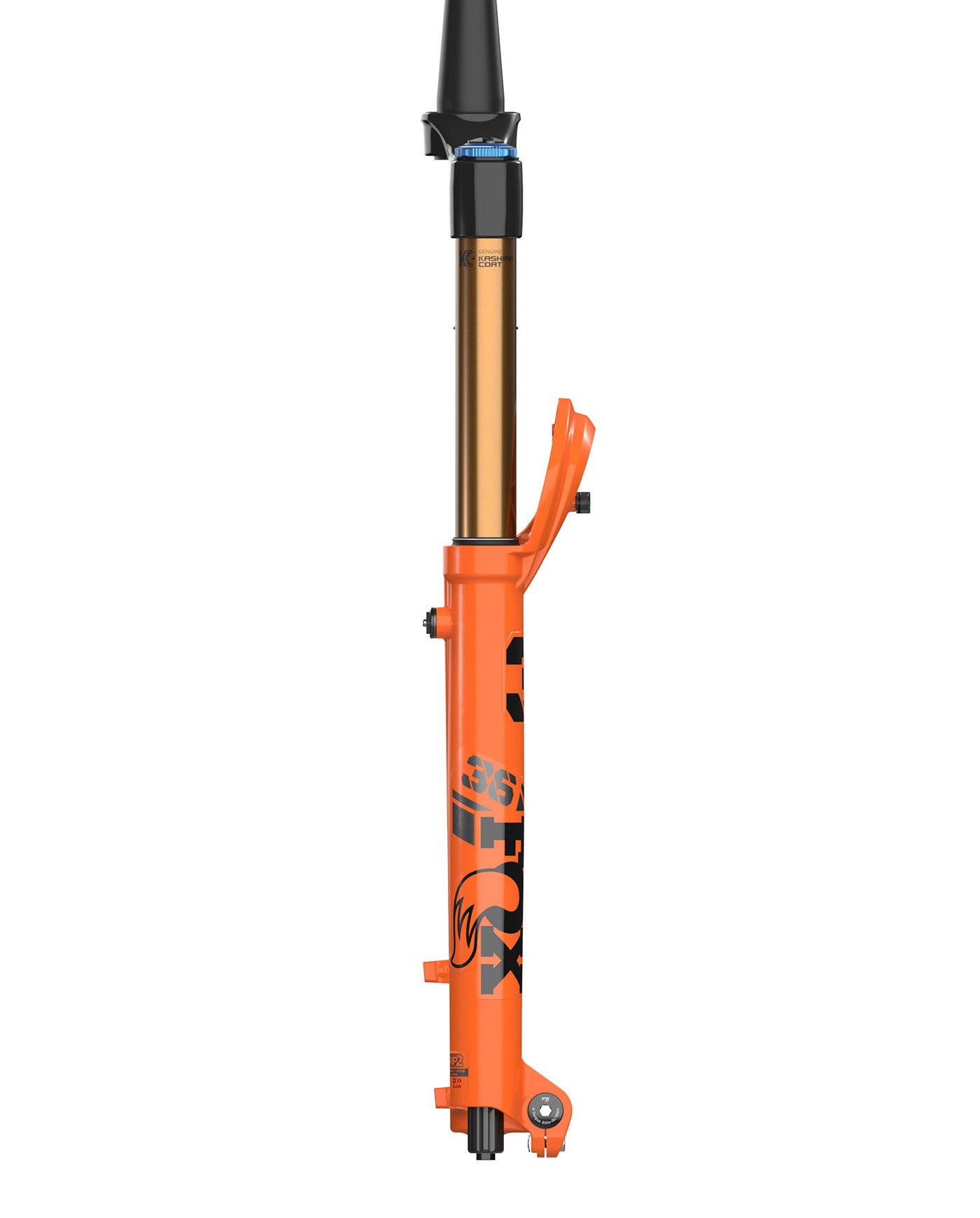

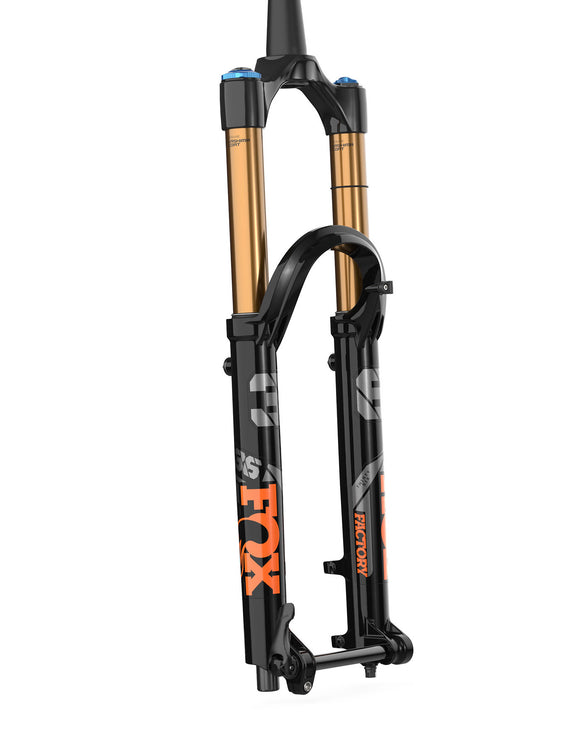

Fox Racing Shox 36 Factory 27.5" GRIP2 15x110 - 44mm Offset - 2023

For 2023, the Fox 36 receives an update in the form of a new crown with updated design and engineering for more steer tube overlap improving durability and maintaining stiffness while dropping 20 grams.

New Crown
Lighter by 20 grams, while increasing steerer-tube overlap at the CSU, the new crown design improves durability while the engineering maintains stiffness and drops weight.

Lower Leg Bypass Channels
Increasing air volume within the lower legs reduces the amount of additional unintended pressure ramping. Lower leg bath oil also circulates to the upper reaches of the legs, continuously lubricating the foam rings and bushings as the fork compresses and extends through its travel.

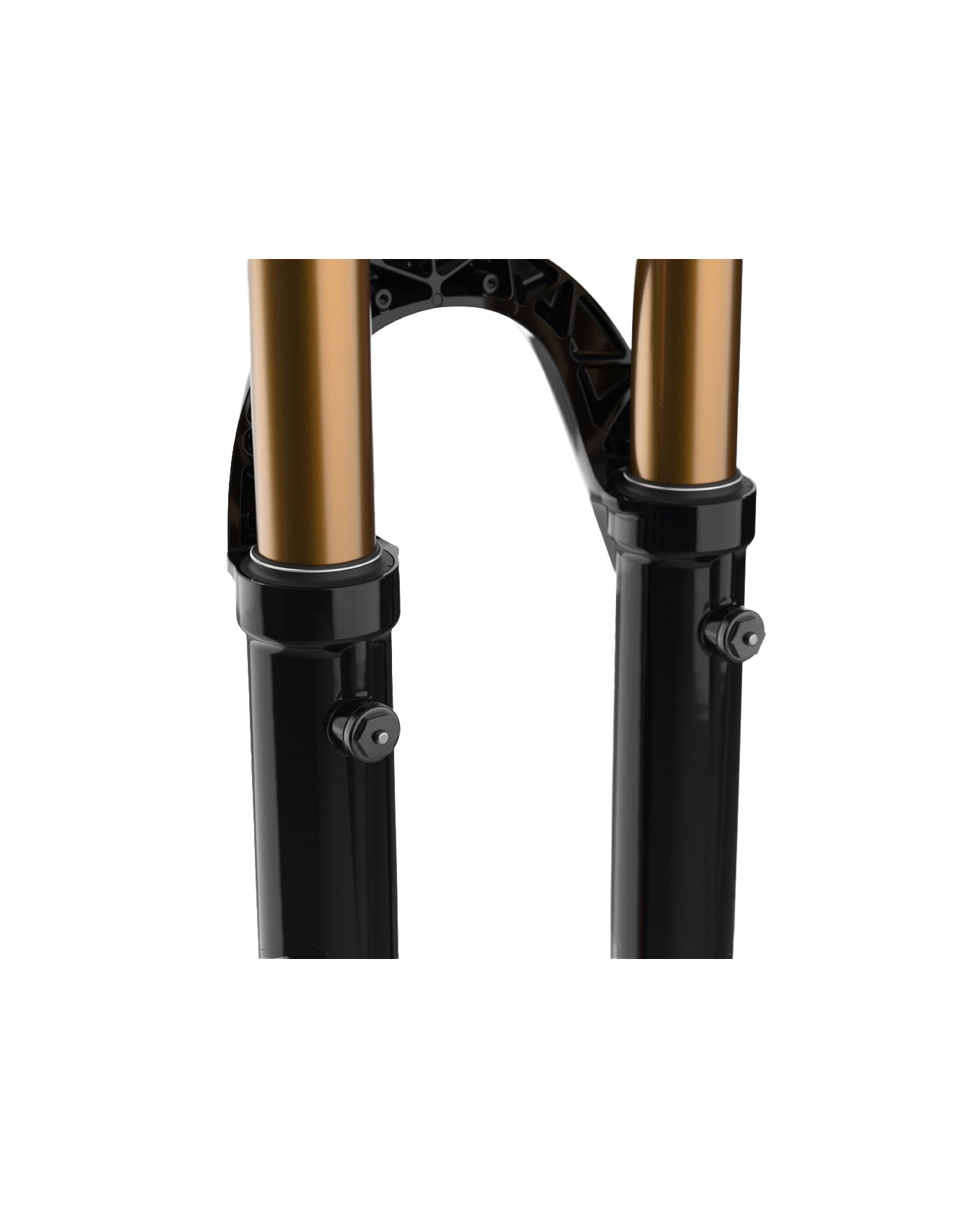

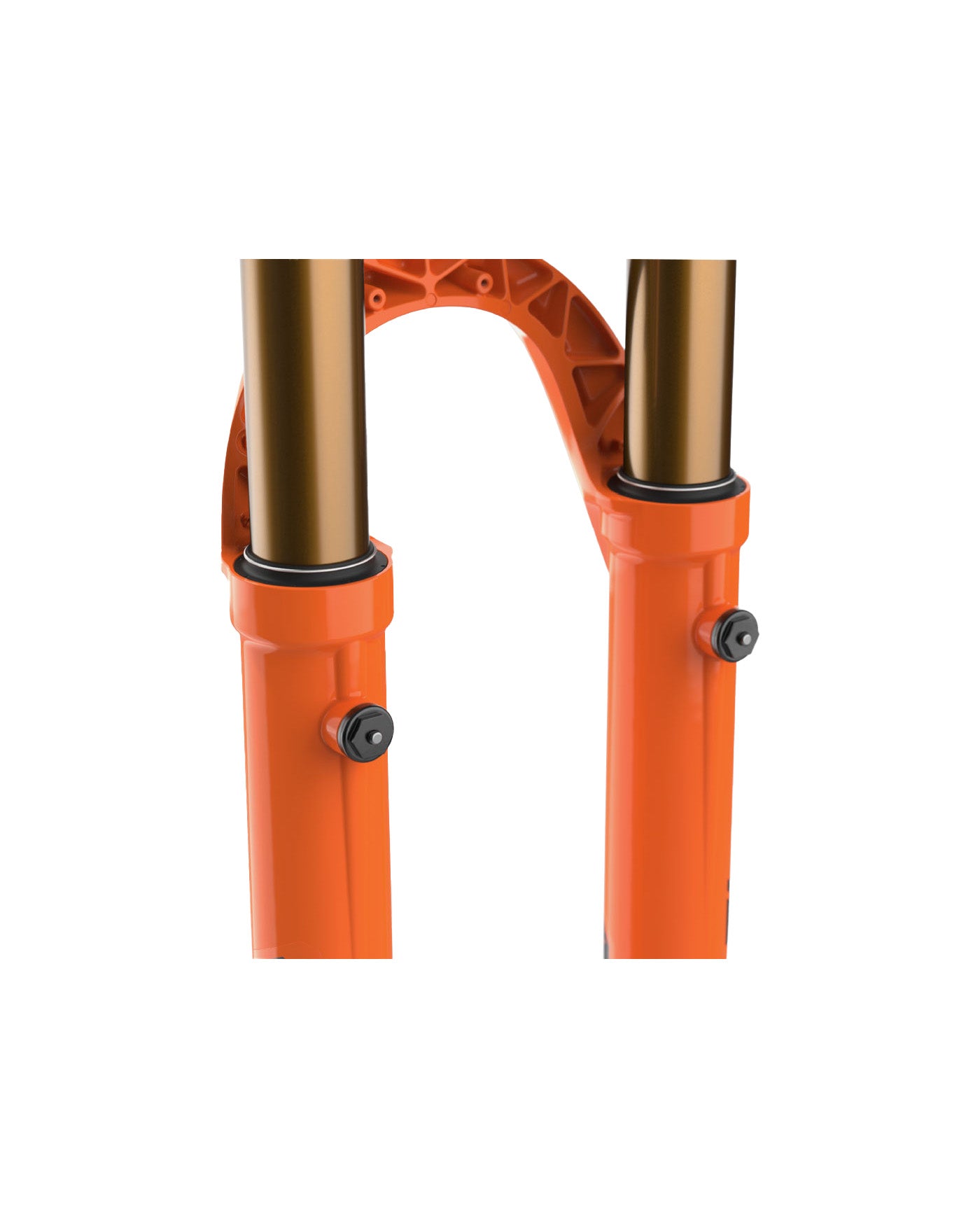

Lower Leg Bleeders
Allows for atmospheric pressure equalization for better fork performance, allowing full travel to be achieved and increasing small bump sensitivity and responsiveness.

Lower Leg Arch
The lower leg design pulls out all the stops, shaving every possible gram while making sure not to compromise stiffness or strength requirements of modern enduro and gravity-style riding.

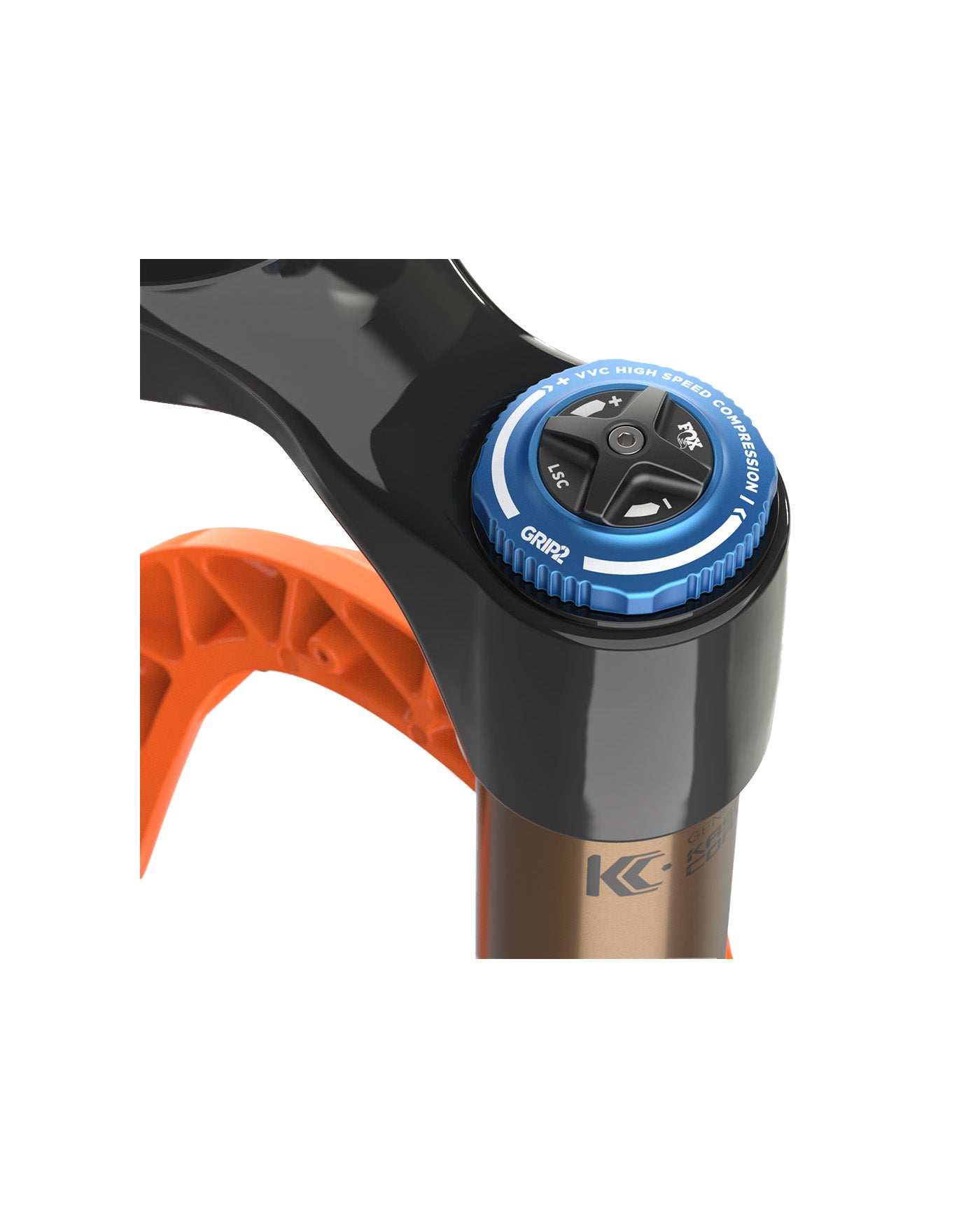

GRIP2
Unparalleled ride quality and ultra-precise adjustability. Allows for external fine-tuning of suspension performance thanks to Fox's patented Variable Valve Control (VVC) technology.

Float EVOL
Optimizes small bump sensitivity by increasing negative air spring volume. Its linear spring curve delivers plushness off the top, extra mid-stroke support, and more tunable bottom-out progression.

Factory
Feature-packed and designed to exceed the demands of Fox's Factory-level riders. What Fox sells is what they race. Factory Series products feature slippery smooth, ultra-durable Genuine Kashima Coat.

    Tech Specs

    Travel: 160mm
    Wheel Size: 27.5"
    Crown Offset: 44mm
    Max Tire Size: 2.6" (varies by manufacturer)
    Spring: Air
    Travel Adjust: Internally Adjustable (requires additional parts)
    Axle Configuration: 15x110mm Boost - QR
    Disc Mount: Post Mount 180mm
    Min. Rotor Size: 180mm
    Max. Rotor Size: 230mm
    Steertube Diameter: 1.125" - 1.5" Tapered
    Intended Use: AM/Enduro
    Warranty: 1 year

    Specs subject to change without notice. Please check with manufacturer for the most up-to-date information.

    Fox 38 tuning guide

    Fox Racing Shox 36 Factory 27.5" GRIP2 15x110 - 44mm Offset - 2023: 160mm / Shiny Black: 910-21-122 - 160mm / Shiny Orange: 910-21-119
