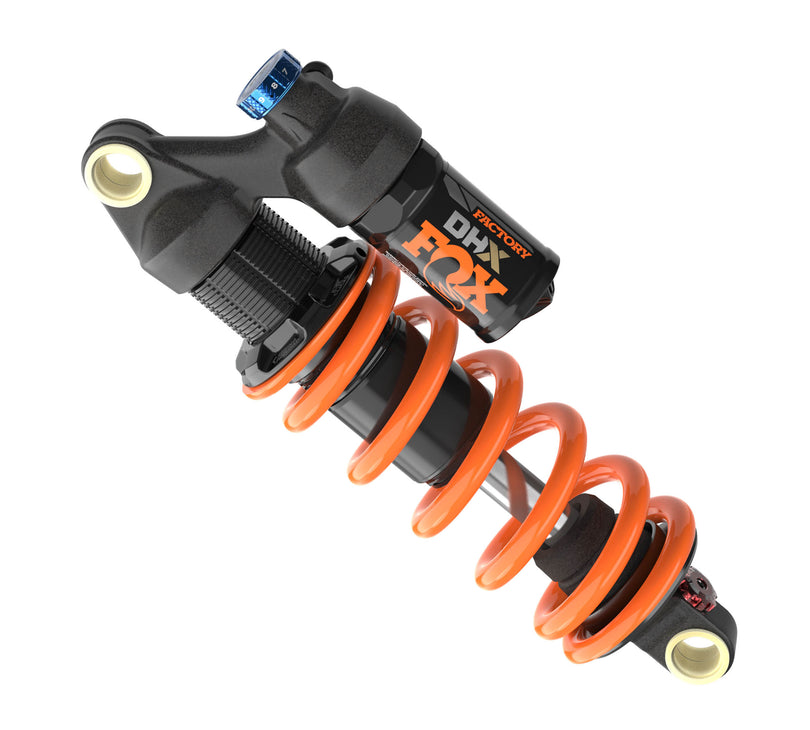

Fox Racing Shox DHX Factory 2-Pos Metric - 2022
Fox is answering the call of riders seeking the ultimate in plush suspension with the all-new DHX coil. It brings coil-sprung, magic-carpet, trail smoothing performance in a wide range of configurations to the trails and beyond.
Spring sold separately.
Features
- Numbered Tool-free 12 position single-turn LSC (Low Speed Compression) adjuster
- Independent firm mode circuit – 2 position adjuster
- Optimized reservoir lengths per shock size
- Hydraulic top out feature
- MCU bottom out bumper
- Single-turn rebound adjuster with a variety of access modes (Tool-free, 3mm hex (direct access), 2mm hex or similar (side access)
- Spring preload collar with detents and max / min number of clicks and direction arrow
- Full diameter spring retainer with wire ring (like DHX2)
Tech Specs
| Spring Type: | Coil |
| External Adjustments: | Low Speed Compression, Low Speed Rebound, Two Position Switch, Spring Collar Preload |
| Mount: | Eyelet top and bottom |
| Mounting Hardware: | Sold separately |
| Warranty: | 1 year |
Specs subject to change without notice. Please check with manufacturer for the most up-to-date information.
Fox Racing Shox DHX Factory 2-Pos Metric - 2022:
210mm x 50mm: 978-01-029 -
210mm x 52.5mm: 978-01-031 -
230mm x 57.5mm: 978-01-035 -
