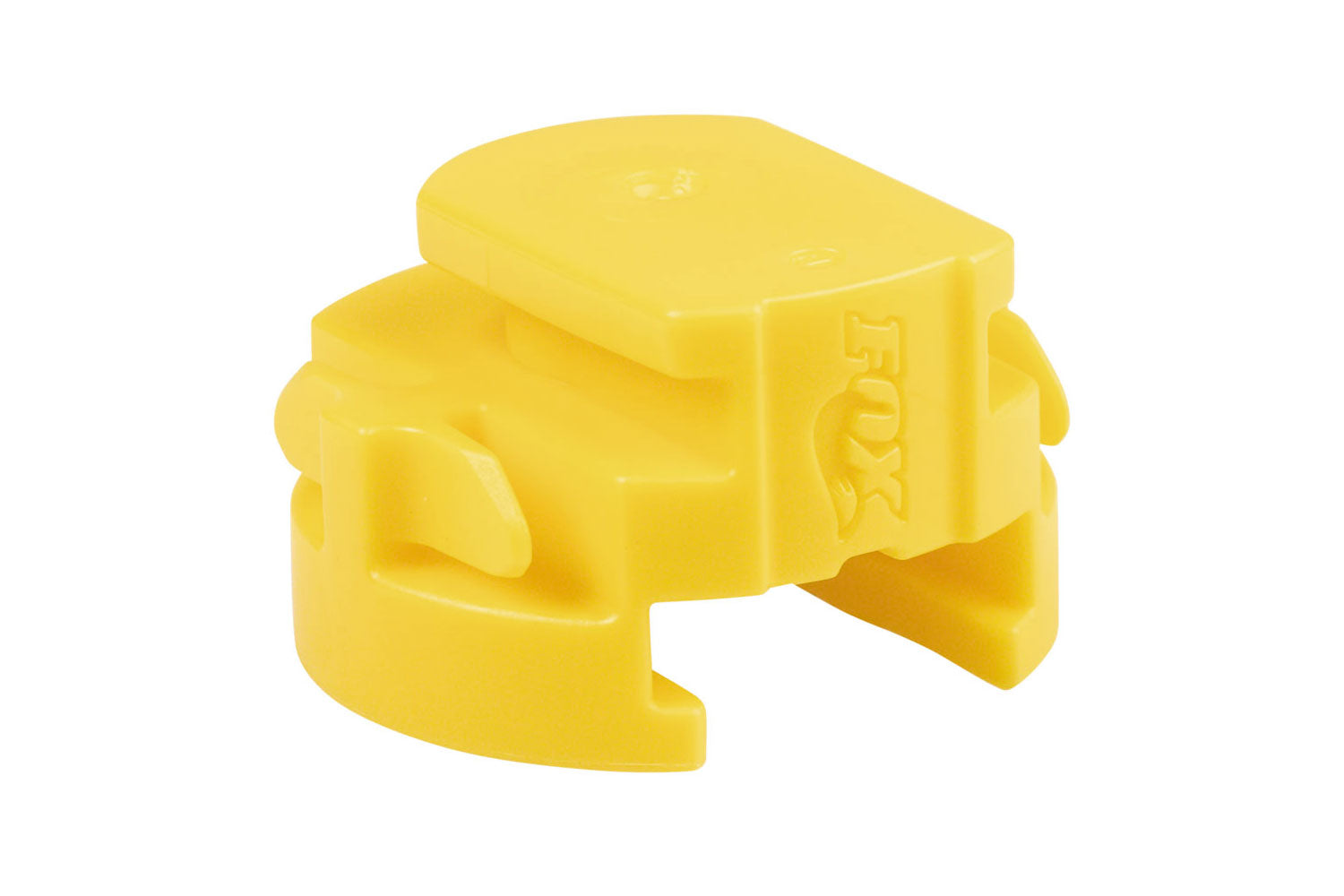

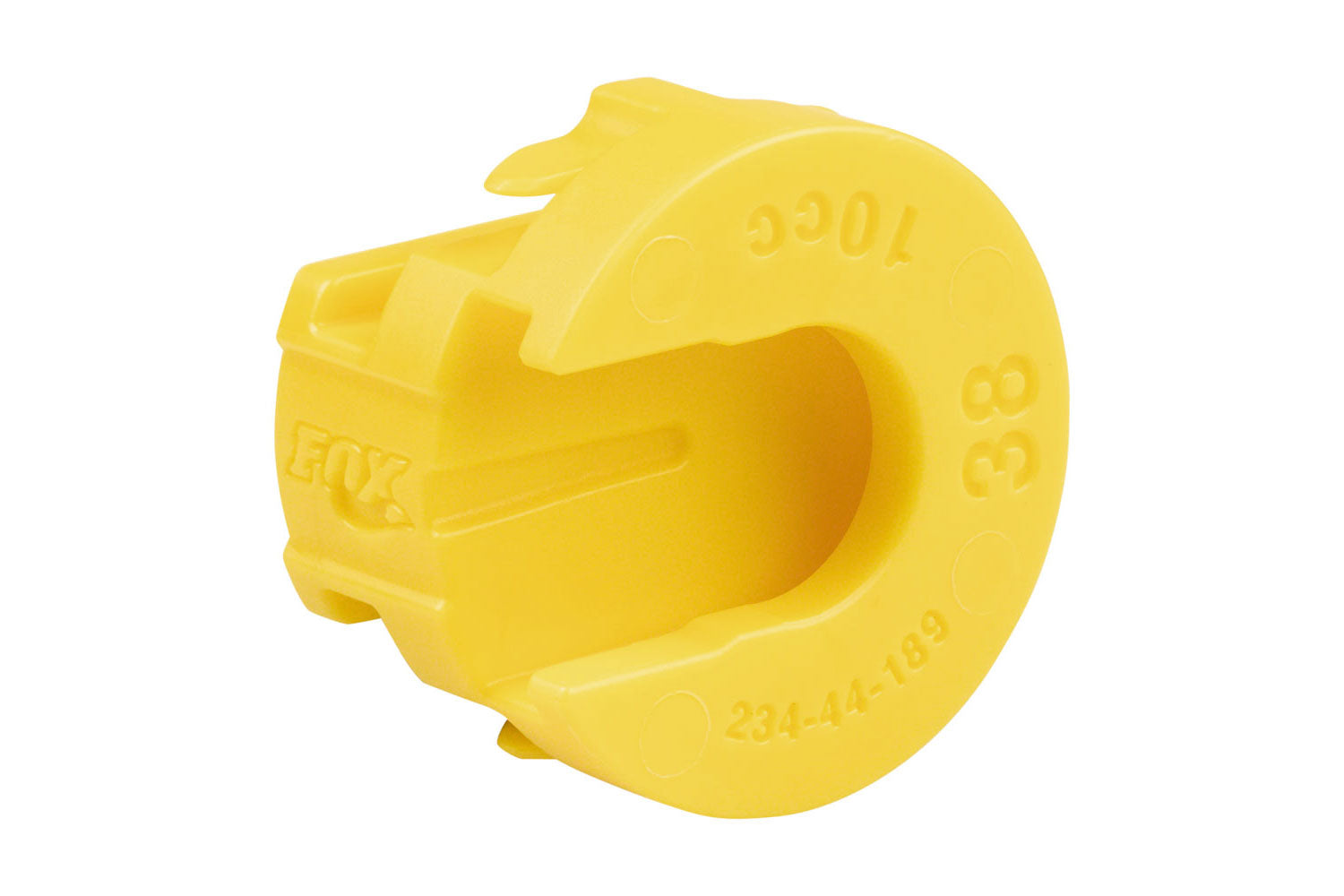

Fox Racing Shox Float NA 2 Air Volume Spacer for 38 forks
Changing volume spacers in the 2018 Fox 36 FLOAT fork is an easy internal adjustment that allows you to change the amount of mid stroke and bottom out resistance.
If you have set your sag correctly and are using full travel (bottoming out) too easily, then you could install one or more spacers to increase bottom out resistance.
These volume spacers are only compatible with 2020+ Fox 38 forks and are sold individually.
| 38 Float Volume Spacer Configurations | ||
|---|---|---|
| Travel | Volume Spacers Factory Installed | Max Volume Spacers |
| 180mm | 1 | 4 |
| 170mm | 2 | 5 |
| 160mm | 3 | 6 |
| 150mm | 4 | 6 |
| 38 Float E-Bike+ Volume Spacer Configurations | ||
|---|---|---|
| Travel | Volume Spacers Factory Installed | Max Volume Spacers |
| 180mm | 2 | 4 |
| 170mm | 3 | 5 |
| 160mm | 4 | 6 |
| 150mm | 5 | 6 |
