Fox Racing Shox 34 Float Air Shaft - 2016-2021
Fox Racing Shox 34 Float Air Shaft - 2016-2021

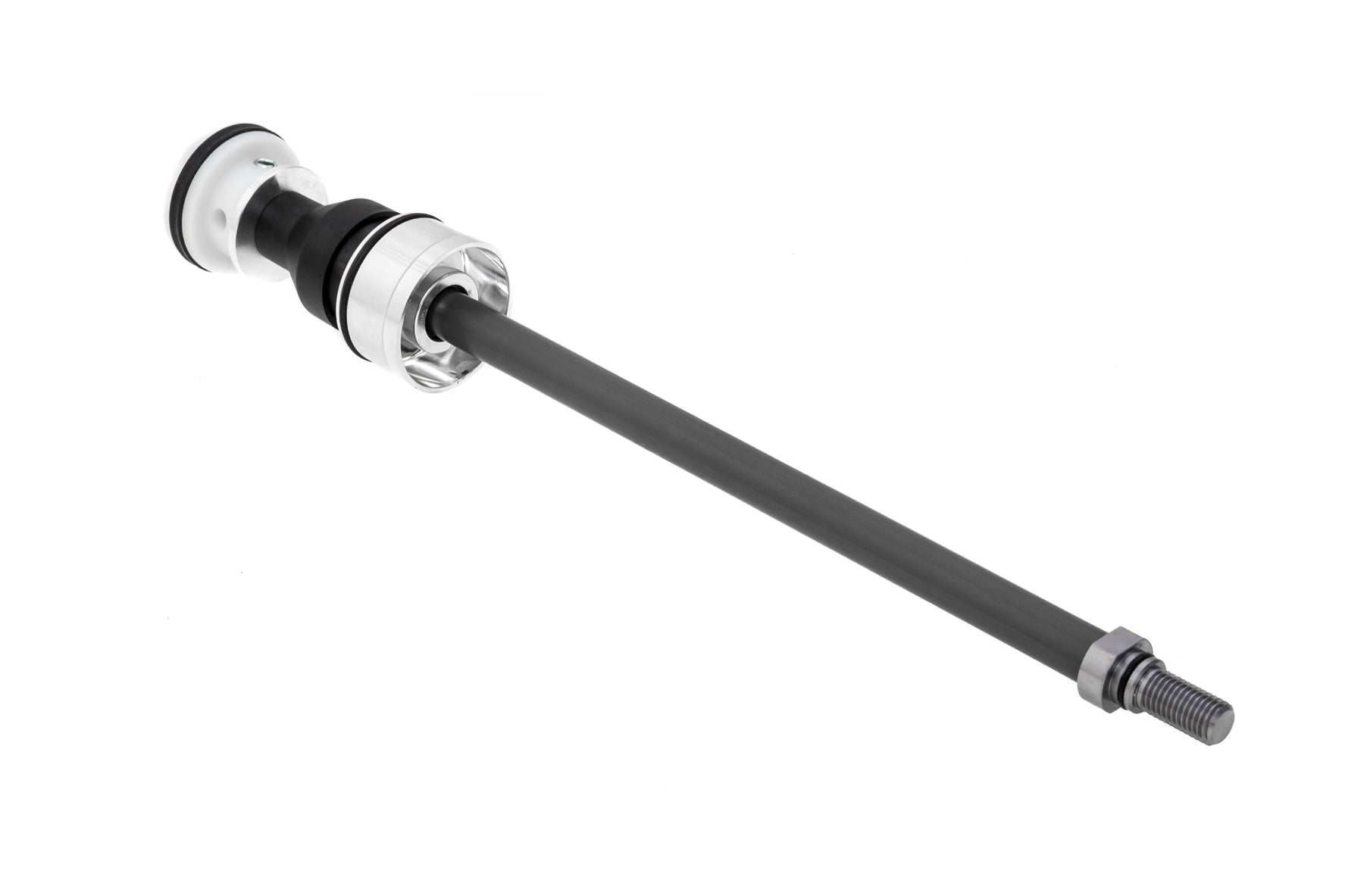

For 2016-2021 Fox 34 Float forks, this is the air shaft needed to change the travel.
110-140mm shafts fit Factory and Performance 27.5" and 29" models, 150mm-160mm shaft is only compatible with 27.5" models.
Please note: 34mm FLOAT forks can be travel adjusted by replacing the air shaft assembly. 34mm forks can be reduced in travel as low as 110mm.
2016 27.5in 34mm forks may have travel extended up to 160mm.
While 2016 29in 34mm forks may have travel extended up to 140mm, forks starting at 120 or below will need a new damper to acheive greater than 120 travel.
All 2016 34mm forks share the same upper tube bore diameter.
In the box
- 34 Float Air Shaft
- Snap ring
- Crush washer
Fox Racing Shox 34 Float Air Shaft - 2016-2021:
130mm: 820-02-527-KIT -
140mm: 820-02-528-KIT -
150mm: 820-02-529-KIT -
160mm: 820-02-530-KIT
