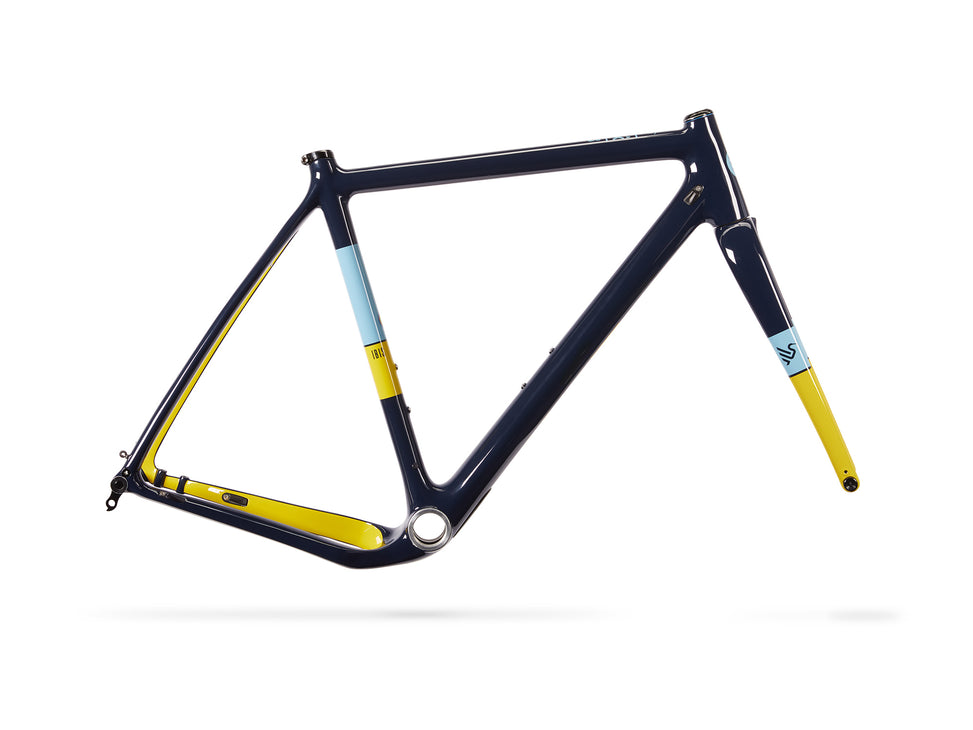

Ibis Hakka MX Frame/Fork
The Hakka MX is Ibis' answer to the Swiss Army Knife.
LIGHTWEIGHT
With its ultra versatile geometry and 1000g frame weight, the Hakka MX is just as happy crushing the local club ride as it is jumping barriers or camping out.
VERSATILE
It's good to have options. With the Hakka MX, you can run road, cross and gravel friendly 700c wheels, or if you are into burlier backcountry exploration, go with 27.5/650b. With the Hakka MX, you don’t have to pick one tire option or the other. Ibis' subtle sculpted chainstays give the frame clearance for up to 700 x 40c or 27.5 x 2.1” tires.
Features
- Ability to run either 700c or 27.5"/650b wheels
- Internal cable routing for 1x or 2x drivetrain and dropper post
- T47 threaded bottom bracket
- Flat mount disc mounts
- Front and rear fender mounts
Tech Specs
| Frame Material: | Carbon |
| Wheel Size: | 27.5", 700c |
| Front Suspension Travel: | Rigid |
| Rear Suspension Travel: | Hardtail |
| Rear Axle Width: | 12x142mm |
| Headset Standard: | IS41mm/IS52mm |
| BB Standard: | 68mm BSA |
| Max Rear Rotor Size: | 160mm |
| Minimum Chainring Size: | 34t |
| Maximum Chainring Size: | 48t |
| Maximum Tire Size: | 700c x 40c or 27.5” x 2.1” |
| Seat Post Diameter: | 31.6mm |
| Water Bottle Cage Mounts: | Two |
| Intended Use: | Gravel |
| Warranty: | Lifetime |
Specs subject to change without notice. Please check with manufacturer for the most up-to-date information.
