Ibis
23 Ripley V4S GX Complete Bike

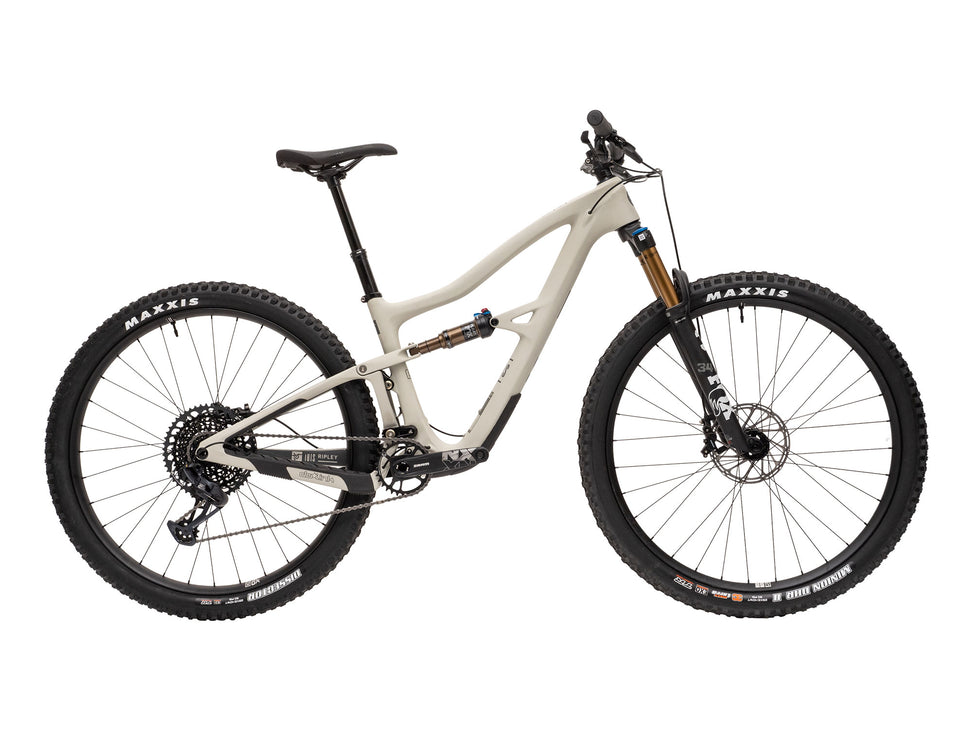

Ibis 23 Ripley V4S GX Complete Bike
A 29’er with just under five inches of rear wheel travel, the Ibis Ripley is essentially a lighter, snappier Ripmo - Ripmo Light. The perfect tool for most mountain bikers has received a number of important updates for 2023. A Universal Derailleur Hanger (UDH) future proofs the bike by making it compatible with the latest generation of derailleurs. A wider chainline increases chainstay stiffness. A new rubber protector keeps chainslap to the bare minimum and better protects your frame. A new clevis features improved sealing to better keep out dirt and debris and improve bushing life. And a new downtube protector made from thick rubber better absorbs impacts to the bottom of your frame.
Compatible with a 120mm to 140mm fork, the Ripley can be a lightweight cross-country weapon or a trail-thrashing downcountry machine, depending on the component spec you choose. The Ripley's light weight and progressive design all add up to a bike that is exceptionally snappy to ride. Call your new Ripley a “trail scalpel,” because that’s what it is.
Note, Small and Medium frames come with a Light-tune rear shock. Large and XL frames come with a Standard-tune.
Features
- UDH derailleur hanger compatible
- More robust chainstay protection
- Ripmo inspired chassis
- 2.6" tire clearance
Tech Specs
Frame Material: | Carbon |
Wheel Size: | 29" |
Rear Axle Standard: | 12x148mm Boost |
Rear Shock: | Fox Float Factory DPS with EVOL |
Rear Shock Size: | 190mm x 45mm |
Rear Shock Hardware: | Front: 8x25mm - Rear: 8 x 15mm |
Rear Suspension Travel: | 120mm |
Headset: | Cane Creek 40 ZS44/ZS56 |
Headset Standard: | ZS44mm/ZS56mm |
Fork: | Fox Factory Series Float 34 / 130mm / 44mm offset |
Fork Axle: | 15x110mm Boost |
Wheelset: | Blackbird Send Alloy (Send I front, Send II rear) | 29" | Ibis Hubs |
Front Tire: | Maxxis DHR2 29" x 2.4" Exo TR |
Rear Tire: | Maxxis Dissector 29" x 2.4" Exo TR |
Crankset: | SRAM NX Eagle DUB Wide spindle | 30t Alloy Ring | S/M: 170mm, L/XL: 175mm |
Bottom Bracket: | SRAM DUB BSA |
BB Standard: | 73mm BSA |
Chain: | SRAM NX Eagle |
Rear Derailleur: | SRAM GX Eagle |
Cassette: | SRAM XG 1275 10-50 12 speed |
Seatpost: | KS Rage-i Dropper | S: 125mm, M: 150mm, L/XL: 170mm |
Seat Post Diameter: | 31.6mm |
Seat Post Clamp Diameter: | 34.9mm |
Seat: | WTB Silverado |
Shifters: | SRAM NX Eagle |
Handlebar: | Ibis Aluminum 780mm |
Stem: | Ibis 31.8mm | S/M: 40mm, L/XL: 50mm |
Grips: | Lizard Skin Charger Evo |
Brakes: | SRAM G2 4 Piston |
Intended Use: | Trail/AM |
Warranty: | Lifetime |
Specs subject to change without notice. Please check with manufacturer for the most up-to-date information.
Geometry
mm / inches
130mm fork - 537mm axle to crown
Insertion
Sizing
cm / ft
Size | SM | MD | LG | XL |
---|---|---|---|---|
Rider Height (cm) | 152 - 165 | 163 - 175 | 175 - 188 | 183 - 198 |
