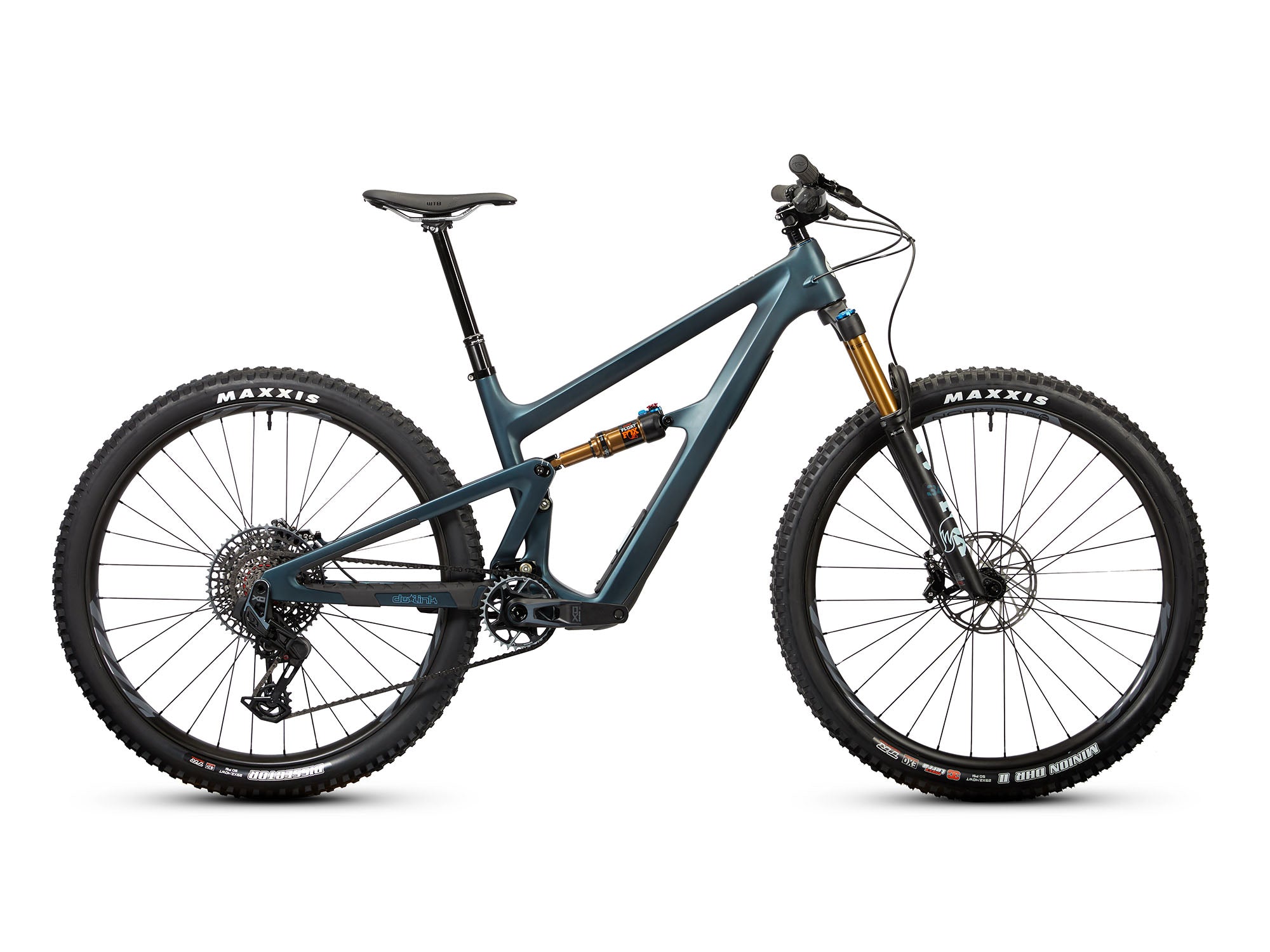

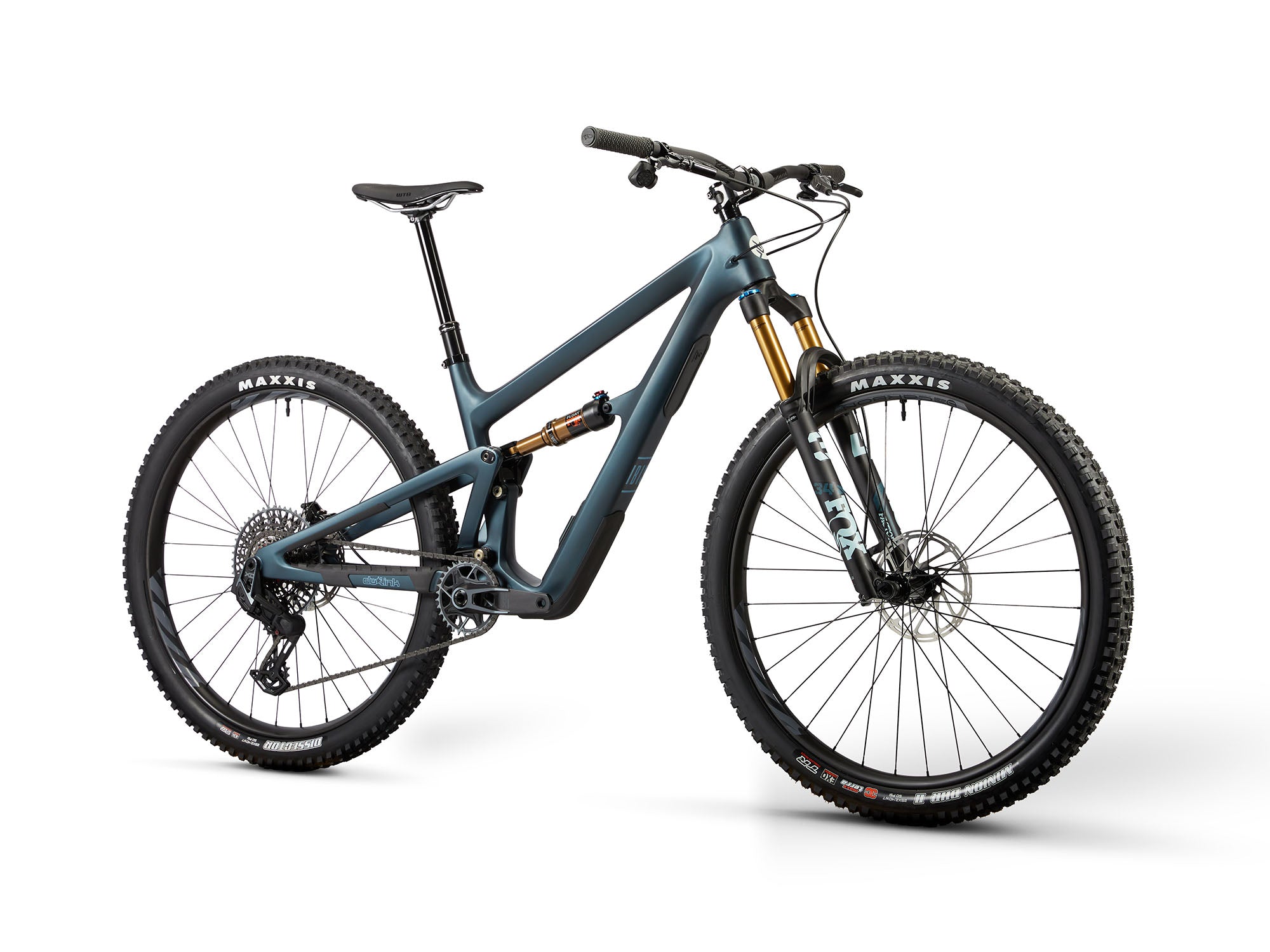

Ibis Ripley V5 X0 T-Type Complete Bike - 2025
ADVENTURE AWAITS
Meet the Ripley, your new best friend for every trail adventure. The award winning bike has been updated with more travel and slacker geometry, making it even more capable and
fun. It rivals the efficiency of an e-bike uphill, while offering snappy, playful
performance with 130mm of ultra efficient dw-link travel. Need to stash your snacks? The Ripley now features internal frame storage for all your stuff. Plus, with expanded size ranges, everyone gets the perfect fit. Whether you’re popping wheelies or conquering climbs, the Ripley is game.
Features
- Size Specific Everything
- Flip Chip for 27.5”/29” mixed (MX) wheels
- Internal Frame Storage
- DW-Link
Tech Specs
| Frame Material: | Carbon |
| Wheel Size: | 29" |
| Rear Axle Standard: | 12x148mm Boost |
| Rear Shock: | Fox Float, Factory Series, DPS w/EVOL |
| Rear Shock Size: | 210mm x 52.5mm |
| Rear Suspension Travel: | 130mm |
| Headset: | Cane Creek 40 |
| Headset Standard: | ZS44mm/ZS56mm |
| Fork: | Fox Float 34, Factory Series, Grip X, 140mm, 29” |
| Fork Axle: | 15x110mm Boost |
| Wheelset: | Blackbird Send Alloy, 32 Hole, 29” |
| Front Tire: | Maxxis DHR2, 29”x 2.4”, Exo, TR |
| Rear Tire: | Maxxis Rekon, 29”x 2.4”, Exo, TR |
| Crankset: | SRAM X0, Eagle Transmission, DUB, SM-MD: 165mm, XM-XL: 170mm |
| Bottom Bracket: | SRAM DUB BSA |
| Chain: | SRAM X0, Eagle Transmission |
| Rear Derailleur: | SRAM X0, Eagle Transmission |
| Cassette: | SRAM X0, Eagle Transmission, 10-52T |
| Seatpost: | Bike Yoke Revive Dropper, 34.9mm, S: 125mm, M: 160mm, XM: 185mm, L-XL: 213mm |
| Seat Post Diameter: | 34.9mm |
| Seat: | WTB Silverado, Ti, 142mm |
| Shifters: | SRAM X0, Eagle Transmission |
| Handlebar: | Blackbird HiFi, 35mm, 800mm |
| Stem: | Blackbird, 35mm, S-M: 35mm, XM-XL: 50mm |
| Grips: | Lizard Skin Charger Evo |
| Brakes: | SRAM Code RSC, 4-Piston |
| Intended Use: | AM/Enduro |
Specs subject to change without notice. Please check with manufacturer for the most up-to-date information.
Geometry
mm / inches
140mm FORK (555mm AXLE TO CROWN)
Size
Seat Tube
Top Tube
Reach
BB Height
BB Drop
Head Angle
Seat Angle
Standover
Chainstay
Head Tube
Wheelbase
Stack
S
395
577
440
326
48
64.9°
77.4°
680
436
85
1187
613
M
400
604
460
329
45
64.9°
76.9°
721
436
95
1211
619
XM
412
629
483
332
42
64.9°
76.9°
744
437
110
1241
629
L
457
654
511
335
39
64.9°
77.4°
759
440
125
1279
640
XL
477
684
545
338
36
64.9°
77.9°
772
442
140
1321
350
Sizing
cm / ft
| Size | S | M | XM | L | XL |
|---|---|---|---|---|---|
| Rider Height (cm) | 152 - 168 | 165 - 175 | 173 - 183 | 180 - 191 | 188 - 201 |
Ibis Ripley V5 X0 T-Type Complete Bike - 2025:
Blue / SM: 0:RLC1BUSX0AL3525 -
Blue / MD: 0:RLC2BUSX0AL3525 -
Blue / XMD: 0:RLC3BUSX0AL3525 -
Blue / LG: 0:RLC4BUSX0AL3525 -
Blue / XL: 0:RLC5BUSX0AL3525 -
Green / SM: 0:RLC1GNSX0AL3525 -
Green / MD: 0:RLC2GNSX0AL3525 -
Green / XMD: 0:RLC3GNSX0AL3525 -
Green / LG: 0:RLC4GNSX0AL3525 -
Green / XL: 0:RLC5GNSX0AL3525
