Bomber Z1 27.5" Coil Conversion Kit
Bomber Z1 27.5" Coil Conversion Kit Bomber Z1 27.5" Coil Conversion Kit Bomber Z1 27.5" Coil Conversion Kit Bomber Z1 27.5" Coil Conversion Kit

Marzocchi

Bomber Z1 27.5" Coil Conversion Kit

$175.00 $140.00

820-03-656-KIT-664

1 in stock

Spring Rate

Spring Rate Chart

-
+
This item may only be shipped within the United States
We are required to follow our brand's policies on shipping and we cannot ship this product outside the United States.

Marzocchi Bomber Z1 27.5" Coil Conversion Kit

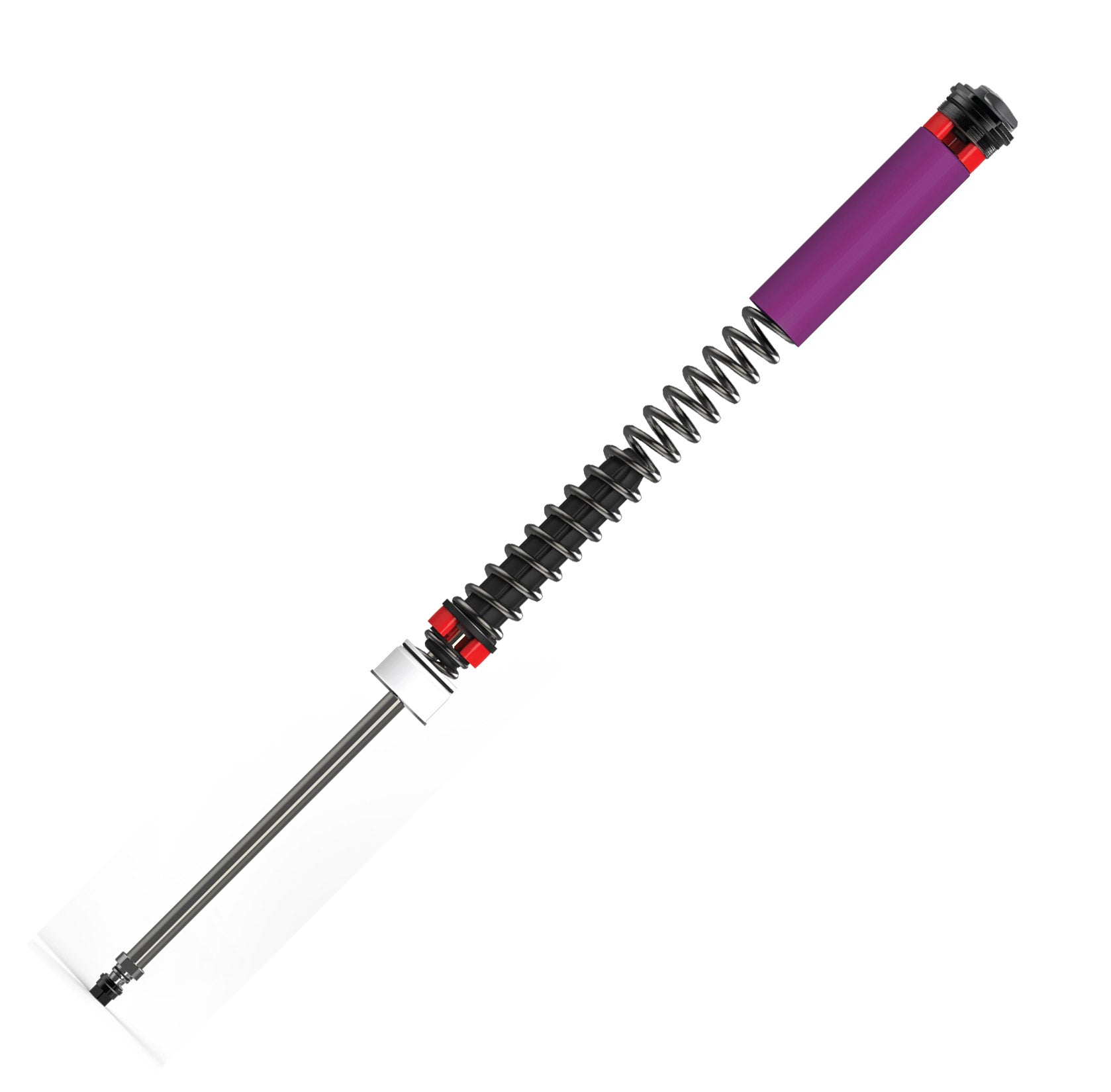

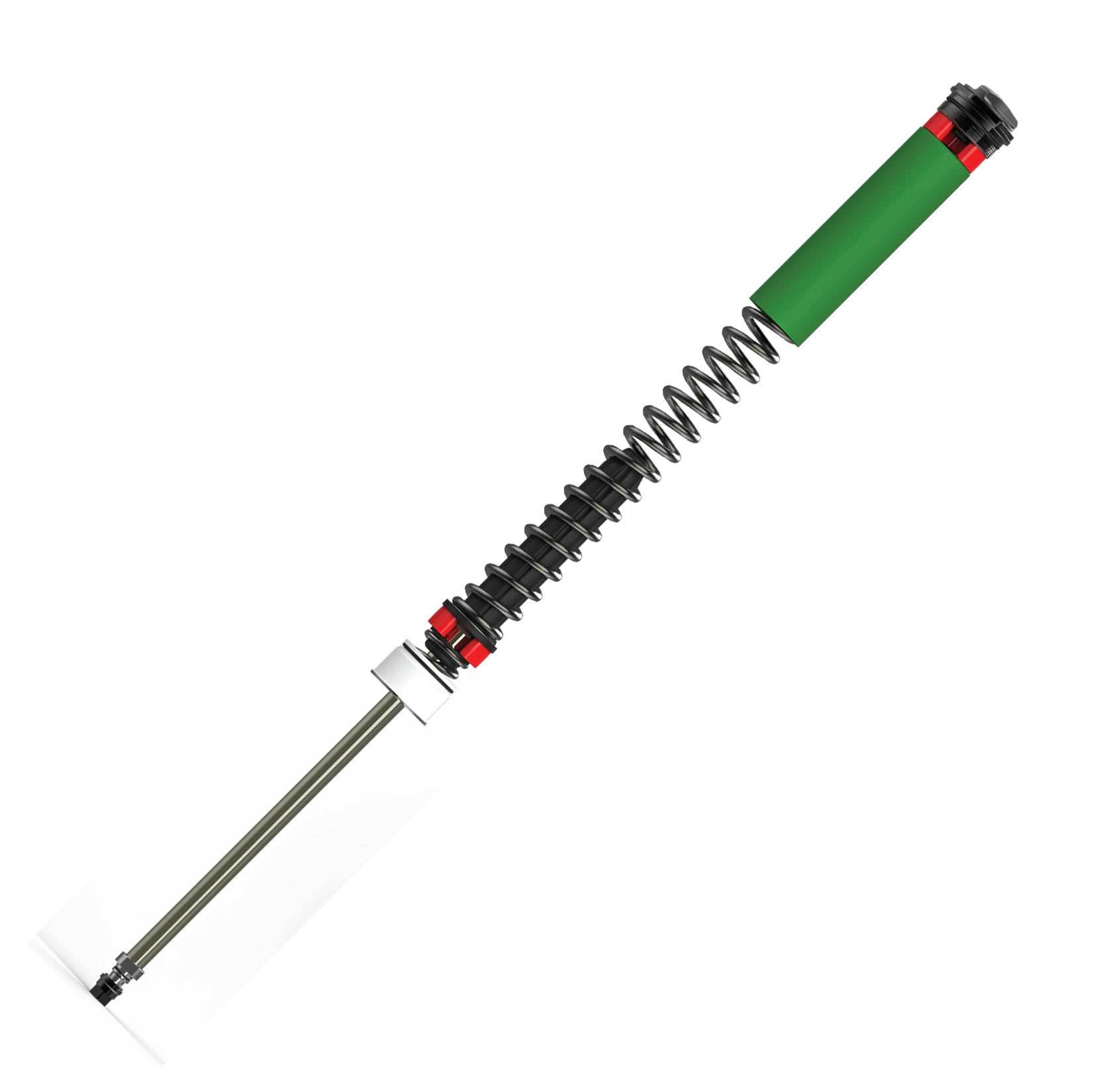

The Marzocchi Bomber Z1 Coil Conversion Kit allows you to convert your Bomber Z1 Air fork to coil and experience the most advanced coil spring system Marzocchi has ever made.

At its heart, is an ultra-lightweight tempered silicon-chromium steel spring coupled with a noise management system for near silent performance, an integrated air assist for progressivity and bottom out control, and an external preload adjuster to dial in sag and firmness off the top. Travel can easily be changed in 10mm increments from 160, 170, or 180mm via included reconfigurable internal spacers.

This kit was designed exclusively for the Marzocchi Bomber Z1. It is also compatible with the Fox 36 Rhythm series fork. It is not compatible with any other series of Fox 36 forks, such as Factory, Performance Elite, or Performance. Once converted to coil, you cannot convert back to air.

Additional information and complete installation instructions can be found at https://www.marzocchi.com/coilinstall



Bomber Z1 Coil Tuning Guide

    In the box

    • Coil Topcap Assembly
    • Spring
    • Spring Guide
    • (2) Washers
    • (2) Travel Spacers
    • Plunger Shaft Assembly

    Features

    • Adds 250-350 grams, depending on spring rate
    • Legendary Marzocchi Bomber ride feel and durability
    • Light-weight Tempered Silicon-Chromium steel spring
    • Air Assist for progressivity / bottom-out control
    • Spring preload easily adjustable via top cap
    • Noise management system for quiet performance
    • Travel can easily be changed in 10mm increments from 160, 170, or 180mm
    Z1 Coil tuning guide
    Marzocchi Bomber Z1 27.5" Coil Conversion Kit: Soft (Purple): 820-03-656-KIT-664 - Medium (Blue): 820-03-657-KIT-664 - X-Firm (Yellow): 820-03-659-KIT-664
