Kitsuma 29" Carbon Rim
Kitsuma 29" Carbon Rim Kitsuma 29" Carbon Rim


Kitsuma 29" Carbon Rim



Notify me when available


475 grams
Build Your Wheels

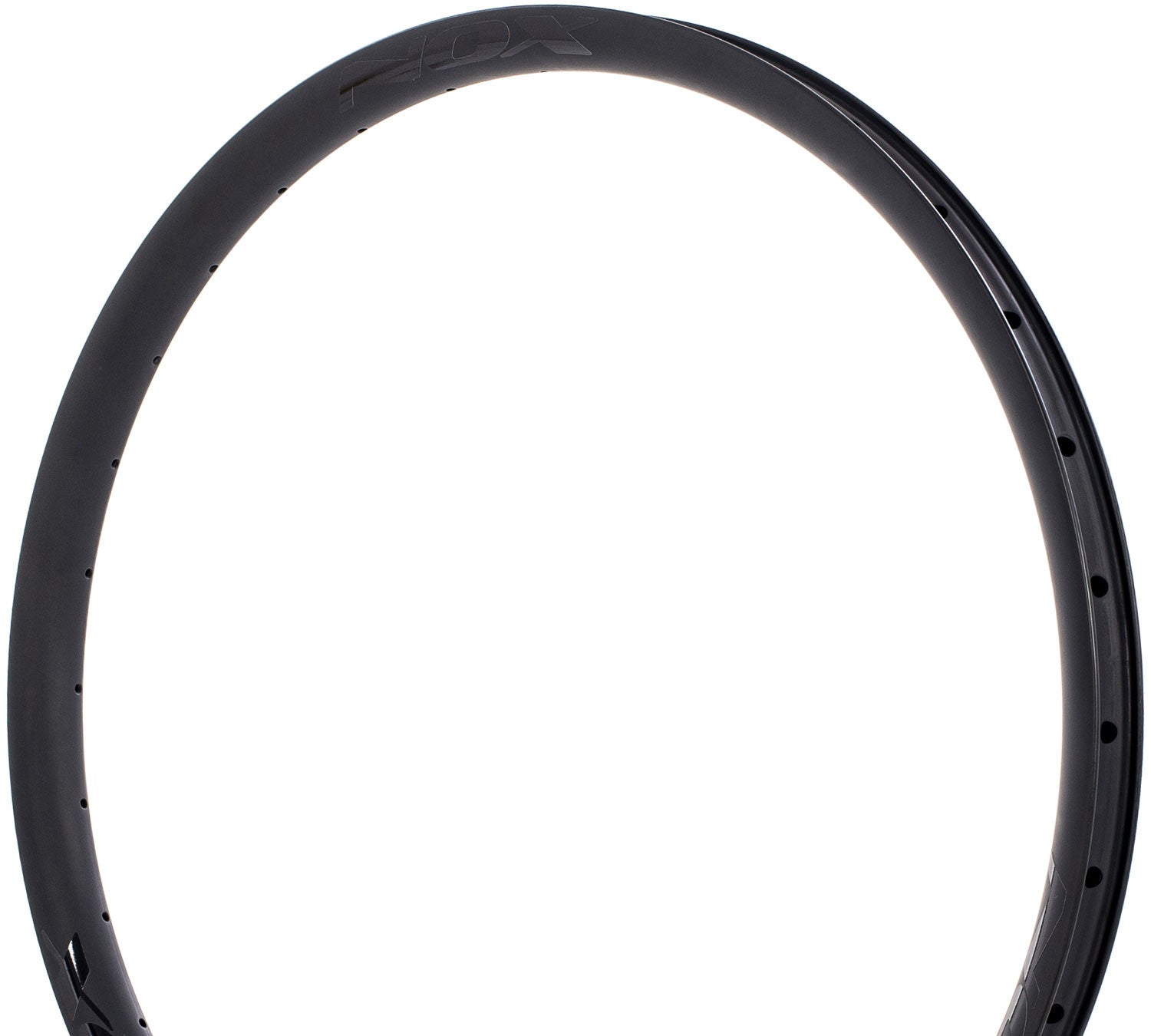

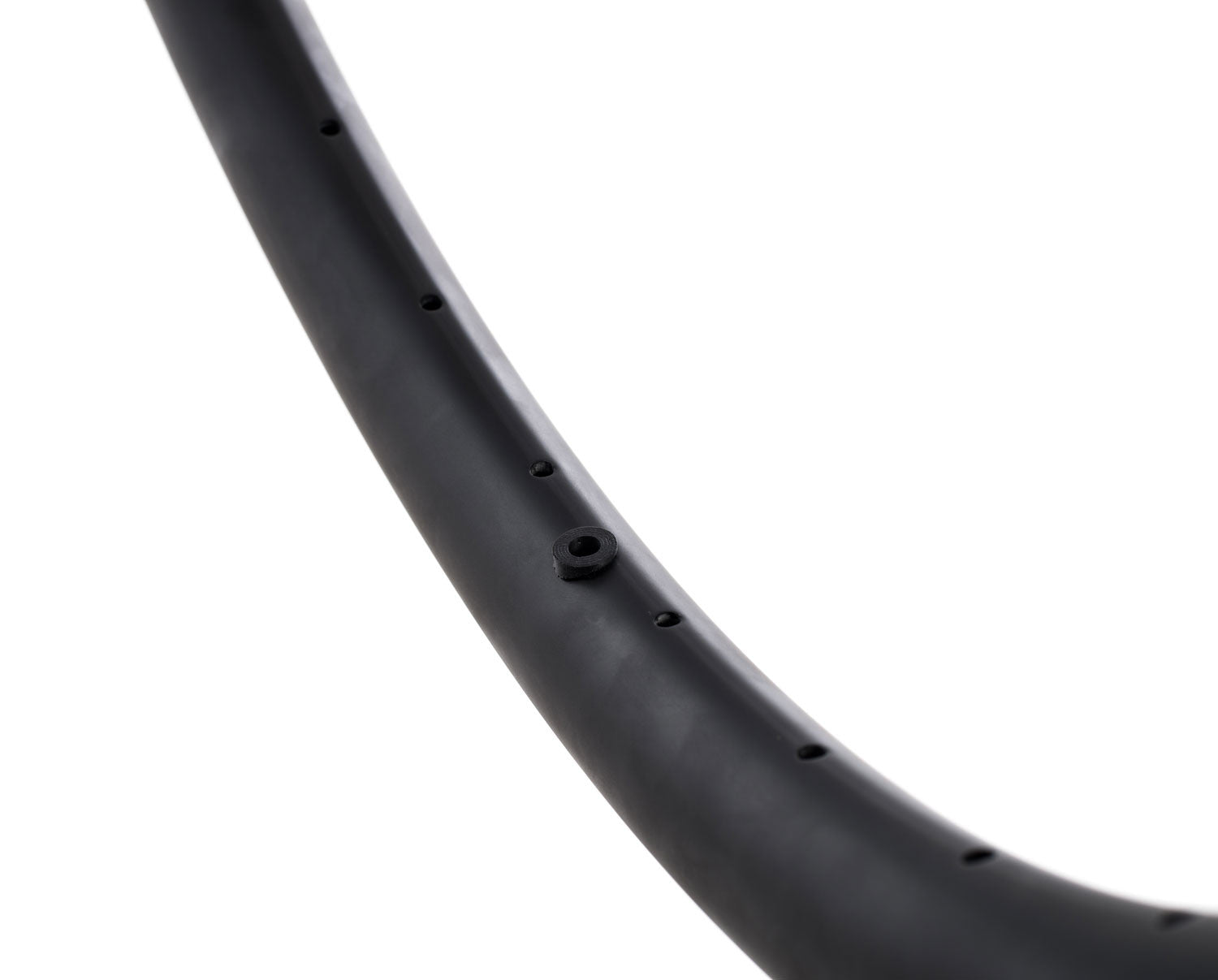

Nox Kitsuma 29" Carbon Rim

Ultra wide and incredibly strong. When nothing but the widest, stiffest, strongest carbon rim will do, the Nox Kitsuma gets the job done. With a 36mm internal rim width, and a 30mm depth, the Kitsuma is clearly meant for business.

The Kitsuma is intended to be used with 2.35" - 3" tires. The latest batch of Maxxis Wide Trail tires are a perfect fit. If you're going for plus-sized tires, Maxxis, Schwalbe, and WTB 2.8" - 3" tires will snap right up to this rim no problem. The main benefit of a wide rim is TRACTION. And more traction. Wide rims paired with the proper tire will allow you to run much lower tire pressure than a conventional rim/tire combination. 2.35" - 2.5" tires can easily be run at 20 psi, while 2.8" - 3" tires can be run at 15 psi. The traction gained from these setups is substantial, and there is little risk of burping air on a tubeless setup, or rolling a tire over on itself.

The Kitsuma gets all of Nox's latest technology, including UniWeave construction, the Anti-Burp Bump, a super strong RockGuard Hookless bead lip, as well as an asymmetric offset design which improves spoke tension equality by more than 15%.

Need a full wheelset? Check out our Custom Wheelset Builder where you can choose from a wide variety of rims, hubs, and spokes - ultimate flexibility, and competitive pricing!


    • Material: Carbon
    • Inner Width: 36mm
    • Outer Width: 42mm
    • Offset: 2.6mm
    • Depth: 30mm
    • ERD: 586
    • Hole Count: 32
    • Intended Use: AM/Enduro
    • Warranty: Lifetime Defects/2 Year Rock Strike/Lifetime Crash Replacement

    Specs subject to change without notice. Please check with manufacturer for the most up-to-date information.
