Revel Pivot Hardware Kits

Complete pivot kits for Revel Bikes frames. Includes hardware for all pivots but does not include bearings.

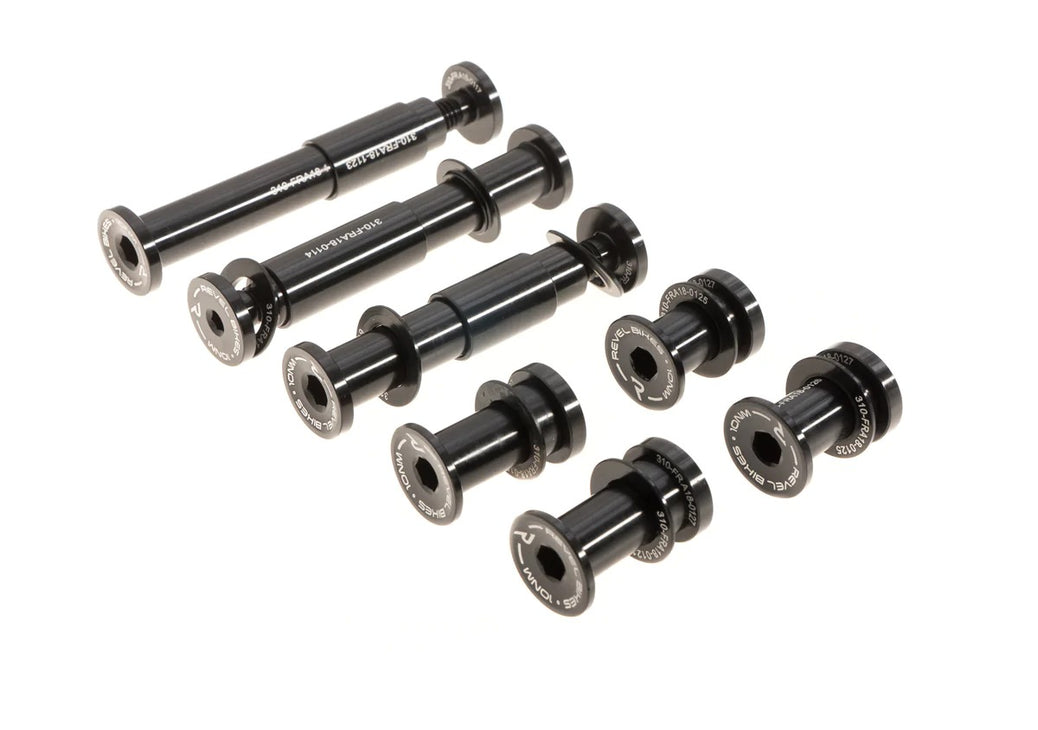

Product image is for reference only. Please review the parts list for each frame to see what's included.

Rascal:

• 310-FRA18-0116 – Revel Rail & Rascal #1 pivot axle qty 1
• 310-FRA18-0120 – Revel Rail & Rascal #2 pivot axle qty 1
• 310-FRA18-0122 – Revel Rail & Rascal #3 pivot axle qty 2
• 310-FRA18-2124 – Revel Rascal ONLY #4 pivot axle qty 1
• 310-FRA18-0126 – Revel Rail & Rascal #5 yoke pivot axle qty 2
• 310-FRA18-0117 – Revel Rail & Rascal #1/#2/#4 pivot bolt qty 3
• 310-FRA18-0127 – Revel Rail & Rascal #3/#5 pivot bolt qty 4

Rail 27.5:

• 310-FRA18-0116 – Revel Rail & Rascal #1 pivot axle qty 1
• 310-FRA18-0120 – Revel Rail & Rascal #2 pivot axle qty 1
• 310-FRA18-0122 – Revel Rail & Rascal #3 pivot axle qty 2
• 310-FRA18-1124 – Revel Rail ONLY #4 pivot axle qty 1
• 310-FRA18-0126 – Revel Rail & Rascal #5 yoke pivot axle qty 2
• 310-FRA18-0117 – Revel Rail & Rascal #1/#2/#4 pivot bolt qty 3
• 310-FRA18-0127 – Revel Rail & Rascal #3/#5 pivot bolt qty 4

Rail 29:

• 310-FRA22-4119 – Rail29 #1/#2 Pivot Axle – 310-10021-0063 Qty 2
• 310-FRA22-4120 – Rail29 #4 Pivot Axle – 310-10021-0065 Qty 1
• 310-FRA22-4121 – Rail29 #3/#5 Pivot Axle – 310-10021-0066 Qty 4
• 310-FRA22-4124 – Rail29 #1/#2/#4 Pivot Axle Nut – 310-10021-0060 Qty 3
• 310-FRA22-4125 – Rail29 #3/#5 Pivot Axle Nut – 310-10021-0064 Qty 4

Ranger P4 V1 (Shimano XT/SLX):

• 310-FRA20-0306 – Revel Ranger #1 Pivot Axle – 310-00000-0036 qty 1
• 310-FRA20-0308 – Revel Ranger #2 Pivot Axle – 310-00000-0040 qty 1
• 310-FRA20-0310 – Revel Ranger #3 Pivot Axle – 310-00000-0042 qty 2
• 310-FRA20-0303 – Revel Ranger #4 Pivot Axle – 310-00000-0034 qty 1
• 310-FRA20-0312 – Revel Ranger #5 Pivot Axle – 310-00000-0043 qty 2
• 310-FRA20-0304 – Revel Ranger #1/#2/#4 Pivot Bolt – 310-00000-0045 qty 3
• 310-FRA20-0311 – Revel Ranger #3/#5 Pivot Bolt – 310-00000-0044 qty 4

Ranger P4 V2 (Not compatible with XT/SLX cranks):

• 310-FRA20-0306 – Revel Ranger #1 Pivot Axle – 310-00000-0036 Qty 1
• 310-FRA20-0308 – Revel Ranger #2 Pivot Axle – 310-00000-0040 Qty 1
• 310-FRA20-0310 – Revel Ranger #3 Pivot Axle – 310-00000-0042 Qty 2
• 310-FRA21-0301 – Ranger P4 Pivot Axle V2 310-10021-0087 Qty 1
• 310-FRA20-0312 – Revel Ranger #5 Pivot Axle – 310-00000-0043 Qty 2
• 310-FRA20-0304 – Revel Ranger #1/#2/#4 Pivot Bolt – 310-00000-0045 Qty 2
• 310-FRA20-0311 – Revel Ranger #3/#5 Pivot Bolt – 310-00000-0044 Qty 4
• 310-FRA21-0302 – Ranger P4 Pivot Axle Nut V2 310-10021-0086 Qty 1
