Revel

Rascal Carbon Frame

$3,499.00

Backorder

Notify me when available

rascal-pur-sm

2909 grams
2989 grams
3029 grams
3109 grams
2909 grams
2989 grams
3029 grams
3109 grams
2909 grams
2989 grams
3029 grams
3109 grams
weight without shock
Color
Size

Sizing Chart

-
+
This item may only be shipped within the United States.
We are required to follow our brand's policies on shipping and we cannot ship this product outside the United States.
Build This Bike

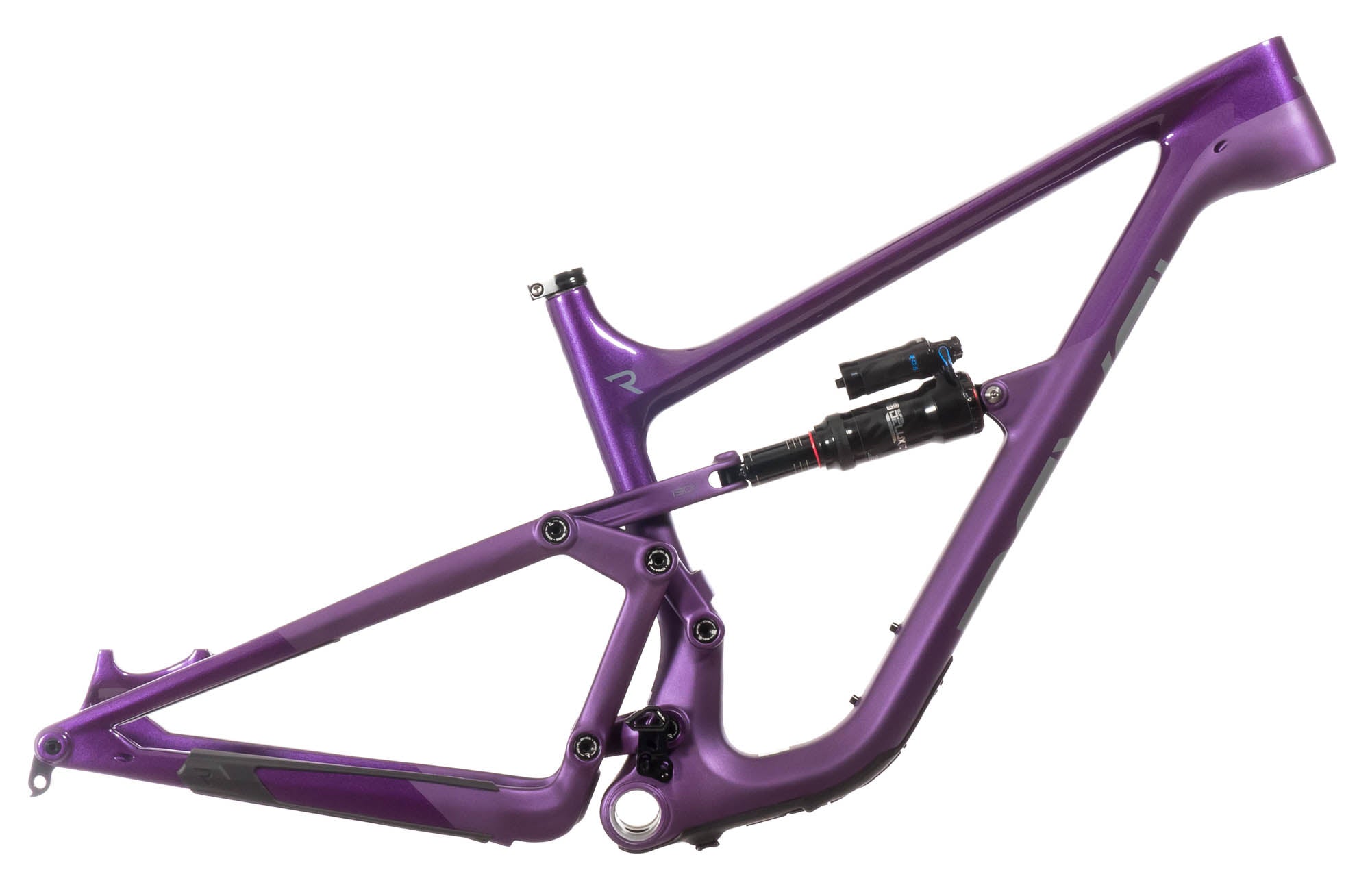

Revel Rascal Carbon Frame

The Rascal lives up to its name- it is a sleek looking machine that is mischievously fast, nimble, and adept. Think capability and playfulness in both ascend and full send mode. Revel's vision for the Rascal was to deliver a confidence-inspiring and ultra-versatile mountain bike in all applications. The Rascal is a fast and capable mountain bike in a sleek package that you can ride every day, regardless of terrain.

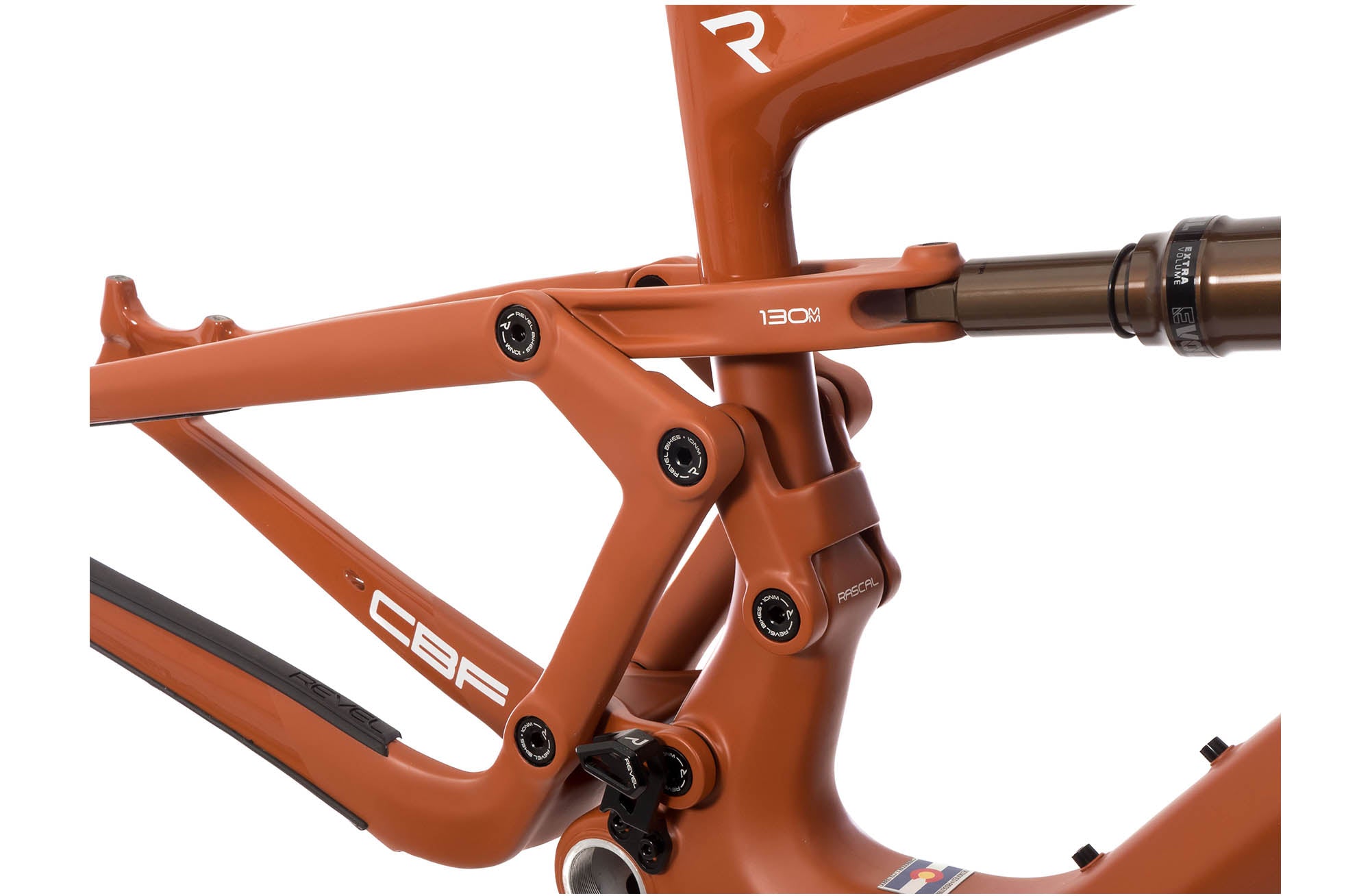

The Canfield Balance Formula is the heart of every Revel bike, which maximizes the amount you pedal in the sweet spot. CBF™ focuses on designing rear suspension around the Center of Curvature (CC). Until now, most suspension systems have focused solely on the instant center. CBF points the chainline and corresponding drive forces around the top of the chainring through 100-percent of the travel resulting in maximum pedaling efficiency, regardless of where you are in the travel, what terrain you are on or what kind of power you’re putting down. All the power you put into the pedals goes into turning the rear wheel, allowing the suspension to do its job completely independent of drivetrain and braking forces and making the sag setting much less critical. When Revel first rode the largely-unknown CBF system, they knew it was something special, and knew they could make the best riding carbon mountain bikes using this magical formula.

  • Internal cable routing with full carbon tubes
  • Unique carbon layup creates stronger and stiffer tubing using less material
  • BOLU 6801 VRS full compliment bearings used in all pivot locations

In the box

  • Rascal Frame
  • Cane Creek 40 IS42/IS52 headset
  • Seat collar
  • Maxle axle
  • Integrated chain guide
  • Derailleur hanger

    Tech Specs

    Frame Material: Carbon
    Wheel Size: 29"
    Front Suspension Travel: 140mm
    Rear Suspension Travel: 130mm
    Rear Shock: Rock Shox Super Deluxe RCT
    Rear Shock Size: 210mm x 50mm
    Rear Shock Hardware: Front: 8x22.2mm / Rear: Open
    Rear Axle Width: 12x148mm Boost
    Included Headset: Cane Creek 40 Series
    Headset Standard: IS42mm/IS52mm
    BB Standard: 73mm BSA
    Brake Mount Type: Post-Mount 180mm
    Max Rear Rotor Size: 203mm
    Maximum Chainring Size: 36T
    Seat Post Diameter: 31.6mm
    Seat Clamp Diameter: 34.9mm
    Water Bottle Cage Mounts: One
    Intended Use: Trail/AM
    Warranty: Lifetime

    Specs subject to change without notice. Please check with manufacturer for the most up-to-date information.

    Geometry

    mm / inches

    140mm fork

    Size
    Seat Tube
    Top Tube
    Reach
    BB Height
    Head Angle
    Seat Angle
    Standover
    Chainstay
    Head Tube
    Wheelbase
    Trail
    Stack
    Seatpost
    Insertion
    SM
    385
    547
    424
    335
    66
    75
    682
    433
    96
    1182
    107
    600
    MD
    415
    547
    444
    335
    66
    75
    698
    433
    107
    1202
    107
    610
    280
    LG
    445
    590
    464
    335
    66
    75
    716
    433
    116
    1220
    107
    618
    285
    XL
    475
    612
    489
    335
    66
    75
    736
    433
    127
    1247
    107
    628

    Sizing

    cm / ft

    Size SM MD LG XL
    Rider Height (cm) 155 - 170 168 - 178 175 - 188 185 - 201
