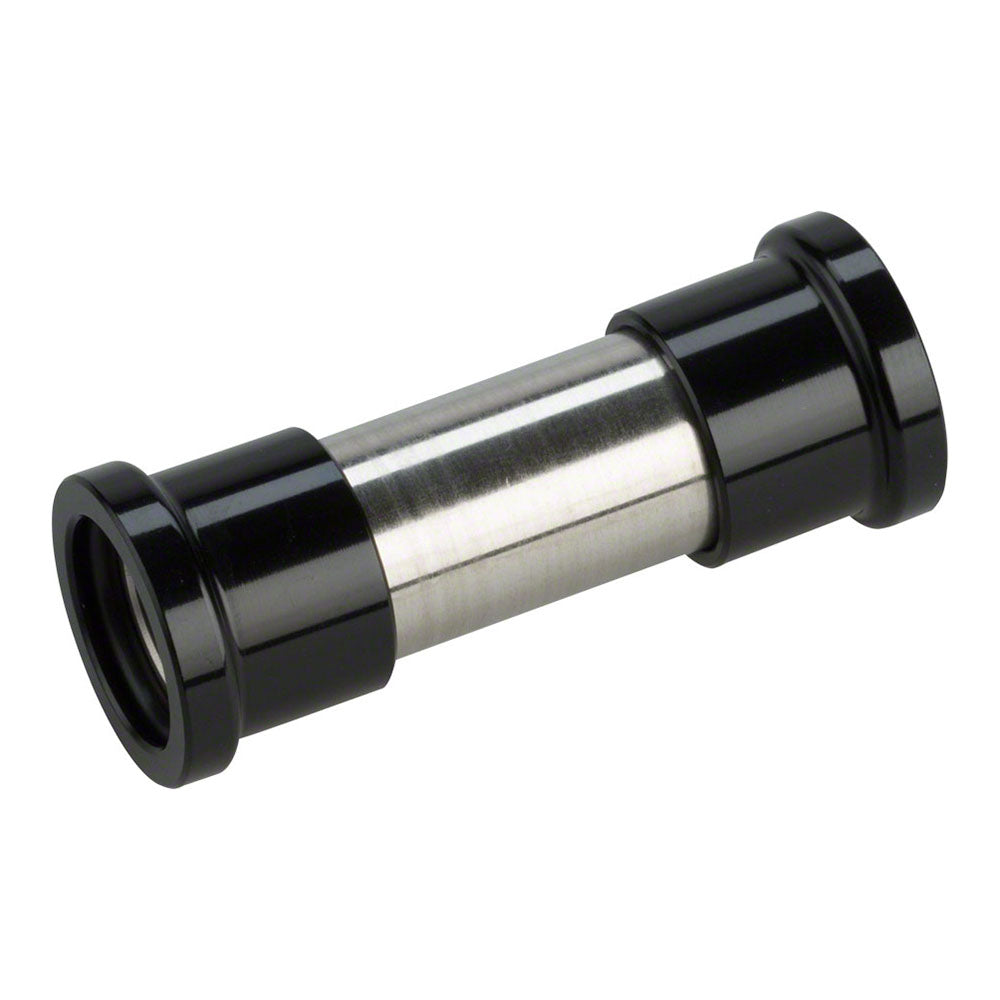

3-piece design hardware for mounting 2008+ Rock Shox Vivid, Kage, Monarch, and 2010+ Ario rear shocks with 1/2" (12.7mm) eyelet dimensions *(not for '03-12 models using 12mm hardware).
1/2" (industry standard) hardware is also used on, and cross-compatible with, Marzocchi, Cane Creek, Fox, and Progressive rear shocks.
Sized by bolt diameter (M6, M8, M10) and frame mount-ID width (in mm).
Two hardware kits required per shock: 1 for each eyelet.
RockShox Rear Shock Mounting Hardware:
6 / 16: 710845603037 -
6 / 19: 710845637315 -
6 / 21.8: 710845603044 -
6 / 22.2: 11.4115.012.340 -
6 / 24.4: 710845603105 -
6 / 25.4: 11.4115.012.370 -
6 / 28.6: 710845603174 -
6 / 31.75: 710845603198 -
6 / 33: 710845603228 -
6 / 34: 11.4115.012.410 -
6 / 35: 710845603266 -
6 / 40: 710845603341 -
6 / 41: 710845603365 -
6 / 50: 710845603471 -
6 / 20: 11.4118.091.603 -
6 / 30: 11.4118.091.613 -
6 / 25: 11.4118.091.609 -
8 / 12.7: 710845610417 -
8 / 14: 710845623561 -
8 / 15: 11.4118.091.801 -
8 / 16: 11.4118.091.803 -
8 / 18: 710845755088 -
8 / 19: 11.4115.012.560 -
8 / 21.8: 11.4118.091.807 -
8 / 22.2: 11.4118.091.809 -
8 / 24.4: 710845603112 -
8 / 25.4: 11.4115.012.050 -
8 / 28.6: 710845637346 -
8 / 31.75: 710845603204 -
8 / 33: 710845603235 -
8 / 34: 11.4115.012.120 -
8 / 35: 710845603273 -
8 / 40: 11.4115.012.180 -
8 / 41: 11.4115.012.190 -
8 / 50: 11.4115.012.270 -
8 / 20: 11.4118.091.806 -
8 / 30: 11.4118.091.823 -
8 / 25: 11.4118.091.816 -
8 / 23: 710845603082 -
8 / 24: 710845603099 -
8 / 27.4: 710845603150 -
8 / 28: 710845603167 -
8 / 33.6: 11.4115.012.540 -
8 / 35.5: 710845755026 -
8 / 36: 710845603297 -
8 / 37.4: 710845603303 -
8 / 38: 710845603327 -
8 / 42: 11.4115.012.210 -
8 / 44: 710845603419 -
8 / 45: 710845603440 -
8 / 46: 710845603457 -
8 / 47.8: 710845603464 -
8 / 51.95: 710845603495 -
8 / 52.9: 710845755040 -
8 / 54: 710845603501 -
8 / 55: 710845603518 -
8 / 56: 710845603525 -
8 / 60: 710845607073 -
9.5 / 18: 710845623592 -
9.5 / 22.2: 710845606007 -
10 / 17.4: 11.4115.012.660 -
10 / 22.2: 11.4115.012.600 -
10 / 20: 11.4118.091.005 -
10 / 30: 710845605994 -
10 / 33.5: 710845622137
