Altitude MX/29" Carbon Frameset - 2024
Altitude MX/29" Carbon Frameset - 2024 Altitude MX/29" Carbon Frameset - 2024 Altitude MX/29" Carbon Frameset - 2024

Rocky Mountain

Altitude MX/29" Carbon Frameset - 2024

$4,099.00

F0054MD1

3215 grams
3225 grams
3235 grams
weight without shock

1 in stock

Color
Size

Sizing Chart

-
+

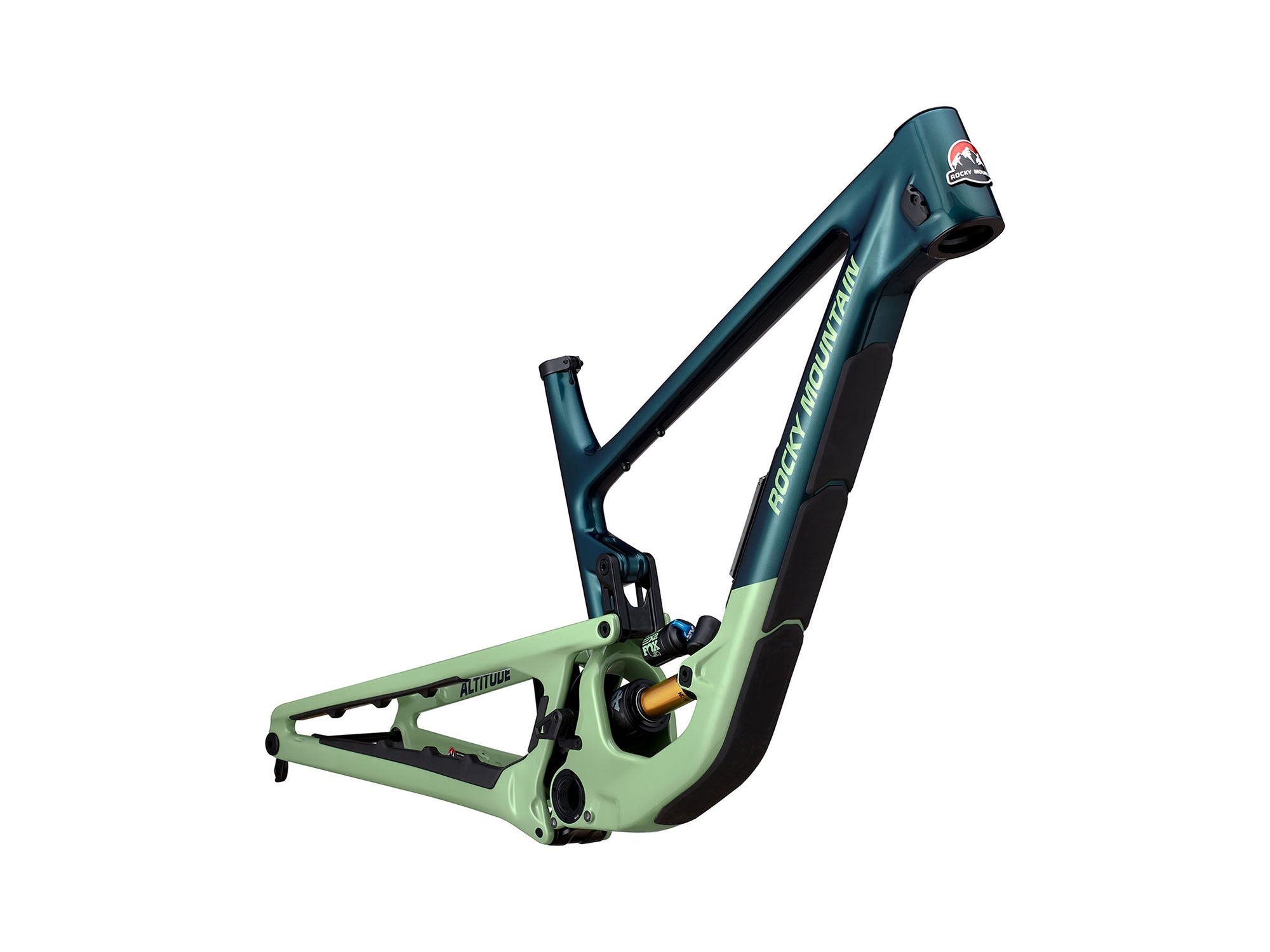

Rocky Mountain Altitude MX/29" Carbon Frameset - 2024

Charge harder. Go faster.


From commanding the clock to holding your own on weekend rides. This bike is purpose-built to go fast and demolish steep trails. Its total enduro capabilities can help you secure that “top step” and tackle demanding group rides with confidence. With so much capability in your corner, it’s time to push limits, climb faster, and charge. Enduro lives at Altitude.

    Features

    • LC2R™ Suspension Design: Rocky Mountain's take on a virtual pivot which delivers a smooth and predictable ride on challenging terrain
    • Full 29” or MX: Ability to mullet via built-in flipchip. No need to buy a separate link or mount
    • RIDE-4™ adjustment system: Quickly fine-tune geometry and suspension with a single Allen key
    • SMOOTHWALL carbon: delivers industry leading stiffness-to-weight, ride quality, and durability
    • Size-specific tune: Each frame size is tuned for small-bump compliance, mid-stroke support, and end-stroke progressiveness and features custom shock tunes based on real world field testing
    • Storage included: The new PenaltyBox™ 2.0 downtube storage includes generous capacity, a custom tool wrap, and a rock-solid hinged door system that doubles down as a water bottle mount and features a built-in concealed AirTag/Tile compartment
    • Fully enclosed internal routing: Allows for easy cable and hose installations, with allowance for moto-style brake setups
    • Reach adjust headset: Fine tune your ride with center, +/- 5mm offset options

    Tech Specs

    Frame Material: Carbon
    Wheel Size: 29", Mixed: 29" front/27.5" rear
    Front Suspension Travel: 170mm
    Rear Suspension Travel: 160mm
    Rear Shock: Fox Float X2 Factory
    Rear Shock Size: 230mm x 60mm
    Rear Shock Hardware: 40x10mm
    Rear Axle Width: 12x148mm Boost
    Included Headset: FSA Orbit NO.85 Reach Adjust | 0mm Cups Installed | +/- 5mm Cups Included
    BB Standard: 73mm BSA
    ISCG Tabs: ISCG '05 2-Bolt
    Brake Mount Type: Post-Mount 200mm
    Max Rear Rotor Size: 223mm
    Minimum Chainring Size: 30t
    Maximum Chainring Size: 34t
    Maximum Tire Size: 2.5"
    Seat Post Diameter: 30.9mm
    Seat Clamp Diameter: 34.9mm
    Water Bottle Cage Mounts: One full size bottle and one accessory mount
    Intended Use: AM/Enduro
    Warranty: 5 Years

    Specs subject to change without notice. Please check with manufacturer for the most up-to-date information.

    Geometry

    mm / inches

    29" (Neutral)

    Size
    Seat Tube
    Top Tube
    Reach
    BB Drop
    Head Angle
    Seat Angle
    Standover
    Chainstay
    Head Tube
    Wheelbase
    Stack
    MD
    410
    584
    455
    31
    63.5
    77.5
    796
    440
    105
    1243
    630
    LG
    440
    610
    480
    31
    63.5
    77.5
    803
    450
    115
    1282
    639
    XL
    470
    642
    510
    31
    63.5
    77.5
    814
    450
    130
    1319
    653

    MX 29"/27.5" (Neutral)

    Size
    Seat Tube
    Top Tube
    Reach
    BB Drop
    Head Angle
    Seat Angle
    Standover
    Chainstay
    Head Tube
    Wheelbase
    Stack
    MD
    410
    584
    455
    22
    63.4
    77.4
    796
    440
    105
    1242
    630
    LG
    440
    610
    480
    22
    63.4
    77.4
    803
    450
    115
    1281
    639
    XL
    470
    642
    510
    22
    63.4
    77.4
    814
    450
    130
    1318
    653

    Sizing

    cm / ft

    Size MD LG XL
    Rider Height (cm) 162.5 - 177.5 172.5 - 188 183 - 198
    Rocky Mountain Altitude MX/29" Carbon Frameset - 2024: Green/Green / MD: F0054MD1 - Green/Green / LG: F0054LG1 - Green/Green / XL: F0054XL1
