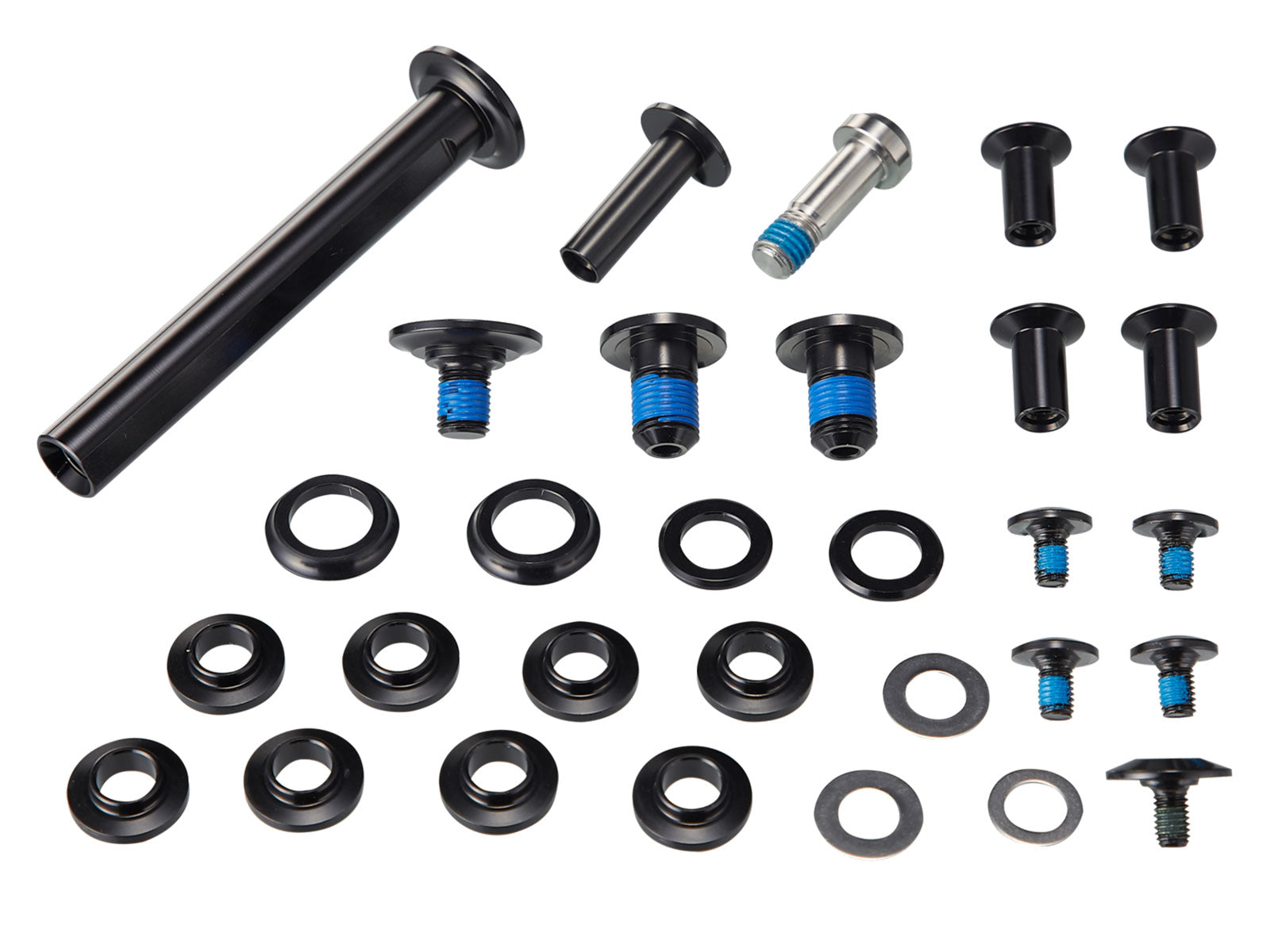

Specialized 2021 Epic EVO Bolt Kit

Suspension pivot bolt kit for 2021 Epic bikes with all bolts and spacers

• Main Pivot Axle: 12mm W x 86mm L - Alloy - 1 pcs.
• Main Pivot Bolt: 8 mm W x 12.2mm L - Alloy - Torque: 89 in-lbf (10 Nm) - 1 pcs.
• Main Pivot Spacer: 12.1mm ID x 19.5mm OD x 3mm W - Alloy - 2 pcs.
• Shock Link to Seat Tube Pivot Bolt: 10mm W x 16mm L - Alloy - Torque: 89 in-lbf (10
Nm) - 2 pcs.
• Shock Link to Seat Tube Pivot Spacer: 10.1mm ID x 16.5mm OD x 2mm W - Alloy - 2
pcs.
• Shock Link to Shock Extension Pivot Axle: 8mm W x 17.23mm L - Alloy - 2 pcs.
• Shock Link to Shock Extension Pivot Bolt: 5mm W x 8mm L - Alloy - Torque: 53 in-lbf (6
Nm) - 2 pcs.
• Shock Link to Seatstay Pivot Axle: 8mm W x 17.23mm L - Alloy - 2 pcs.
• Shock Link to Seatstay Pivot Axle: 8mm W x 17.23mm L - Alloy - 2 pcs.
• Shock Link to Seatstay Pivot Bolt: 5mm W x 8.6mm L - Alloy - Torque: 53 in-lbf (6 Nm) -
2 pcs.
