Specialized Turbo Levo SL Comp Carbon
The Levo SL delivers unmatched ride quality and capability, amplified. For the trail rider who craves serpentine singletrack, sending it skyward, and lives for advancing your skills and fitness. Meet your new bike, the Levo SL. You’ll be blown away by it’s unmatched combination of flawless handling, capability, and “2 X You” amplification that gives you the Power to Ride More Trails. Compare it to anything out there, with a motor or without, and we know you’ll agree — Levo SL is THE ULTIMATE TRAIL BIKE.
IT’S ALL ABOUT THE RIDE — When everything works just right a bike disappears when you ride it. Specialized stripped away the mass to keep the Levo SL lean and responsive. It’s tough enough to withstand heavy abuse, but light enough to nail big moves. Its dialed geometry, kinematics, and shock tuning leave nothing desired.
THE FRAME OF REFERENCE — Everything starts here. Lively, precise ride feel. Strategic carbon fiber layup provides super-responsive chassis stiffness. Specialized tuned the entire chassis—front end, rear end, and the link that unifies them—as a single unit to minimize lateral flex under pedaling to harness every bit of pedal force.
GEOMETRY OF CONTROL — The cockpit centers you in the bike, optimizing traction and corner control. The low bottom bracket, slack headtube angle, and reduced fork offset keep things stable in the rough while giving you the freedom to destroy the turns. The head angle can be personalized to, 63, 64.25, and 65.5 degrees.
LESS IS MORE – The Levo SL is greyhound lean and telepathically responsive. Its curated component selection is light, yet capable—for true trail riding. Put it all together and you get the benefits of amplification along with benchmark handling.
MIXED WHEEL — A 29” front wheel ensures stability and surefooted performance in the most hectic terrain, while a 27.5” rear wheel allows for a compact chainstay and super responsive behavior. If you prefer the rolling and traction benefits of a 29” rear wheel, just flip the pivot link chip and mount the big wheel.
TURBO OPERATING SYSTEM — Specialized seamlessly-integrated operating system delivers unmatched performance across torque, range, ride feel, ride quality, power, reliability, and rider experience. It’s the invisible hand that enables you to do more, know more, go farther, feel stronger, and have more fun.
SPECIALIZED SL 1.2 MOTOR — The all new Specialized SL 1.2 motor is whisper quiet, boasts unmatched smoothness, delivers 43% more torque (50Nm), and 33% more power (320 Watts) than its predecessor. Resulting in “2x You” performance; it’s you pedaling, but a side of you only a Levo can bring out.
GO DEEP RANGE — Levo SL features a premium, high quality, and seamlessly integrated 320Wh battery pack. Combined with the efficient motor, you’re set up for long, epic rides of up to 5 hours (in Eco Mode). For longer rides, just slide our 160 Wh Range Extender (sold separately) into your bottle cage—for 50% more range.

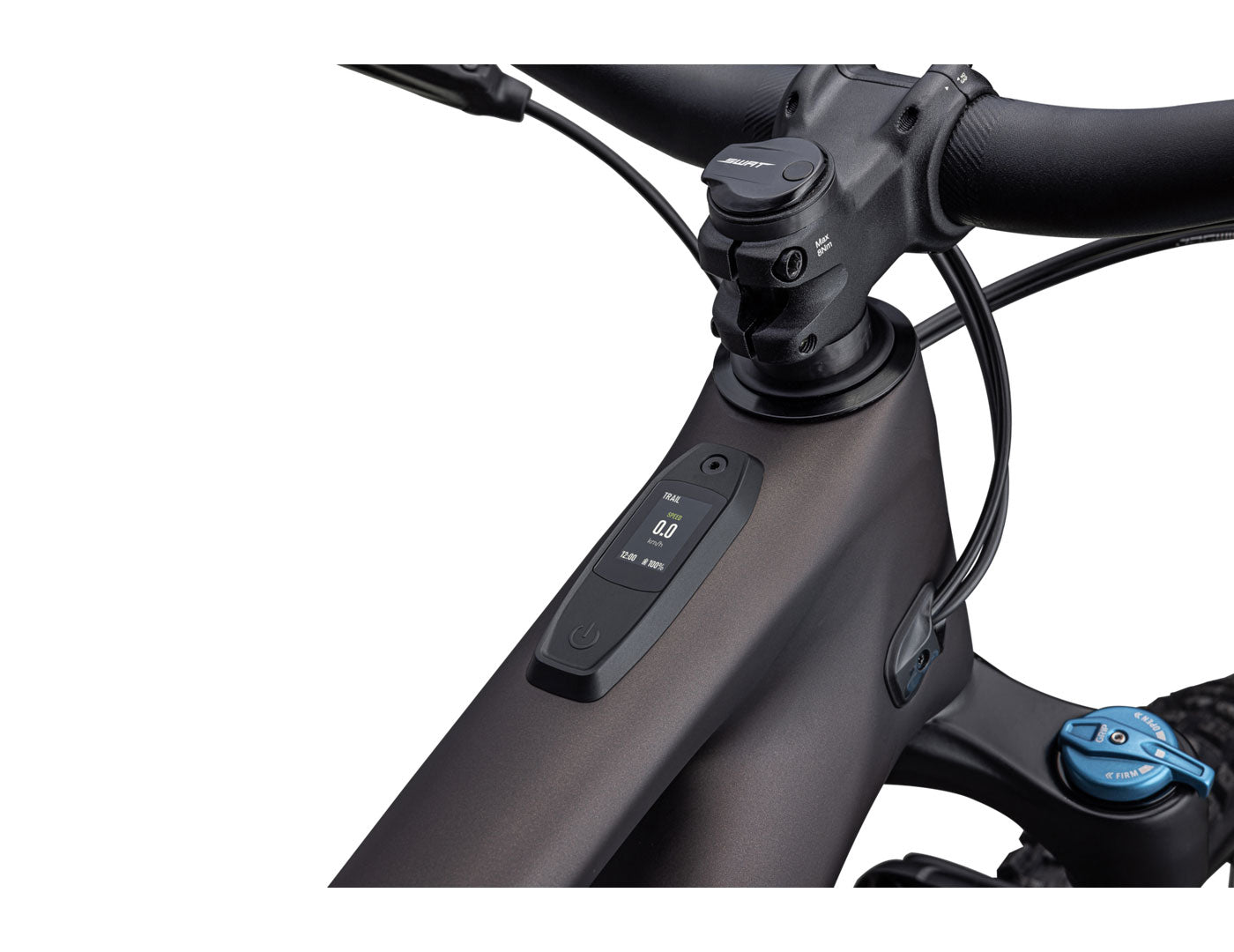

MASTERMIND TCU — Specialized most advanced and intuitive e-bike control unit. Connecting the bike, the Turbo OS, the Specialized app as well as the rider, all in a protected and easily visible display. With MicroTune fine-tuning power output levels in real time is at your fingertips, optimizing range management and performance.
SPECIALIZED APP — The Levo SL integrates fully with Specialized app and lets you personalize your motor characteristics. You can say goodbye to range anxiety with Smart Control, and even thwart would-be thieves with Turbo System Auto-Lock.
Features
- Strategic carbon fiber layup provides super-responsive chassis stiffness
- Adjustable headset can be personalized to, 63, 64.25, and 65.5 degrees
- Mixed wheel configuration - compatible to 29" rear with no extra parts needed
- The all new Specialized SL 1.2 motor is whisper quiet, boasts unmatched smoothness, delivers 43% more torque (50Nm), and 33% more power (320 Watts) than its predecessor
- 320 Wh battery pack allows for up to 5 hours in Eco Mode
- For longer rides, just slide the 160 Wh Range Extender (sold separately) into your bottle cage—for 50% more range
- The Levo SL integrates fully with the Specialized app and lets you personalize your motor characteristics
Tech Specs
Frame Material: | Carbon |
Wheel Size: | Mixed: 29" front/27.5" rear |
Rear Axle Standard: | 12x148mm Boost |
Rear Shock: | S2-S6: Fox Float X Performance series 210x55mm | S1: Fox Float DPS Performance series 210x50mm |
Rear Shock Size: | 210mm x 50mm |
Rear Suspension Travel: | 150mm |
Headset: | Specialized geo adjust |
Fork: | Fox 36 Rhythm, 29" | 44mm offset | Grip damper | S1: 150mm | S2-S6: 160mm travel |
Fork Axle: | 15x110mm Boost |
Wheelset: | Front: Specialized 29" / Rear: Specialized 27.5" |
Front Tire: | Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3" |
Rear Tire: | Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5 x 2.3" |
Crankset: | SRAM Alloy Crankset, Dub interface |
Chainguide: | Integrated top guide |
Chain: | SRAM NX Eagle, 12-speed |
Rear Derailleur: | SRAM GX Eagle, 12-speed |
Cassette: | Sram XG-1275, 12-speed, 10-52t |
Seatpost: | X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 100mm, S2: 125mm, S3: 150mm, S4/S5: 175mm, S6: 190mm |
Seat Post Diameter: | 34.9mm |
Seat Post Clamp Diameter: | 38.6mm |
Seat: | Bridge Comp, Hollow Cr-mo rails, 155/143mm |
Shifters: | SRAM GX, trigger, 12-speed |
Handlebar: | Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm width |
Stem: | Alloy Trail Stem, 35mm bar bore |
Grips: | Specialized Trail Grips |
Brakes: | SRAM Code RS, 4-piston caliper, hydraulic disc, 200mm |
Water Bottle Cage Mounts: | One |
Motor: | New Specialized 1.2 SL Custom Rx Trail Tuned Motor |
Battery: | Specialized SL1-320, fully integrated, 320Wh |
Intended Use: | AM/Enduro, Trail/AM |
Warranty: | Lifetime for frame / 2 years for motor and drive system - must register with Specialized |
Specs subject to change without notice. Please check with manufacturer for the most up-to-date information.
Geometry
mm / inches
Insertion
Sizing
cm / ft
Size | S1 | S2 | S3 | S4 | S5 | S6 |
---|---|---|---|---|---|---|
Rider Height (cm) | 150 - 160 | 157 - 173 | 165 - 180 | 173 - 188 | 178 - 193 | 188 - 203 |
