Specialized

Turbo Levo Comp Alloy

$6,999.00 $5,999.99

95223-5003

1 in stock

Color
Size

Sizing Chart

Don't see the pedal you want? Check out more here.
-
+

In-Store Pickup Only!
Due to our brand's policies, this item is not permitted to be shipped.
Please allow a minimum of 5 business days before pickup.
This conservative time estimate allows our service department to fully check through the bike and make sure everything is built and adjusted to manufacturer's specifications before shipping.

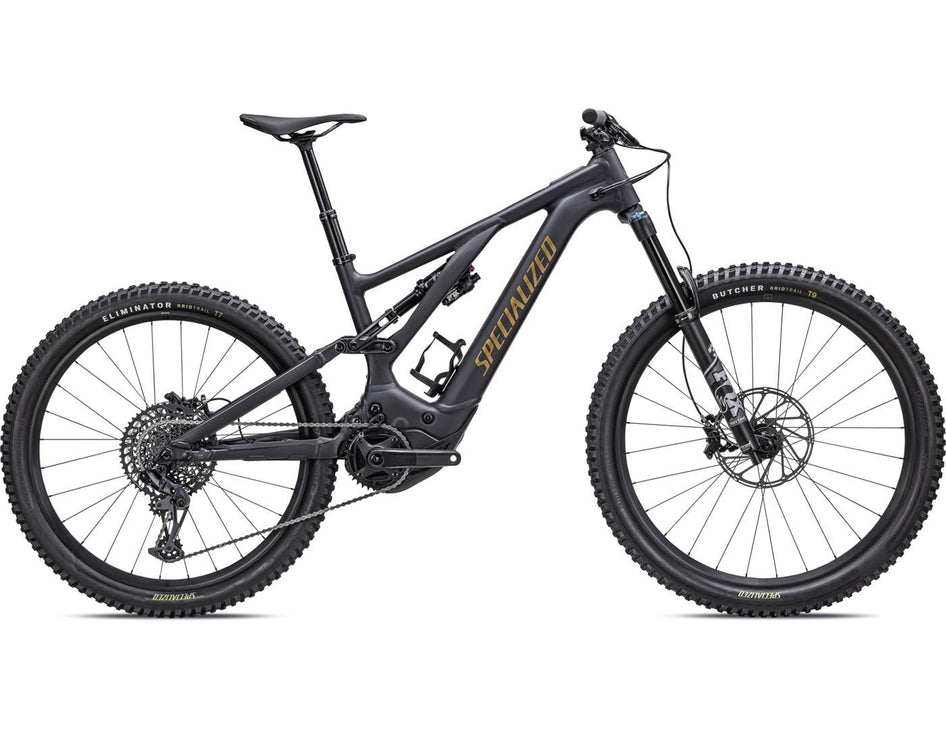

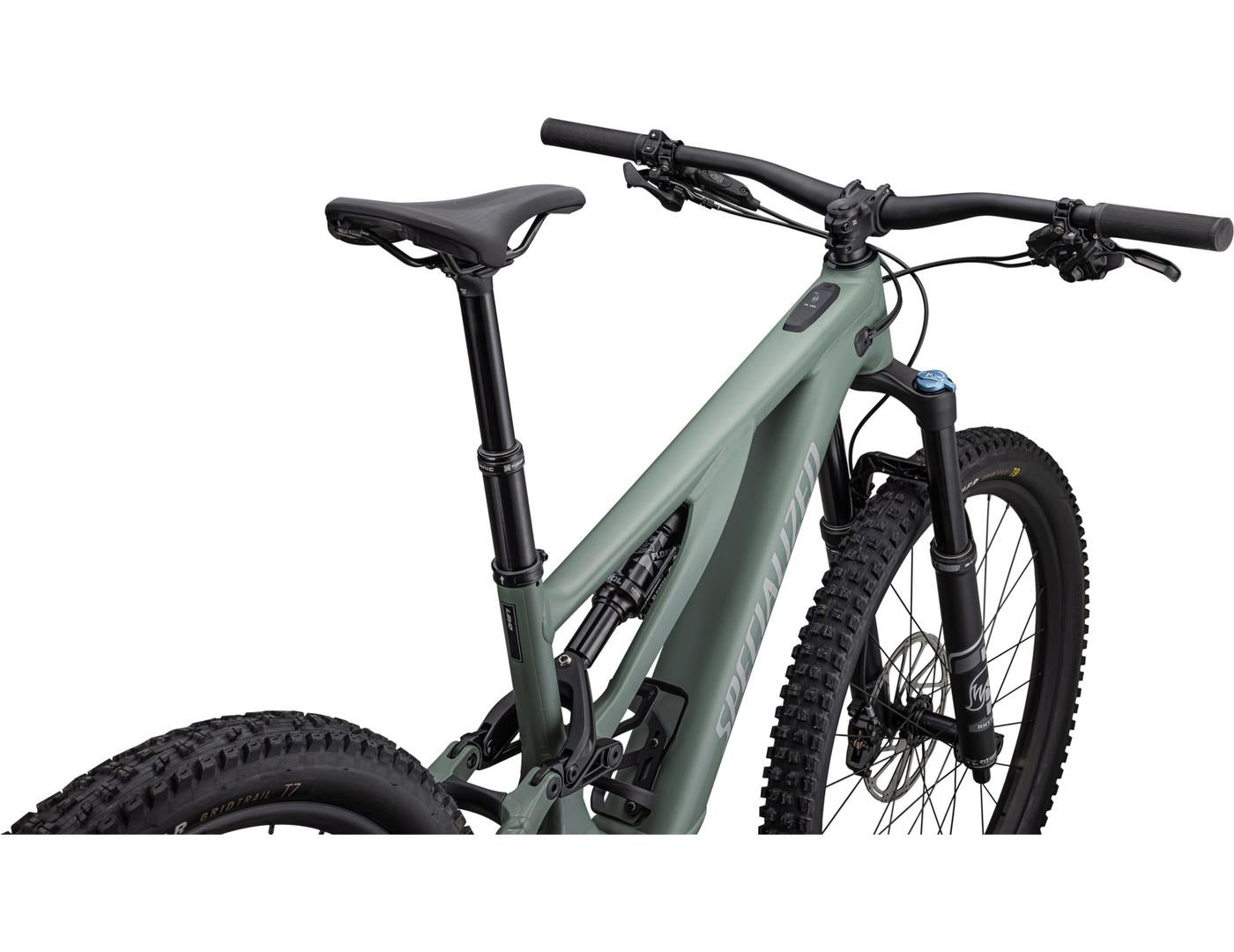

Specialized Turbo Levo Comp Alloy

The Levo delivers the unbelievable power to ride more trails through an unequaled combination of ride quality, usable power, and ride-anywhere range. It’s the distillation, application, and amplification of a 40-year obsession with creating the world’s best riding mountain bikes. Since its introduction, Levo has set the bar every other e-MTB aims for, and the latest Levo raises that bar again.

It starts with our Turbo Full Power 2.2 motor and Master Mind Turbo Connect Unit (TCU), which provide Levo with a smooth and seamless amplification of your efforts—4x you power that lets you choose where to ride, and when you want to do it. Levo also shatters limitations when it comes to range, amplifying your effort for up to five hours of trail time. Now you can ride farther, and explore more, than ever before. And the optimized chassis boasts 150mm of custom-tuned rear suspension and adjustable geometry that delivers a stable and natural ride like no other. Because at the end of the day, it’s the ride that matters. Believe it.

More climbing, more descending, more miles, more fun. Spec’d with a no-fuss SRAM GX/NX drivetrain, trail-taming FOX suspension, and a lightweight, durable alloy wheelset, the Turbo Levo delivers more of everything that you love about trail riding.

    Features

    • The Levo’s S-Sizing is based on what matters—rider size and style, not inseam. Six sizes, all with similar headtube lengths and standover, allow you to choose the size that best suits your individual style. Smaller S-Size numbers are going to be nimble and more flickable, while bigger S-Sizes deliver more stability and a roomier ride.

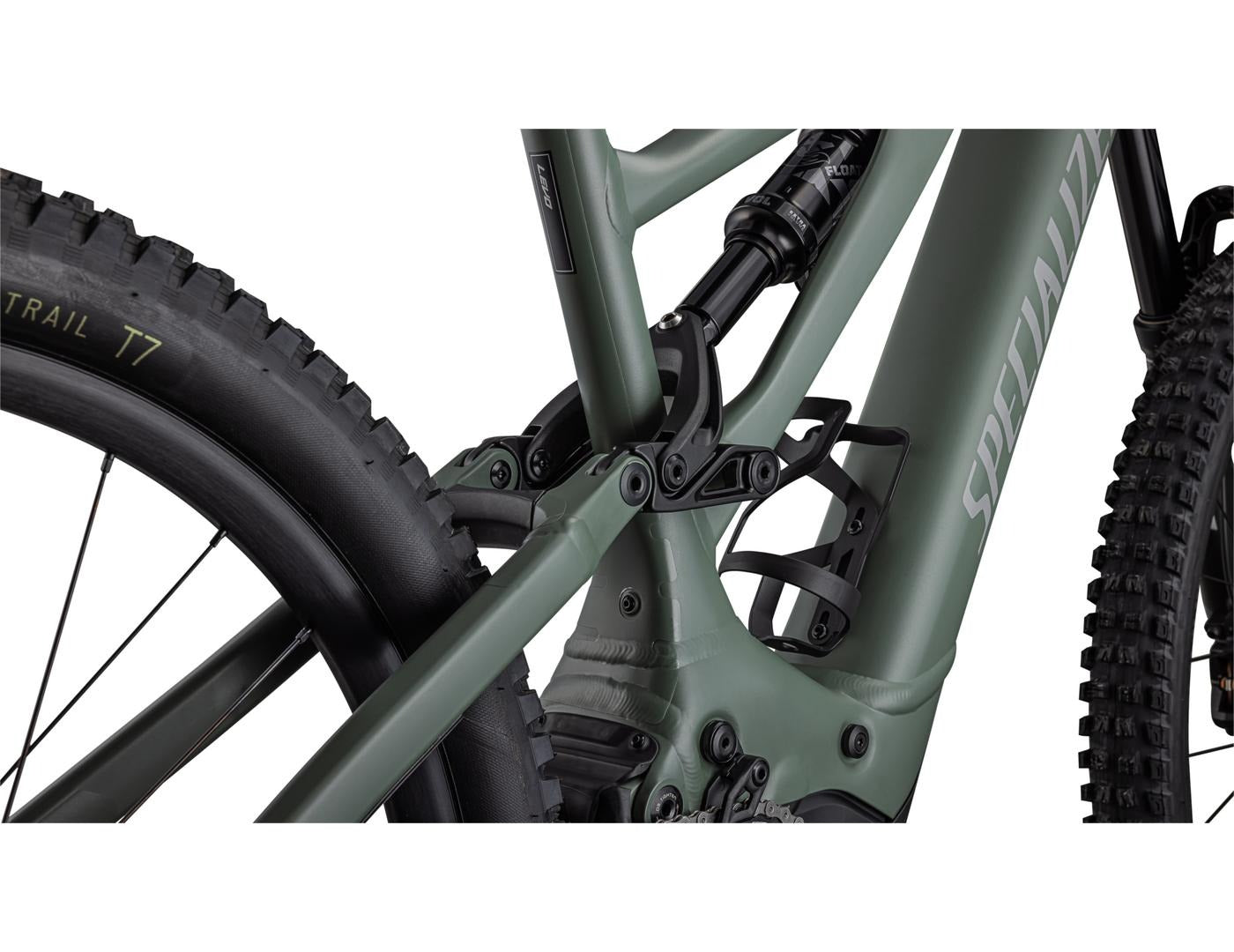

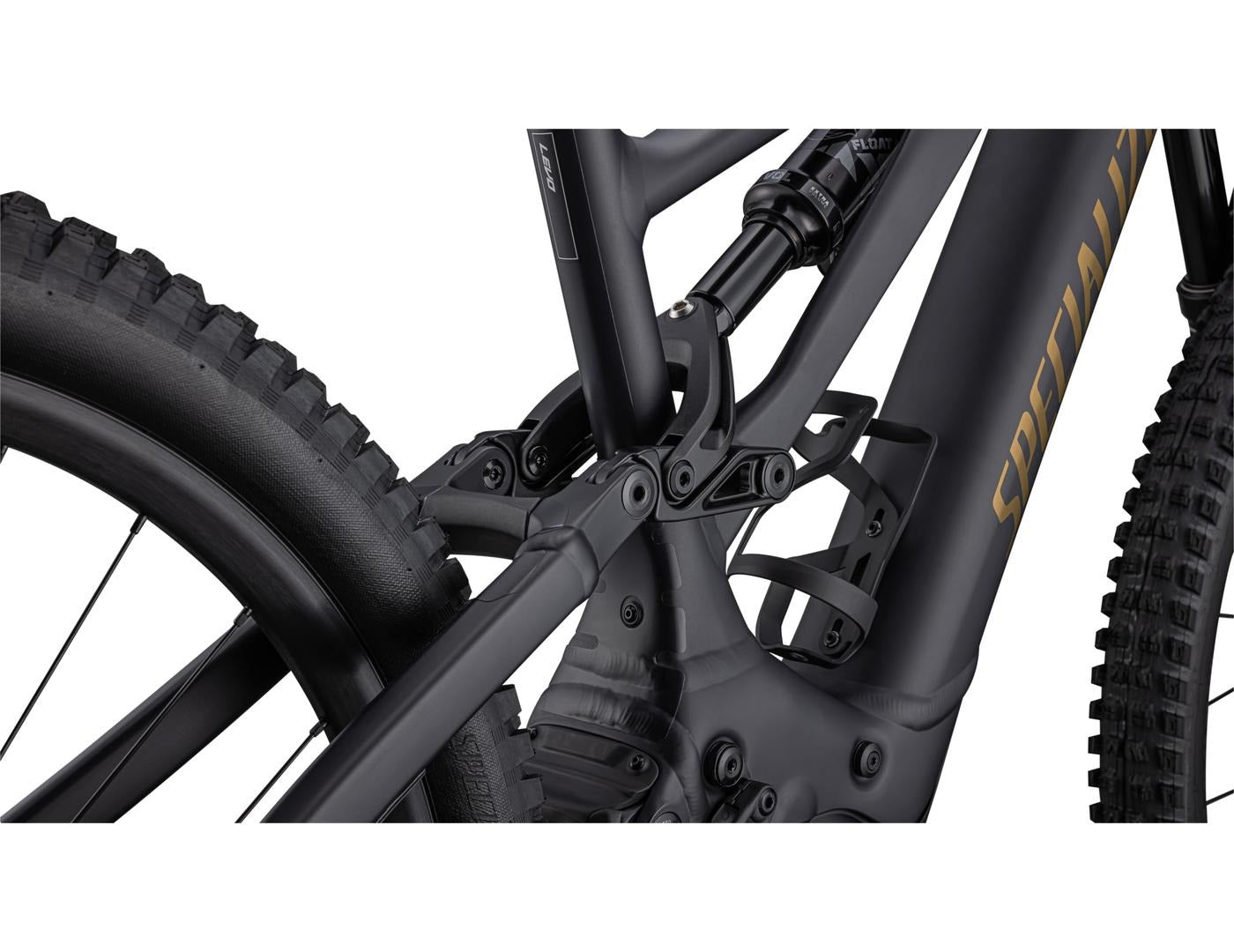

    • Levo’s 150mm of rear travel is supple on small bumps, devours square-edged hits without a twitch, eats massive G-outs for breakfast, yet still offers amazing pedal response and delivers your power to the ground with total efficiency.

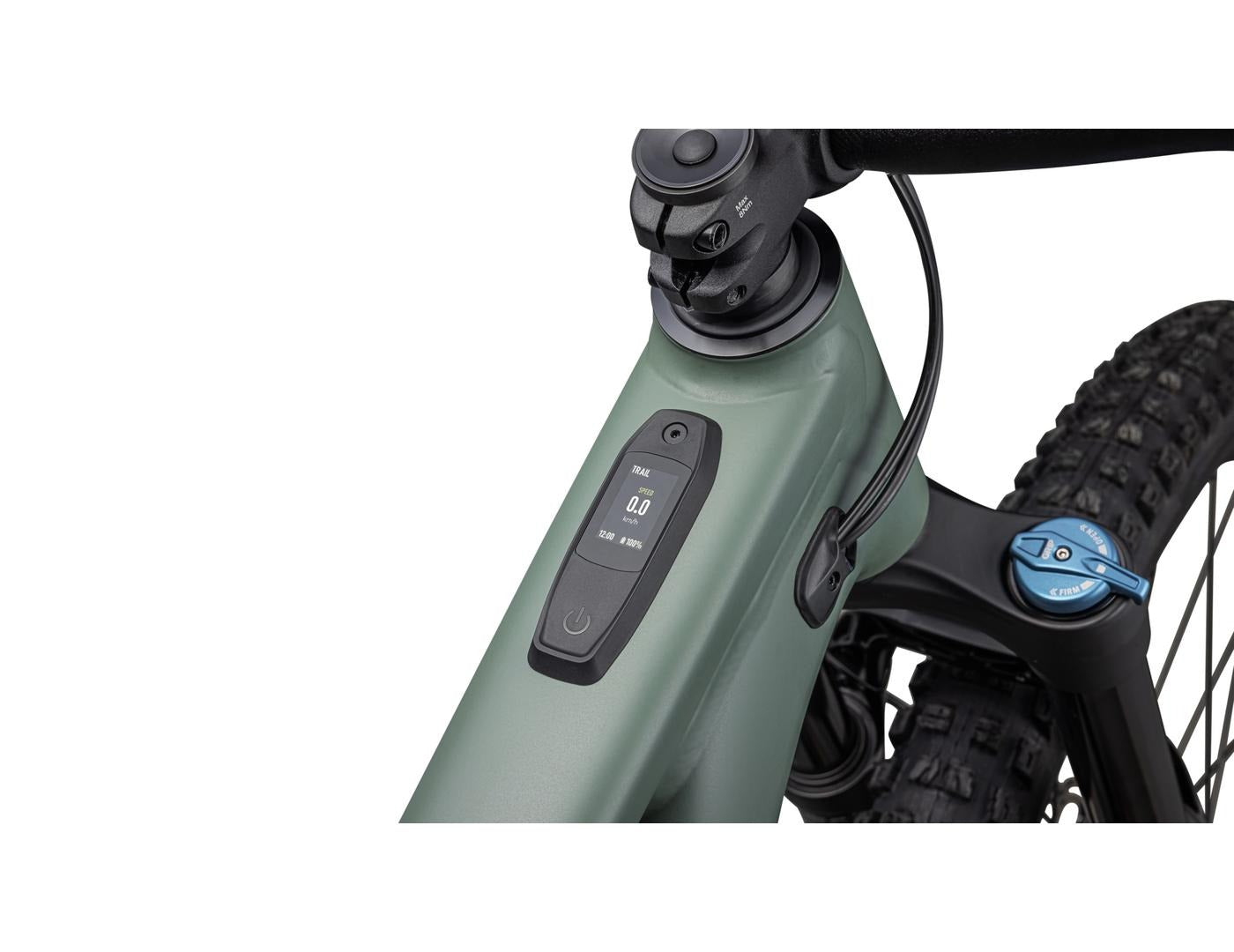

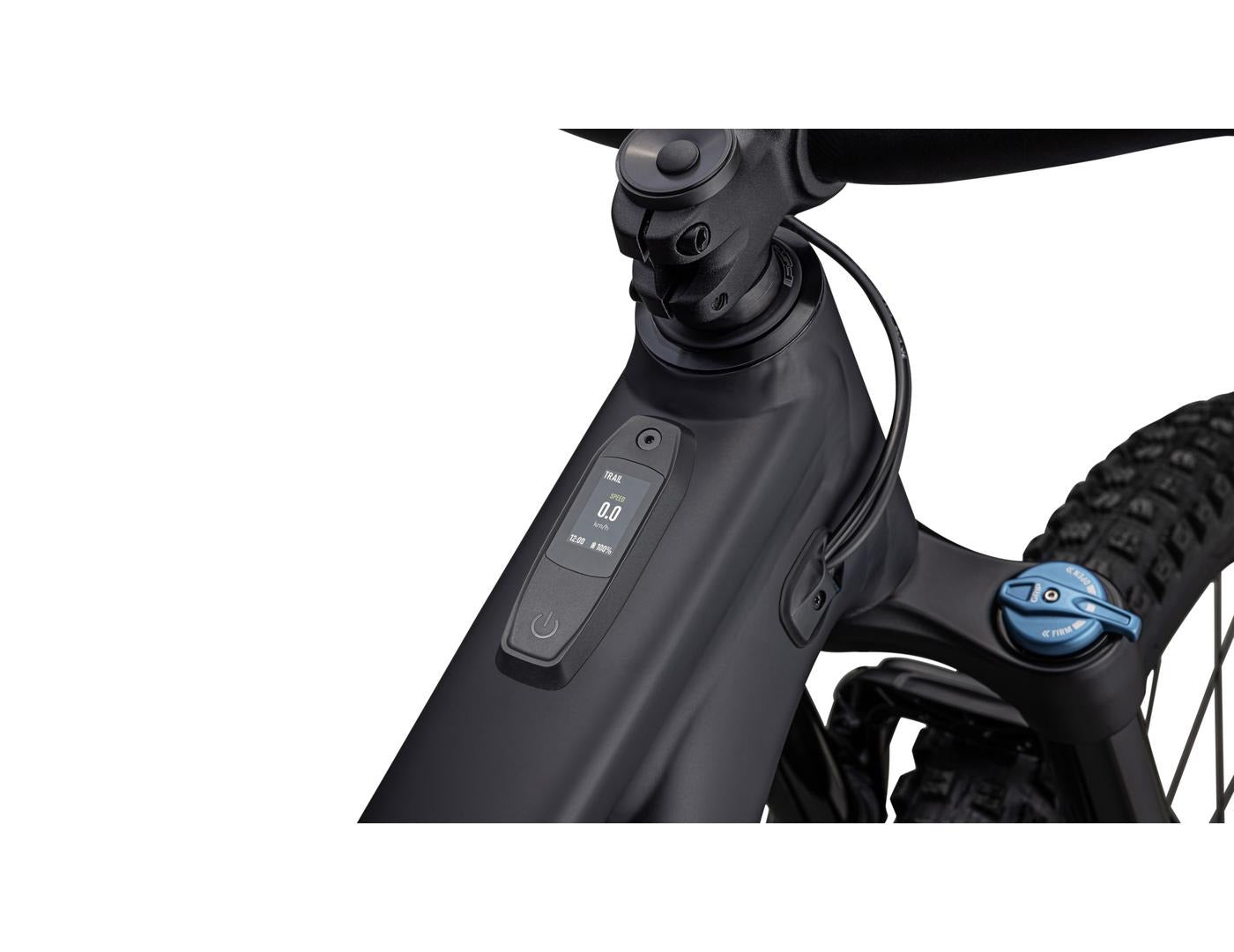

    • The MasterMind Turbo Control Unit is your information hub with customizable display fields, including the exact percentage of battery level, and it features our all-new MicroTune function to adjust power delivery in 10% increments, so you get exactly the support you need to experience precisely the ride you want.
    • Levo offers six distinct geometry settings, allowing you to easily dial-in its performance for any riding style and any terrain. Head tube angle can be adjusted between 63- and 65.5-degrees. Bottom bracket height can be fine-tuned up or down by 7mm.
    • A dedicated mixed-wheel size design with a 27.5” wheel in the back and 29” up front delivers a nimble ride that carves circles around other full-power e-MTBs. A generous cockpit centers you on the bike, optimizing traction and corner control. The low bottom bracket, slack headtube angle and reduced fork offset keep things stable in the rough.

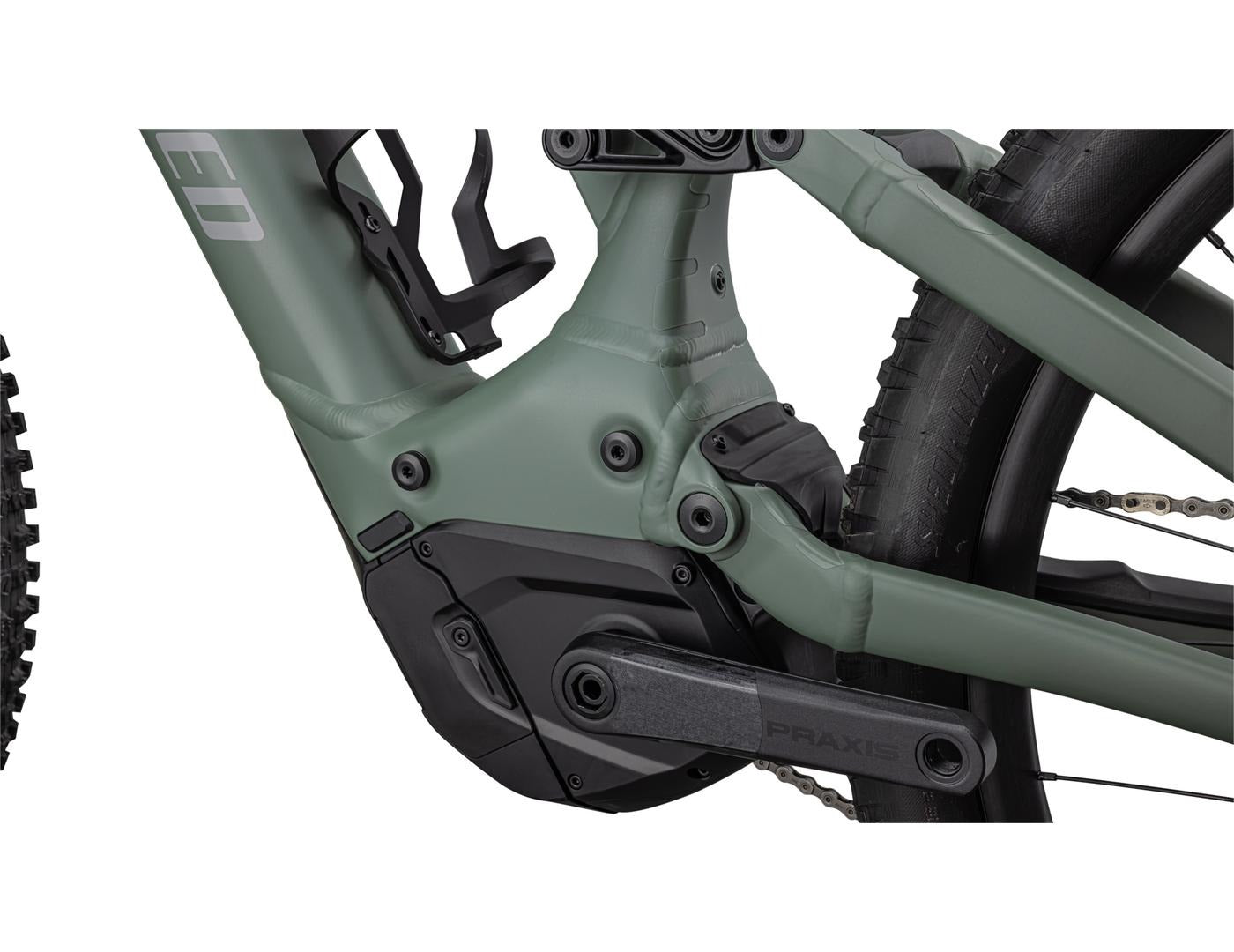

    • Levo’s fully integrated Turbo Full Power 2.2 motor, 700Wh battery, and Turbo Connect Unit deliver category-leading 90 Nm of torque and 565 watts of power for up to five hours of ride time, empowering you to ride farther and faster than ever before.

    Tech Specs

    Frame Material: Aluminum
    Wheel Size: Mixed: 29" front/27.5" rear
    Rear Axle Standard: 12x148mm Boost
    Rear Shock: S1: FOX DPS Performance Series, 3-position lever, rebound adjust, 52.5x210mm | S2-S6: FOX FLOAT X Performance, LSR, 2-position lever, 55x210mm
    Rear Shock Size: 210mm x 55mm
    Rear Shock Hardware: 8x20mm front / Direct mount rear
    Rear Suspension Travel: 150mm
    Headset: Specialized geo adjust
    Fork: Fox Rhythm 36 | S1: 150mm travel | S2-S6: 160mm travel
    Fork Axle: 15x110mm Boost
    Wheelset: Specialized 29 rims / sealed cartridge bearing hubs
    Front Tire: Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.6"
    Rear Tire: Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.6"
    Crankset: Praxis Forged/Custom Offset/ISIS Spindle Interface, 160mm
    Chainguide: Integrated top guide
    Chain: SRAM NX Eagle, 12-speed
    Rear Derailleur: SRAM GX Eagle, 12-speed
    Cassette: Sram XG-1275, 12-speed, 10-52t
    Seatpost: X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 100mm, S2: 125mm, S3: 150mm, S4/S5: 175mm, S6: 190mm
    Seat Post Diameter: 34.9mm
    Seat Post Clamp Diameter: 38.6mm
    Seat: Specialized Bridge Comp, Hollow Cr-mo rails, 155/143mm
    Shifters: SRAM GX Eagle, trigger, 12-speed

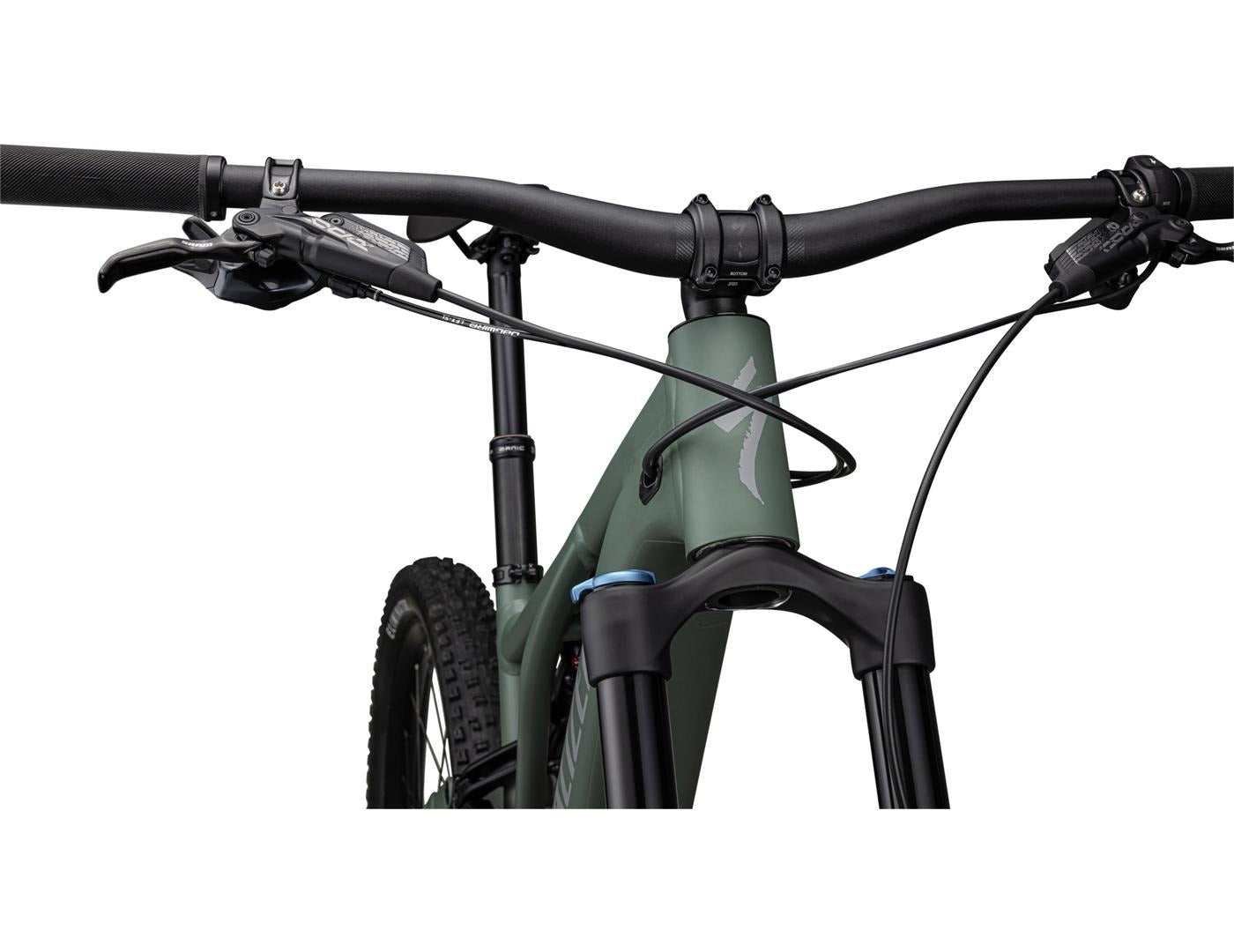

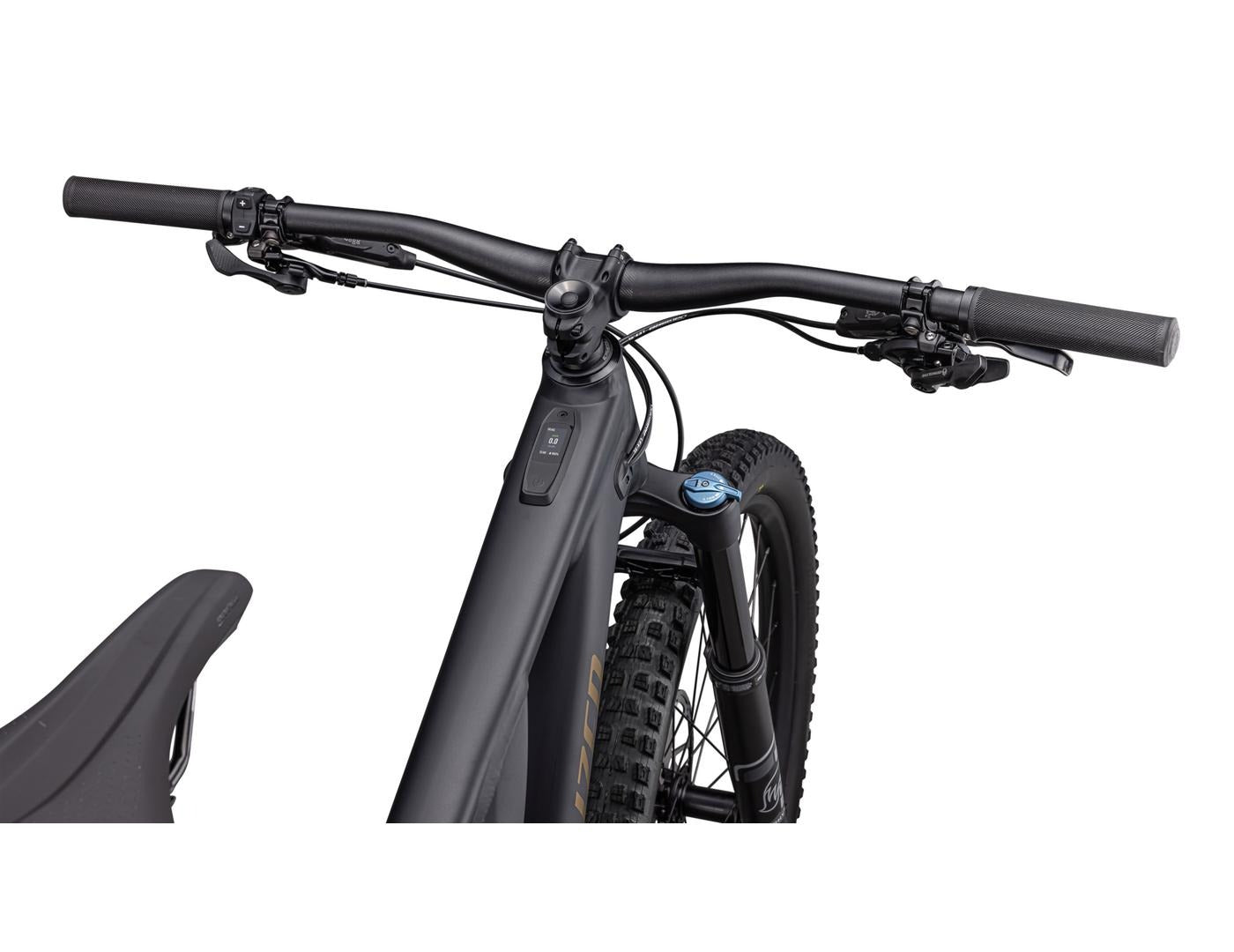

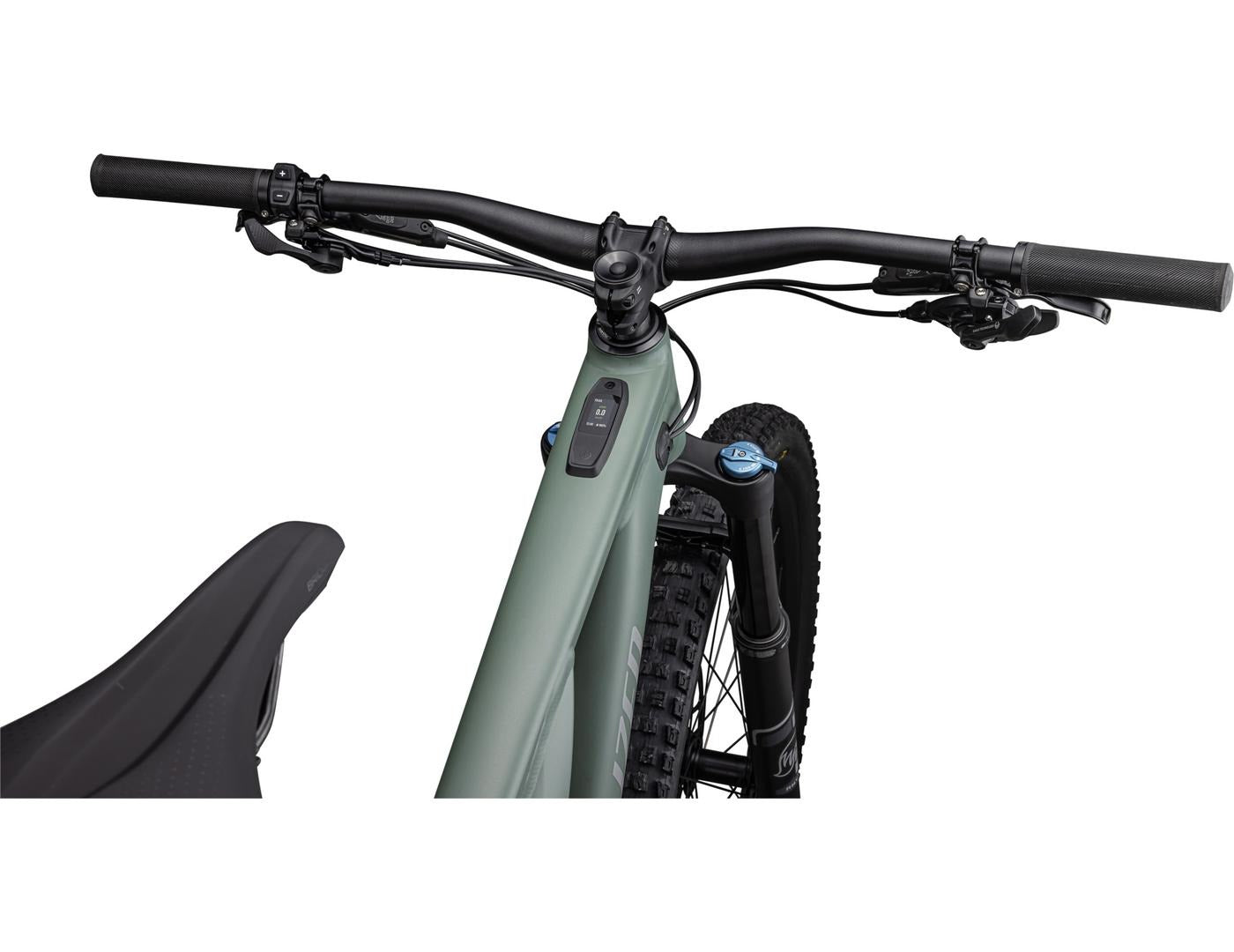

    Handlebar: Specialized 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm width
    Stem: Specialized Alloy Trail Stem, 35mm bar bore
    Grips: Specialized Trail Grips
    Brakes: SRAM Code R | 4-piston caliper | hydraulic disc | Front rotor: S1-S3: 200mm, S4-S6: 220mm | Rear rotor: 200mm
    Water Bottle Cage Mounts: One
    Motor: Specialized Turbo Full Power System 2.2 Motor
    Battery: Specialized M3-700, Integrated battery, 700Wh
    Intended Use: AM/Enduro
    Warranty: Lifetime for frame / 2 years for motor and drive system - must register with Specialized

    Specs subject to change without notice. Please check with manufacturer for the most up-to-date information.

    Geometry

    mm / inches

    Neutral 0°

    Size
    Seat Tube
    Reach
    BB Height
    BB Drop
    Head Angle
    Seat Angle
    Standover
    Chainstay
    Head Tube
    Wheelbase
    Trail
    Stack
    Seatpost
    Insertion
    S1
    380
    412
    352
    25
    64.5
    78
    752
    442
    105
    1179
    130
    605
    210
    S2
    390
    432
    350
    27
    64.5
    77.2
    776
    442
    105
    1200
    130
    617
    220
    S3
    405
    452
    350
    27
    64.5
    76.7
    783
    442
    115
    1225
    130
    626
    240
    S4
    425
    477
    350
    27
    64.5
    76.2
    787
    442
    125
    1255
    130
    635
    255
    S5
    445
    502
    350
    27
    64.5
    76.2
    788
    442
    135
    1284
    130
    644
    275
    S6
    465
    532
    350
    27
    64.5
    76.2
    790
    442
    145
    1318
    130
    653
    295

    Sizing

    cm / ft

    Size S1 S2 S3 S4 S5 S6
    Rider Height (cm) 150 - 160 157 - 173 165 - 180 173 - 188 178 - 193 188 - 203
    Specialized Turbo Levo Comp Alloy: Satin Midnight Shadow / Harvest Gold Metallic / S3: 95223-5003 - Satin Midnight Shadow / Harvest Gold Metallic / S4: 95223-5004 -
