Patrol Carbon Frame
Patrol Carbon Frame Patrol Carbon Frame

Transition

Patrol Carbon Frame

$3,699.00

01.23.10.3411

2690 grams
2730 grams
2770 grams
2810 grams
2690 grams
2730 grams
2770 grams
2810 grams
weight without shock

1 in stock

Color
Size

Sizing Chart

-
+
This frame may only be sold as a complete custom bike
Transition complete custom bikes may only be shipped within the USA

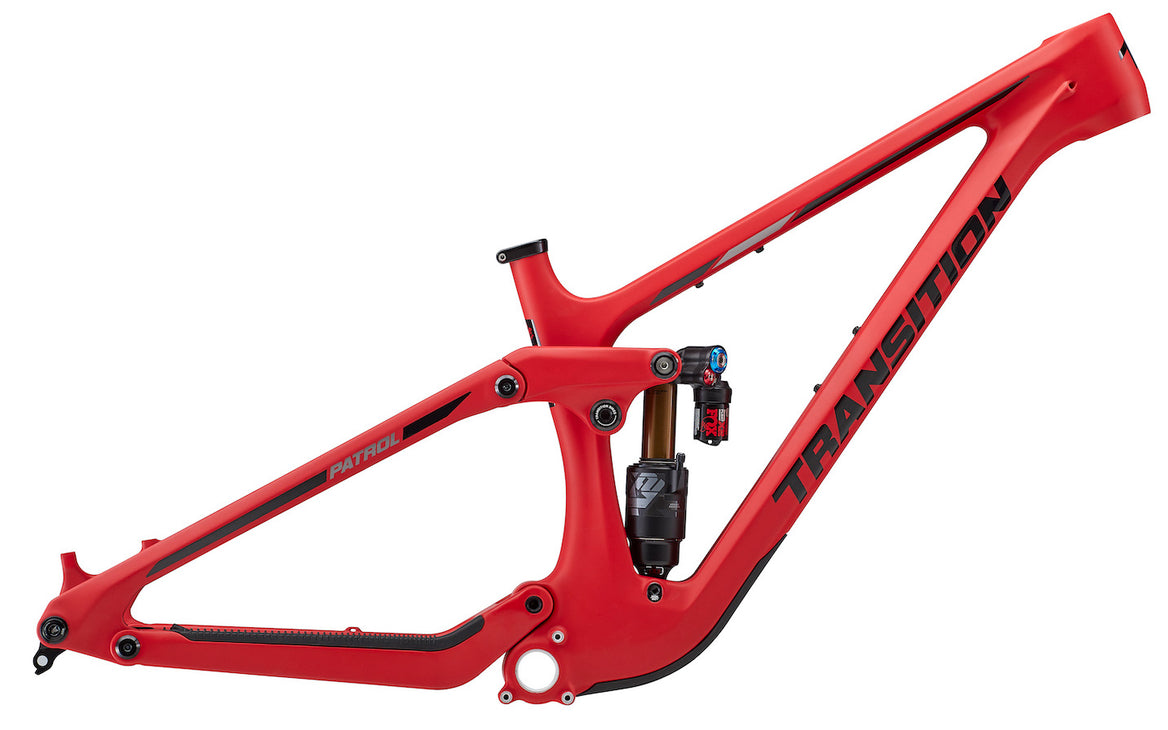

Transition Patrol Carbon Frame

The mixed wheel Patrol has a new haircut but is still down for anything and truly unapologetic when it comes to shredding trail. Being one of the longest standing bikes in Transition's lineup, it was the obvious choice to mix it up. Updated geometry to accommodate the 29" front / 27.5" rear wheels and revised suspension tune might just make you ride all day, and then all night. Jibbing, jumping, pumping and hooting your way down the trail, the updated Patrol loves to party. From bike parks to your local trails, the Patrol isn't concerned with where you ride but rather how much fun you are having.

    Tech Specs

    Frame Material: Carbon
    Wheel Size: Mixed: 29" front/27.5" rear
    Front Suspension Travel: 160-170mm
    Rear Suspension Travel: 160mm
    Rear Shock: Fox Float X2 Factory 2-Pos
    Rear Shock Size: 205mm x 60mm
    Rear Shock Hardware: Trunnion Mount Top / 30mm x 8mm Bottom
    Rear Axle Width: 12x148mm Boost
    Included Headset: FSA NO.55R/57
    Headset Standard: ZS56mm/ZS56mm
    BB Standard: 73mm BSA
    ISCG Tabs: ISCG '05 3-Bolt
    Brake Mount Type: Post-Mount 180mm
    Max Rear Rotor Size: 223mm
    Maximum Chainring Size: 34T
    Chainline: 52mm
    Seat Post Diameter: 31.6mm
    Seat Clamp Diameter: 37mm
    Water Bottle Cage Mounts: One
    Intended Use: AM/Enduro
    Warranty: Lifetime for original owner

    Specs subject to change without notice. Please check with manufacturer for the most up-to-date information.

    Geometry

    mm / inches

    High Geo with 160mm fork

    Size
    Seat Tube
    Top Tube
    Reach
    BB Height
    Head Angle
    Seat Angle
    Standover
    Chainstay
    Head Tube
    Wheelbase
    Stack
    SM
    360
    540
    420
    340
    63.5
    79.6
    675
    434
    100
    1196
    623
    MD
    390
    575
    455
    340
    63.5
    78.8
    690
    434
    100
    1231
    623
    LG
    430
    603
    480
    340
    63.5
    78.1
    705
    440
    110
    1266
    632
    XL
    460
    636
    510
    340
    63.5
    77.5
    77.5
    440
    120
    1301
    641

    Low Geo with 160mm fork

    Size
    Seat Tube
    Top Tube
    Reach
    BB Height
    Head Angle
    Seat Angle
    Standover
    Chainstay
    Head Tube
    Wheelbase
    Stack
    SM
    360
    543
    415
    333
    63
    79.1
    685
    436
    100
    1198
    628
    MD
    390
    578
    450
    333
    63
    78.3
    700
    436
    100
    1233
    628
    LG
    430
    606
    475
    333
    63
    77.6
    715
    442
    110
    1268
    637
    XL
    460
    639
    505
    333
    63
    77
    730
    442
    120
    1303
    646

    Sizing

    cm / ft

    Size SM MD LG XL
    Rider Height (cm) 155 - 169 165 - 180 177 - 190 185 - 200
    Transition Patrol Carbon Frame: Bonfire Red / MD: 01.23.10.3413 - Bonfire Red / LG: 01.23.10.3415 - Moonshadow / SM: 01.23.10.3410 - Moonshadow / MD: 01.23.10.3412 - Moonshadow / LG: 01.23.10.3414 - Moonshadow / XL: 01.23.10.3416
