Spire Carbon Frame
Spire Carbon Frame Spire Carbon Frame

Transition

Spire Carbon Frame

$3,699.00

Out of Stock

01.21.10.4511

2293 grams
2423 grams
2543 grams
2583 grams
2930 grams
2293 grams
2423 grams
2543 grams
2583 grams
2930 grams
weight without shock
Color
Size

Sizing Chart

-
+
This frame may only be sold as a complete custom bike
Transition complete custom bikes may only be shipped within the USA

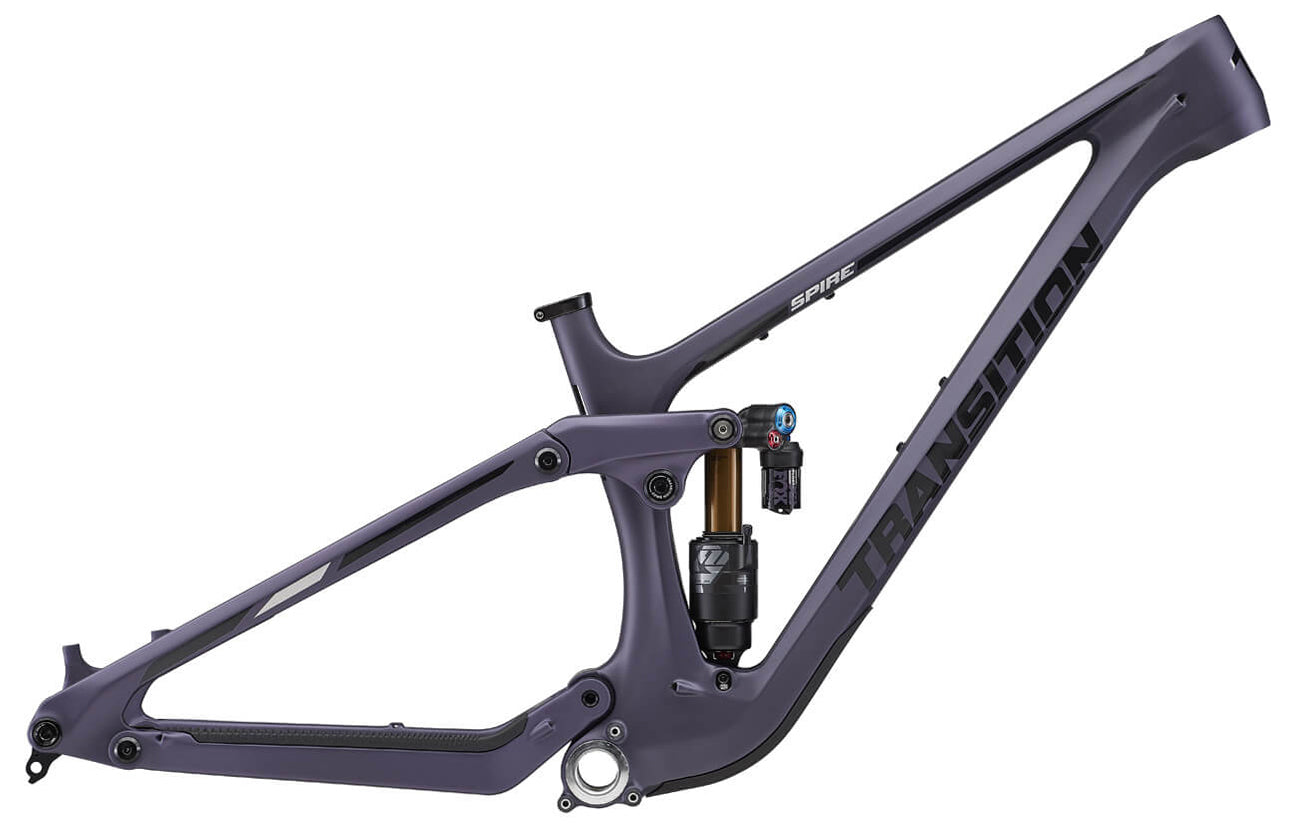

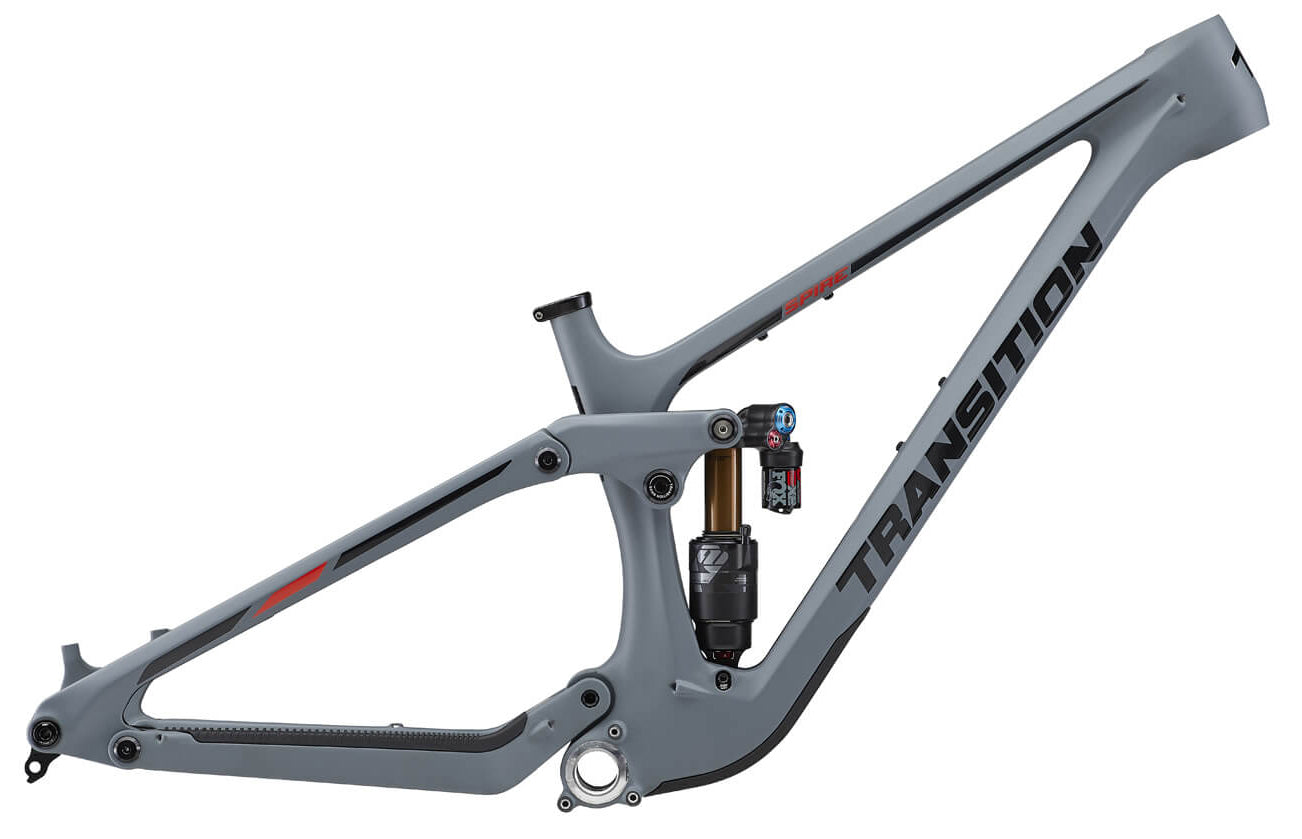

Transition Spire Carbon Frame

Take on the biggest terrain without the penalty, Long travel doesn’t have to mean single purpose.

The Spire blends DH bike capability with mid-travel efficiency in such a way it’s almost two bikes in one. A delicately tuned pedaling and pumping platform, super supple beginning stroke sensitivity and all the travel you could ask for makes for a mind bending ride. Happily climb up to your favorite challenging descent, then cruise on over to your local flow trail and you’ll be rewarded on both ends of the spectrum. Don’t be fooled though, while it’s no one-trick pony, the Spire lives to push your limits. Get in-Spired.

  • The Spire carbon uses premium Japanese Toray fiber using a unique latex coated EPS molding process to create tighter edge radius control using less material.
  • Collet main pivot technology improves rear end stiffness and keeps your pivot hardware tight. Additional bearing shields prevent main pivot bearing contamination when washing your bike or riding in wet conditions.
  • Fully integrated flush-mounted rubber frame protection
  • Geo Adjust Chip: change the attitude of your bike with a simple flip of a chip.
  • The Spire has two size specific chainstay lengths to provide balanced handling and rider weight distribution across the range of sizes.
  • EnduroMAX suspension pivot bearings in standard sizes
  • Gear accessory mount on the underside of toptube.
  • 180mm dual crown fork compatible
  • Coil shock compatible

In the box

  • Spire Carbon Frame
  • FSA ZS56/ZS56 headset
  • Axle and derailleur hanger

    Tech Specs

    Frame Material: Carbon
    Wheel Size: 29"
    Front Suspension Travel: 170-180mm
    Rear Suspension Travel: 170mm
    Rear Shock: Fox Float X2 Factory 2-Pos
    Rear Shock Size: 205mm x 65mm
    Rear Shock Hardware: Trunnion Mount Top / 30mm x 8mm Bottom
    Rear Axle Width: 12x148mm Boost
    Included Headset: FSA
    Headset Standard: ZS56mm/ZS56mm
    BB Standard: 73mm BSA
    ISCG Tabs: ISCG '05 3-Bolt
    Brake Mount Type: Post-Mount 180mm
    Max Rear Rotor Size: 223mm
    Maximum Chainring Size: 34T
    Chainline: 52mm
    Maximum Tire Size: 2.6"
    Seat Post Diameter: 31.6mm
    Seat Clamp Diameter: 37mm
    Water Bottle Cage Mounts: One
    Intended Use: DH/FR, AM/Enduro
    Warranty: Lifetime

    Specs subject to change without notice. Please check with manufacturer for the most up-to-date information.

    Geometry

    mm / inches

    High Geo - 170mm fork

    Size
    Seat Tube
    Top Tube
    Reach
    BB Height
    BB Drop
    Head Angle
    Seat Angle
    Standover
    Chainstay
    Head Tube
    Wheelbase
    Stack
    SM
    360
    547
    430
    350
    25
    63
    79.6
    685
    446
    100
    1227
    619
    MD
    390
    577
    460
    350
    25
    63
    78.8
    700
    446
    100
    1257
    619
    LG
    430
    605
    485
    350
    25
    63
    78.1
    715
    446
    110
    1287
    628
    XL
    460
    633
    510
    350
    25
    63
    77.5
    730
    452
    120
    1322
    637
    XXL
    490
    661
    535
    350
    25
    63
    77.2
    745
    452
    130
    1352
    646

    Low Geo - 170mm fork

    Size
    Seat Tube
    Top Tube
    Reach
    BB Height
    BB Drop
    Head Angle
    Seat Angle
    Standover
    Chainstay
    Head Tube
    Wheelbase
    Stack
    SM
    360
    550
    425
    343
    32
    62.5
    79.1
    680
    448
    100
    1229
    624
    MD
    390
    580
    455
    343
    32
    62.5
    78.3
    695
    448
    100
    1259
    624
    LG
    430
    608
    480
    343
    32
    62.5
    77.6
    710
    448
    110
    1289
    633
    XL
    77
    636
    505
    350
    32
    62.5
    77
    725
    454
    120
    1324
    642
    XXL
    490
    634
    530
    343
    32
    62.5
    76.7
    740
    454
    130
    1354
    651

    Sizing

    cm / ft

    Size SM MD LG XL XXL
    Rider Height (cm) 155 - 168 168 - 179 178 - 188 187 - 198 192 - 204
    Transition Spire Carbon Frame: Primer Grey / SM: 01.21.10.4511 - Primer Grey / MD: 01.21.10.4513 - Primer Grey / LG: 01.21.10.4515 - Primer Grey / XL: 01.21.10.4517 - Primer Grey / XXL: 01.21.10.4519 - Huckleberry / SM: 01.21.10.4510 - Huckleberry / MD: 01.21.10.4512 - Huckleberry / LG: 01.21.10.4514 - Huckleberry / XL: 01.21.10.4516 - Huckleberry / XXL: 01.21.10.4518
