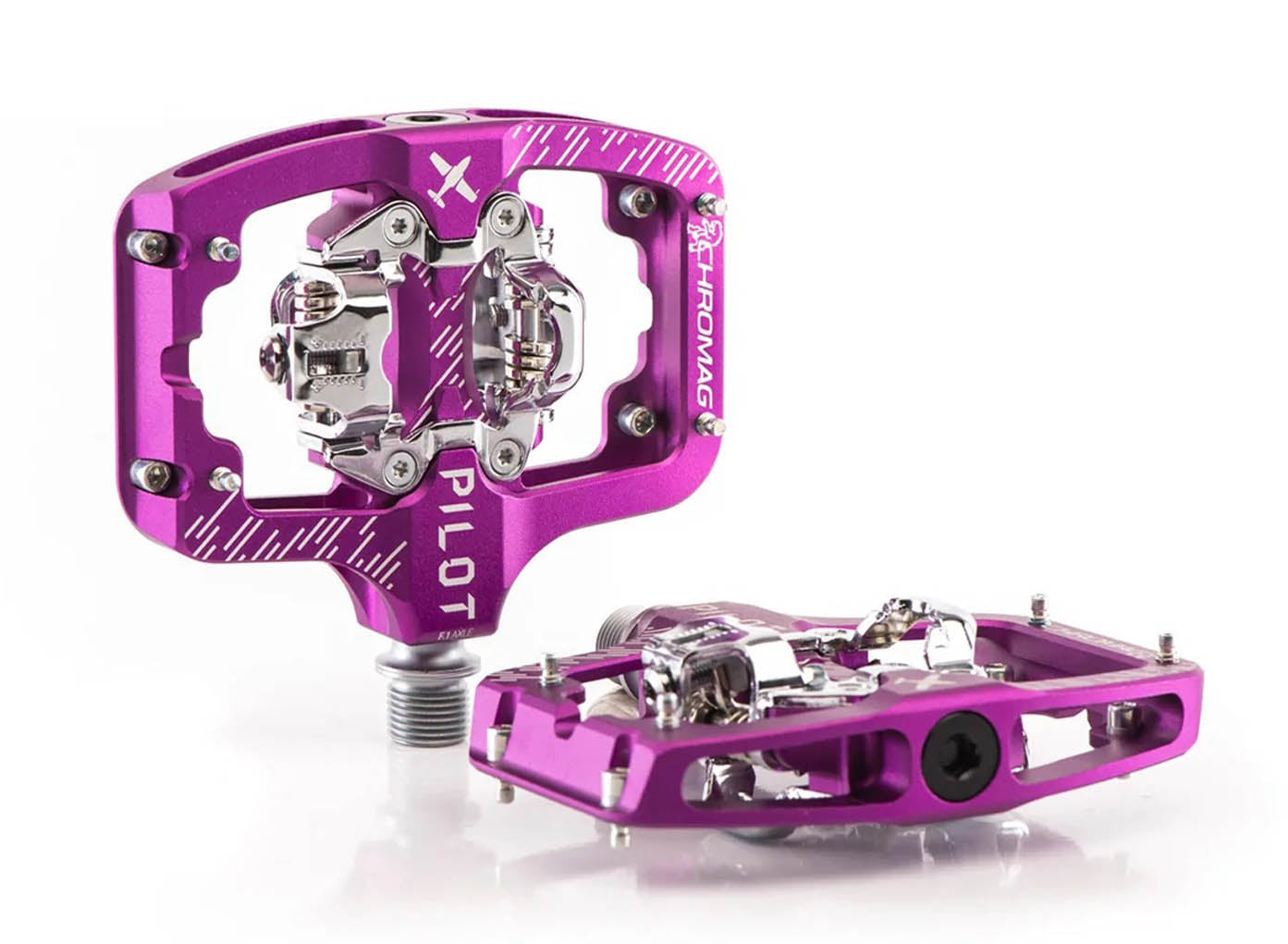

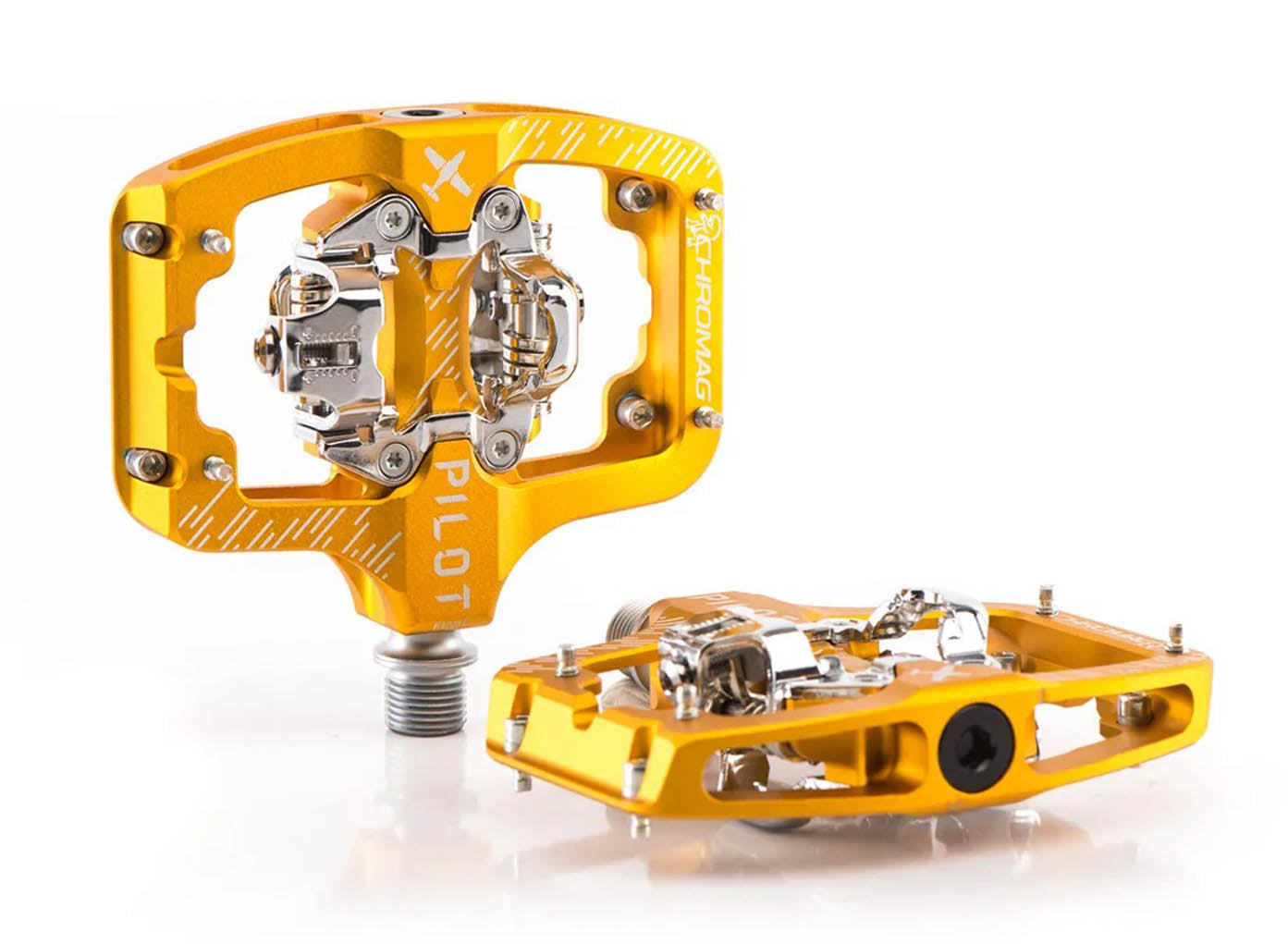

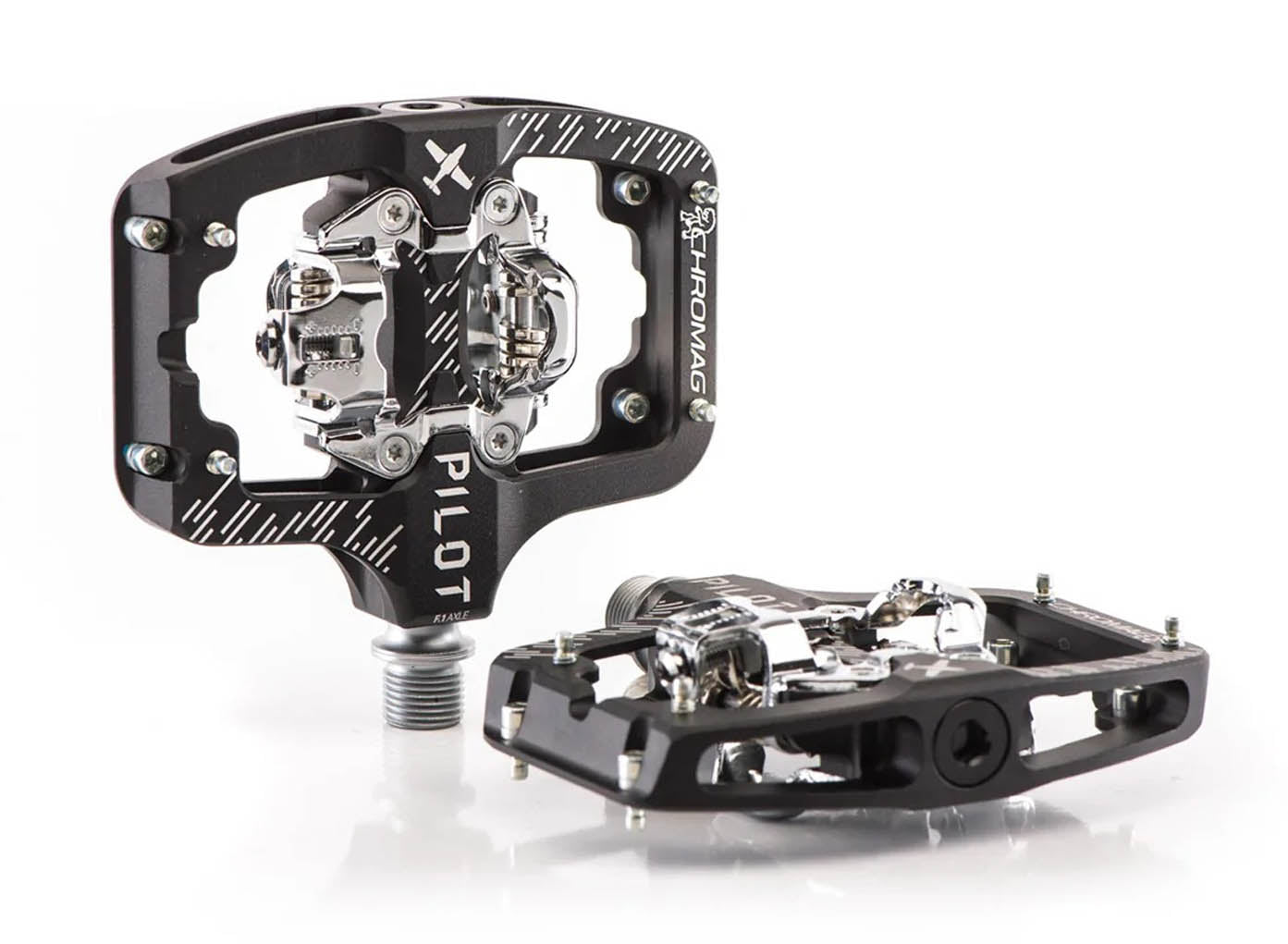

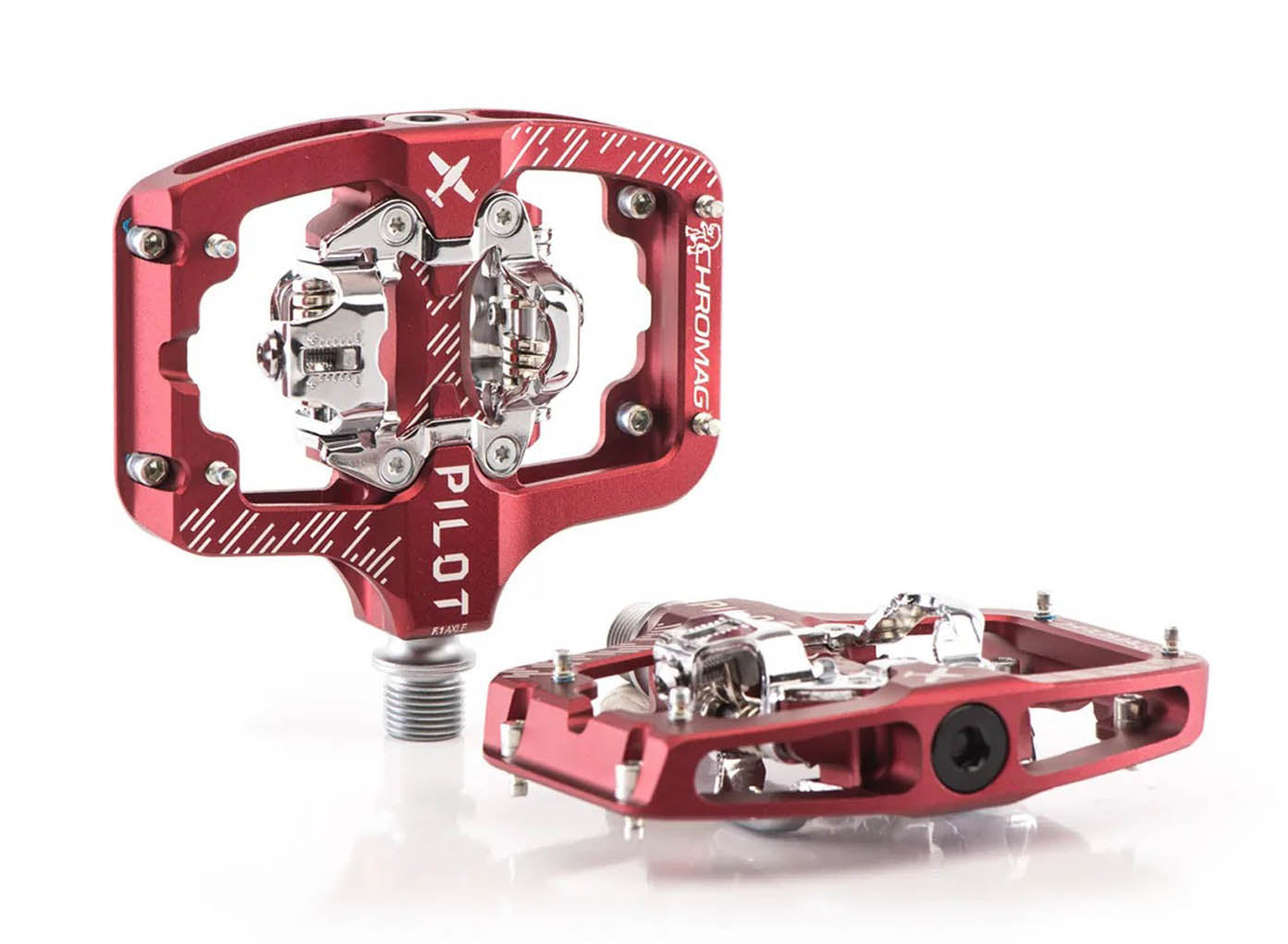

Chromag Pilot Pedals

The Pilot is the union of Chromag's extensive flat pedal design combined with a proven, dual sided SPD compatible cleat engagement system. With a long, 110mm body, the Pilot's pins reach beyond the cleat channel of most shoes to provide a secure 4-point pin contact between shoe and pedal. The Pilot features Chromag's F.1 high-strength chromoly axle system, with a double seal, inner bushing, and outer cartridge bearing.

In the box

  • Chromag Pilot pedals
  • Extra pins and washers
  • SPD cleats, shims and mounting hardware


  • Tried and tested. The Pilot is compatible with all 2-bolt SPD cleats
  • 8 pins per pedal
  • 57.5mm stance
  • 12° release angle

Tech Specs

Platform Size: 87 x 110mm
Bearing Type: Stainless Steel Sealed Cartridge w/ Bushings
Body Material: Aluminum
Axle Material: Chromoly
Replaceable Pins: Yes
Cleat Type: Shimano SPD
Intended Use: MTB
Warranty: 1 year

Specs subject to change without notice. Please check with manufacturer for the most up-to-date information.

Chromag Pilot Pedals: Purple: 180-003-07 - Black: 180-003-06 - Gold: 180-003-09 - Red: 180-003-08 - Blue: 180-003-10
