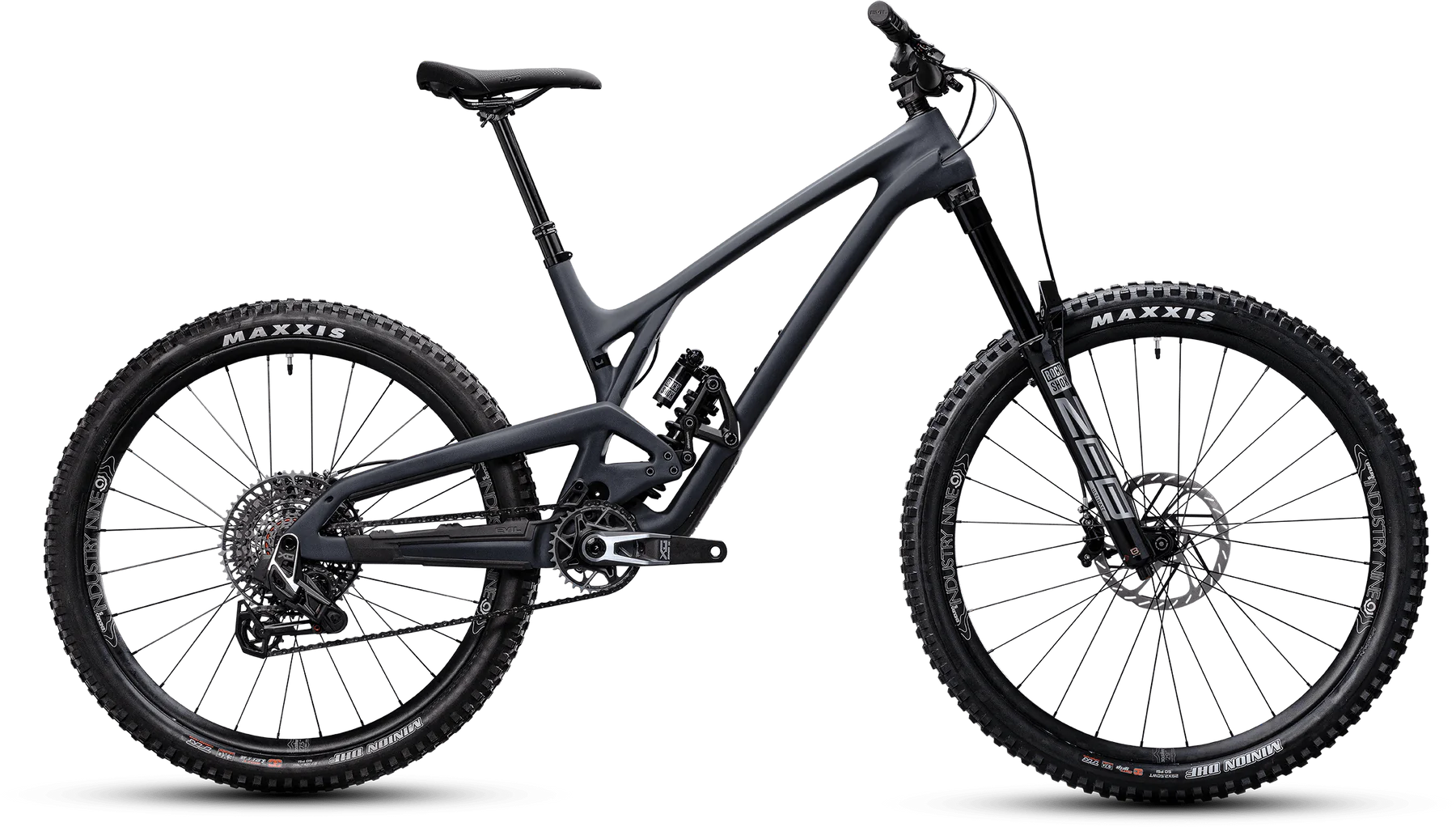

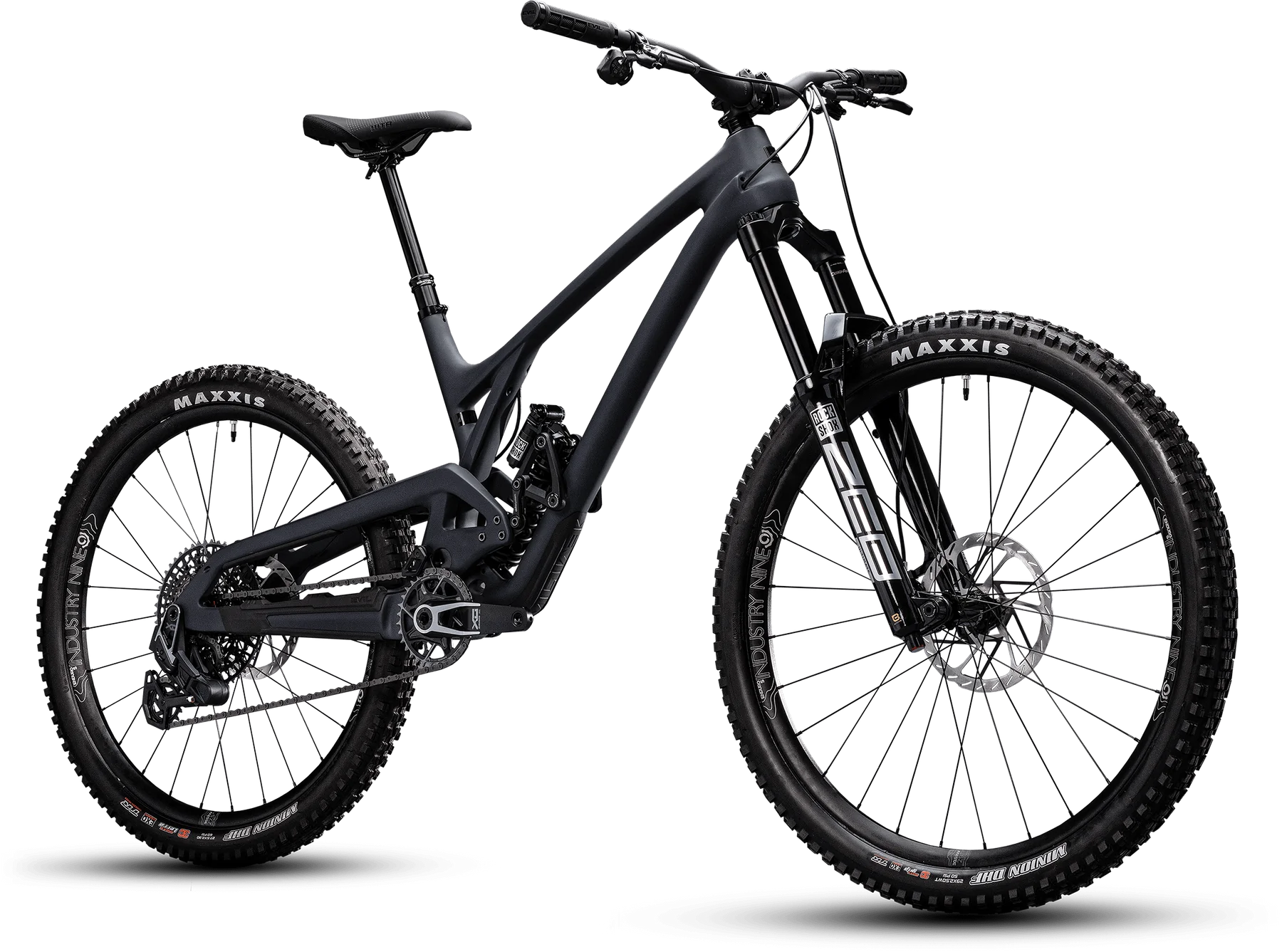

Evil Insurgent LS XO Transmission Complete Bike
The Insurgent LS is the most shape-shifty Evil to date, and no matter the configuration, it’s built for the long send. Sure, you can comfortably pedal it uphill, but gravity is the bullseye that this machine nails every time. With all the best bits of their Wreckoning platform, and a little something extra, the Insurgent will mop up your mistakes and crack open possibilities.
Even their best bikes can be improved and better shred-prepped. They've found a few dark elements to crank up the Insurgent’s DH appetite. Alongside the fresh paint job, They've added SRAM’s Universal Derailleur Hanger that’s easily found at your local bike shop. If the tiny backwoods bike shop has any modern hanger in stock, it’ll be this one.
Riding is always better than wrenching, and their engineers aim to reduce your garage time. They've heard the battle cries over trunnion shock spacers and responded by capturing them in the linkage, so you no longer have to fiddle and fumble when installing shocks.
To top off this bike park battering ram, Evil will offer lifetime bearing warranty for Insurgent LS frames. Original owners can register their bikes on the Evil website. See their warranty site for more details to keep those pivots silky smooth.
In addition to their longest travel and slackest head tube, the Insurgent LS’ 27.5” rear tire provides more tread-to-butt clearance for a lower gravity-stance than any of our other bikes. In addition to shaving grams, the smaller rear wheel gives the bike a touch more agility than our Wreckoning bruiser. Both builds eat trail all day, whether in the park or on rough race tracks, but the Insurgent leans a tad harder toward a daylong park party.
As with all of their models, the Insurgent LS uses Super Boost rear axle spacing and a wide main pivot to render that rear end stiff and flickable. When it’s time to hold a line or land an “uh-oh” these stiff triangles have your back.
Register your Insurgent LS here.
Tech Specs
Frame Material: | Carbon |
Wheel Size: | Mixed: 29" front/27.5" rear |
Rear Axle Standard: | 12x157mm Super Boost |
Rear Shock: | Rockshox Super Deluxe Coil Ultimate, Trunnion, LN L1 HB 38TS, S/M: 350lbs, L/XL 400lbs |
Rear Shock Size: | 205mm x 65mm |
Rear Suspension Travel: | 168mm |
Headset: | Cane Creek 40 Series ZS Integrated Tapered Headset |
Headset Standard: | ZS44mm/ZS62mm |
Fork: | Rockshox Zeb Ultimate, Charger 3.1 RC2 w/ ButterCups, 29” |
Fork Axle: | 15x110mm Boost |
Wheelset: | Industry Nine Enduro S Hydra |
Front Tire: | Maxxis Minion DHF EXO TR, 29x2.5 |
Rear Tire: | Maxxis Minion DHF EXO TR, 27.5x2.3 |
Crankset: | SRAM X0 Eagle Crankset, DUB, 170mm, Direct Mount 32t, 55mm Chainline, Aluminum |
Bottom Bracket: | SRAM DUB, 7.5mm Spacer Drive/3mm Spacer Non-Drive |
BB Standard: | 73mm BSA |
Chain: | SRAM X0 Eagle Transmission Flat Top Chain w/Powerlock, 116 Link |
Rear Derailleur: | SRAM X0 Eagle Transmission Derailleur |
Cassette: | SRAM X0 Eagle Transmission Cassette, 10-52T |
Seatpost: | Bike Yoke Revive, S: 125mm, M: 160mm, L: 185m XL: 213mm |
Seat Post Diameter: | 30.9mm |
Seat Post Clamp Diameter: | 34.9mm |
Seat: | WTB Volt Pro |
Shifters: | SRAM AXS Pod Controller |
Handlebar: | Evil Boomstick Carbon, Backsweep: 8°, Upsweep 5° Clamp:35mm, Rise: 35mm, Width: L/XL - 810mm, S/M - 780mm |
Stem: | Race Face Turbine-R, Clamp: 35mm, Length: 40mm |
Grips: | Evil Palmela Handerson lock-on |
Brakes: | SRAM Maven Silver |
Intended Use: | AM/Enduro |
Specs subject to change without notice. Please check with manufacturer for the most up-to-date information.
Geometry
mm / inches
LOW
X-LOW
Sizing
cm / ft
Size | S | M | L | XL |
---|---|---|---|---|
Rider Height (cm) | 160 - 173 | 168 - 183 | 178 - 193 | 188 - 198 |
