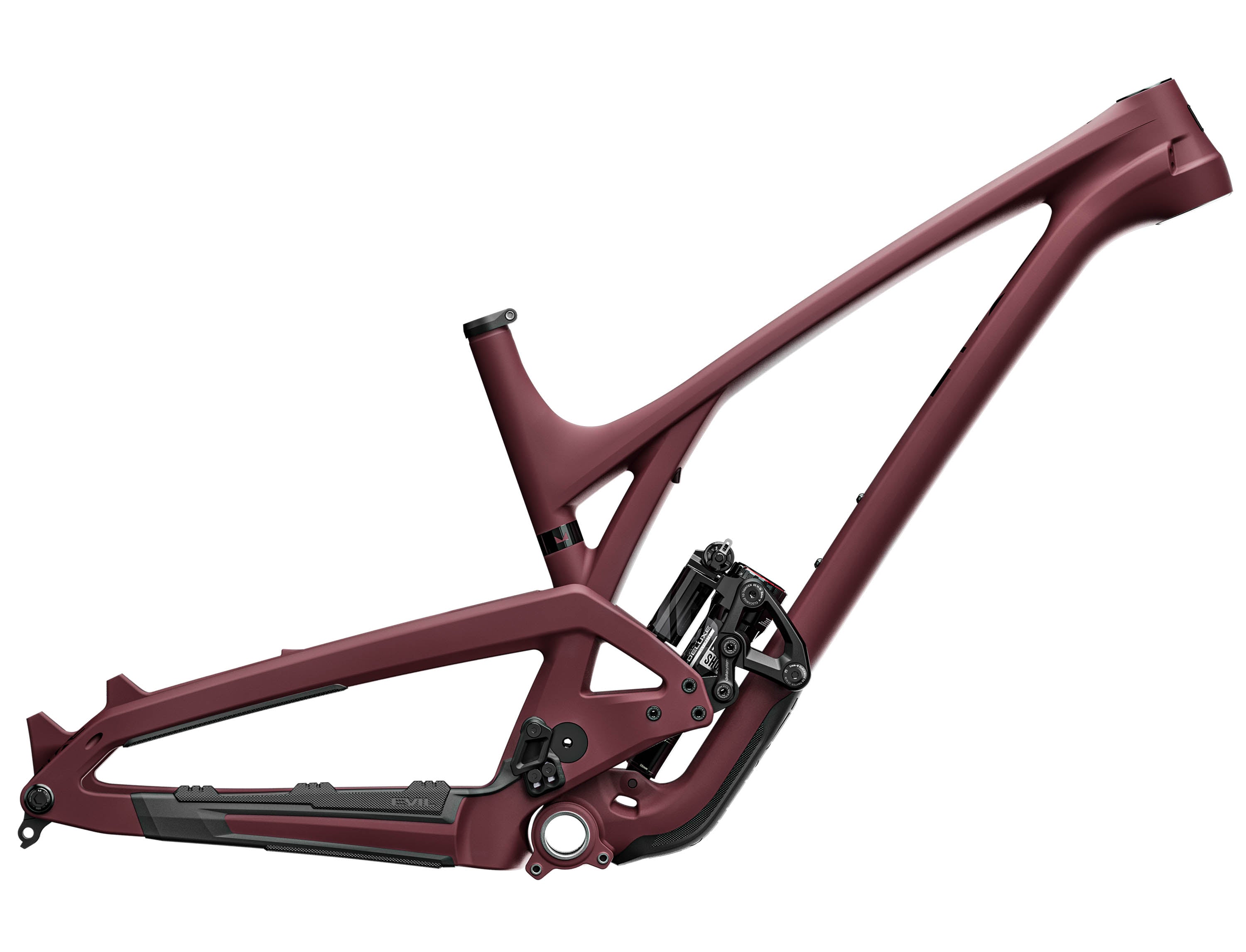

Evil Offering LS Frame
The Dark Lord of Singletrack isn’t a moniker Evil plastered on just any random bike. The Offering LS earned it. Like a versatile Swiss Army Knife, this 141mm 29” trail platform has proven itself more capable than any jumble of geo numbers can describe. Its capabilities bridge conventional genres to bang on a broader drum. Paired with a 150mm fork, the Offering is set to cover all trail types over the whole damn mountain.
Features
- Revised shock mount designed to retain the spacers when removing the shock
- Evil will offer registered frame owners, from 2022+ a free bearing kit once per season
- Low and X-Low geometry settings
- SRAM Universal Derailleur Hanger compatible
- Integrated chainguide is as light as it gets, and removable for those who want even lighter
- Tube within tubes = setup bliss and tidy looks
Tech Specs
| Frame Material: | Carbon |
| Wheel Size: | 29" |
| Front Suspension Travel: | 150mm |
| Rear Suspension Travel: | 141mm |
| Rear Shock: | RockShox Super Deluxe Ultimate |
| Rear Shock Size: | 185mm x 55mm |
| Rear Shock Hardware: | Trunion top, 20x8mm Lower |
| Rear Axle Width: | 12x157mm Super Boost |
| Included Headset: | Cane Creek 40 |
| Headset Standard: | ZS44mm/ZS62mm |
| BB Standard: | 73mm BSA |
| ISCG Tabs: | ISCG '05 2-Bolt |
| Brake Mount Type: | Post-Mount 180mm |
| Max Rear Rotor Size: | 203mm |
| Minimum Chainring Size: | 30T / 32T Oval |
| Maximum Chainring Size: | 36T Round / 34T Oval |
| Maximum Tire Size: | 29" x 2.6" |
| Seat Post Diameter: | 30.9mm |
| Seat Clamp Diameter: | 34.9mm |
| Water Bottle Cage Mounts: | Yes, 1 |
| Intended Use: | AM/Enduro, Trail/AM |
| Warranty: | Limited Lifetime |
Specs subject to change without notice. Please check with manufacturer for the most up-to-date information.
Geometry
mm / inches
Low - Standard Setting
Size
Seat Tube
Top Tube
Reach
BB Height
BB Drop
Head Angle
Seat Angle
Standover
Chainstay
Head Tube
Wheelbase
Trail
Stack
Seatpost
Insertion
Insertion
SM
355
594
448
347
26
66.4
77
672
430
95
1180
115
613
220
MD
390
617
469
347
26
66.4
77
684
430
105
1205
115
622
245
LG
425
639
491
347
26
66.4
77
695
430
115
1231
115
632
305
XL
465
661
512
347
26
66.4
77
706
430
125
1256
115
641
315
X-Low
Size
Seat Tube
Top Tube
Reach
BB Height
BB Drop
Head Angle
Seat Angle
Standover
Chainstay
Head Tube
Wheelbase
Trail
Stack
Seatpost
Insertion
Insertion
SM
355
596
442
339
34
65.8
76
664
432
95
1182
116
618
220
MD
390
619
463
339
34
65.8
76
676
432
105
1207
116
627
245
LG
425
641
485
336
34
65.8
76
687
432
115
1233
116
637
305
XL
465
663
506
339
34
65.8
76
698
432
125
1258
116
646
315
Sizing
cm / ft
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Rider Height (cm) | 160 - 173 | 167 - 183 | 178 - 193 | 188 - 193 |
Evil Offering LS Frame:
Absinthe / SM: OFR-AB-S-SD -
Absinthe / MD: OFR-AB-M-SD -
Absinthe / LG: OFR-AB-L-SD -
Absinthe / XL: OFR-AB-XL-SD -
Reigning Blood / SM: OFR-RB-S-SD -
Reigning Blood / MD: OFR-RB-M-SD -
Reigning Blood / LG: OFR-RB-L-SD -
Reigning Blood / XL: OFR-RB-XL-SD
