Ibis HD6 GX Complete Bike
The HD6 is Ibis' long travel enduro race bike. Designed with input from their Enduro Team, the frame features a unique upper link design that is progressive and coil compatible.
It has a smaller rear wheel, for maximum seat-to-butt clearance (technical term, clearly) and five sizes.
It’s designed for enduro racing, big mountain descents, and Rincon lot legends.
Tech Specs
| Frame Material: | Carbon |
| Wheel Size: | Mixed: 29" front/27.5" rear |
| Rear Axle Standard: | 12x148mm Boost |
| Rear Shock: | Fox Float X2 Factory Series with EVOL |
| Rear Shock Size: | 230mm x 65mm |
| Rear Suspension Travel: | 165mm |
| Headset: | Cane Creek 40 ZS44/ZS56 |
| Headset Standard: | ZS44mm/ZS56mm |
| Fork: | Fox Float 38 Factory Series |
| Fork Axle: | 15x110mm Boost |
| Wheelset: | Blackbird Send Alloy 32 Hole |
| Front Tire: | Maxxis Assegai 29” x 2.5” |
| Rear Tire: | Maxxis DHR 27.5” x 2.4” |
| Crankset: | SRAM NX Eagle |
| Chainguide: | MRP AMg SE |
| Bottom Bracket: | SRAM DUB BSA |
| BB Standard: | 73mm BSA |
| Chain: | SRAM NX Eagle |
| Rear Derailleur: | SRAM GX Eagle |
| Cassette: | SRAM XG 1275, 10-52T |
| Seatpost: | KS Rage-i Dropper | S: 125mm, M: 150mm, L/XL: 170mm |
| Seat Post Diameter: | 34.9mm |
| Seat: | WTB Silverado |
| Shifters: | SRAM NX Eagle |
| Handlebar: | Ibis Aluminum, 780mm |
| Stem: | Ibis 31.8mm | S/M: 40mm, L/XL: 50mm |
| Grips: | Lizard Skin Charger Evo |
| Brakes: | SRAM Code RSC 4 piston |
| Intended Use: | AM/Enduro |
| Warranty: | Lifetime |
Specs subject to change without notice. Please check with manufacturer for the most up-to-date information.
Geometry
mm / inches
180mm Fork (593.7mm axle to crown)
Size
Seat Tube
Top Tube
Reach
BB Height
BB Drop
Head Angle
Seat Angle
Standover
Chainstay
Head Tube
Wheelbase
Stack
Seatpost
Insertion
Insertion
1
368
585
430
345
10
64
76
693
435
81
1202
621
250
2
373
610
454
345
10
64
76
714
435
86
1228
625
280
3
406
630
480
345
10
64
76.5
762
435
91
1256
630
290
4
450
655
508
345
10
64
77
776
435
110
1288
685
300
5
470
683
541
345
10
64
77.5
776
435
115
1328
685
300
Sizing
cm / ft
| Size | 1 | 2 | 3 | 4 | 5 |
|---|---|---|---|---|---|
| Rider Height (cm) | 158 - 168 | 165 - 175 | 173 - 183 | 180 - 191 | 188 - 201 |
Ibis HD6 GX Complete Bike:

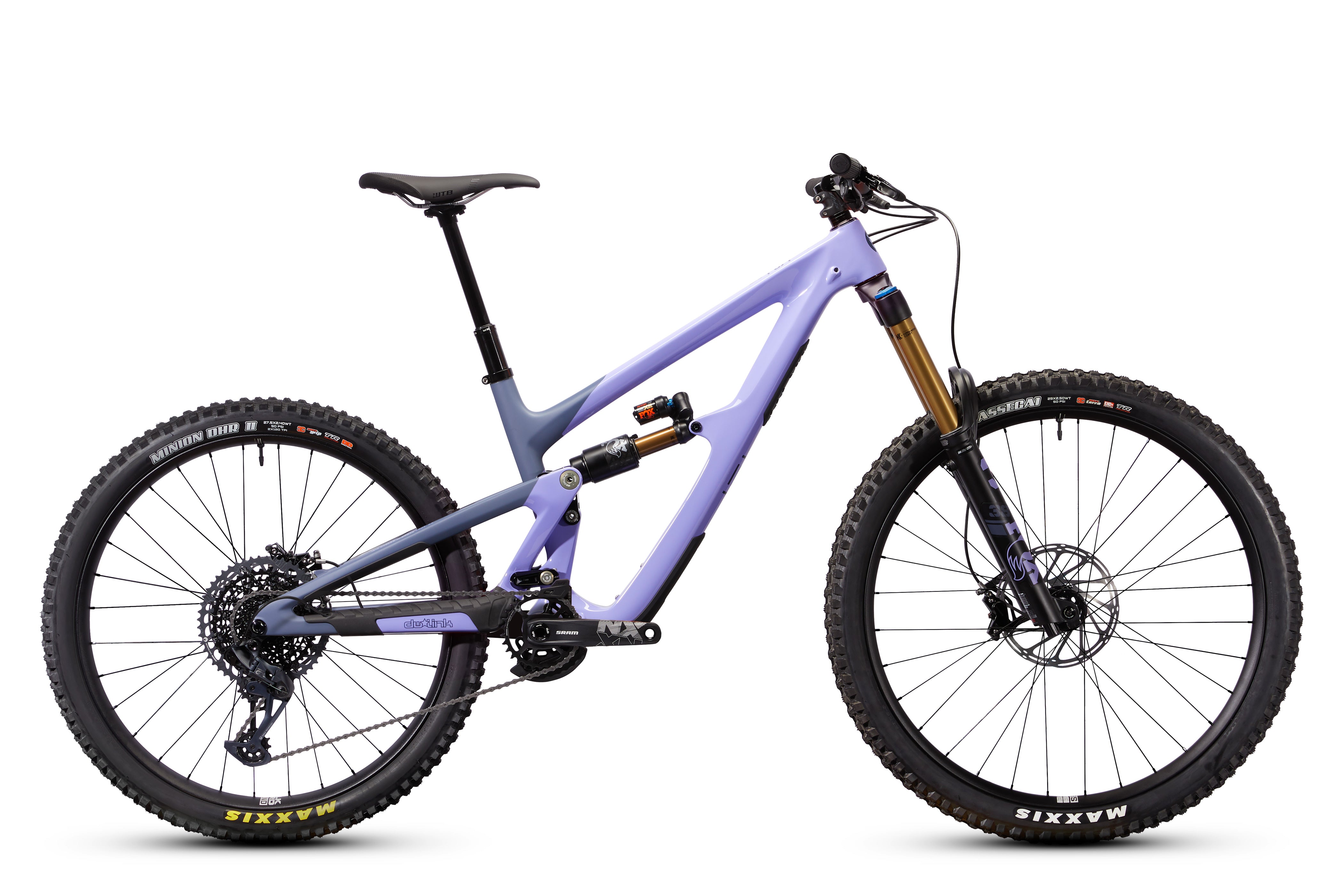

Lavender Haze / 1 (SM): hd6-gx-lh-sm -
Lavender Haze / 2 (MD): hd6-gx-lh-md -
Lavender Haze / 3 (LG): hd6-gx-lh-lg -
Lavender Haze / 4 (XL): hd6-gx-lh-xl -
Lavender Haze / 5 (XXL): hd6-gx-lh-xxl -

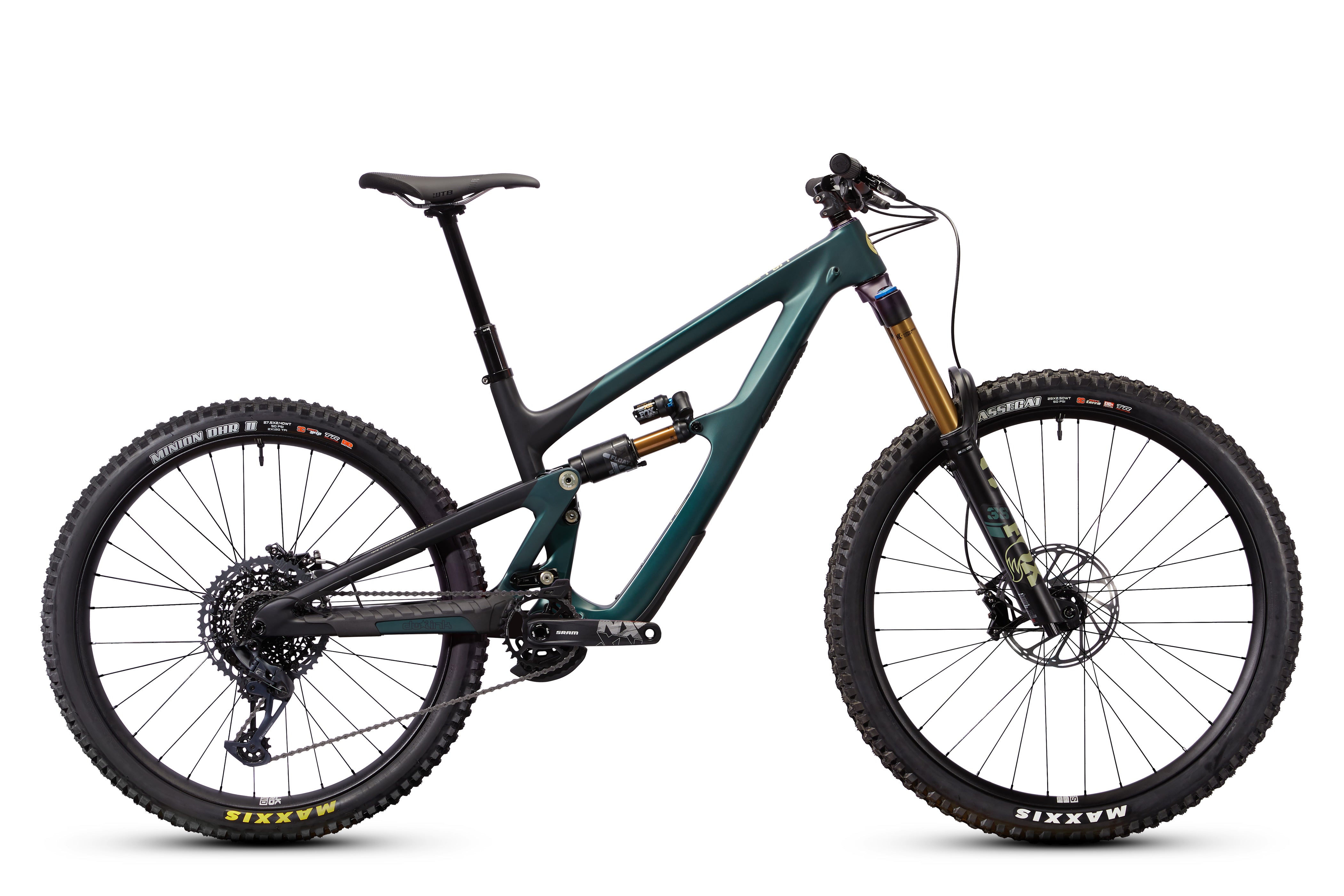

Enchanted Forest Green / 1 (SM): hd6-gx-efg-sm -
Enchanted Forest Green / 2 (MD): hd6-gx-efg-md -
Enchanted Forest Green / 3 (LG): hd6-gx-efg-lg -
Enchanted Forest Green / 4 (XL): hd6-gx-efg-xl -
Enchanted Forest Green / 5 (XXL): hd6-gx-efg-xxl -

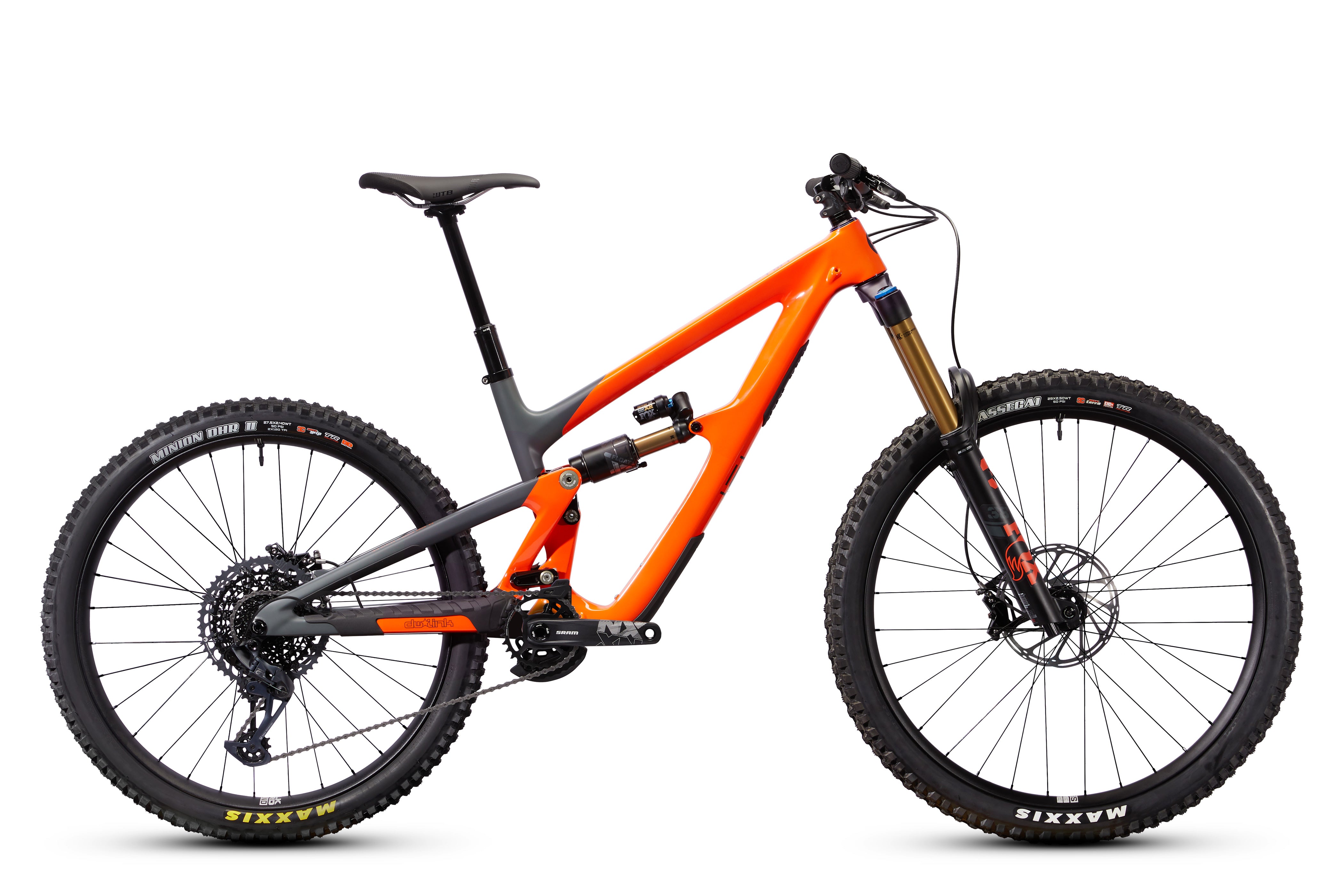

Traffic Cone Orange / 1 (SM): hd6-gx-tco-sm -
Traffic Cone Orange / 2 (MD): hd6-gx-tco-md -
Traffic Cone Orange / 3 (LG): hd6-gx-tco-lg -
Traffic Cone Orange / 4 (XL): hd6-gx-tco-xl -
Traffic Cone Orange / 5 (XXL): hd6-gx-tco-xxl
