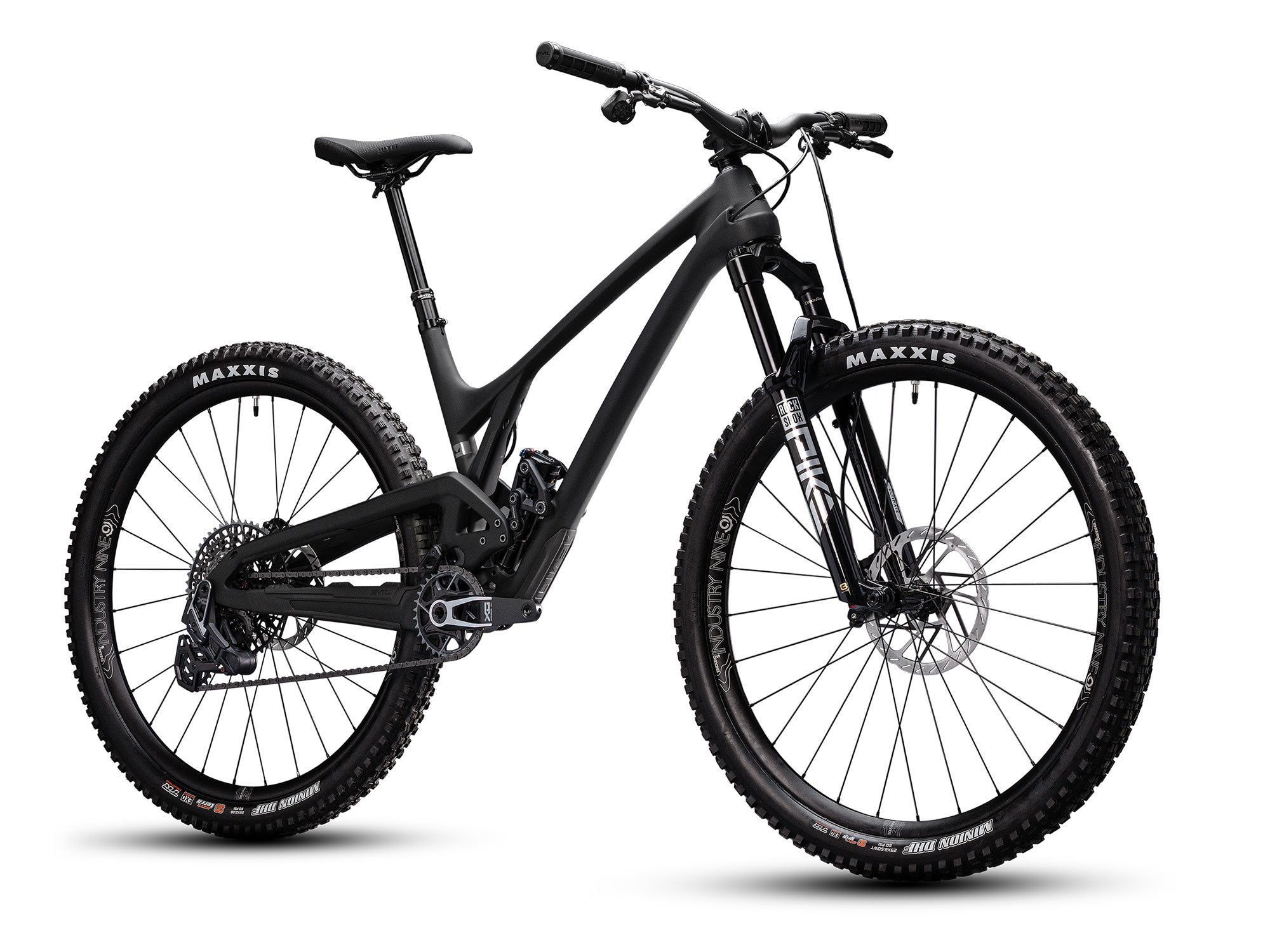

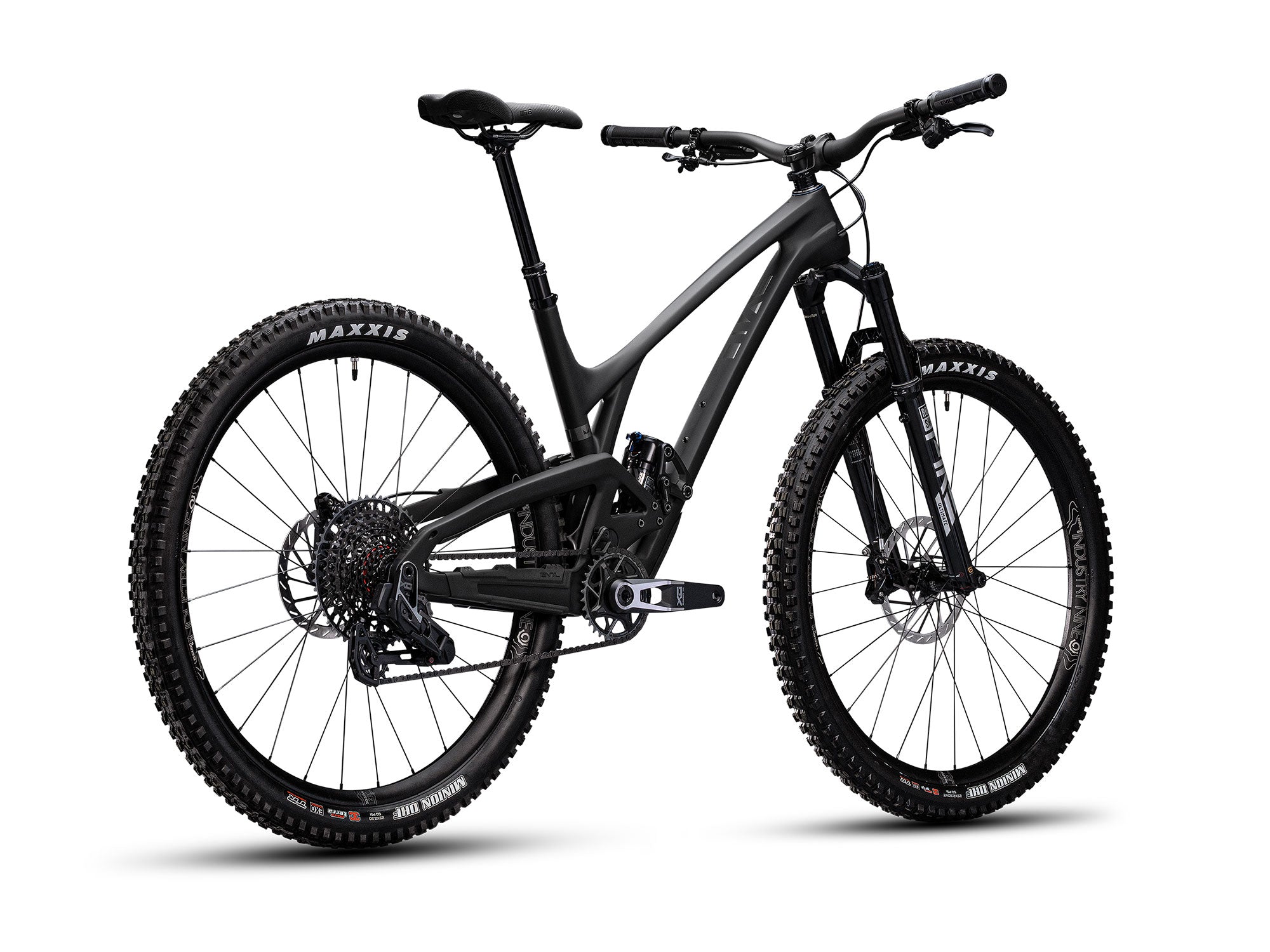

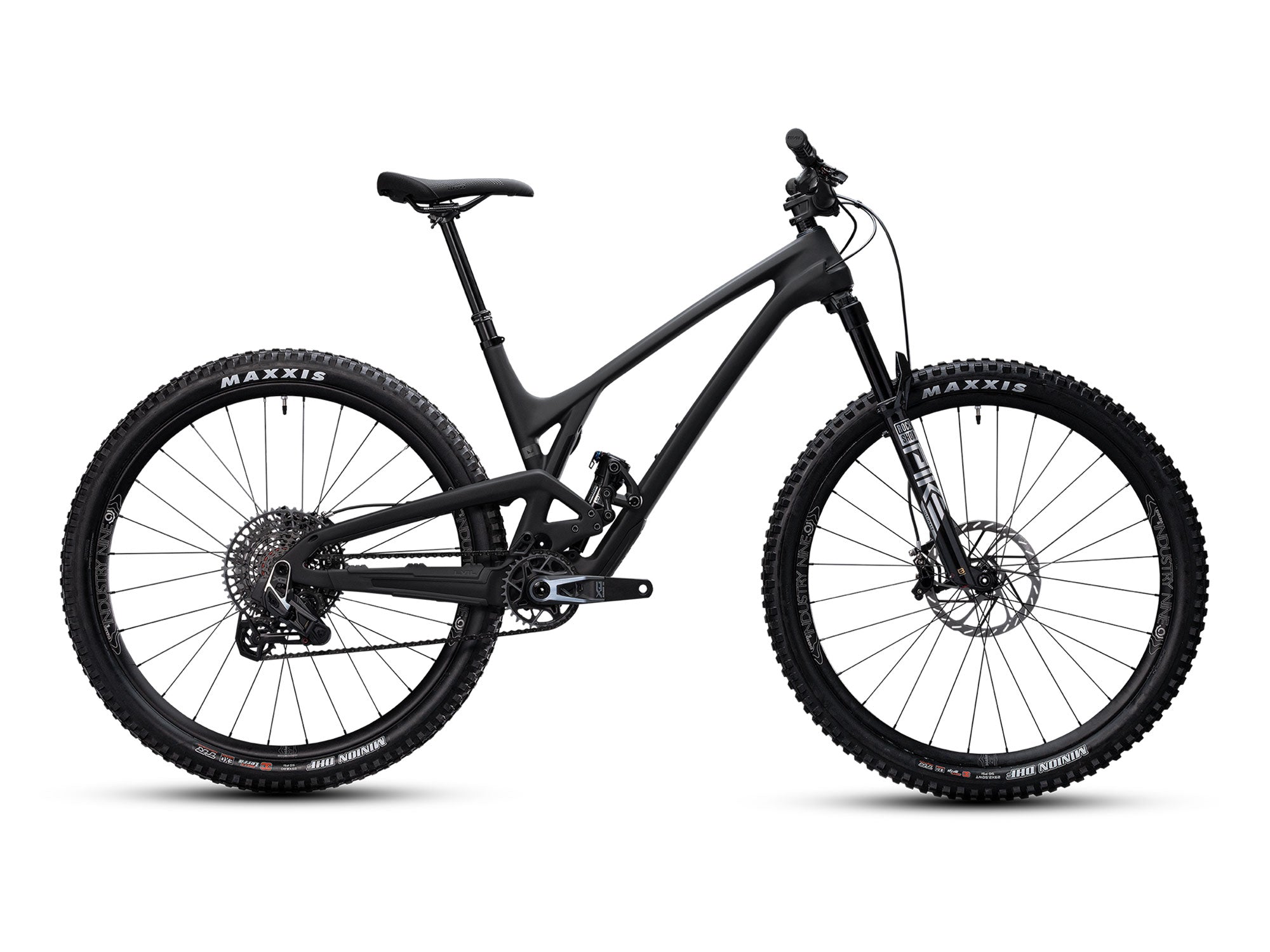

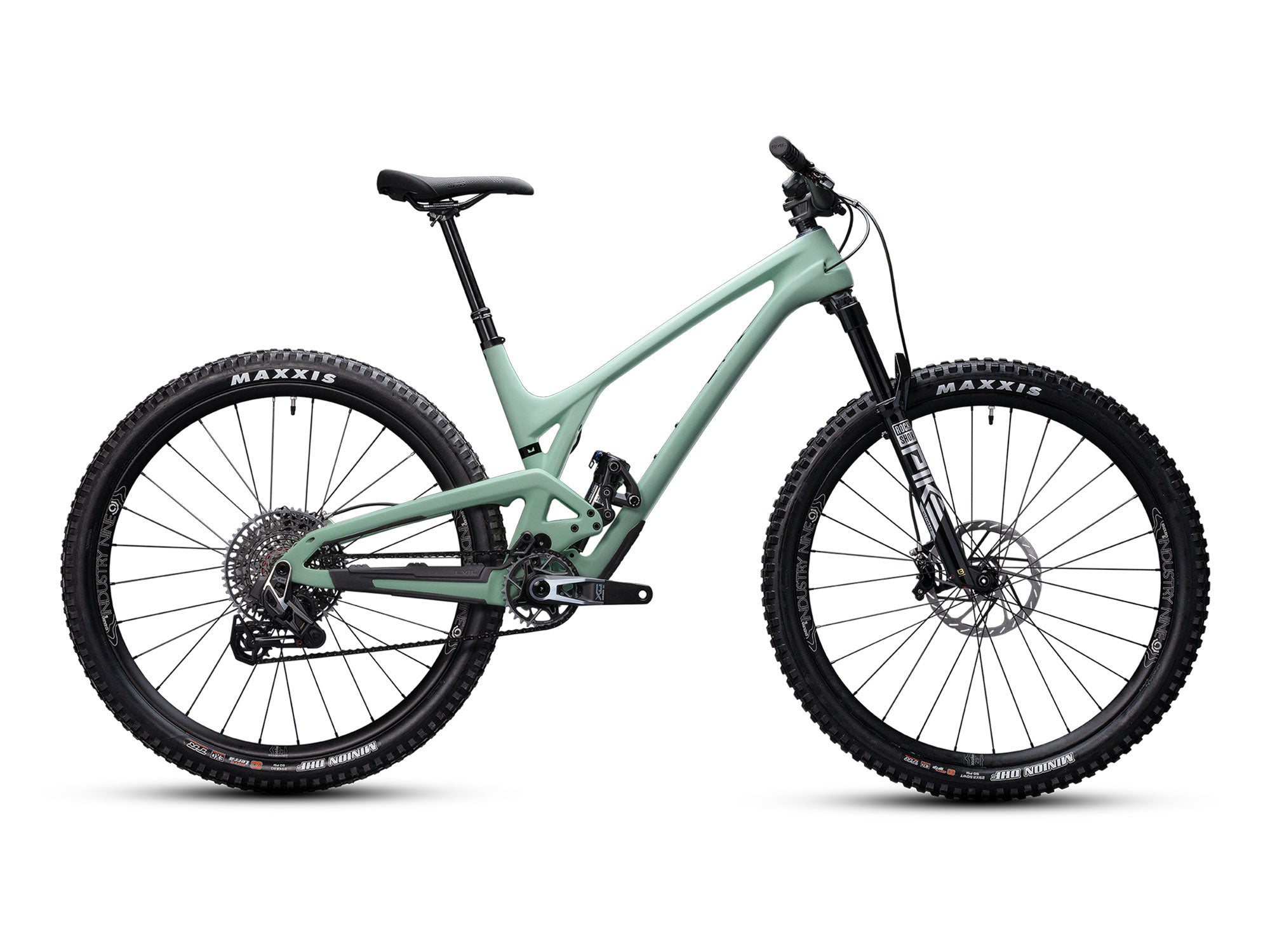

Evil Following LS X0 Transmission
Evil's rally car XC bike is the one that started it all, and the Following LS comes with pure Evil DNA. Hit the trail with 120mm travel on the rear, 29” wheels, and geo that will burn a grin onto your face. Now painted in a fresh Foam Roller and their mainstay Blackout colorway along with a few key updates, the Following LS continues to define shredcountry.Features
- Revised shock mount designed to retain the spacers when removing the shock
- Evil will offer registered frame owners, from 2022+ a free bearing kit once per season
- Low and X-Low geometry settings
- SRAM Universal Derailleur Hanger compatible
- Integrated chainguide is as light as it gets, and removable for those who want even lighter
- Tube within tubes = setup bliss and tidy looks
- Integrated Sag Meter on the frame linkage
Tech Specs
| Frame Material: | Carbon |
| Wheel Size: | 29" |
| Rear Axle Standard: | 12x157mm Super Boost |
| Rear Shock: | Rockshox Deluxe Ultimate Trunnion | 0L1 LNLC 38TS C1 |
| Rear Shock Size: | 165mm x 45mm |
| Rear Shock Hardware: | Trunnion Top | 20x8mm Lower |
| Rear Suspension Travel: | 120mm |
| Headset: | Cane Creek 40 Series |
| Headset Standard: | ZS44mm/ZS62mm |
| Fork: | Rockshox Pike Ultimate | Charger 3 RC2 W/ ButterCups | 130mm Travel | 44mm Offset |
| Fork Axle: | 15x110mm Boost |
| Wheelset: | Industry Nine Enduro S Hydra |
| Front Tire: | Maxxis Minion DHF EXO TR, 29x2.5 |
| Rear Tire: | Maxxis Minion DHR II EXO TR, 29x2.4 |
| Crankset: | SRAM X0 Eagle Transmission | 170mm | Direct Mount 32t | 55mm Chainline |
| Chainguide Tabs: | ISCG '05 2-Bolt |
| Bottom Bracket: | SRAM DUB |
| BB Standard: | 73mm BSA |
| Chain: | SRAM X0 Eagle Transmission T-Type |
| Rear Derailleur: | SRAM X0 Eagle Transmission |
| Cassette: | SRAM X0 Eagle Transmission 10-52T |
| Seatpost: | Bike Yoke Revive, S: 125mm, M: 160mm, L: 185m XL: 185mm |
| Seat Post Diameter: | 30.9mm |
| Seat Post Clamp Diameter: | 34.9mm |
| Seat: | WTB Volt Pro |
| Shifters: | SRAM AXS Pod Controller |
| Handlebar: | Evil Boomstick Carbon, Backsweep: 8°, Upsweep 5° Clamp:35mm, Rise: 35mm, Width: 810mm |
| Stem: | Evil 12 Gauge, Clamp: 35mm, Length: 45mm |
| Grips: | Evil Palmela Handerson lock-on |
| Brakes: | SRAM Code Silver Stealth | SRAM HS2 200mm Rotors Front and Rear |
| Water Bottle Cage Mounts: | One |
| Intended Use: | Trail/AM, XC |
| Warranty: | Limited Lifetime |
Specs subject to change without notice. Please check with manufacturer for the most up-to-date information.
Geometry
mm / inches
130mm fork / Low
Size
Seat Tube
Top Tube
Reach
BB Height
Head Angle
Seat Angle
Standover
Chainstay
Head Tube
Wheelbase
Trail
Stack
SM
381
584
440
334
66.9
76
652
430
90
1156
100
586
MD
432
611
460
337
66.9
76
666
430
110
1183
100
604
LG
470
631
480
337
66.9
76
677
430
110
1203
100
604
XL
508
652
500
337
66.9
76
690
430
120
1227
100
614
130mm fork / X-Low
Size
Seat Tube
Top Tube
Reach
BB Height
Head Angle
Seat Angle
Standover
Chainstay
Head Tube
Wheelbase
Trail
Stack
SM
381
584
440
326
66.4
75.5
652
432
90
1157
104
586
MD
432
611
460
329
66.4
75.5
666
432
110
1185
104
604
LG
470
631
480
329
66.4
75.5
677
432
110
1205
104
604
XL
508
652
500
329
66.4
75.5
690
432
120
1228
104
614
Sizing
cm / ft
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Rider Height (cm) | 160 - 173 | 173 - 183 | 183 - 193 | 193 - 216 |
Evil Following LS X0 Transmission:
Foam Roller / SM: FLW-FR-S-X0-i9 -
Foam Roller / MD: FLW-FR-M-X0-i9 -
Foam Roller / LG: FLW-FR-L-X0-i9 -
Foam Roller / XL: FLW-FR-XL-X0-i9 -
Blackout / SM: FLW-BO-S-X0-i9 -
Blackout / MD: FLW-BO-M-X0-i9 -
Blackout / LG: FLW-BO-L-X0-i9 -
Blackout / XL: FLW-BO-XL-X0-i9
