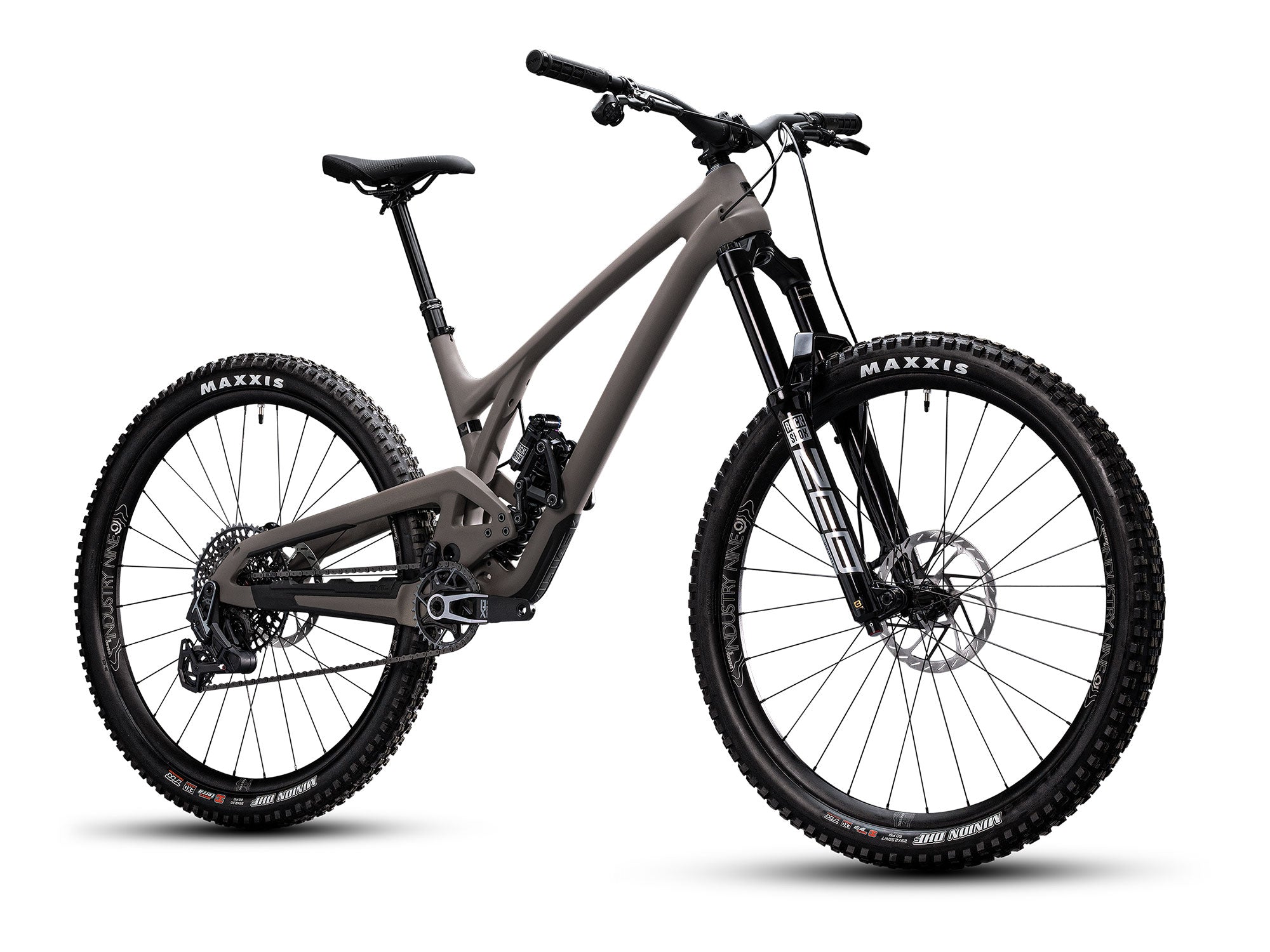

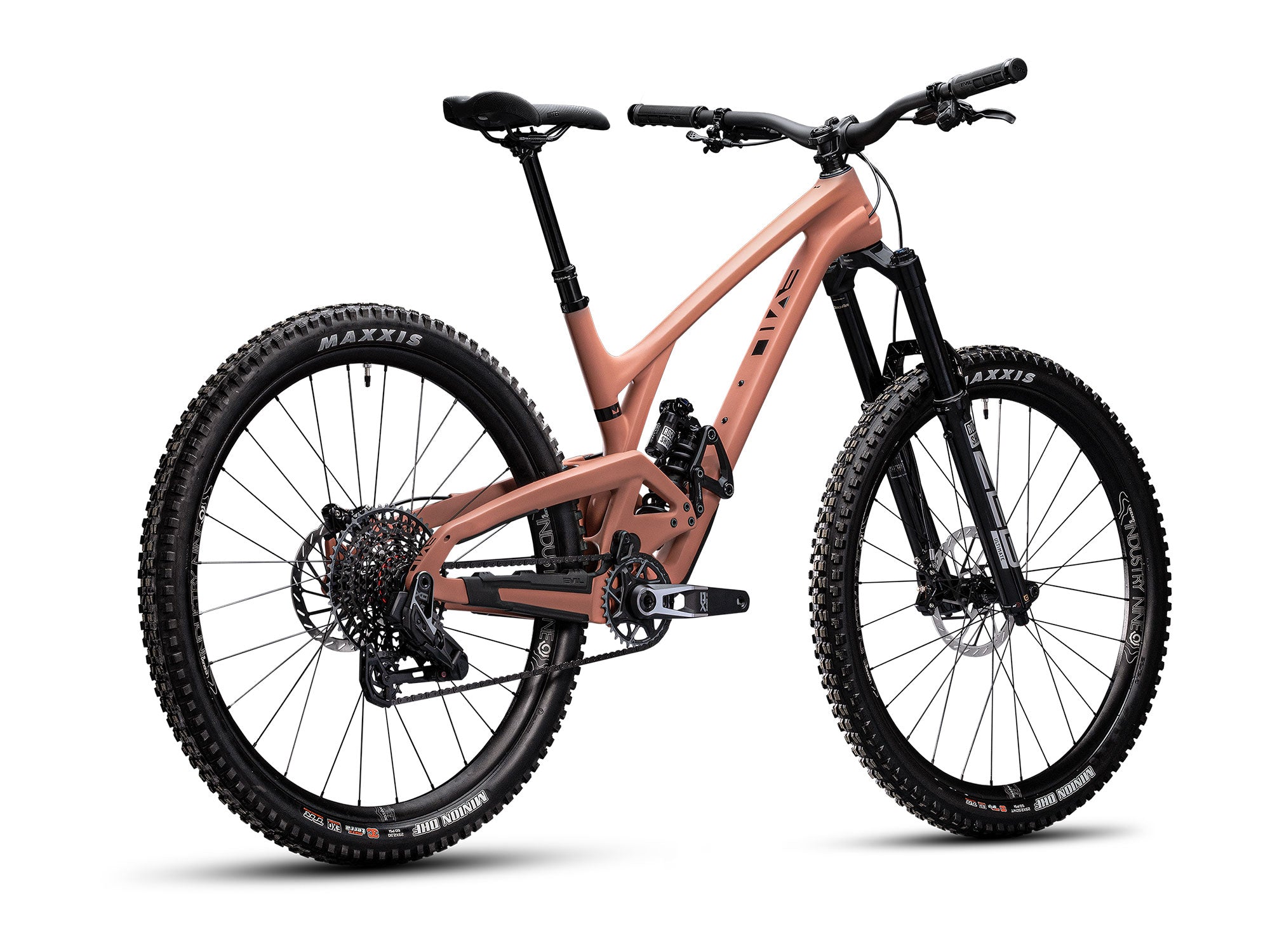

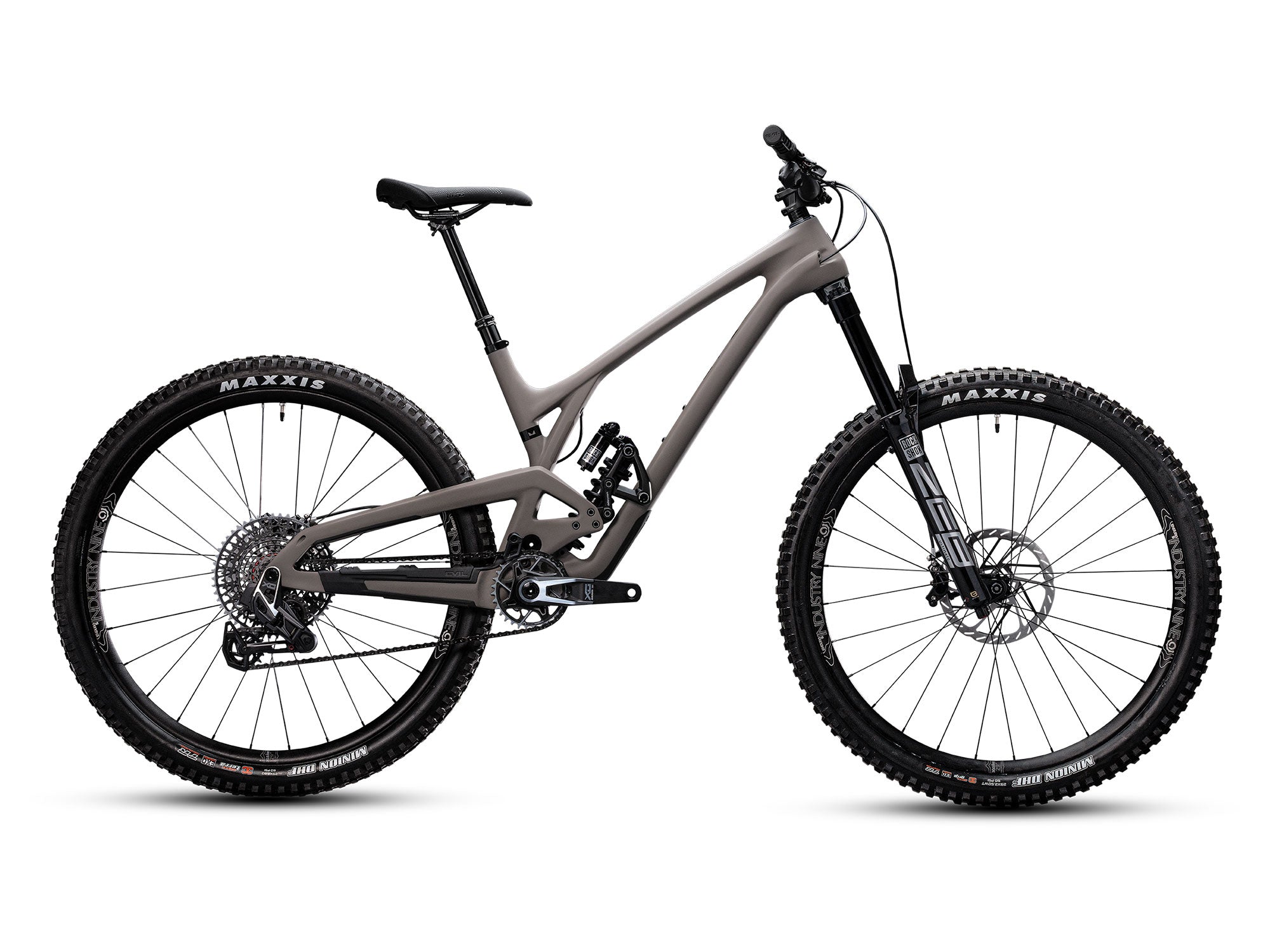

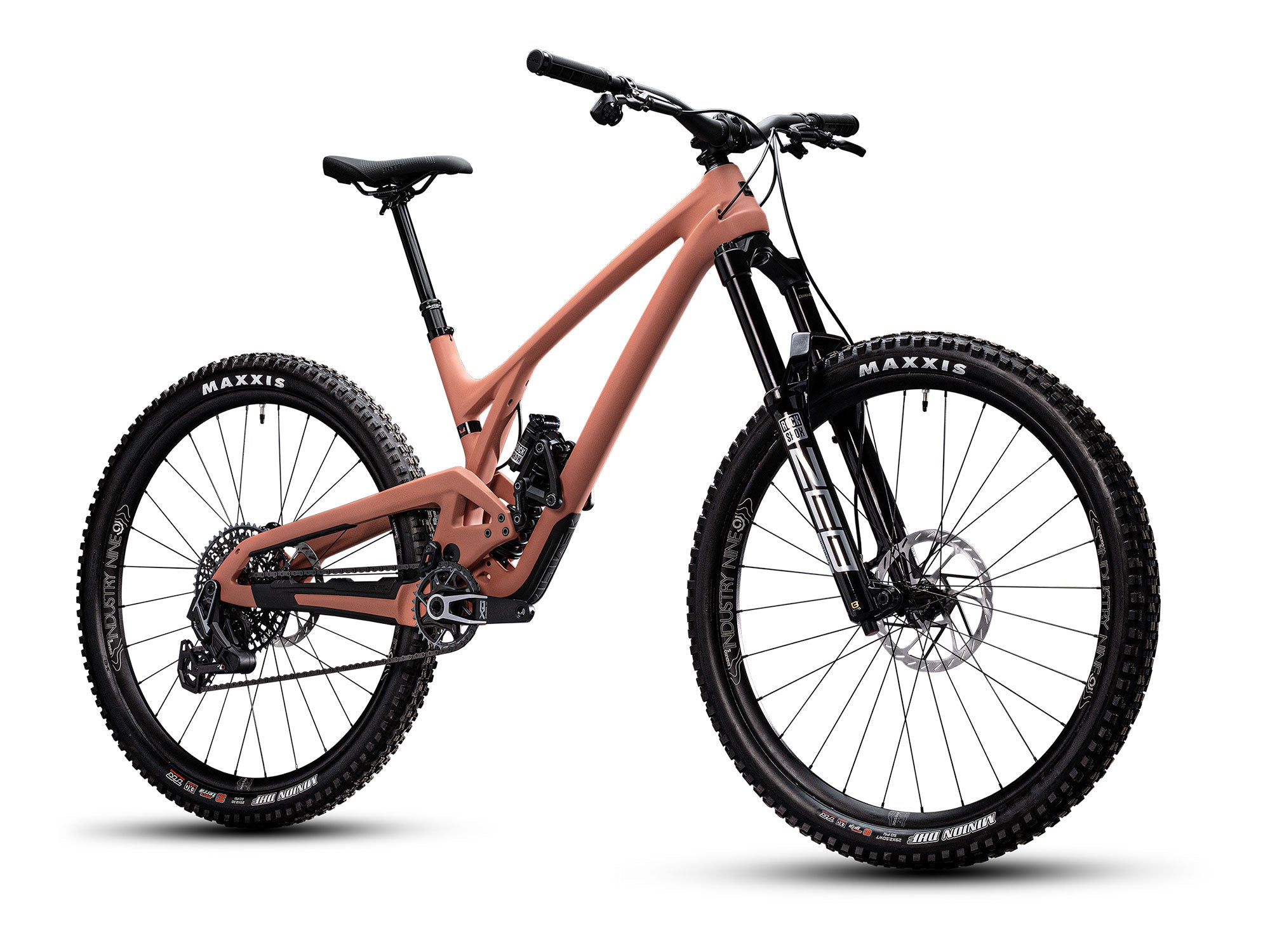

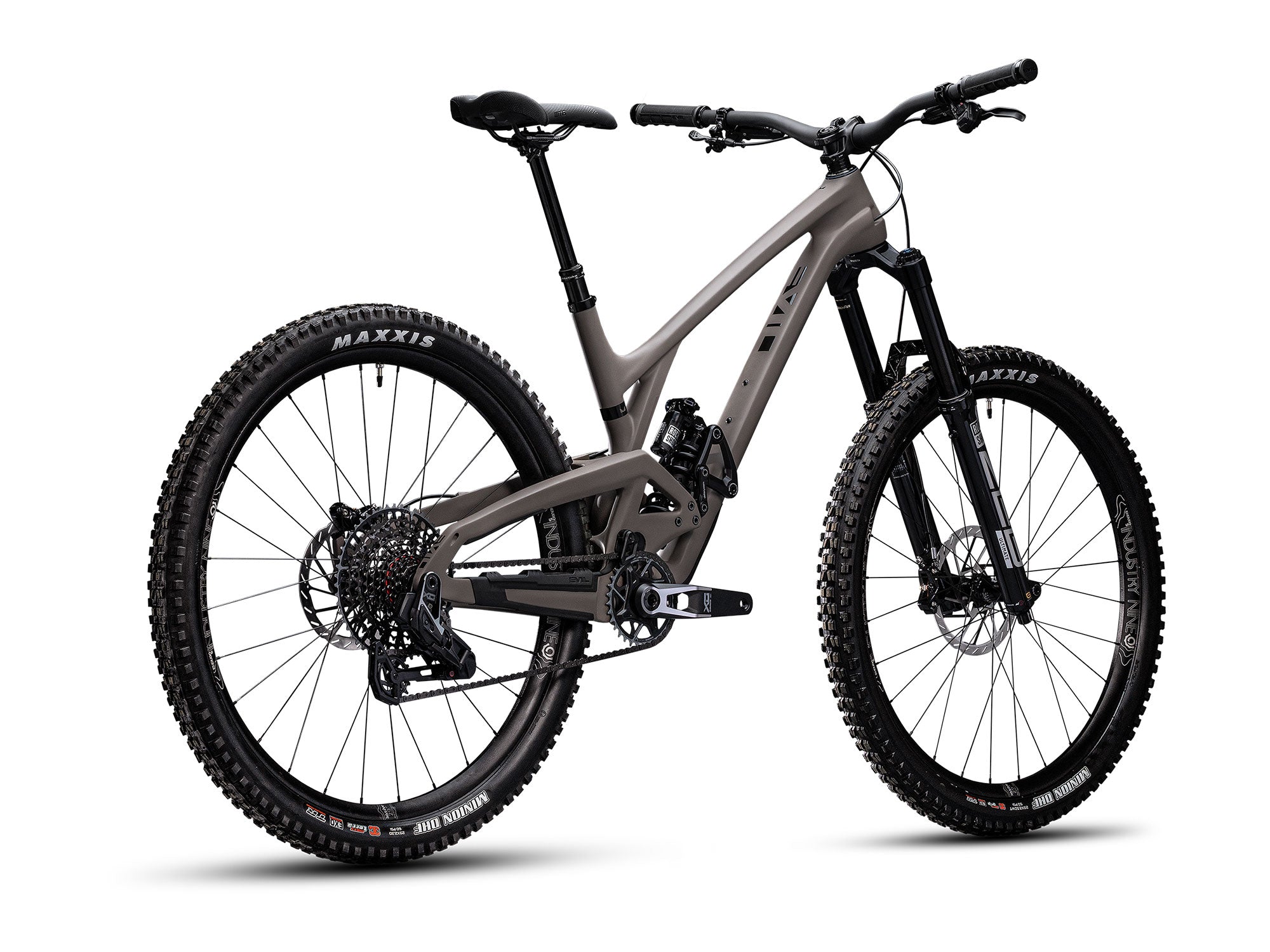

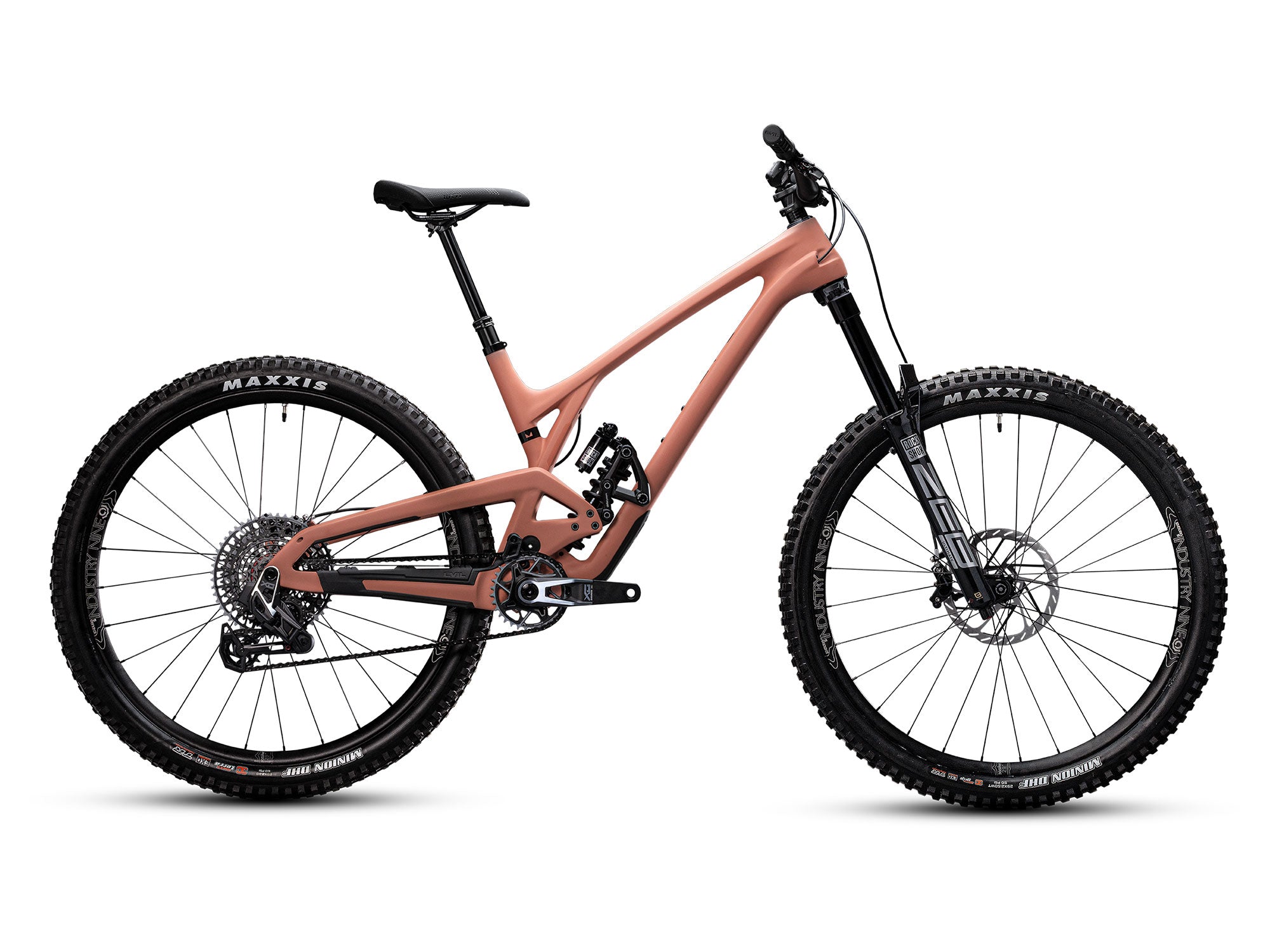

Evil Wreckoning LS X0 Transmission
A heaped shovel of gravity fills the heart of every Evil machine, and their venerated Wreckoning is best described as “the bike with no speed limit”. This latest iteration of the 29” wheeled 166mm platform comes Lightly Salted, maintaining the geometry and suspension kinematics that riders love and trust on the burly stuff. Whether racing the clock or punching out to hit the trail, this bike is built to send deep and comfortably spin up for another.Features
- Revised shock mount designed to retain the spacers when removing the shock
- Evil will offer registered frame owners, from 2022+ a free bearing kit once per season
- Low and X-Low geometry settings
- SRAM Universal Derailleur Hanger compatible
- Integrated chainguide is as light as it gets, and removable for those who want even lighter
- Tube within tubes cable routing = setup bliss and tidy looks
Tech Specs
| Frame Material: | Carbon |
| Wheel Size: | 29" |
| Rear Axle Standard: | 12x157mm Super Boost |
| Rear Shock: | Rockshox Super Deluxe Coil Ultimate Trunnion | Spring Rates - S/M: 350lb, L/XL: 400lb |
| Rear Shock Size: | 205mm x 65mm |
| Rear Shock Hardware: | Trunnion Top, 20x8mm Bottom |
| Rear Suspension Travel: | 166mm |
| Headset: | FSA Integrated Tapered |
| Headset Standard: | ZS44mm/ZS62mm |
| Fork: | Rockshox ZEB Ultimate | Charger 3 RC2 W/ ButterCups | 170mm Travel | 44mm Offset |
| Fork Axle: | 15x110mm Boost |
| Wheelset: | Industry Nine Enduro S |
| Tires: | Maxxis Minion DHF EXO TR, 29x2.5 |
| Crankset: | SRAM X0 Transmission |
| Chainguide Tabs: | ISCG '05 2-Bolt |
| Bottom Bracket: | SRAM DUB |
| BB Standard: | 73mm BSA |
| Chain: | SRAM X0 Eagle Transmission T-Type |
| Rear Derailleur: | SRAM X0 Eagle Transmission |
| Cassette: | SRAM X0 Eagle Transmission 10-52T |
| Seat Post Diameter: | 30.9mm |
| Seat Post Clamp Diameter: | 34.9mm |
| Seat: | WTB Volt Pro |
| Shifters: | SRAM AXS Pod Controller |
| Handlebar: | Evil Boomstick Carbon, Backsweep: 8°, Upsweep 5° Clamp:35mm, Rise: 35mm, Width: 810mm |
| Stem: | Evil 12 Gauge, Clamp: 35mm, Length: 35mm |
| Grips: | Evil Palmela Handerson lock-on |
| Brakes: | SRAM Code Silver Stealth | SRAM HS2 Rotors: 200mm Front, 180mm Rear |
| Water Bottle Cage Mounts: | One |
| Intended Use: | AM/Enduro |
| Warranty: | Limited Lifetime |
Specs subject to change without notice. Please check with manufacturer for the most up-to-date information.
Geometry
mm / inches
170mm fork (586 ATC) - Low Geo
Size
Seat Tube
Top Tube
Reach
BB Height
BB Drop
Head Angle
Seat Angle
Standover
Chainstay
Head Tube
Wheelbase
Trail
Stack
Seatpost
Insertion
Insertion
SM
390
590
438
355
18
64.6
76.3
718
430
104
1205
128
626
190
MD
425
609
455
355
18
64.6
76.3
727
430
114
1228
128
635
230
LG
460
632
475
355
18
64.6
76.3
735
430
127
1251
128
647
265
XL
495
654
495
355
18
64.6
76.3
746
430
139
1276
128
658
270
170mm fork (586 ATC) - X-Low Geo
Size
Seat Tube
Top Tube
Reach
BB Height
BB Drop
Head Angle
Seat Angle
Standover
Chainstay
Head Tube
Wheelbase
Trail
Stack
Seatpost
Insertion
Insertion
SM
390
593
431
346
27
63.9
75.7
712
432
104
1206
133
631
190
MD
425
612
438
346
27
63.9
75.7
721
432
114
1226
133
640
230
LG
460
635
468
346
27
63.9
75.7
729
432
127
1251
133
652
265
XL
495
657
488
346
27
63.9
75.7
740
432
139
1278
133
663
270
Sizing
cm / ft
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Rider Height (cm) | 160 - 173 | 168 - 183 | 178 - 193 | 188 - 193 |
Evil Wreckoning LS X0 Transmission:
Baja Fog / SM: wreck-ls-xo-tt-bf-sm -
Baja Fog / MD: wreck-ls-xo-tt-bf-md -
Baja Fog / LG: wreck-ls-xo-tt-bf-lg -
Baja Fog / XL: wreck-ls-xo-tt-bf-xl -
Clay Porter / SM: wreck-ls-xo-tt-cp-sm -
Clay Porter / MD: wreck-ls-xo-tt-cp-md -
Clay Porter / LG: wreck-ls-xo-tt-cp-lg -
Clay Porter / XL: wreck-ls-xo-tt-cp-xl
