Santa Cruz
Bullit Carbon C - Frameset - 2026

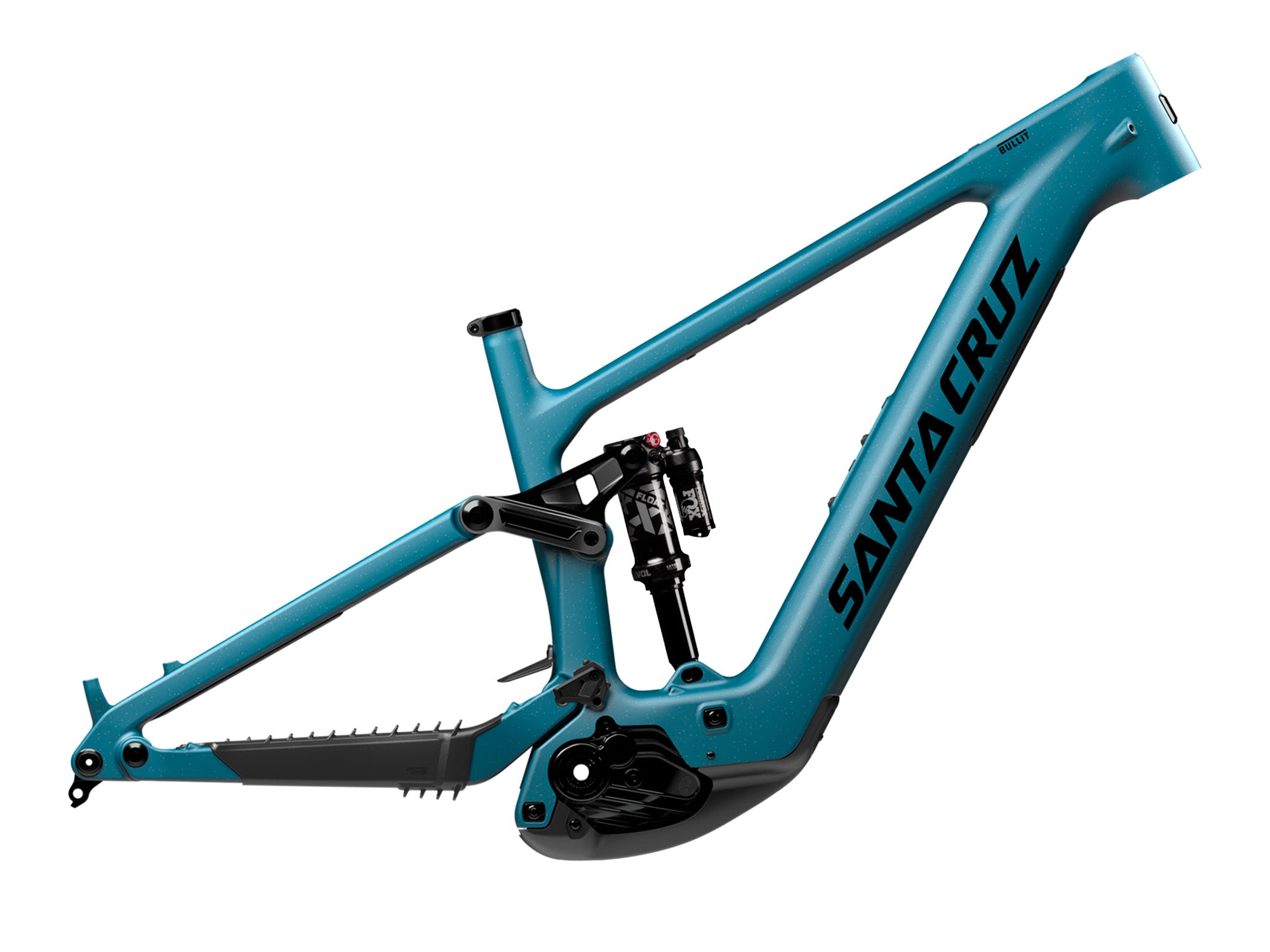

Bullit Carbon C - Frameset - 2026
Matte Teal Sparkle / SM
Fanatik Bike
1812 N. State St.
Bellingham WA 98225
United States
Every ride deserves a little extra. With our Fanatik Rewards program, you'll earn points on every purchase that can be redeemed for discounts on future orders. It's our way of saying thanks for choosing Fanatik and keeping you stoked for the next adventure. Learn more.
Choose options
Every ride deserves a little extra. With our Fanatik Rewards program, you'll earn points on every purchase that can be redeemed for discounts on future orders. It's our way of saying thanks for choosing Fanatik and keeping you stoked for the next adventure. Learn more.
Every ride deserves a little extra. With our Fanatik Rewards program, you'll earn points on every purchase that can be redeemed for discounts on future orders. It's our way of saying thanks for choosing Fanatik and keeping you stoked for the next adventure. Learn more.
Bullit
Highlights
- NEW Bosch Performance Line CX – Advanced Bosch mid-drive motor (Performance Line CX) delivering class-leading power and reliability for aggressive trail gravity riding.
- C Carbon Frame – Lightweight and robust carbon chassis optimized for the extreme demands of downhill-style riding and tough terrain.
- 600 Wh Battery – A powerful 600 watt-hour battery, giving you the range and capability to send the most demanding downhill trails.
- Lower-Link Flip Chip – Lets riders calibrate bottom bracket height and head tube angle to suit terrain and riding style nuances.
Description
If you feel the pull of gravity riding but want an extra push to get to the top, the Bullit is for you. The Bosch Performance Line CX motor gets you to the drop-in of the deepest, wildest trails. Built tough for the biggest terrain, the Bullit is the closest it gets to owning both a downhill bike and a chairlift.
| Frame Material: | Carbon |
| Wheel Size: | MX (29"/27.5") |
| Front Suspension Travel: | 170mm |
| Rear Suspension Travel: | 170mm |
| Rear Shock: | FOX Float X Performance |
| Rear Shock Size: | 205mm x 65mm |
| Rear Shock Hardware: | Lower: 8x30 | Upper: Trunnion |
| Rear Axle Width: | 12x148mm Boost |
| Headset Standard: | IS41mm/IS52mm |
| Brake Mount Type: | Post-Mount 200mm |
| Min Rear Rotor Size: | 200mm |
| Max Rear Rotor Size: | 220mm |
| Minimum Chainring Size: | 32T |
| Maximum Chainring Size: | 36T |
| Maximum Tire Size: | 2.5" |
| Seat Post Diameter: | 31.6mm |
| Water Bottle Cage Mounts: | One full size bottle and one accessory mount |
| Motor: | Bosch Performance Line CX |
| Maximum Power Output: | 750 watts |
| Maximum Motor Torque: | 100 Nm |
| Battery: | Bosch PowerTube Battery |
| Battery Wattage: | 600 Wh |
| Intended Use: | AM/Enduro |
| Warranty: | Lifetime Frame Warranty, Lifetime Bearing Replacement |
Flip Chip: Hi
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Reach | 435 | 460 | 480 | 500 | 525 |
| Stack | 622 | 631 | 640 | 654 | 670 |
| Top Tube | 571 | 596 | 617 | 640 | 670 |
| Wheelbase | 1220 | 1252 | 1280 | 1309 | 1346 |
| Head Tube° | 63.6° | 63.6° | 63.6° | 63.6° | 63.6° |
| Head Tube | 100 | 110 | 120 | 135 | 155 |
| Seat Tube° | 79.6° | 78.7° | 78.7° | 78.7° | 78.6° |
| Seat Tube | 380 | 400 | 617 | 460 | 500 |
| BB Height | 346 | 346 | 346 | 346 | 346 |
| BB Drop | 27 | 27 | 27 | 27 | 27 |
| Standover | 745 | 739 | 738 | 738 | 735 |
| Chainstay | 440 | 443 | 446 | 449 | 452 |
Flip Chip: Low
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Reach | 435 | 460 | 480 | 500 | 525 |
| Stack | 622 | 631 | 640 | 654 | 670 |
| Top Tube | 571 | 596 | 617 | 640 | 670 |
| Wheelbase | 1220 | 1252 | 1280 | 1309 | 1346 |
| Head Tube° | 63.6° | 63.6° | 63.6° | 63.6° | 63.6° |
| Head Tube | 100 | 110 | 120 | 135 | 155 |
| Seat Tube° | 79.6° | 78.7° | 78.7° | 78.7° | 78.6° |
| Seat Tube | 380 | 400 | 617 | 460 | 500 |
| BB Height | 346 | 346 | 346 | 346 | 346 |
| BB Drop | 27 | 27 | 27 | 27 | 27 |
| Standover | 745 | 739 | 738 | 738 | 735 |
| Chainstay | 440 | 443 | 446 | 449 | 452 |
Size Guide
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Height | 154 - 165 | 165 - 175 | 175 - 185 | 185 - 193 | 193 - 200 |
