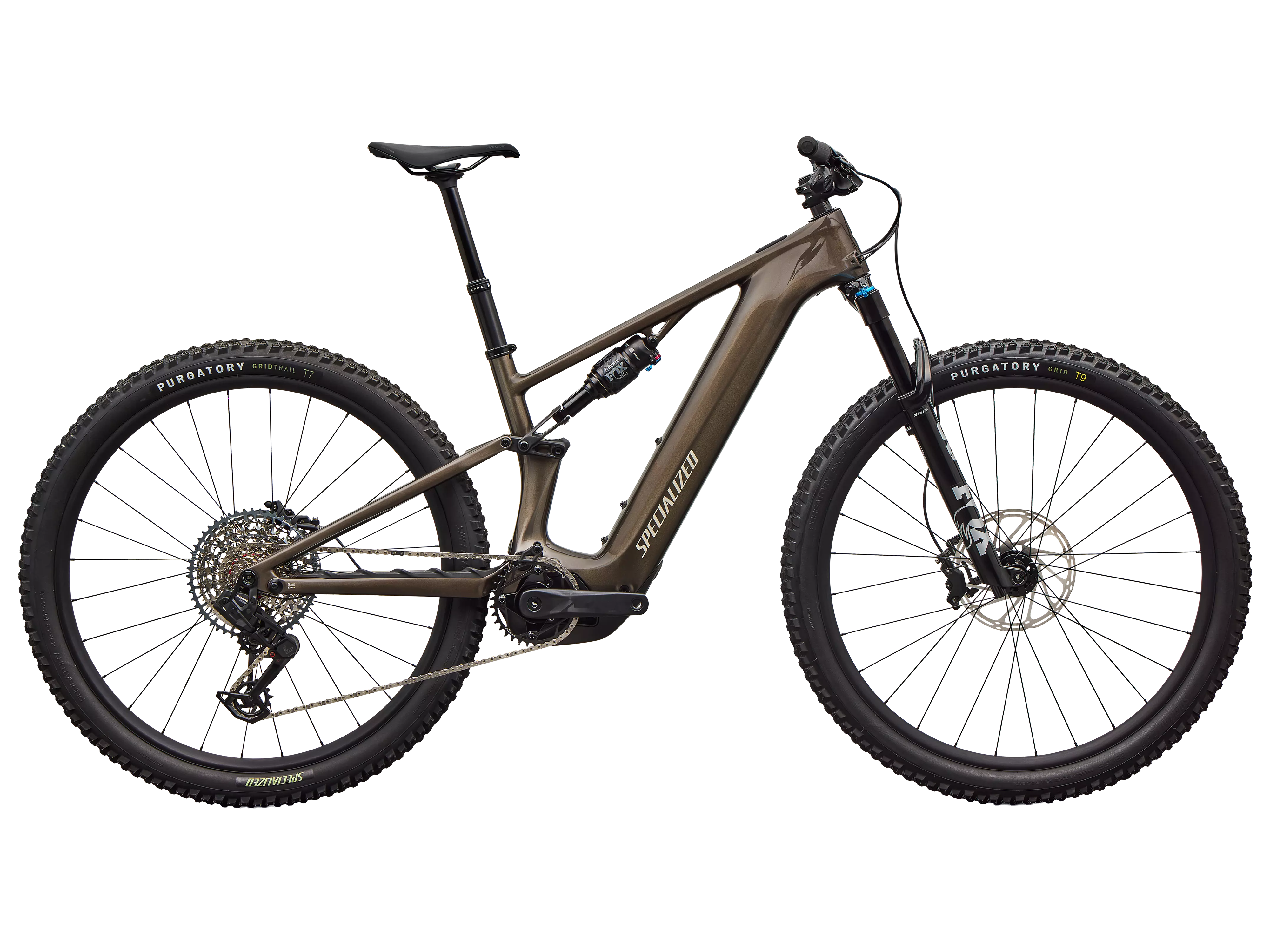

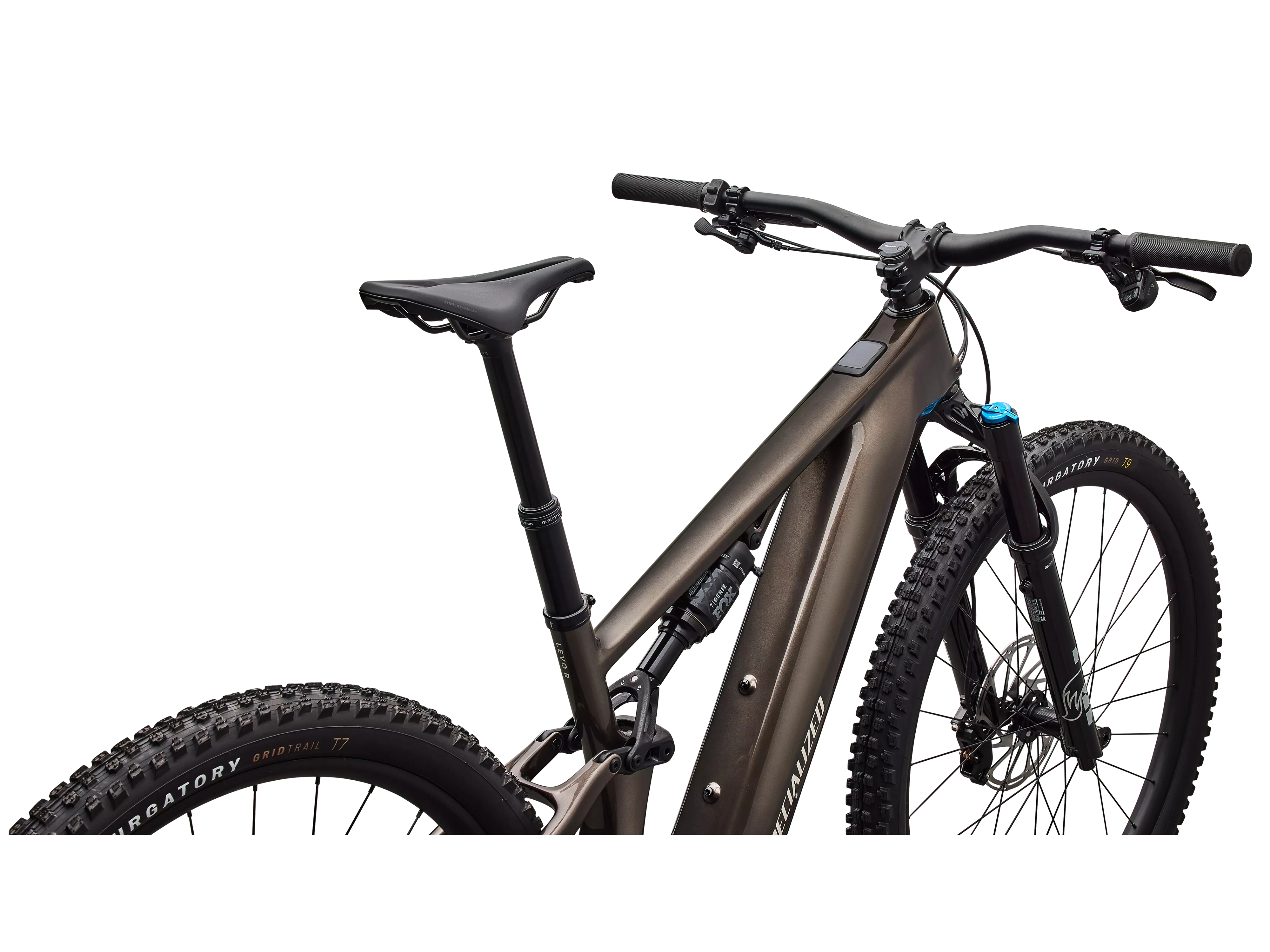

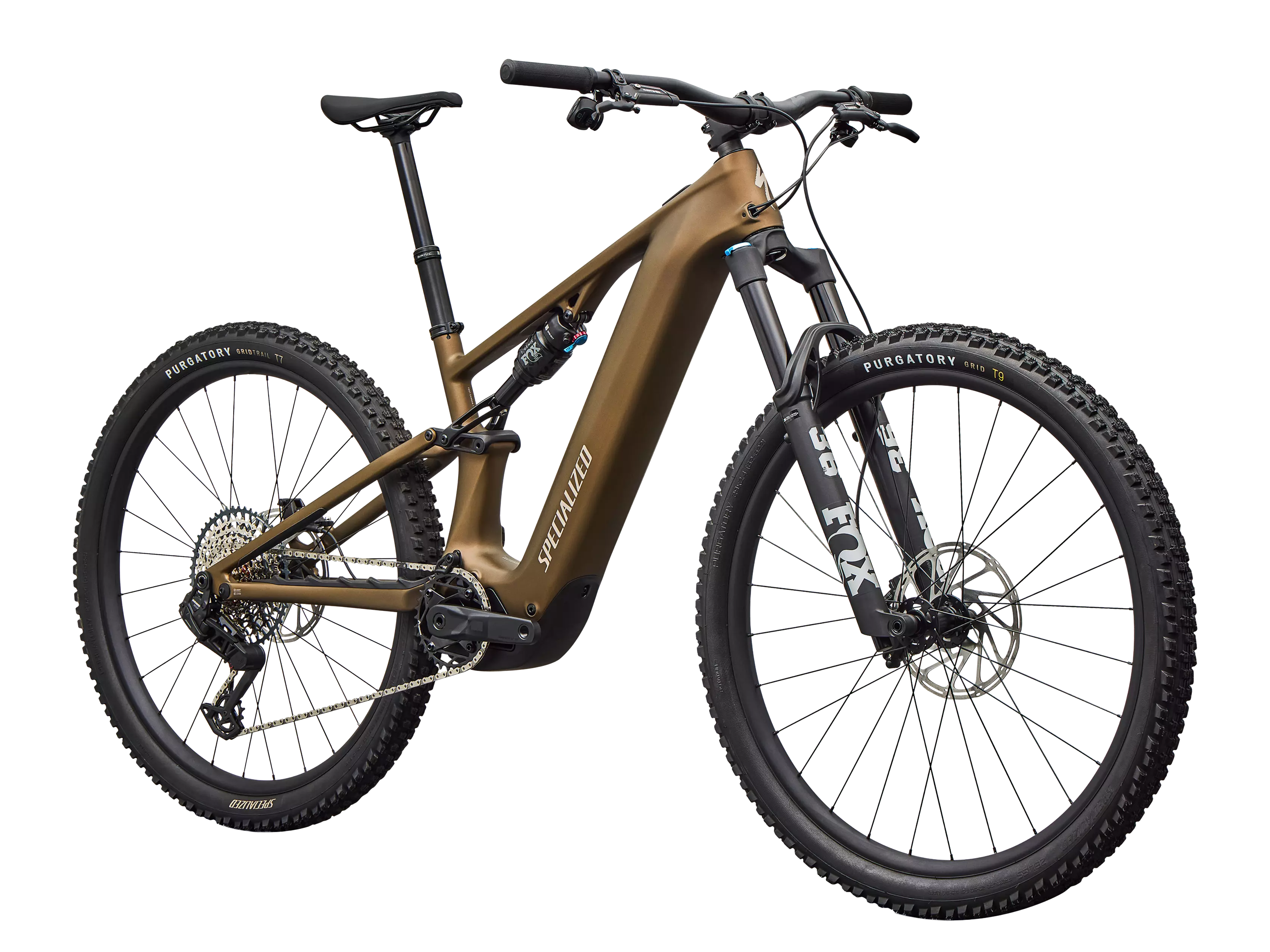

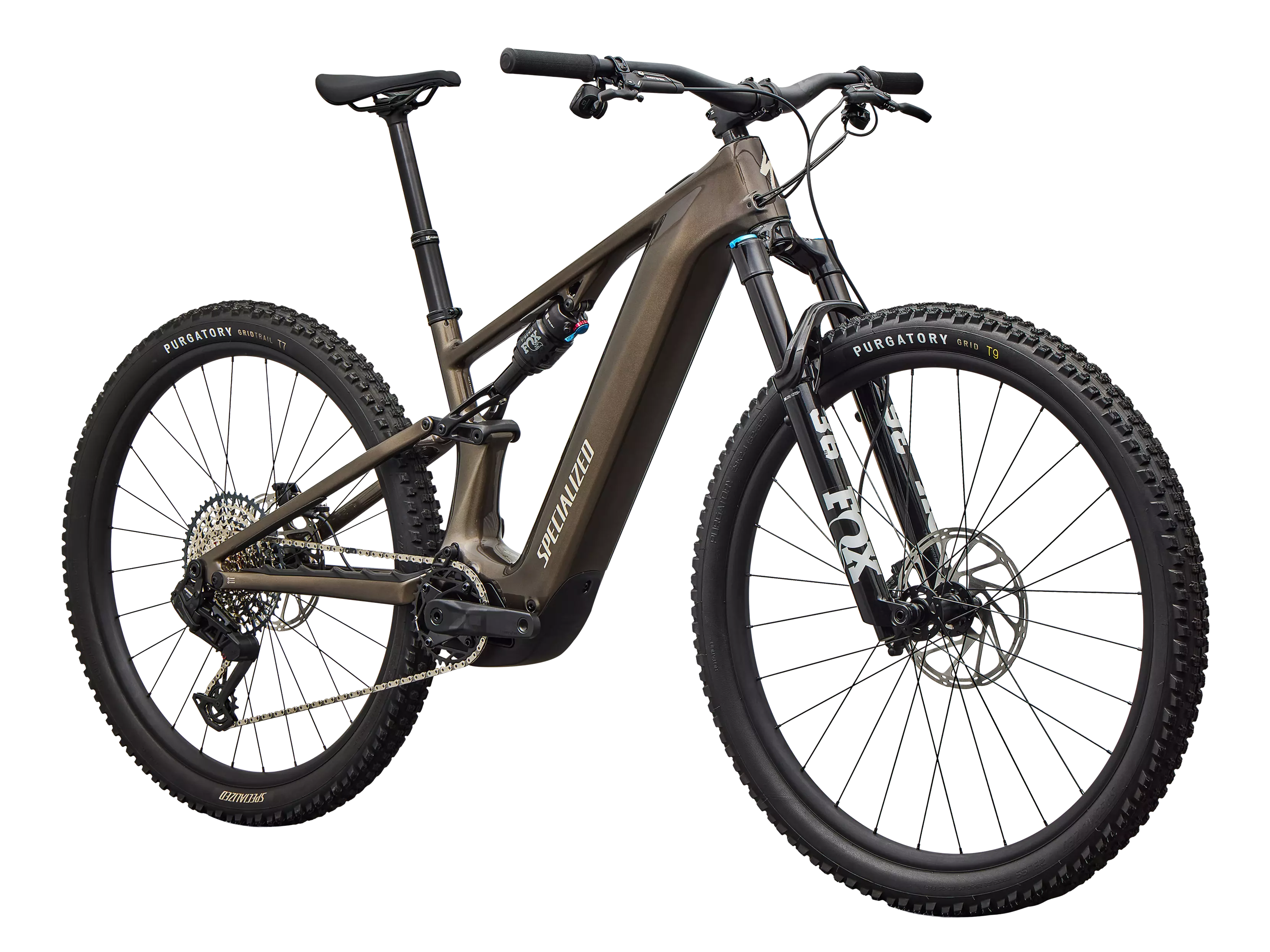

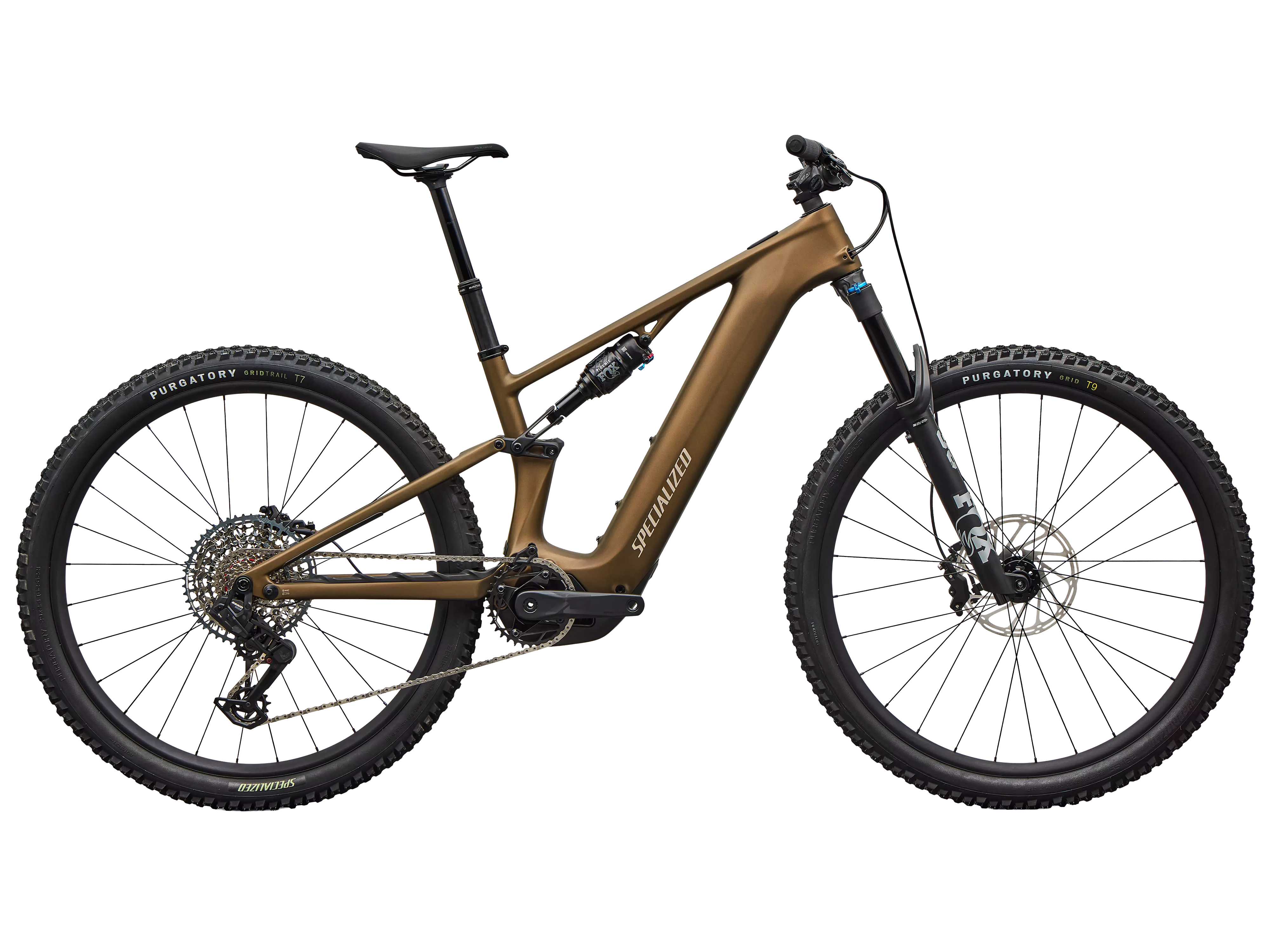

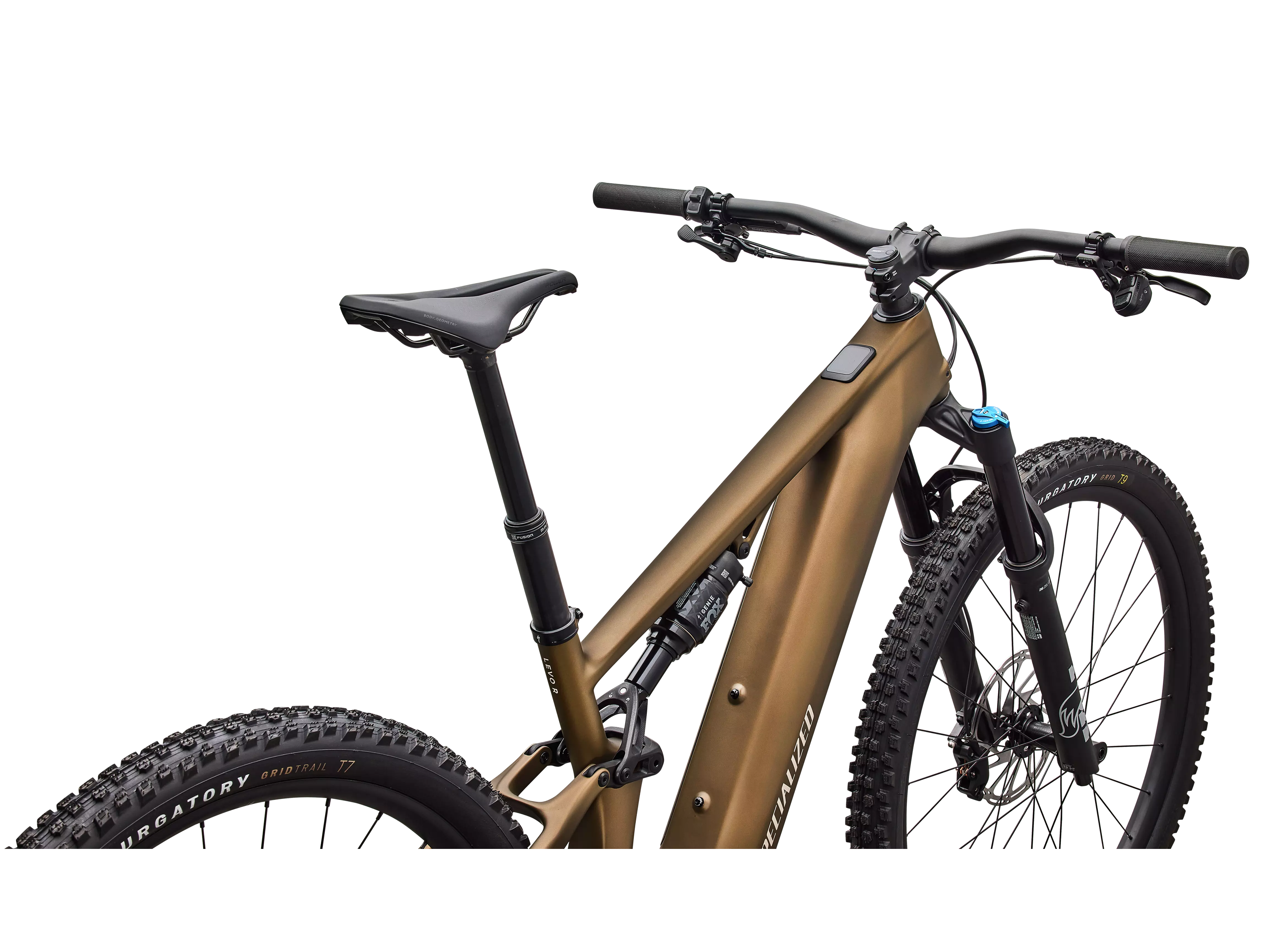

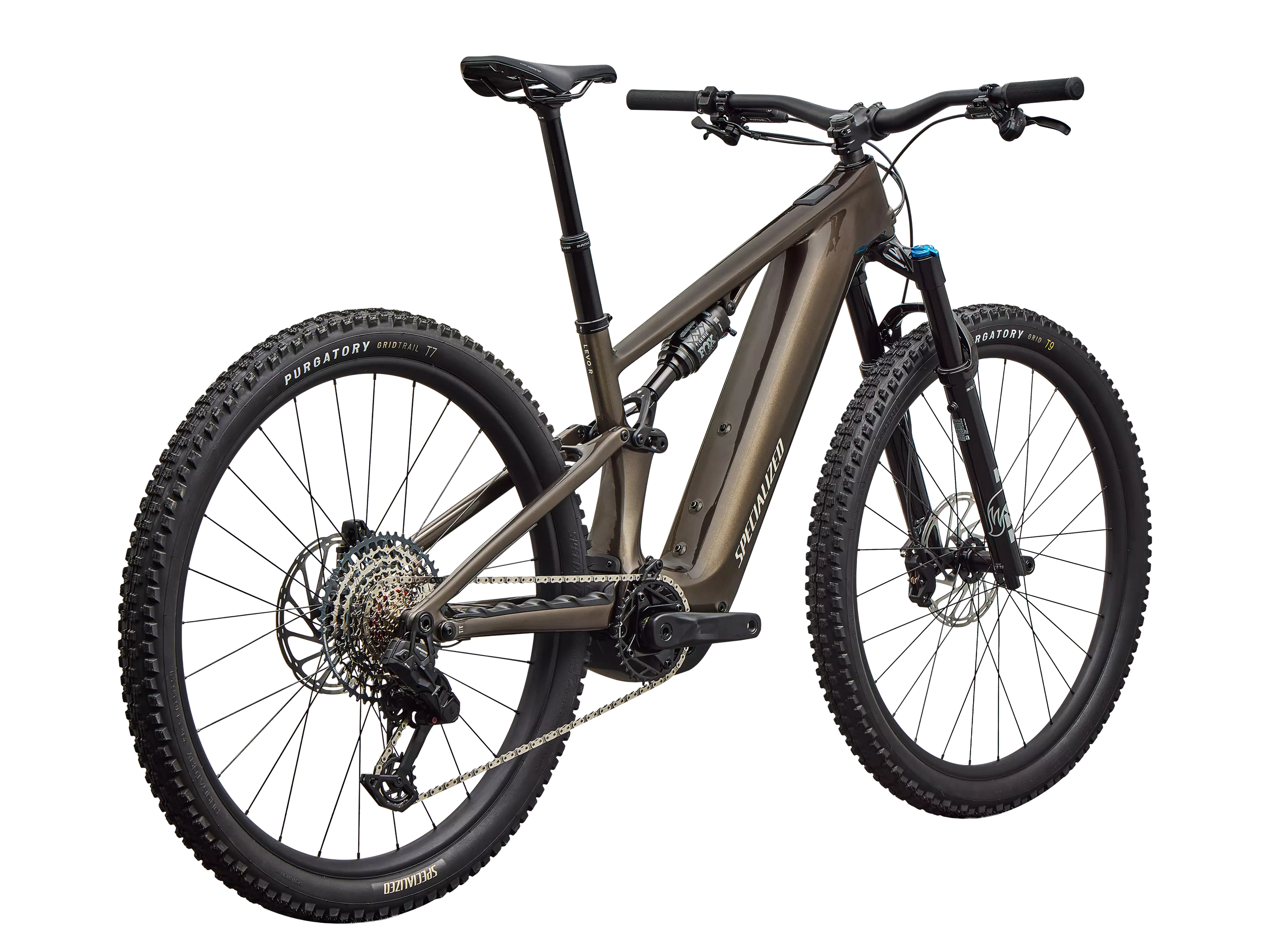

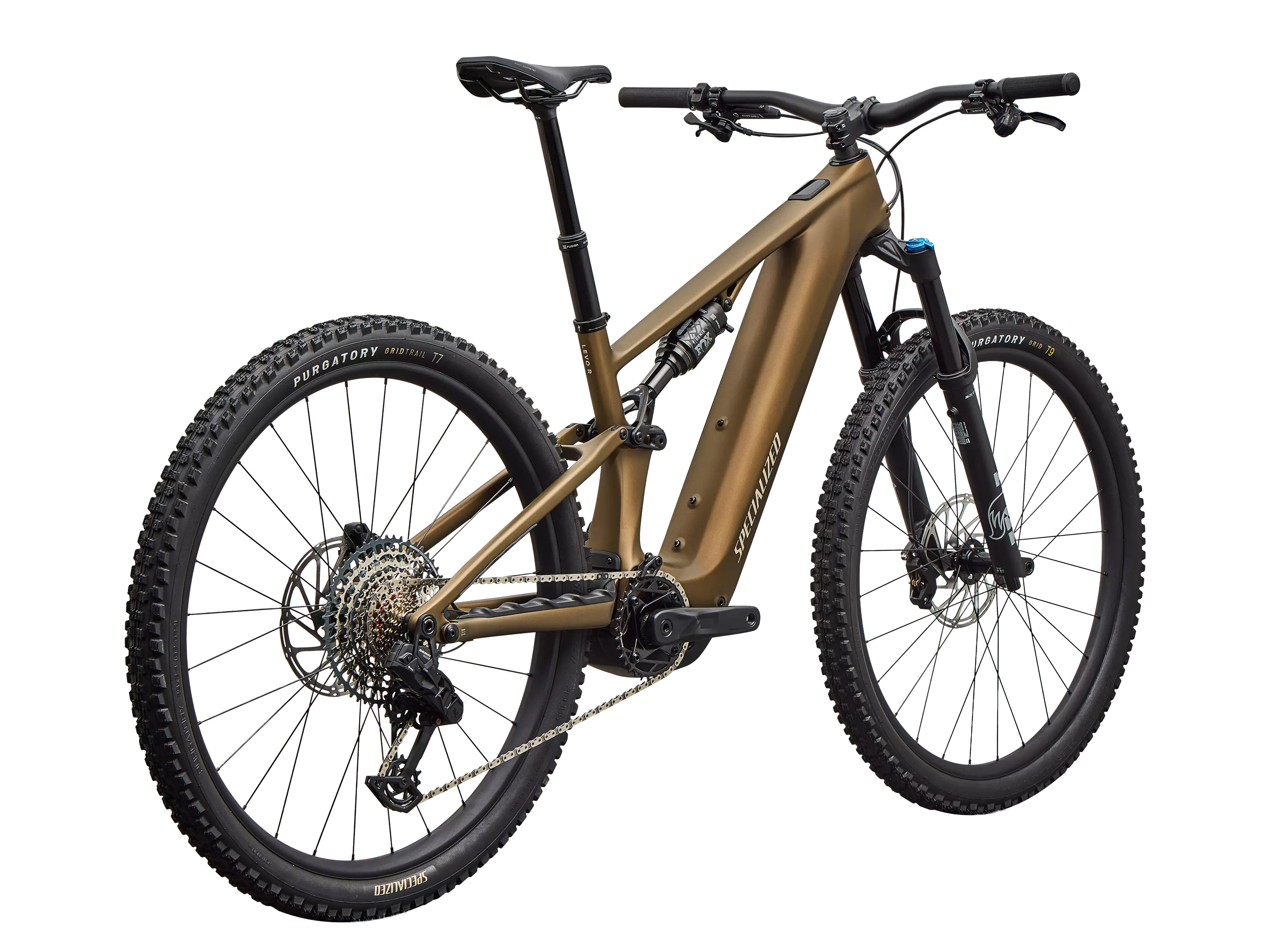

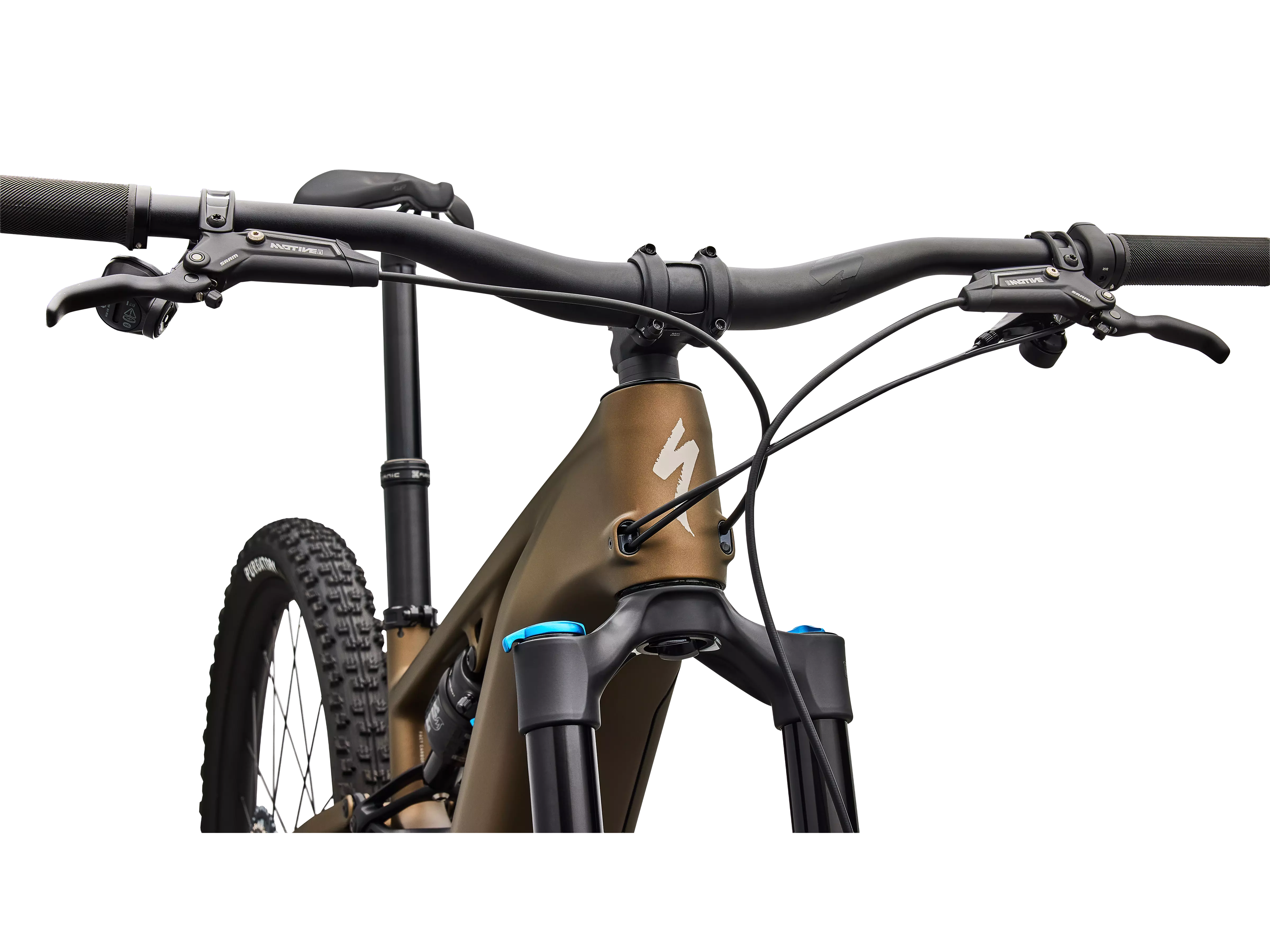

Turbo Levo R - Carbon Comp - Complete E-Bike
Turbo Levo R - Carbon Comp - Complete E-Bike
Satin Burnt Gold Metallic / Sandstone Metallic / S1
Fanatik Bike
1812 N. State St.
Bellingham WA 98225
United States
Every ride deserves a little extra. With our Fanatik Rewards program, you'll earn points on every purchase that can be redeemed for discounts on future orders. It's our way of saying thanks for choosing Fanatik and keeping you stoked for the next adventure. Learn more.
Choose options
Every ride deserves a little extra. With our Fanatik Rewards program, you'll earn points on every purchase that can be redeemed for discounts on future orders. It's our way of saying thanks for choosing Fanatik and keeping you stoked for the next adventure. Learn more.
Every ride deserves a little extra. With our Fanatik Rewards program, you'll earn points on every purchase that can be redeemed for discounts on future orders. It's our way of saying thanks for choosing Fanatik and keeping you stoked for the next adventure. Learn more.
Turbo Levo R
Highlights
- Full power Specialized 3.1 motor w/ 810 Watts and 105Nm
- 840Wh battery, up to 5 hour range w/ range extender
- Full 29 wheels for S2-S6 (S1 is mullet)
Description
Levo R - SuperNatural Power, Agility, and Range
Nothing this powerful has ever felt this agile. Light, tight, and ready to fight, Levo R channels the SuperNatural power of Levo 4 but sheds its manners. Like a rally car unleashed on dirt, you and Levo R become one, stealing endless flow and finishing with the grin of a thief who slipped away clean.<br>This is Electric Rally.
| Frame Material: | Carbon |
| Wheel Size: | 29" |
| Rear Axle Standard: | 12x148mm Boost |
| Rear Shock: | Fox FLOAT Performance GENIE |
| Rear Shock Size: | 190mm x 45mm |
| Rear Suspension Travel: | 130mm |
| Fork: | Fox 36 SL Performance |
| Fork Axle: | 15x110mm Boost |
| Wheelset: | Specialized Alloy Rear Hub Disc, Specialized hookless alloy 30mm |
| Front Tire: | Specialized Purgatory, GRID Casing, T9 Compound, 29x2.4 |
| Rear Tire: | Specialized Purgatory, Grid Trail Casing, T7 Compound, 29x2.4 (S1 27.5x2.4) |
| Crankset: | SRAM Eagle 70, BROSE/ISIS, 160mm, 32T |
| Chain: | SRAM GX Eagle Transmission 12-Speed Flattop Chain |
| Rear Derailleur: | SRAM S-1000 Eagle AXS Transmission |
| Cassette: | SRAM GX Transmission, XS 1275, 10-52t |
| Seatpost: | X-Fusion Manic, 34.9, S1-S2: 125mm, S3: 150mm, S4: 170mm, S5-S6: 190mm Travel |
| Seat Post Diameter: | 34.9mm |
| Seat Post Clamp Diameter: | 38.6mm |
| Seat: | Body Geometry Power Comp, steel rails |
| Shifters: | SRAM AXS POD Controller |
| Handlebar: | Specialized Alloy, 30mm/40mm rise, 35mm, 800mm wide |
| Stem: | Specialized Alloy Trail, 35mm bore, 50mm length |
| Grips: | Specialized Trail Grips |
| Brakes: | SRAM Motive Bronze, 200mm rotors |
| Water Bottle Cage Mounts: | 1 on down tube |
| Motor: | Specialized 3.1 |
| Maximum Power Output: | 810 Watts |
| Maximum Motor Torque: | 105 Nm |
| Battery: | Specialized |
| Battery Wattage: | 840 Wh |
| Intended Use: | Trail/AM |
| Size | S1 | S2 | S3 | S4 | S5 | S6 |
|---|---|---|---|---|---|---|
| Reach | 400 | 420 | 450 | 475 | 500 | 525 |
| Stack | 602 | 607 | 616 | 630 | 644 | 657 |
| Top Tube | 539 | 560 | 592 | 620 | 649 | 677 |
| Wheelbase | 1160 | 1181 | 1215 | 1246 | 1277 | 1309 |
| Head Tube° | 64.8° | 65° | 65° | 65° | 65° | 65° |
| Head Tube | 95 | 100 | 110 | 125 | 140 | 155 |
| Seat Tube° | 77° | 77° | 77° | 77° | 77° | 77° |
| Seat Tube | 375 | 385 | 405 | 425 | 445 | 465 |
| BB Height | 339 | 339 | 339 | 339 | 339 | 339 |
| BB Drop | 36 | 36 | 36 | 36 | 36 | 36 |
| Standover | 761 | 763 | 773 | 783 | 793 | 803 |
| Chainstay | 447 | 447 | 447 | 447 | 447 | 447 |
