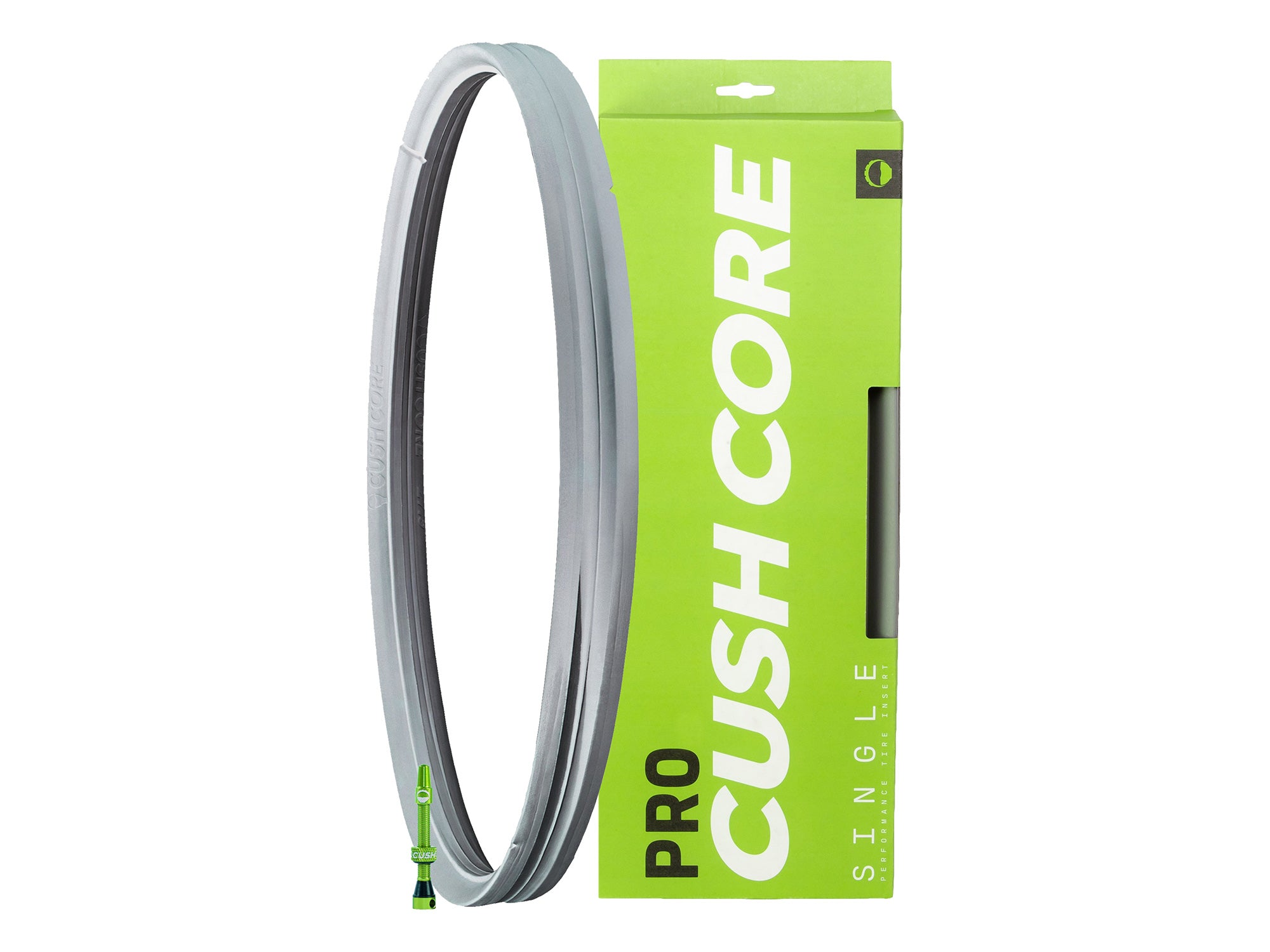

CushCore CushCore Single - 29"

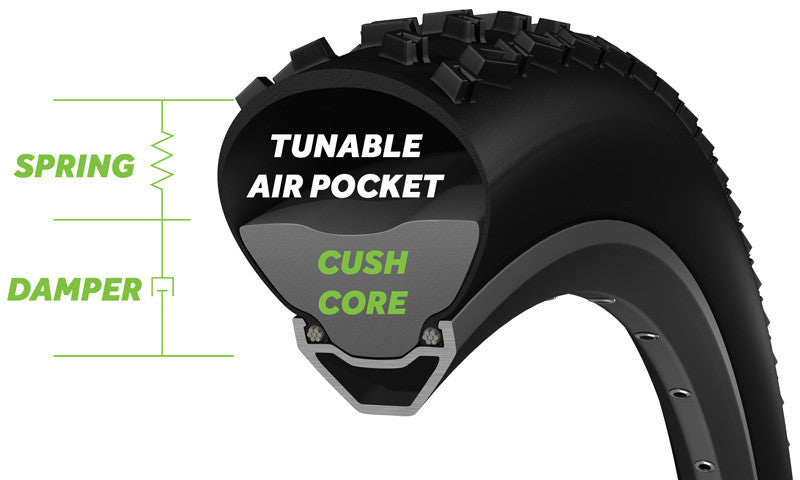

CushCore is an engineered foam insert that mounts inside a mountain bike tire. It divides the inner volume of the tire in half, with air underneath the tread and the CushCore insert next to the rim. The rim and CushCore work together as a spring and damper – In other words, an Inner-Tire Suspension System. Cushcore absorbs impacts, reduces vibration, and adds lateral stability to the tire. These characteristics translate to a more controlled, comfortable, and faster ride.
This system is designed to be used with tubeless-ready or tubeless converted mountain bike rims and tires. CushCore is compatible with tubeless tire sealants.
A specially designed tubeless air valve is required for use with each insert and is sold separately. The valve allows air to flow freely past the insert without becoming obstructed .
Compared to standard tubeless tires, CushCore provides up to:
- 50% reduction in vertical impact force
- 77% reduction in lateral vibrations
- 58% reduction in longitudinal vibrations
*est. weight includes 1 - 29" insert and valve stem
- CushCore is compatible with most tubeless tires and rims
- Fits tire widths 2.1 - 2.5"
- Fits rims with internal width 22 - 35mm
- If your wheels are not tubeless ready, rim sealing tape will be required
- We recommend the use of tubeless tire sealant (such as Stan's®) with CushCore
Specs subject to change without notice. Please check with manufacturer for the most up-to-date information.
