Santa Cruz

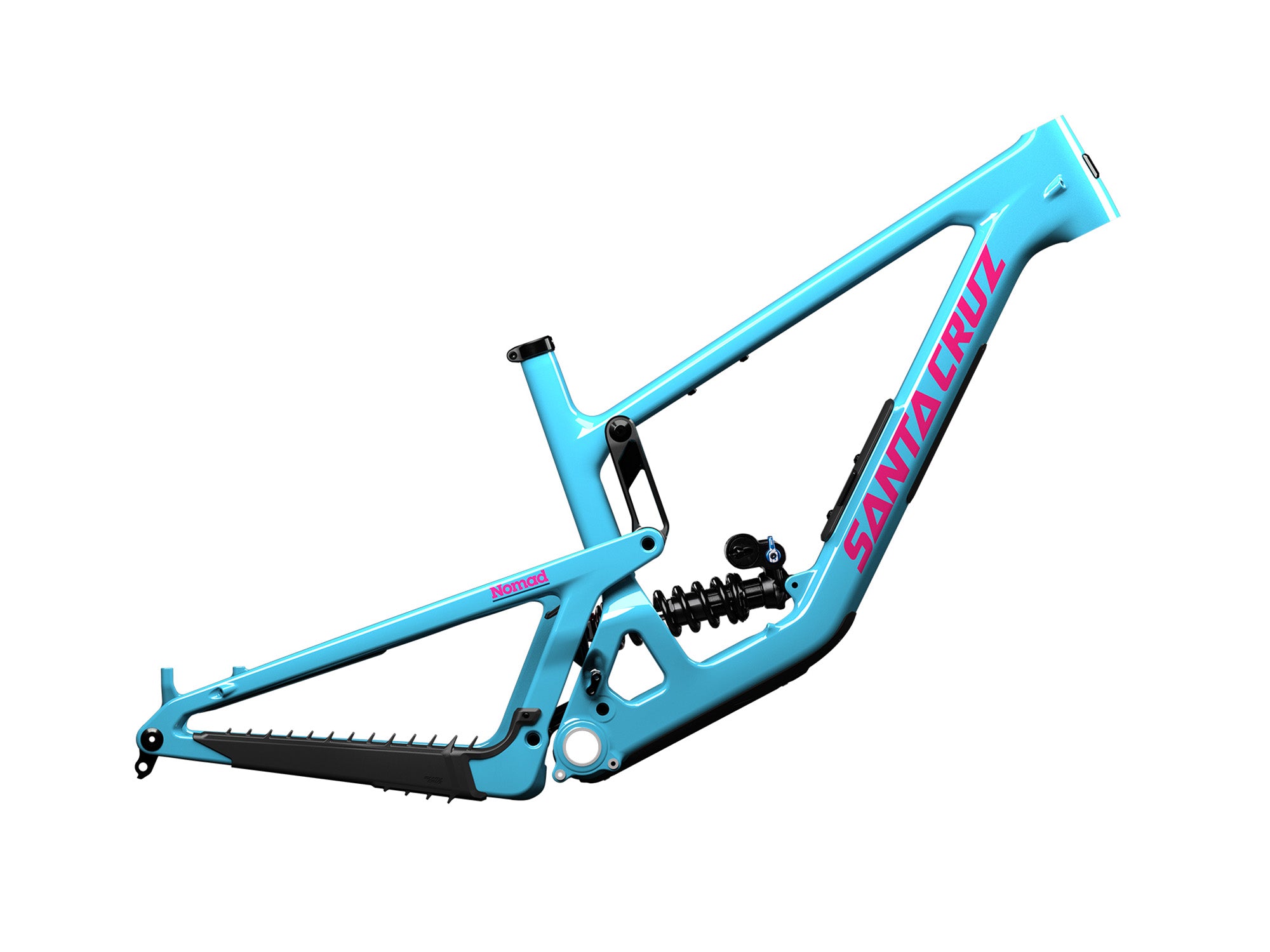

Nomad 7 Carbon CC Frameset - 2026
Nomad 7 Carbon CC Frameset - 2026
Aqua / SM
Fanatik Bike
1812 N. State St.
Bellingham WA 98225
United States
Every ride deserves a little extra. With our Fanatik Rewards program, you'll earn points on every purchase that can be redeemed for discounts on future orders. It's our way of saying thanks for choosing Fanatik and keeping you stoked for the next adventure. Learn more.
Choose options
Every ride deserves a little extra. With our Fanatik Rewards program, you'll earn points on every purchase that can be redeemed for discounts on future orders. It's our way of saying thanks for choosing Fanatik and keeping you stoked for the next adventure. Learn more.
Every ride deserves a little extra. With our Fanatik Rewards program, you'll earn points on every purchase that can be redeemed for discounts on future orders. It's our way of saying thanks for choosing Fanatik and keeping you stoked for the next adventure. Learn more.
Highlights
- 170mm VPP Suspension: Redesigned suspension improves pedaling efficiency, traction, and composure while reducing harshness under braking
- Mixed Wheel Setup (MX): 29” front and 27.5” rear for stability up front and agility out back
- CC Carbon Frame: Lightweight, strong construction with lifetime warranty and bearings for life
- Refined Kinematics: Updated leverage curve improves mid-stroke support and small bump sensitivity for a more consistent feel
- Lower Anti-Squat: Reduces pedal feedback and increases traction on technical climbs and square-edge impacts
- Reduced Anti-Rise: Improves rear suspension sensitivity and traction while braking
- Glovebox V2 Storage: In-frame storage system with improved latch, access, and frame contact
- Accessory Mounts: Integrated top tube mounts for carrying trail essentials
- Size-Specific Geometry: Tailored chainstay length and frame stiffness for consistent ride quality across all sizes
- Flip Chip Adjustment: Fine-tune geometry and ride feel with lower link flip chip
- Integrated Chain Guide: Two-bolt ISCG mounting with included upper guide for chain security
- Mechanical Routing: Compatible routing across all frames for simpler setup and service
Description
The Santa Cruz Nomad is built for riders who want maximum downhill capability without giving up the ability to pedal to the top. With a completely redesigned VPP suspension platform, the Nomad delivers improved climbing efficiency, reduced harshness under braking, and enhanced traction across a wide range of terrain. The result is a bike that feels more composed, more predictable, and more confident when the trail gets steep and technical.
Built around a CC carbon frame and mixed-wheel (MX) setup, the Nomad combines 170mm of rear travel with a 170mm fork to handle big hits, rough descents, and aggressive riding styles. Updated kinematics refine support through the travel while maintaining sensitivity, giving riders a more consistent feel from top to bottom.
With size-specific geometry, in-frame storage, and durable construction backed by a lifetime warranty, the Nomad is designed to be pushed hard, ridden often, and trusted when the terrain gets rowdy.
| Frame Material: | Carbon |
| Wheel Size: | MX (29"/27.5") |
| Front Suspension Travel: | 170mm |
| Rear Suspension Travel: | 170mm |
| Rear Shock: | Fox DH X2 Factory Coil |
| Rear Shock Size: | 230mm x 65mm |
| Rear Axle Width: | 12x148mm Boost |
| Headset Standard: | IS41mm/IS52mm |
| BB Standard: | 73mm BSA |
| ISCG Tabs: | ISCG '05 2-Bolt |
| Brake Mount Type: | Post-Mount 200mm |
| Min Rear Rotor Size: | 200mm |
| Max Rear Rotor Size: | 223mm |
| Maximum Chainring Size: | 36t |
| Maximum Tire Size: | 27.5" x 2.5" |
| Seat Post Diameter: | 31.6mm |
| Seat Clamp Diameter: | 36.4mm |
| Frame Storage: | Santa Cruz Glovebox V2 |
| Frame Storage Bag: | Two supplied gear bags with organization pockets |
| Water Bottle Cage Mounts: | One full size bottle and one accessory mount |
| Motor: | All Mountain / Enduro |
| Intended Use: | AM/Enduro |
| Warranty: | Lifetime | Lifetime Bearing Replacement |
Flip Chip: Hi
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Reach | 435 | 455 | 475 | 495 | 520 |
| Stack | 624 | 633 | 643 | 660 | 670 |
| Top Tube | 569 | 587 | 604 | 627 | 651 |
| Wheelbase | 1219 | 1246 | 1276 | 1305 | 1339 |
| Head Tube° | 63.6° | 63.6° | 63.6° | 63.6° | 63.6° |
| Head Tube | 100 | 110 | 120 | 140 | 150 |
| Seat Tube° | 78° | 78.2° | 78.6° | 78.7° | 78.9° |
| Seat Tube | 380 | 405 | 430 | 460 | 500 |
| BB Height | 346 | 346 | 346 | 346 | 346 |
| BB Drop | 26.5 | 26.5 | 26.5 | 26.5 | 26.5 |
| Standover | 711 | 719 | 723 | 727 | 733 |
| Chainstay | 438 | 441 | 444 | 447 | 450 |
Flip Chip: Low
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Reach | 435 | 455 | 475 | 495 | 520 |
| Stack | 624 | 633 | 643 | 660 | 670 |
| Top Tube | 569 | 587 | 604 | 627 | 651 |
| Wheelbase | 1219 | 1246 | 1276 | 1305 | 1339 |
| Head Tube° | 63.6° | 63.6° | 63.6° | 63.6° | 63.6° |
| Head Tube | 100 | 110 | 120 | 140 | 150 |
| Seat Tube° | 78° | 78.2° | 78.6° | 78.7° | 78.9° |
| Seat Tube | 380 | 405 | 430 | 460 | 500 |
| BB Height | 346 | 346 | 346 | 346 | 346 |
| BB Drop | 26.5 | 26.5 | 26.5 | 26.5 | 26.5 |
| Standover | 711 | 719 | 723 | 727 | 733 |
| Chainstay | 438 | 441 | 444 | 447 | 450 |
Size Guide
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Height | 154 - 165 | 165 - 175 | 175 - 185 | 185 - 193 | 193 - 200 |
